Kuriyama of America King Bee KBEE Series

Interested in Pumps?

Get Pumps articles, news and videos right in your inbox! Sign up now.

Pumps + Get Alerts

Hose and Fitting

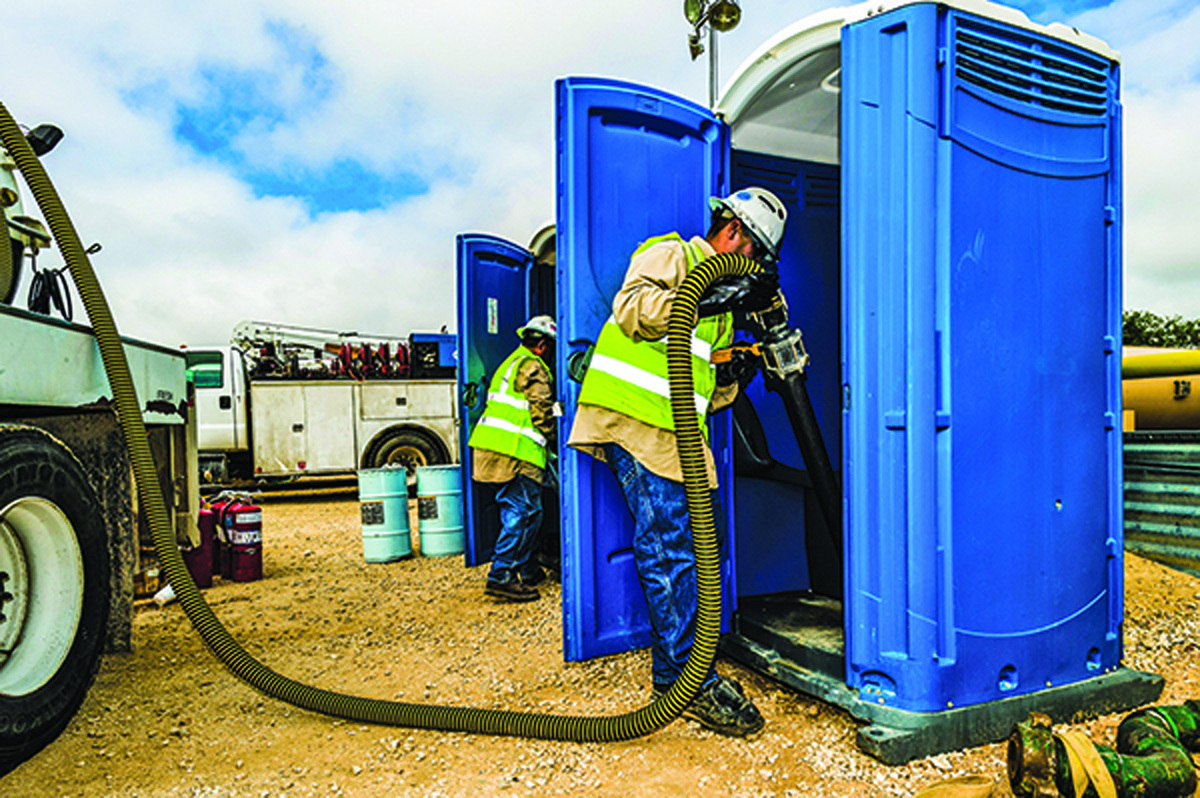

Kuriyama of America King Bee KBEE Series

King Bee KBEE Series polyethylene liquid suction hose from Kuriyama of America provides flexibility for maneuvering in tight areas such as portable restrooms. The hose remains flexible in subzero temperatures, is crush resistant and will not kink. The easy-slide helix protects the hose tube from cover wear and moves easily over rough surfaces. Overmolded cuffs help prevent leaking. It is available in 2- and 3-inch I.D. sizes in multiple lengths. The 3-inch I.D. hose is also available as a 3-foot hose guard. 847-755-0360;

Hose Reels

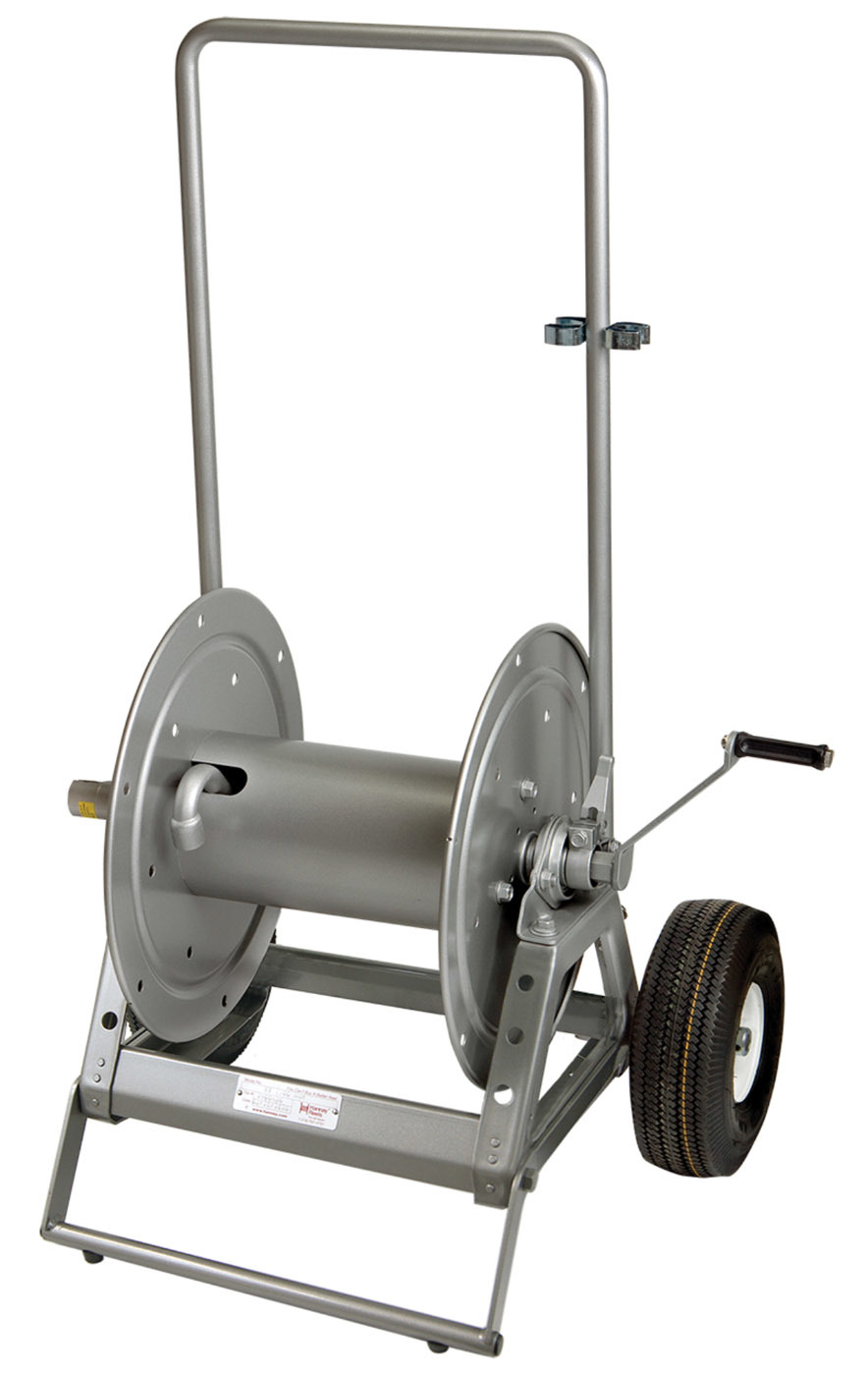

Hannay Reels AT1100

The Hannay Reels portable AT1100 reel is lightweight and on wheels, making it suitable for washdown and spray applications and for accessing hard-to-reach areas. With a detachable steel handlebar and oversized pneumatic tires, the reel is designed to stand up to tough working environments. Deployment and rewind are made easy with a flexible swivel joint and direct crank rewind. It is available with a stainless steel hub and bearings for protection against corrosion and contamination. It is designed to handle 3/8- through 5/8-inch I.D. hose and pressures up to 3,000 psi. It can operate through a wide range of temperatures, from 20 to 400 degrees F. 877-467-3357;

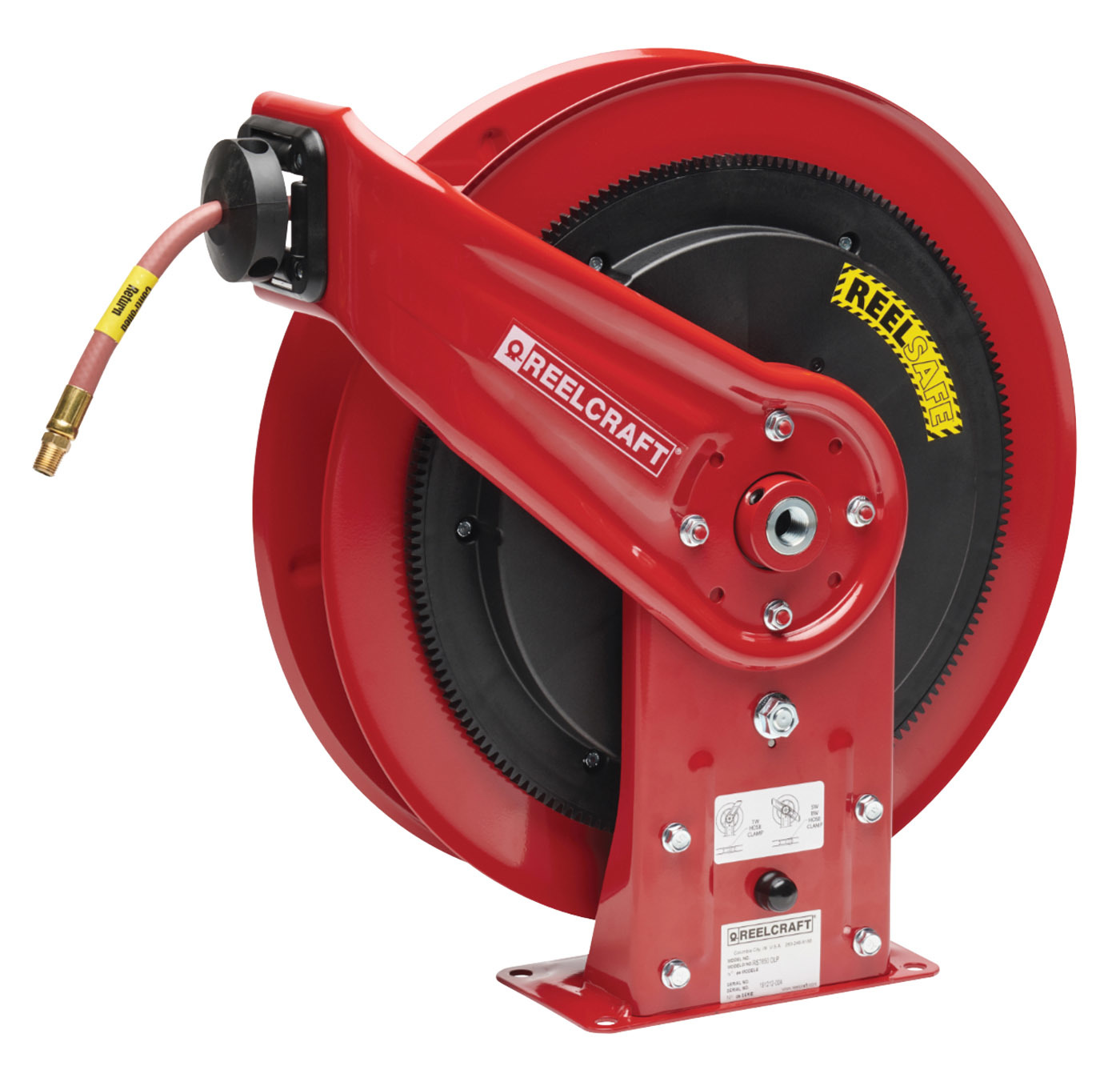

Reelcraft Industries REELSAFE Series RS7000

REELSAFE Series RS7000 controlled-return hose reels from Reelcraft Industries play out like a traditional reel but are engineered to retract at an average walking speed. The centrifugal clutch — integral to the reel base — decelerates the hose retraction speed by up to 83% versus a Series 7000 reel. The reels can handle 1/4-, 3/8-, 1/2- and 3/4-inch hose diameters in 25-, 50- and 70-foot lengths. Options are available for low-pressure (up to 300 psi), medium-pressure (up to 3,000 psi) and high-pressure (up to 5,000 psi) applications. The integral clutch creates a consistent retraction speed regardless of fluid or environmental temperatures, protecting personnel and equipment. It requires no field adjustment, and the through-shaft fluid path eliminates hose interference during reel rotation. It includes a seven-position hose guide arm for multiple mounting configurations. 800-444-3134;

Vacuum Pumps

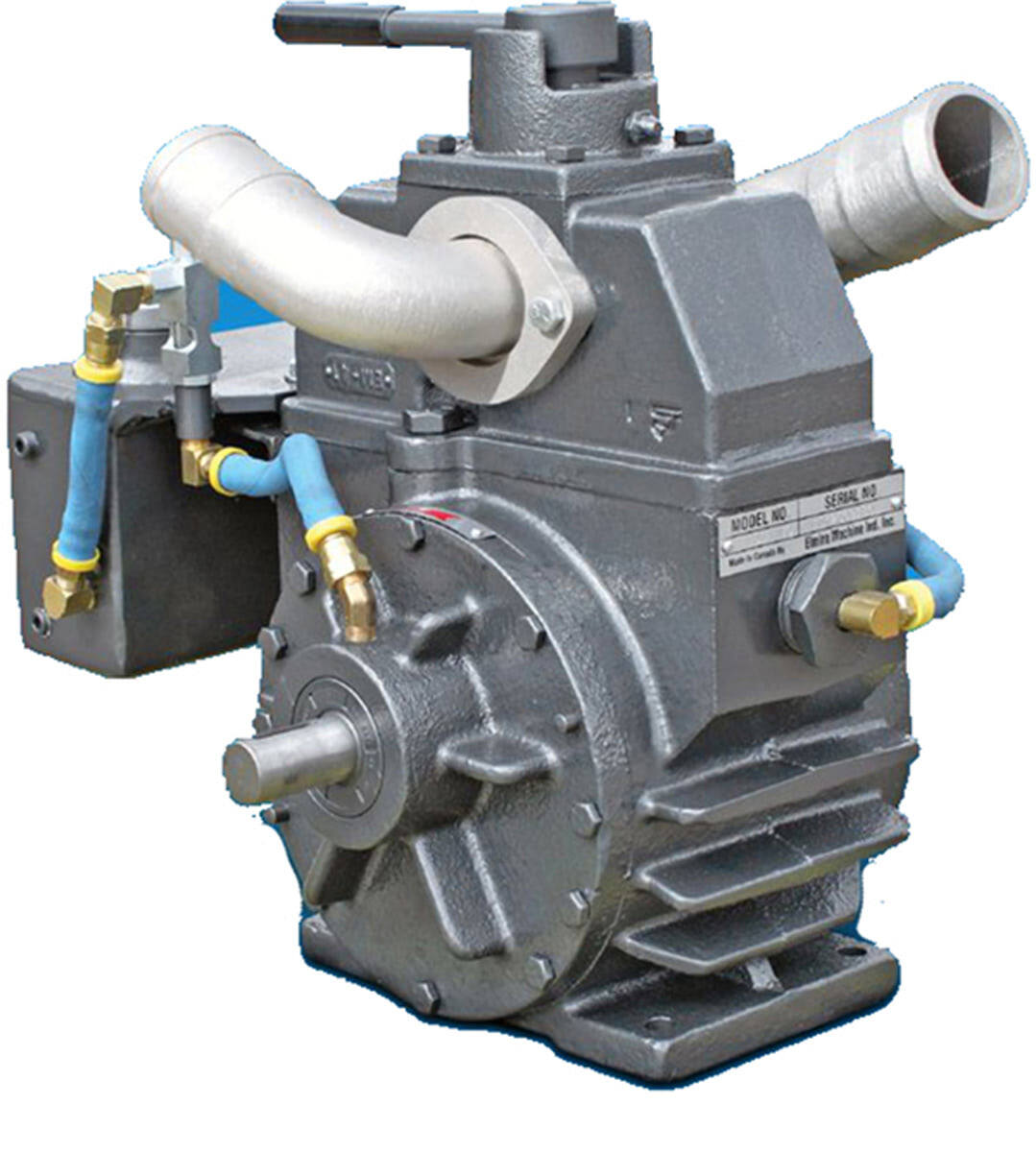

Elmira Machine Industries / Wallenstein Vacuum Model 151

The Model 151 from Elmira Machine Industries / Wallenstein Vacuum can be used with portable sanitation tanks and slide-in units and at campgrounds and marinas that require a compact package. It offers 80 cfm at 15 inches Hg, with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counterclockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven. 800-801-6663;

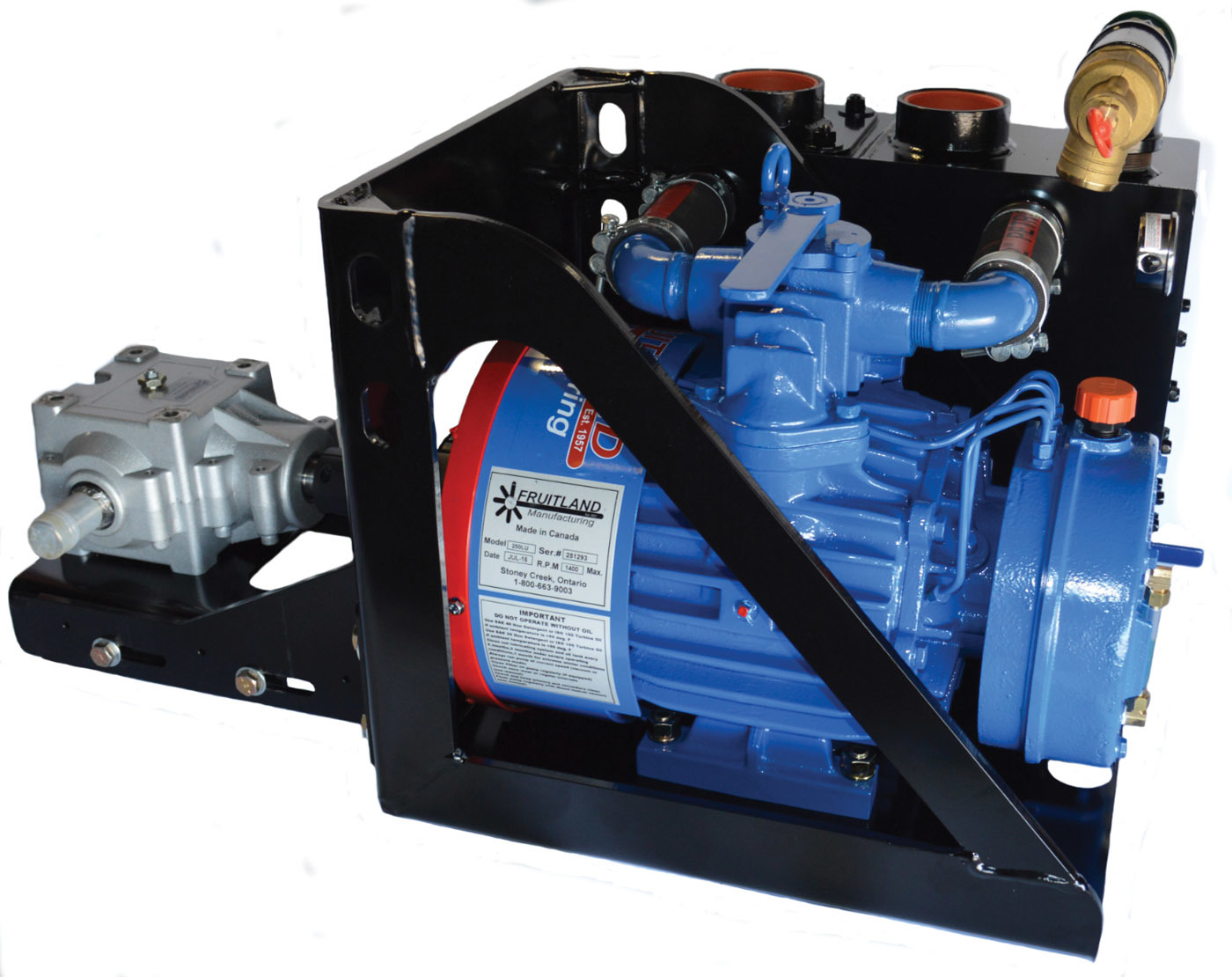

Fruitland Eliminator 250PT

The Eliminator 250PT from Fruitland was designed with a smaller mount and accessories, allowing it to fit on most portable restroom service trucks while still allowing for big-truck, continuous-duty performance. The package includes an RCF250 180 cfm vacuum pump with an integral heavy-duty secondary shut-off and oil-catch muffler. The design is 26 inches wide and 19 inches high to take up less frame rail space. It comes with hydraulic or gearbox drive options; the gearbox drive provides five distance options for alignment to the PTO shaft (8, 9, 10, 11 and 12 inches). The mount has two emergency brake cable slots for quick and easy installation. It offers low oil consumption, including an automated oiling system with all-steel oil lines, pump oil-level sight gauge, vane gauging ports and anti-shock design. 800-663-9003;

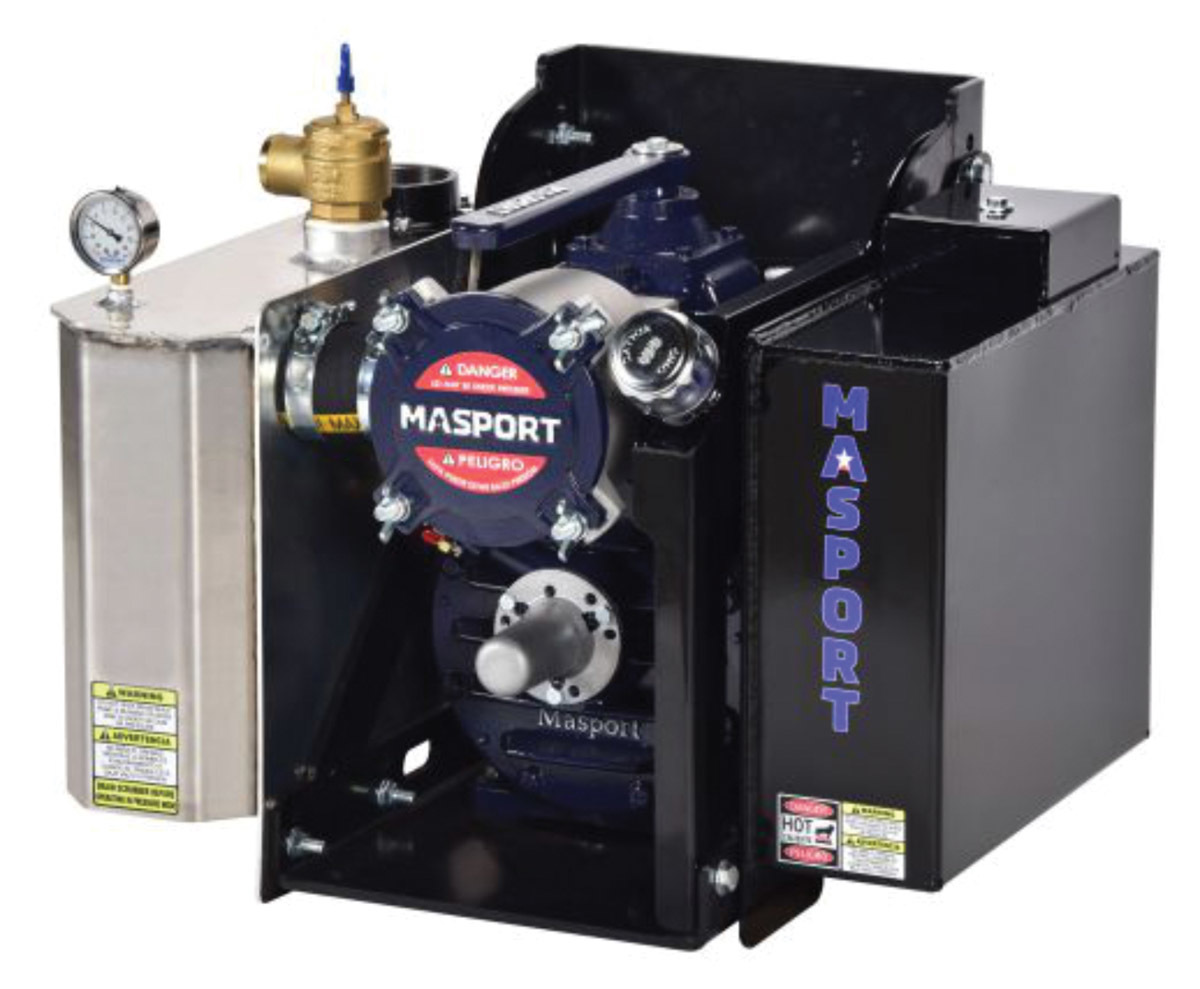

Masport HXL4V and HXL5V

HXL4V and HXL5V plug-and-play vacuum systems from Masport have a compact, low-profile design that incorporates an integrated scrubber, oil separator and inlet filter. The systems are fully integrated so they can slot into place, removing installation hassles and minimizing installation labor costs. They are available with plastic, steel or combination oil/flushing reservoir; and self-aligning gearbox and hydraulic drive options are also available. An optional extended self-aligning gearbox is available for direct alignment to the PTO on all truck models. 800-228-4510;

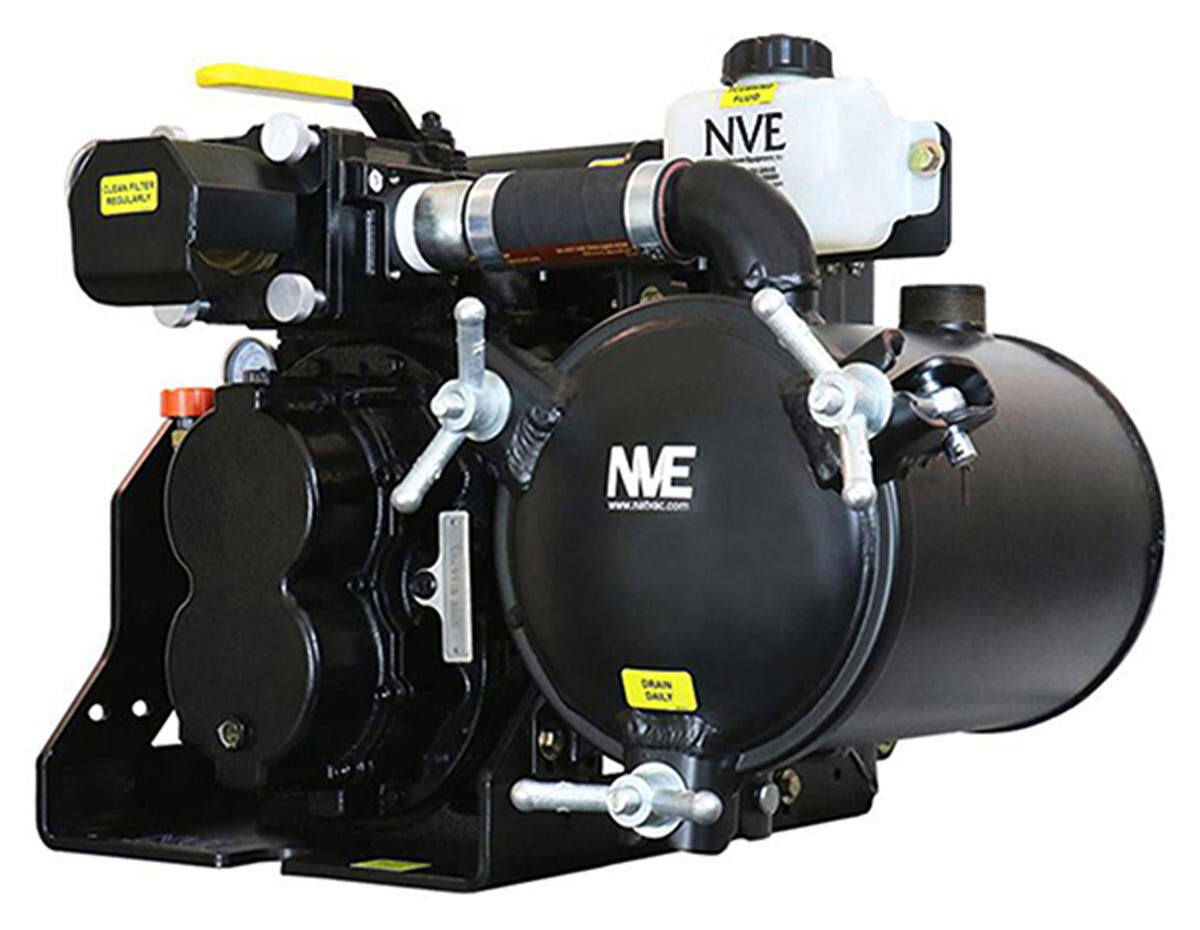

National Vacuum Equipment B250 Max Pak

National Vacuum Equipment’s B250 Max Pak is designed for the portable restroom market, using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil-free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1 to 1.5 ratio gearbox makes it easy to provide the optimum revolutions per minute to the blower while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and Dodge 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel-drive trucks. 800-253-5500;

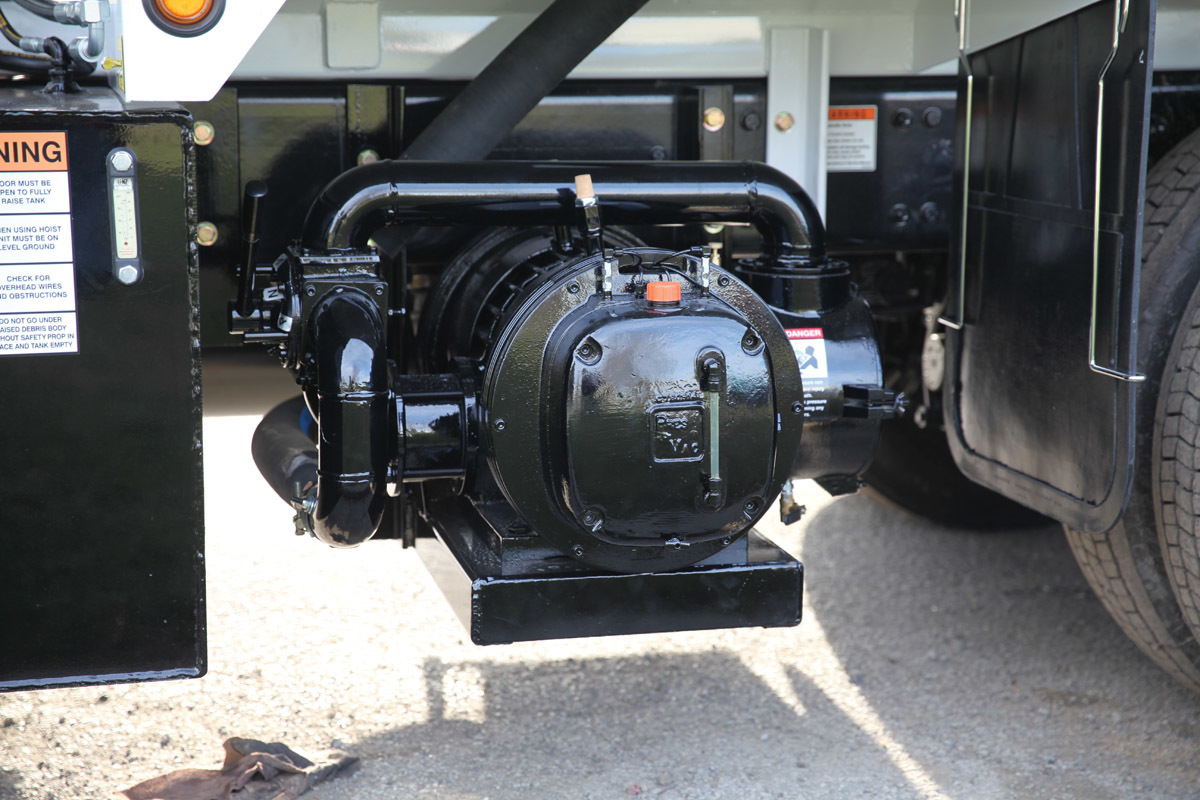

Presvac Systems PV750

The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin ballast ports efficiently cool the pump. The solid housing with deep cooling ribs allows for greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger to aid in heat reduction. Multiple manifold and drive options are available for truck, trailer or stationary applications. 800-387-7763;

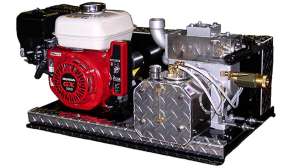

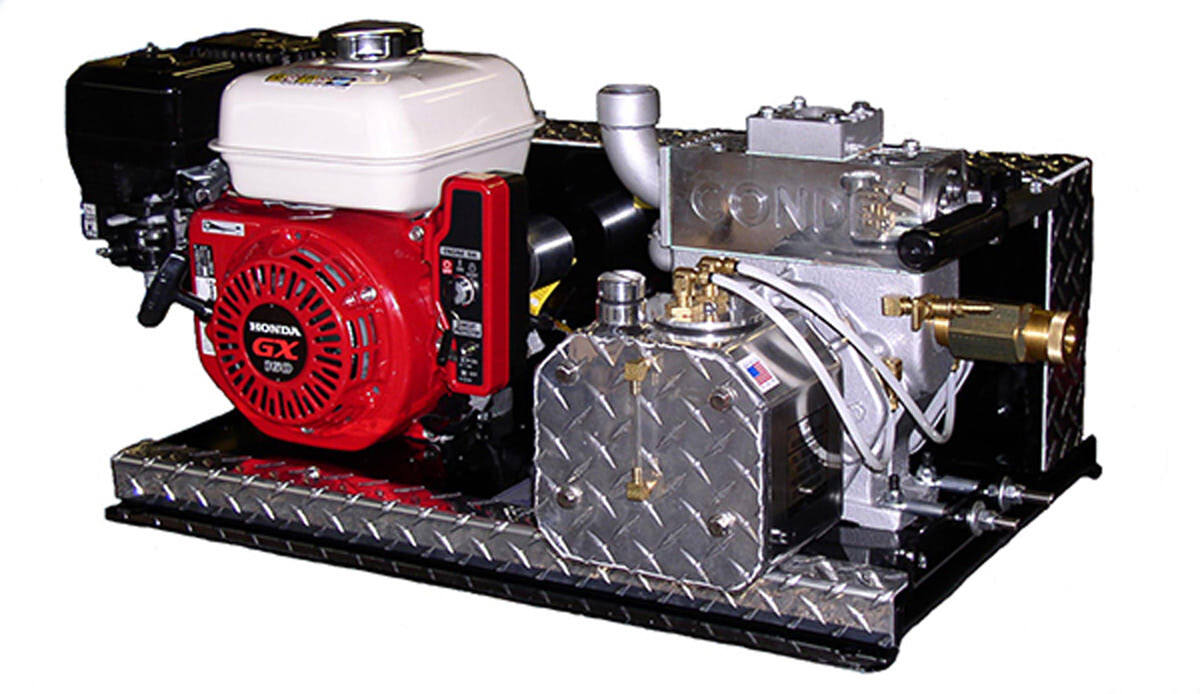

Westmoor Conde PowerPaks

Conde PowerPaks preassembled gasoline- or diesel-powered vacuum pump units from Westmoor are easy to install. A heavy-duty steel base with aluminum diamond plate trim and belt guard ensure the unit is aesthetically pleasing. Rigid assembly minimizes vibration and maximizes power. They are available with either vacuum/pressure or vacuum-only pumps. A wide range of cubic-feet-per-minute options ensures matching the right unit to tank size and application. They are powered with optional Honda GX commercial-series gasoline engines or Hatz industrial air-cooled diesel engines. Units can be easily transferred to another tank system when needed. 800-367-0972;

Washdown Pump

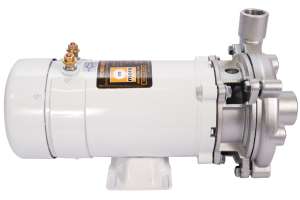

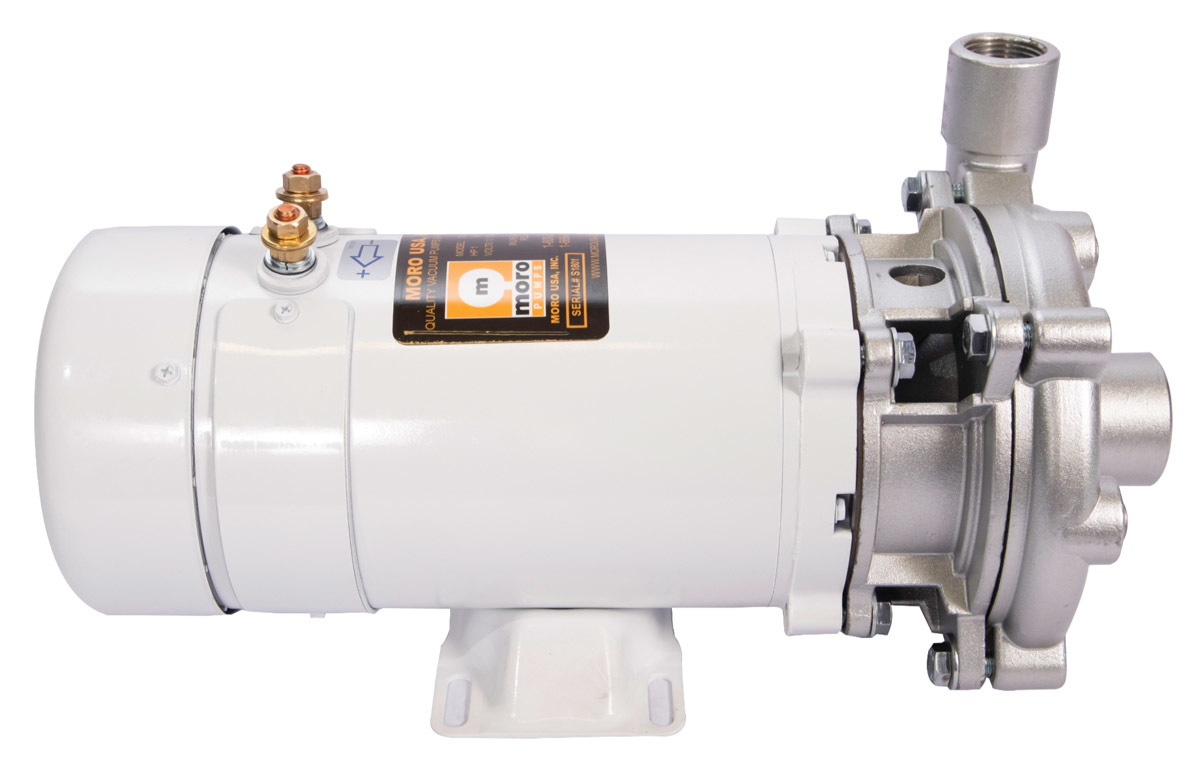

Heavy-duty Moro USA DC water pumps offer 20 gpm maximum flow for quick restroom fills, while 42 psi maximum pressure provides quick high-pressure cleaning. Available with cast iron or stainless steel pump body, both models offer a stainless steel impeller and Viton elastomers. Fan-cooled, 12-volt (83-amp maximum draw) motors are epoxy-coated for durability. These continuous-duty pumps come solenoid- and pressure-switch standard for easy installation. They have 1.25-inch suction and 1-inch discharge ports. The discharge can be mounted in four different positions. 800-383-6304;
