Fruitland Manufacturing ELIM G-172
The ELIM G-172 gas engine-driven system from Fruitland Manufacturing is the most compact option in the Eliminator slide-in engine-driven line. It is suitable for portable restroom and septic vacuum truck applications, especially where space and efficiency are required. This package comes with a 14 hp Briggs and Stratton Vanguard engine, a 127 cfm free airflow Fruitland RCF172 vacuum pump, a standard bolt-in truck mount, and is available in left-hand or right-hand orientation. Packages are also available with various pump models and types and in many different configurations.
800-663-9003; www.fruitlandmanufacturing.com

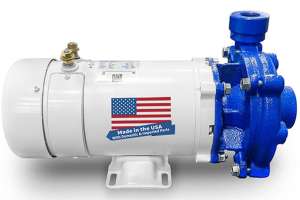

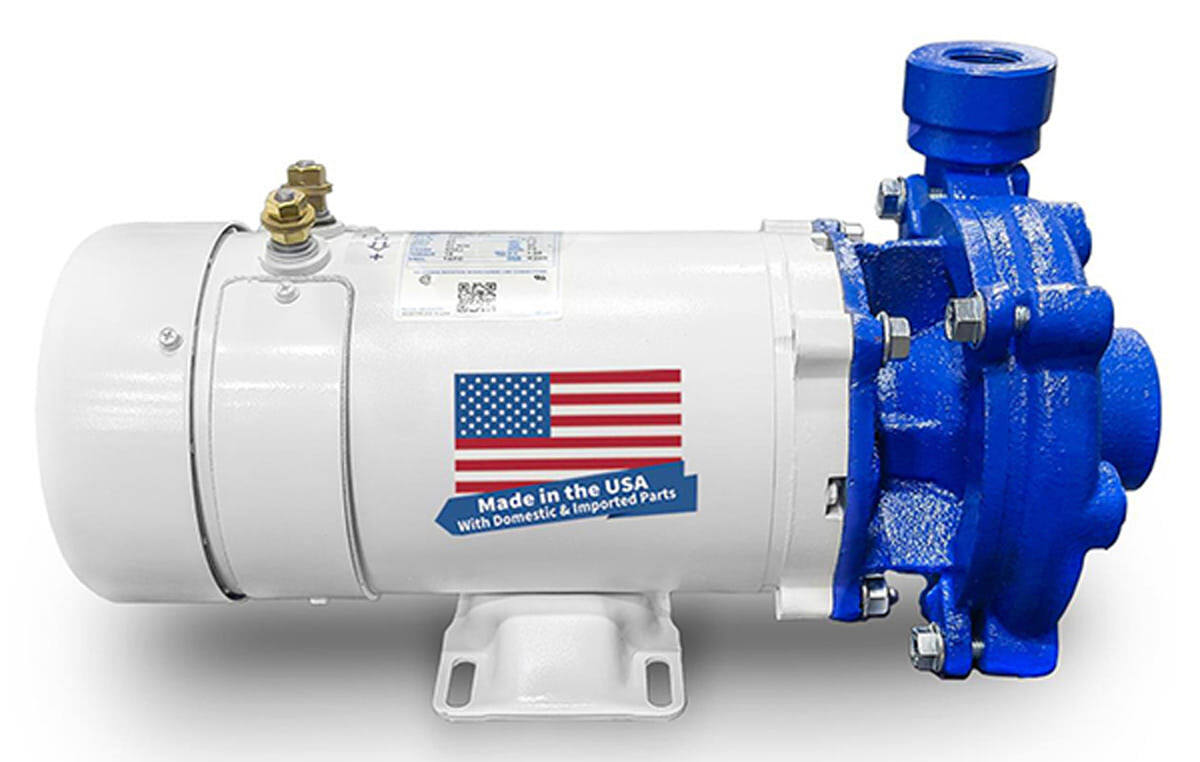

Moro USA DC Washdown Pumps
Moro USA DC Washdown Pumps have a maximum delivery rate of 20 gpm, 42 psi and are primarily utilized for filling sinks and cleaning portable restrooms. The centrifugal pumps are designed with corrosion-resistant materials for operating in wet conditions, and can be used in other applications such as industrial, marine and water circulation. They have an epoxy-coated 12-volt DC motor, stainless steel impeller, four front drain plugs, and a carbon/ceramic/Viton mechanical seal. They require the installation of an in-line circuit breaker and a 12-volt solenoid. Models include the DCC cast iron washdown pump with stainless impeller, DCSC cast iron washdown pump with stainless steel impeller kit, DCS stainless steel washdown pump, and the DCSS stainless steel washdown pump kit.
866-383-6304; www.morousa.com

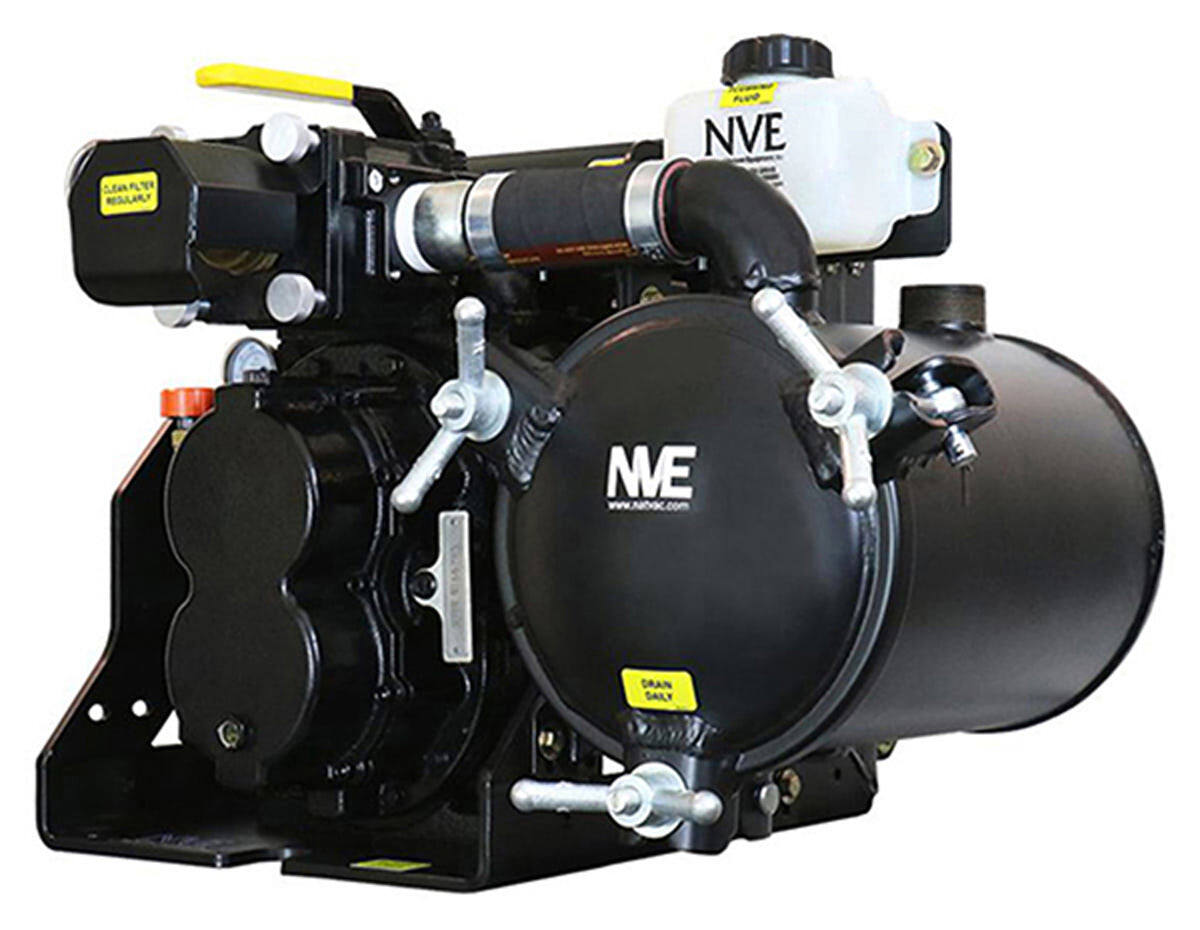

National Vacuum Equipment B250 Max Pak
The National Vacuum Equipment B250 Max Pak is designed for the portable restroom market, using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil-free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1-to-1.5 ratio gearbox makes it easy to provide optimum revolutions per minute to the blower, while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and RAM 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel drive.
800-253-5500; www.natvac.com

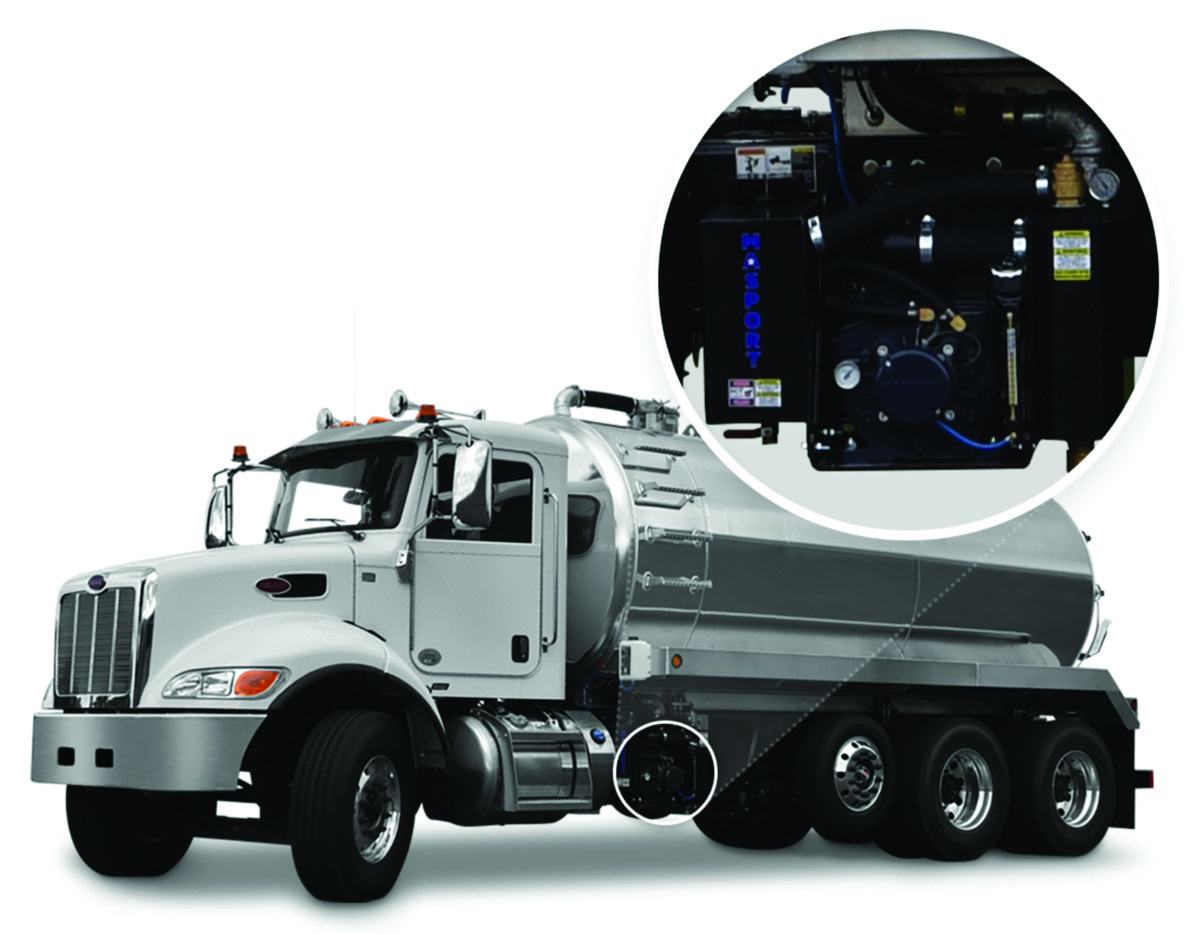

Satellite Masport HXL4V
Satellite Industries integrates the Masport HXL4V vacuum pump into its trucks and slide-in systems. It has the capability to achieve a minimum of 27 inches Hg (intermittent), and comes equipped with heavy-duty bearings and Viton oil seals for exceptional longevity. Kevlar vanes are heat stabilized and machined with exacting tolerances for durability. Durable translucent high-temperature oil lines allow a visible oil flow to the pump. The double-end shaft accommodates clockwise and counter-clockwise drive systems, offering the flexibility to suit specific requirements. O-ring end covers eliminate air or oil leakages.
800-883-1123; www.satelliteindustries.com

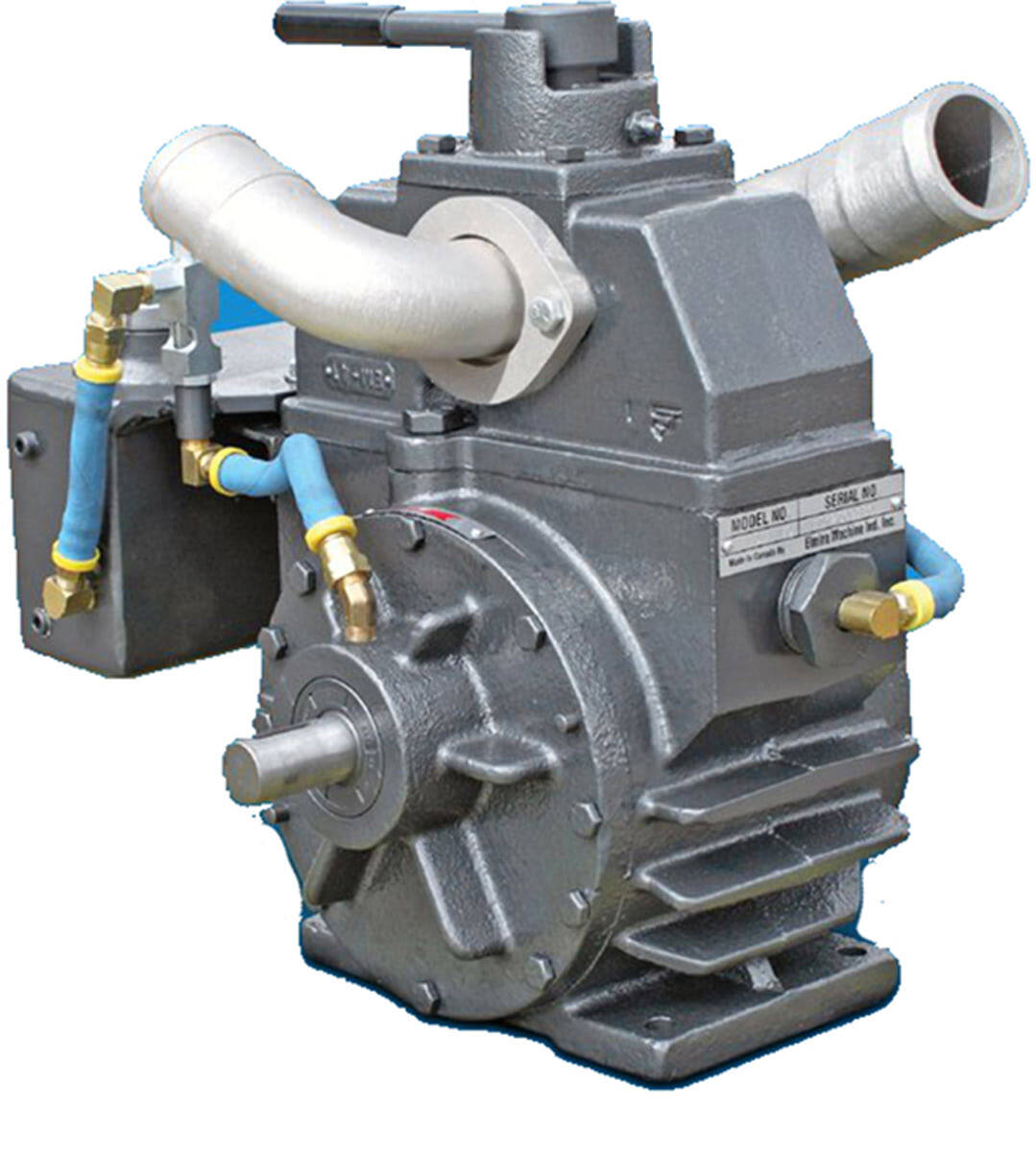

Wallenstein Vacuum Model 151
The Model 151 from Wallenstein Vacuum can be used with portable sanitation tanks and slide-in units and at campgrounds and marinas requiring a compact package. It offers 80 cfm at 15 inches Hg, with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counter-clockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven.
800-801-6663; www.wallenstein.com

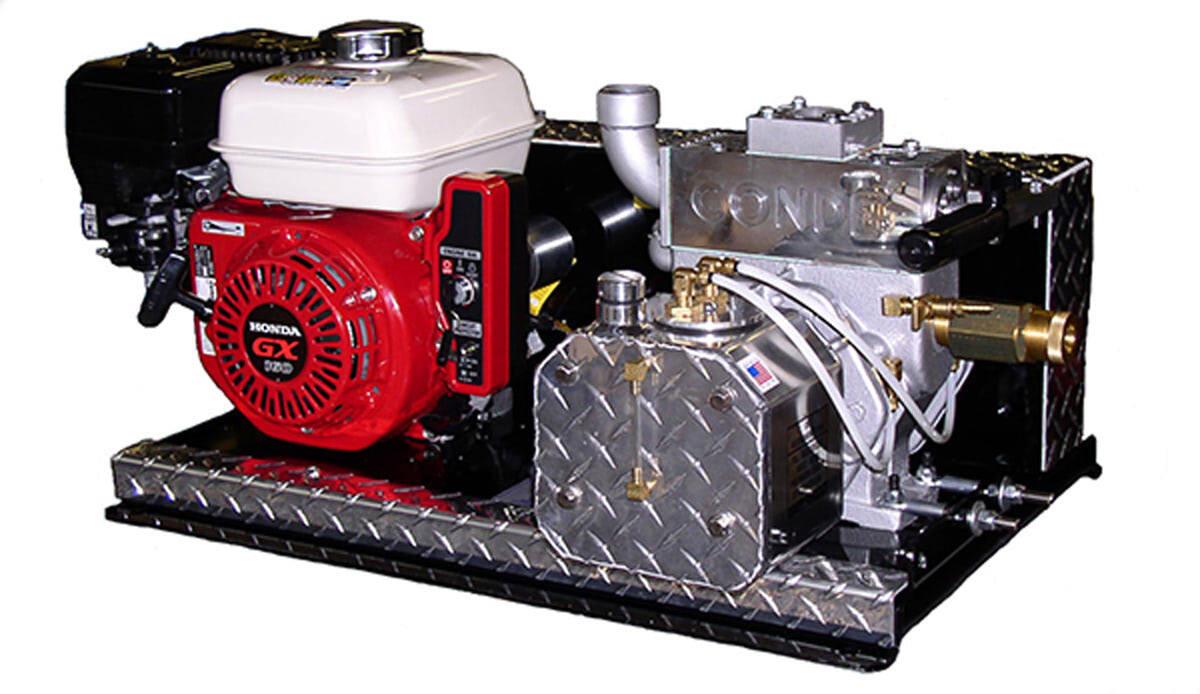

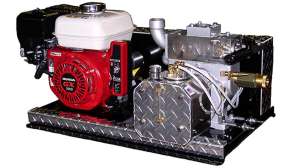

Westmoor Conde PowerPaks
Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations. Direct-drive units incorporate a centrifugal clutch that allows throttling down the engine and disengaging the vacuum pump. Throttle up and the pump is in action. Specify either vacuum and pressure, or vacuum-only pump choice. Diesel-powered units are also available for applications where nonsparking engines are required.
800-367-0972; www.westmoorltd.com
