Slide-In Service Units

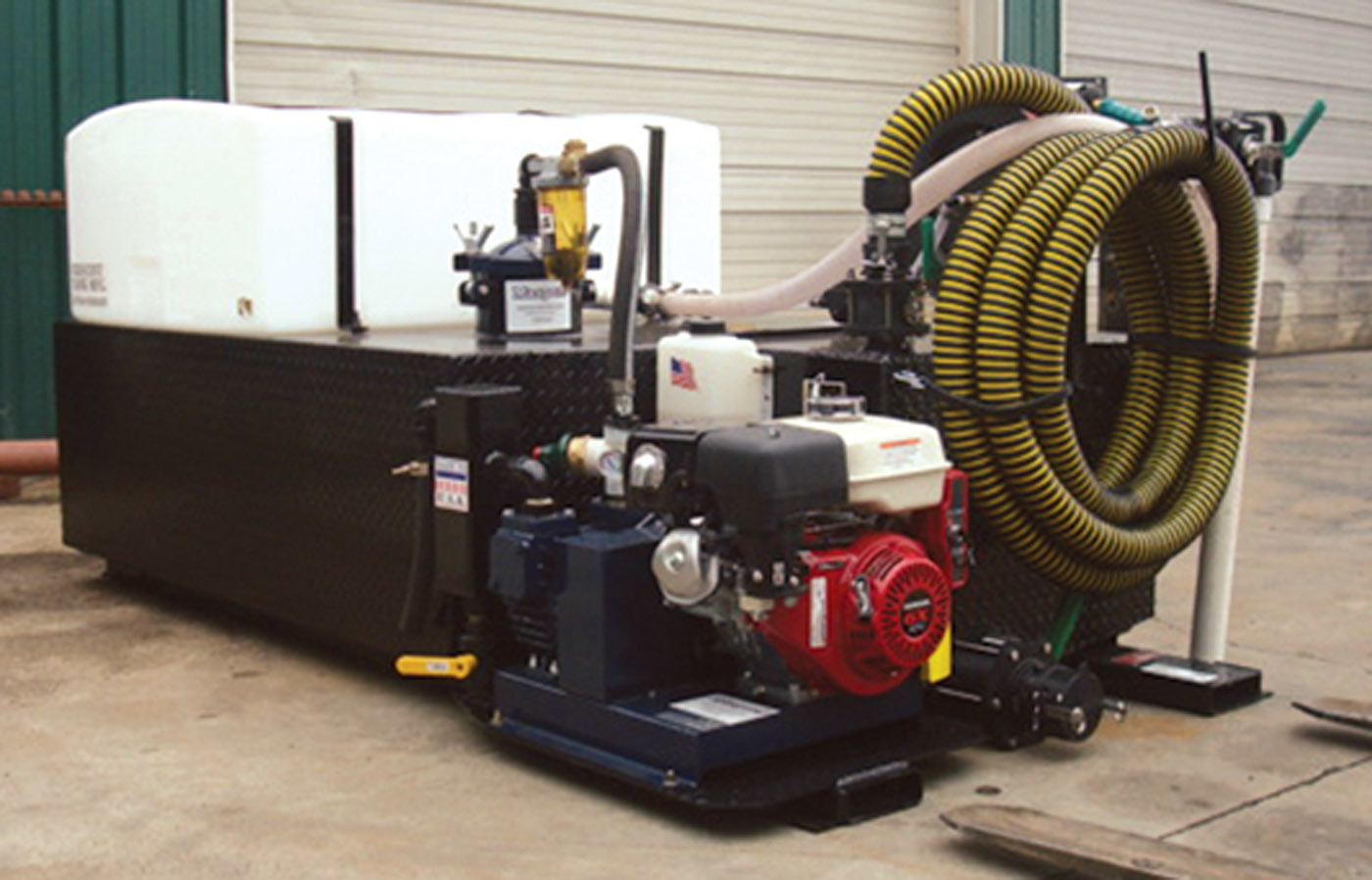

Crescent Tank vacuum tank

The Crescent Tank vacuum tank is flat inside and out. It has no baffles, allowing it to be emptied completely to avoid internal corrosion. With the included pump at specified cubic feet per minute, unnecessary fatigue of the structure is eliminated and the life of the tank is prolonged. It is made from 1/4-inch-thick steel for structural soundness. The workstation is designed for the portable restroom industry. Freshwater is held inside the external 1/2-inch-thick poly tank to avoid internal wastewater contamination. The slide-in is low profile for better weight distribution and is barely visible in the bed of a pickup truck. The chassis required is a 1-ton or greater, 8-foot bed pickup or flatbed truck, based on maximum load capacity. 585-657-4104; www.crescenttank.com.

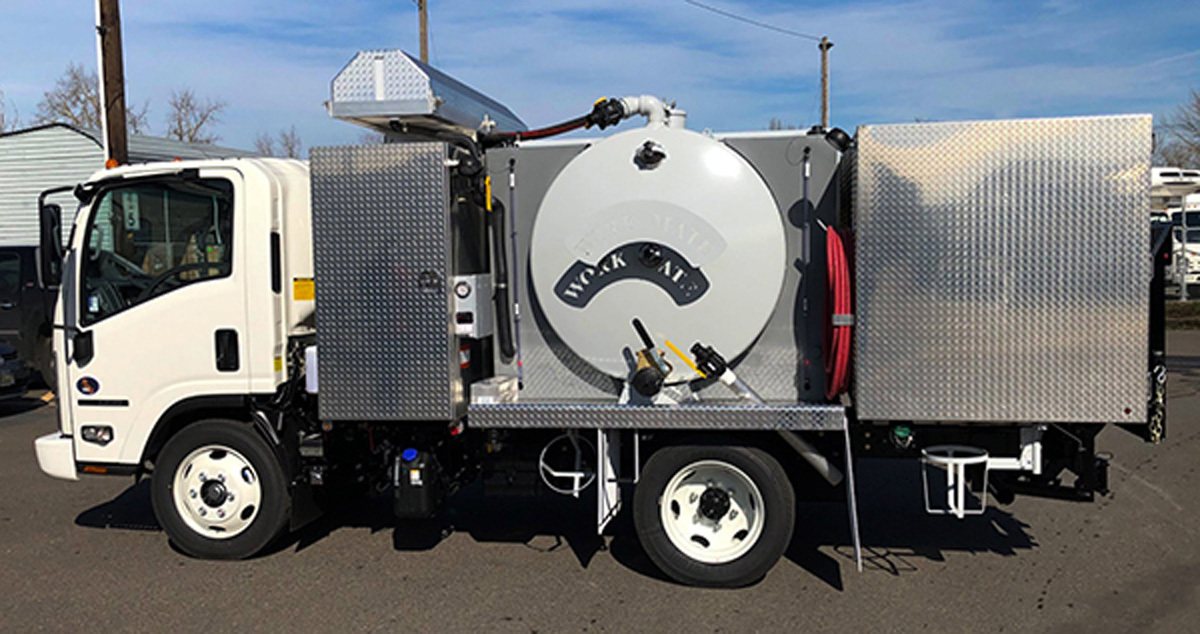

FMI Truck Sales & Service WorkMate

The WorkMate three-compartment slide-in unit from FMI Truck Sales & Service fits in the bed of a 1-ton pickup or across a flatbed. It has a 325-gallon waste compartment and twin 75-gallon poly water tanks. The water tanks can be isolated for a three-compartment system or flow together for a two-compartment system. It includes a primary and secondary shut-off, 12-volt freshwater delivery, an oil-catch muffler and an easy-drain manifold system. It comes with hoses, wand, bucket and straps, and an ergonomic workstation. Options include a supply storage box on the passenger side and tool storage on the driver’s side. 800-927-8750; www.fmitrucks.com.

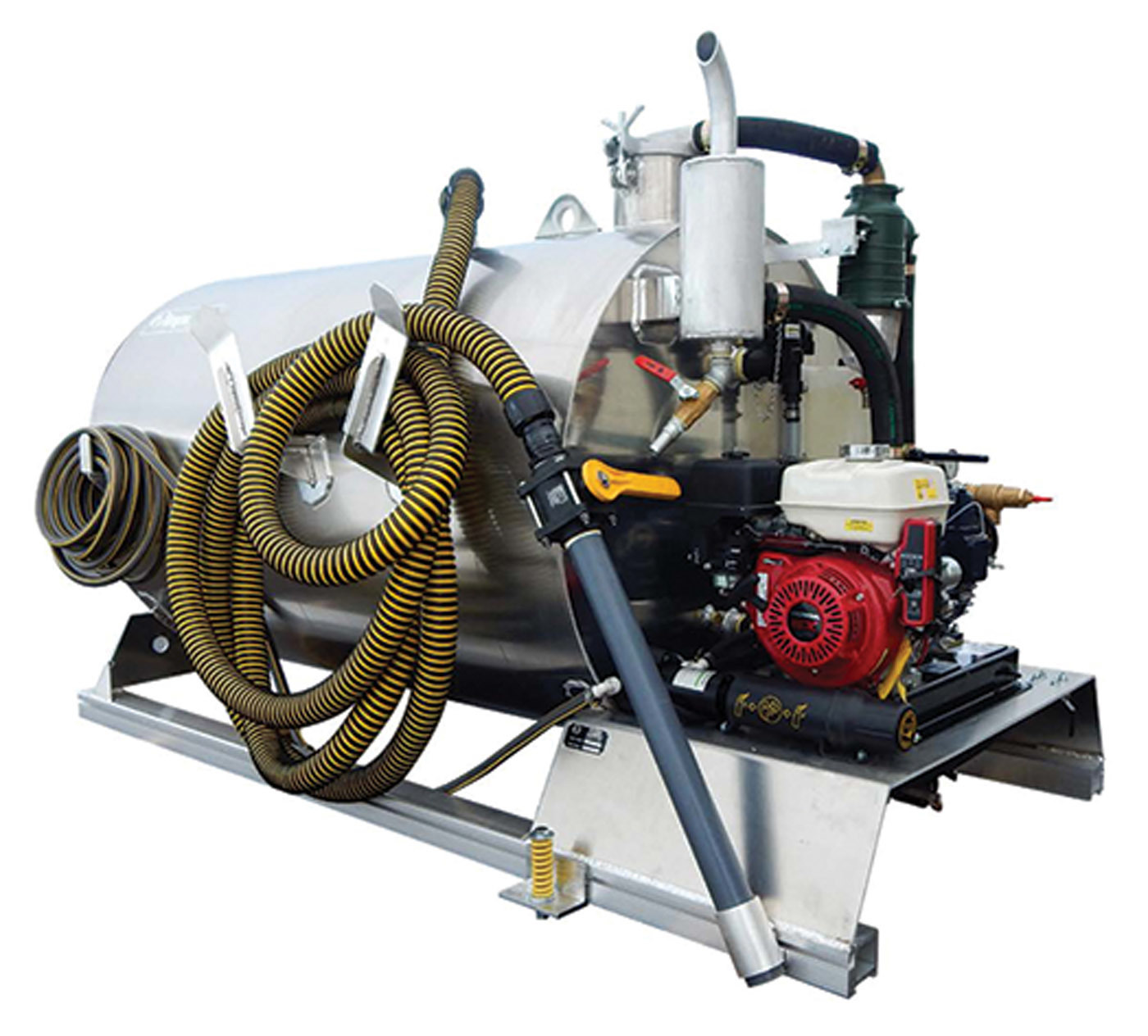

Imperial Industries Self-Contained Slide-in Unit

The Self-Contained Slide-In Unit from Imperial Industries allows for equalized weight distribution of water and waste. It can be used for portable restroom maintenance, grease service, oil-spill cleanup and many other applications for specialized industries. Optional freshwater compartments or waste-only units are available with the choice of vacuum pump and engine package. It is available in steel, aluminum or stainless steel and in stock sizes of 300-, 450-, 550- and 650-gallon capacities.
800-558-2945; www.imperialind.com.

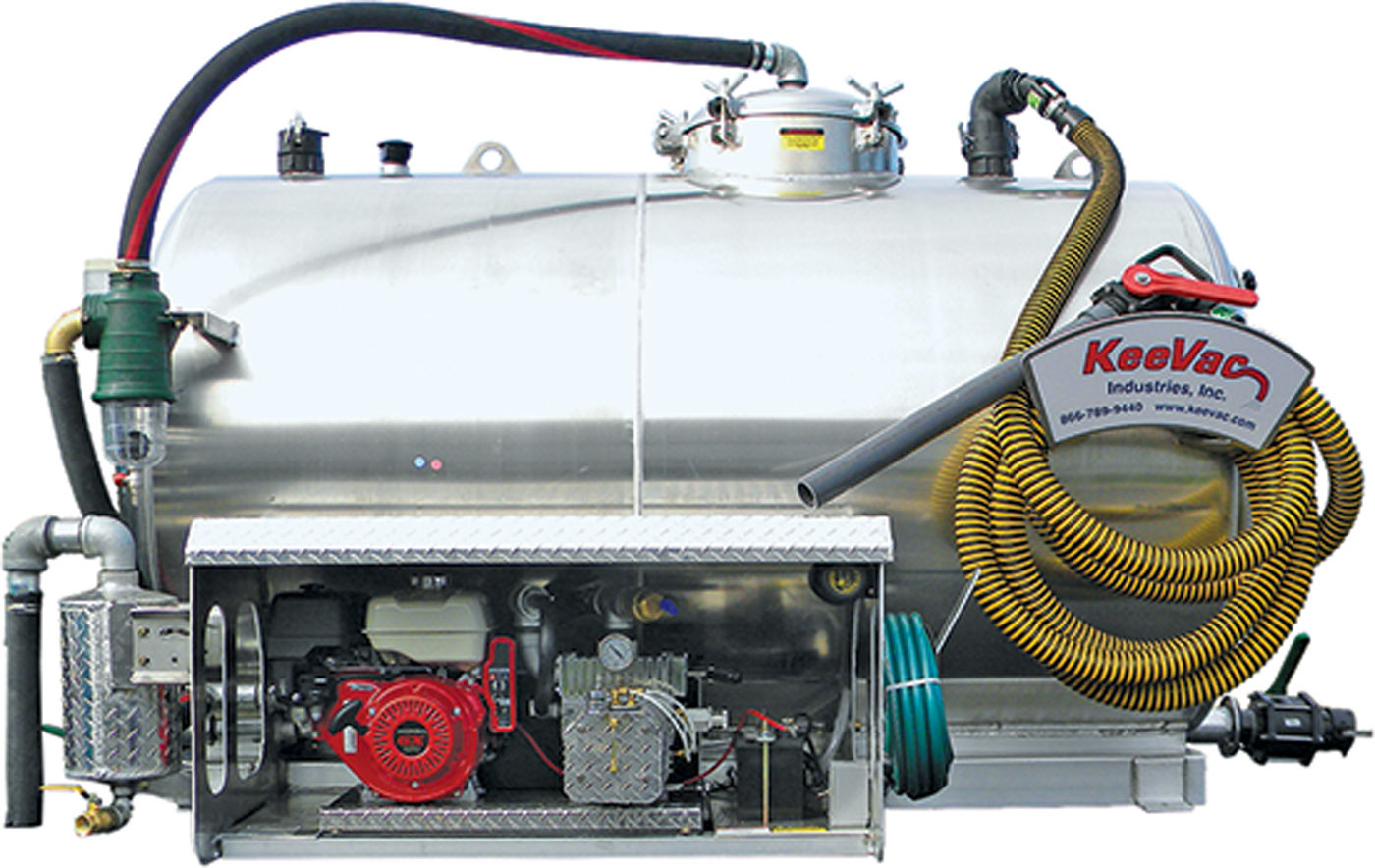

KeeVac Industries FD-950

The FD-950 slide-in unit from KeeVac Industries is a full-flanged and dished head tank with a full manway for easy maintenance. It has a 650-gallon waste compartment and 300-gallon freshwater compartment. The standard pump is a 115 cfm Conde SDS 6 with a 9 hp electric-start Honda engine. Multiple pump and engine combinations are available. The 12-volt washdown pump comes with a 50-foot hose. A 30-foot tiger tail hose with valve and wand complete the unit. It is designed to fit on a 10-foot flatbed with a side engine for ease of operator use. 866-789-9440; www.keevac.com.

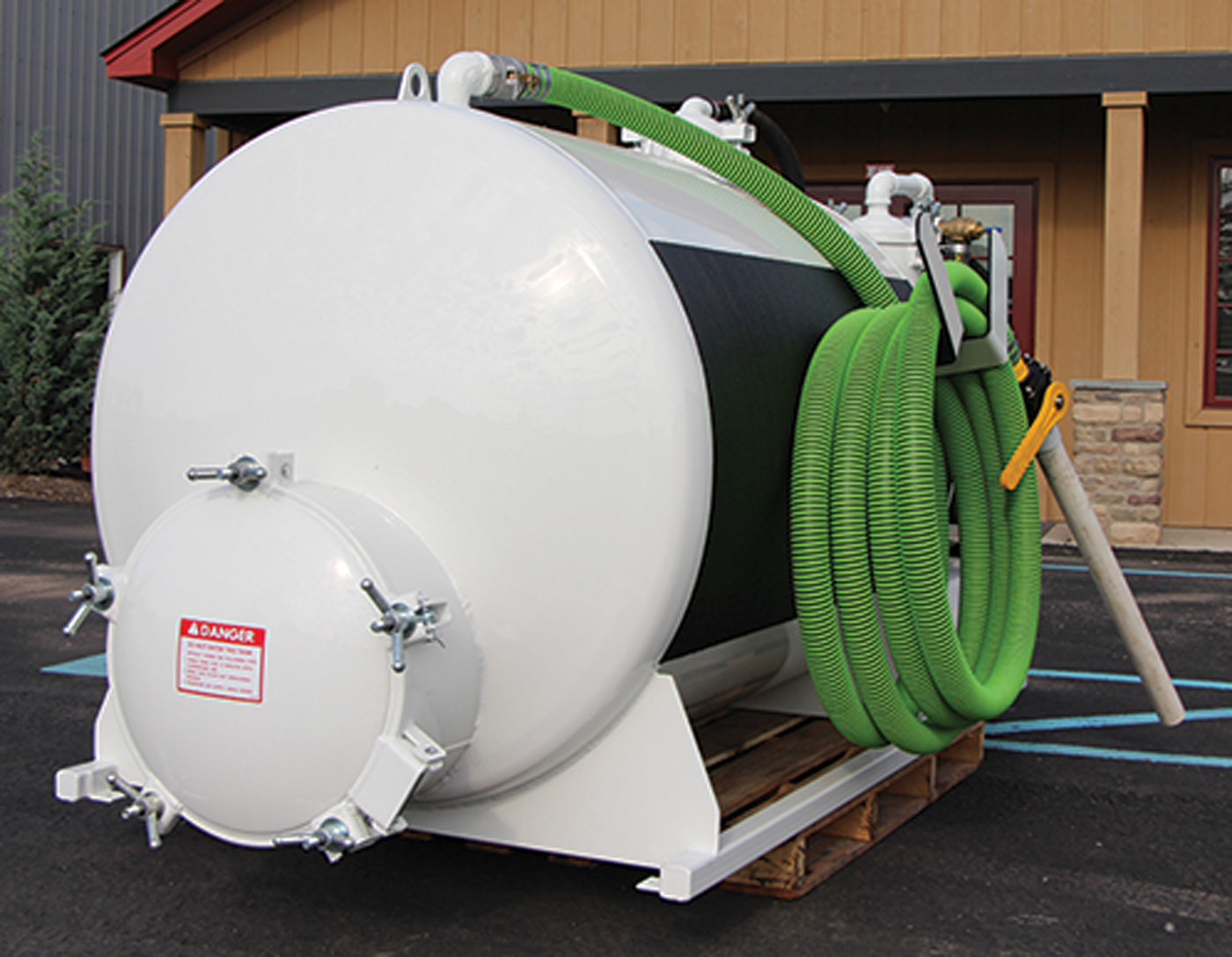

Pik Rite 450-gallon slide-in vacuum tank

The 450-gallon slide-in vacuum tank from Pik Rite has a 20-inch manway on the front head for clean-out accessibility. The tank is built with all steel components. The 8 hp Honda electric-start engine is paired with a Jurop/Chandler PN23 vacuum pump and equipped with 30 feet of 2-inch fill hose with a nozzle. Side hose hooks are coated with a protective super liner. 800-326-9763; www.pikrite.com.


Robinson Vacuum Tanks slide-in

Slide-in vacuum tanks from Robinson Vacuum Tanks are available in dozens of configurations, with tank capacities between 300 and 1,500 gallons. Single- and two-compartment (waste/freshwater) models are available. All units are 100% self-contained and are shipped ready-to-work. Choose one of several vacuum pumps generating 70 to 180 cfm; gas or diesel engine models are available. A line of “Quick Ship” tanks includes six models with capacities ranging from 300 to 950 gallons. Most configurations can ship within hours of order placement. All pump packages are offered with an electric-start, gas-powered Honda engine, generating vacuum and pressure. They are constructed from 5454-H32 marine-grade mill-finish aluminum and include a 3-inch discharge, 30-foot-2-inch tiger tail suction hose with 2-inch fill port, 90-degree ball valve, and a 50-foot-1/2-inch washdown hose with spray nozzle. 814-933-0927; www.robinsontanks.com.

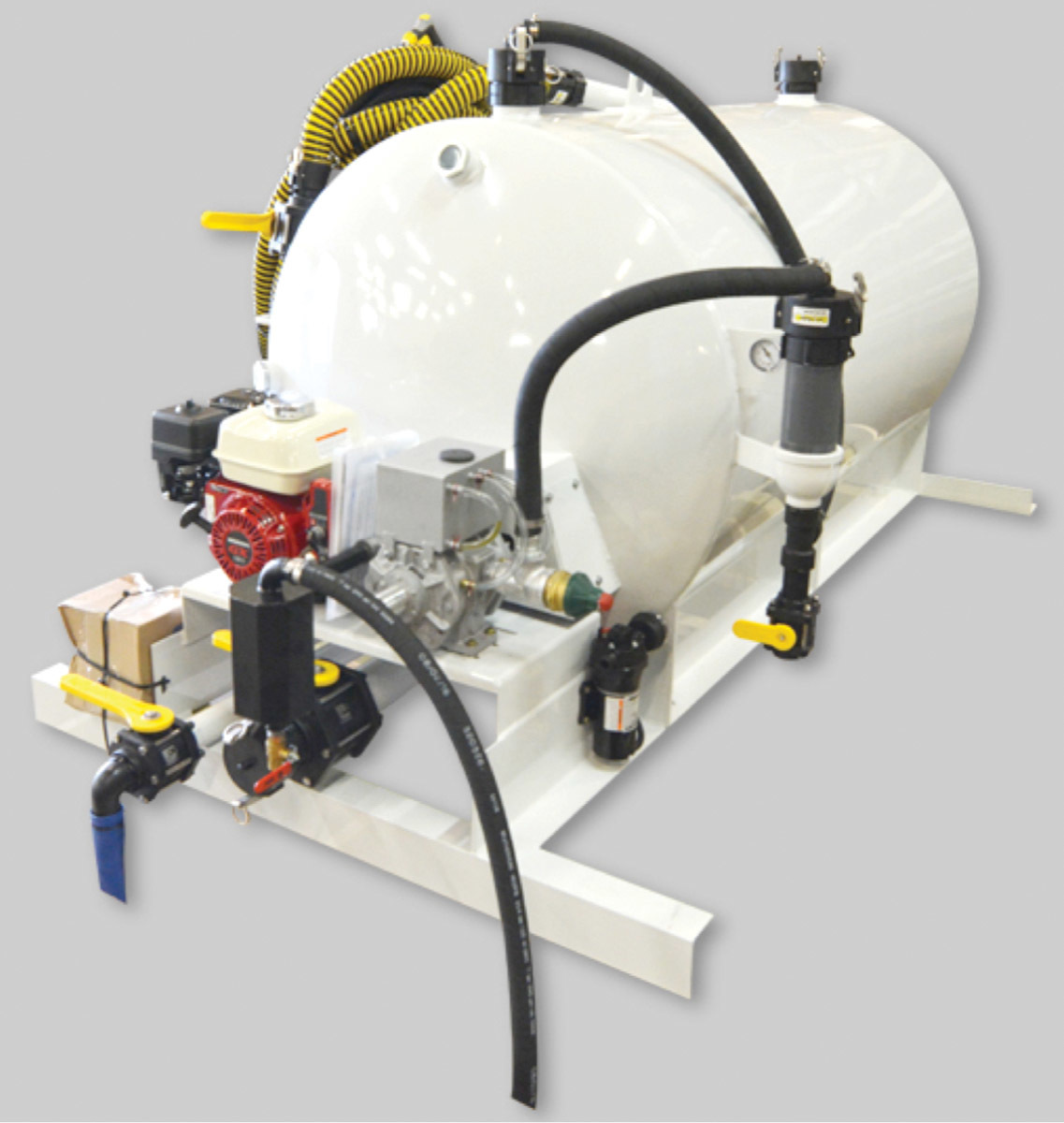

Satellite Vacuum Trucks MD slide-in

The MD slide-in series from Satellite Vacuum Trucks are made from high-strength carbon steel, making them easy to maintain with a long life expectancy. They are powder coated for tank longevity and to eliminate corrosion. They are available in a 300-, 400-, 450-, 550- and 650-gallon tank, with other custom sizes available. The tanks are versatile and bolt onto any truck bed. 800-883-1123; www.satellitetruckxpress.com.

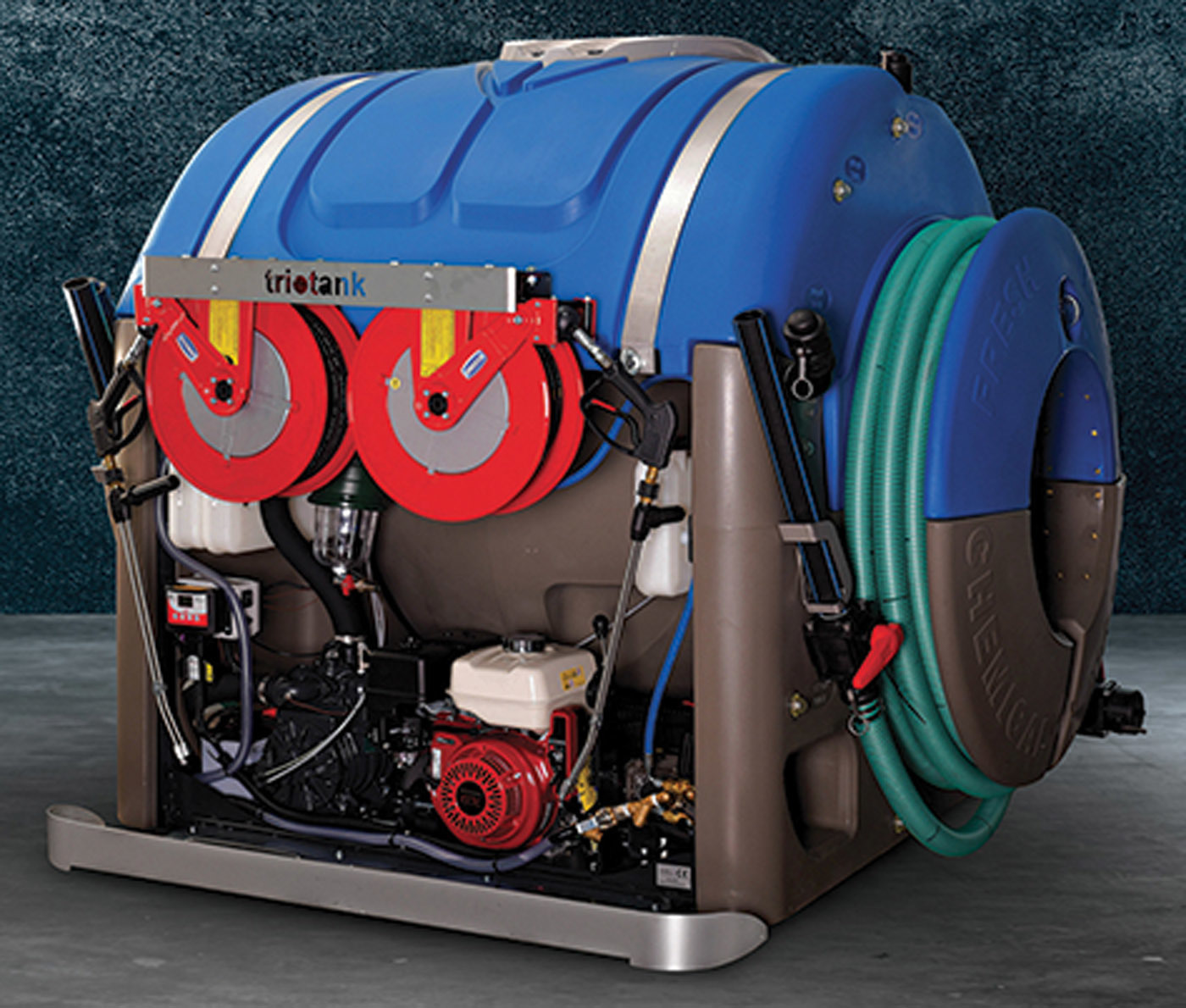

T blustar Triotank

The Triotank slide-in vacuum tank from T blustar is made of lightweight, high-density polyethylene. It is composed of three independent holding tanks, including 250-gallon upper and lower tanks and a concealed 250-gallon interior sphere. The user can choose to carry 500 gallons of waste and 250 gallons of water, or 250 gallons of waste and 500 gallons of water. It comes with a Battioni Pagani MEC1600 vacuum pump, high-pressure water pump, onboard computer and antifreeze system. Options include color or various power supplies, such as autonomous with a Honda engine or PTO. 404-719-0715; www.tblustar.com.

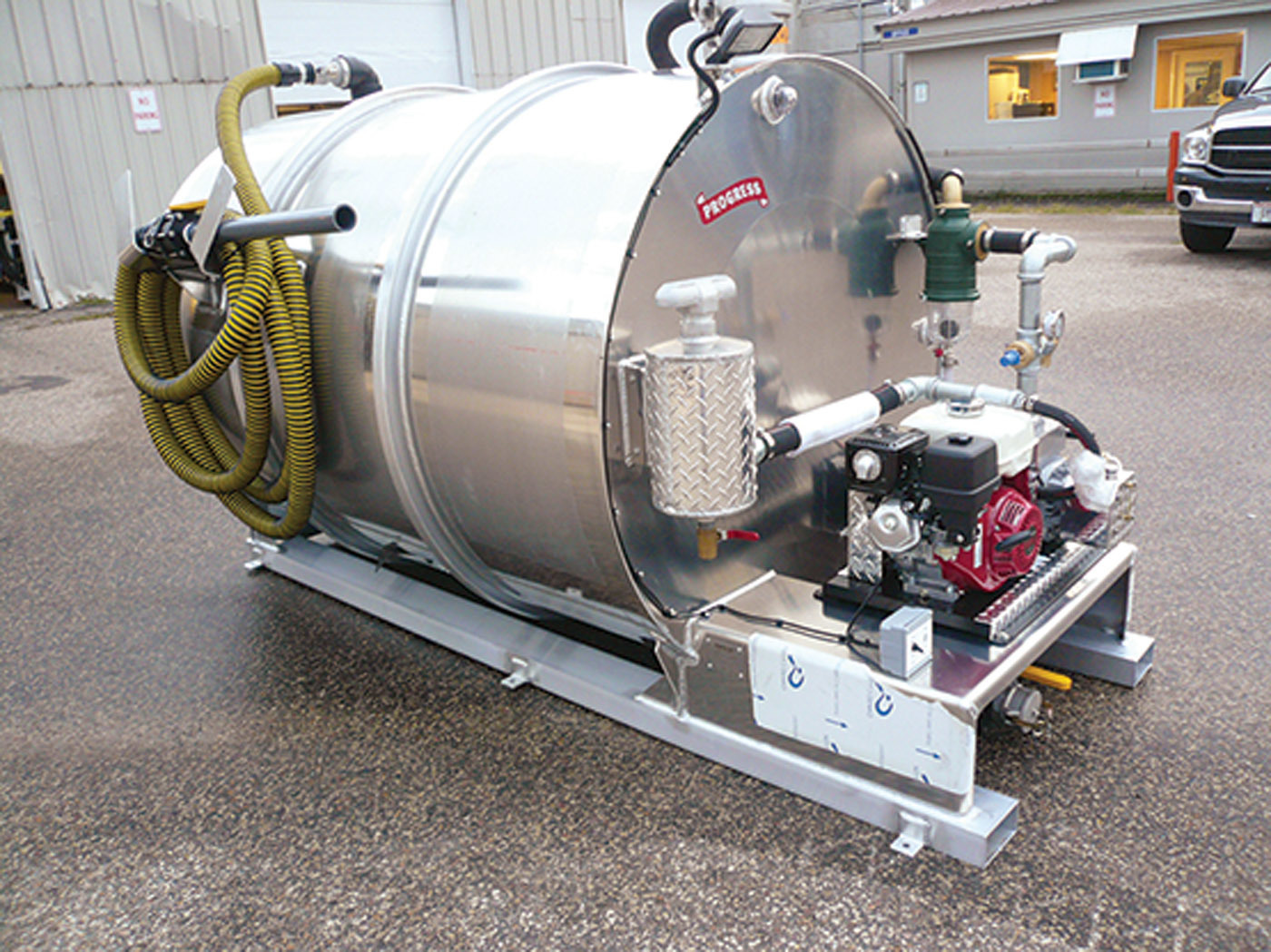

TankTec slide-in tank

Slide-in tanks from TankTec range from 100 to 995 gallons. The tanks are available in single-compartment for grease and septic or two-compartment for portable restroom service. 888-428-6422; www.tanktec.biz.

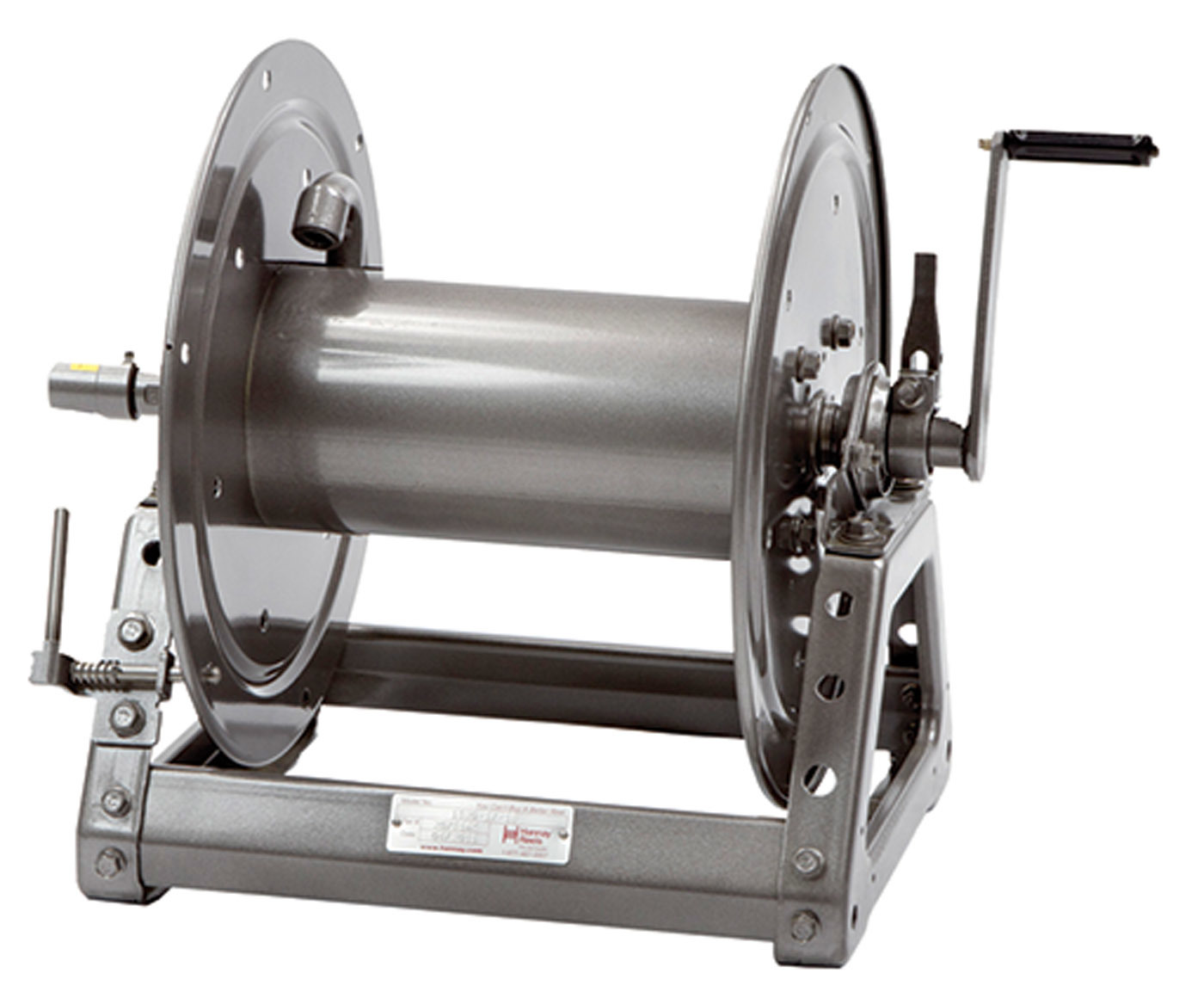

Hannay Reels 1500 Series

Hannay Reels 1500 Series reels handle standard pressures from 3,000 to 10,000 psi for steam cleaning, pressure washing and portable restroom washdown. They are easy to mount on cleanup vehicles such as carts, trucks or all-terrain vehicles. They can hold single 3/8- through 5/8-inch I.D. hose and organize longer lengths of large-diameter vacuum hose to help prevent kinks, cracks and damage from dragging. 518-797-3791; www.hannay.com.

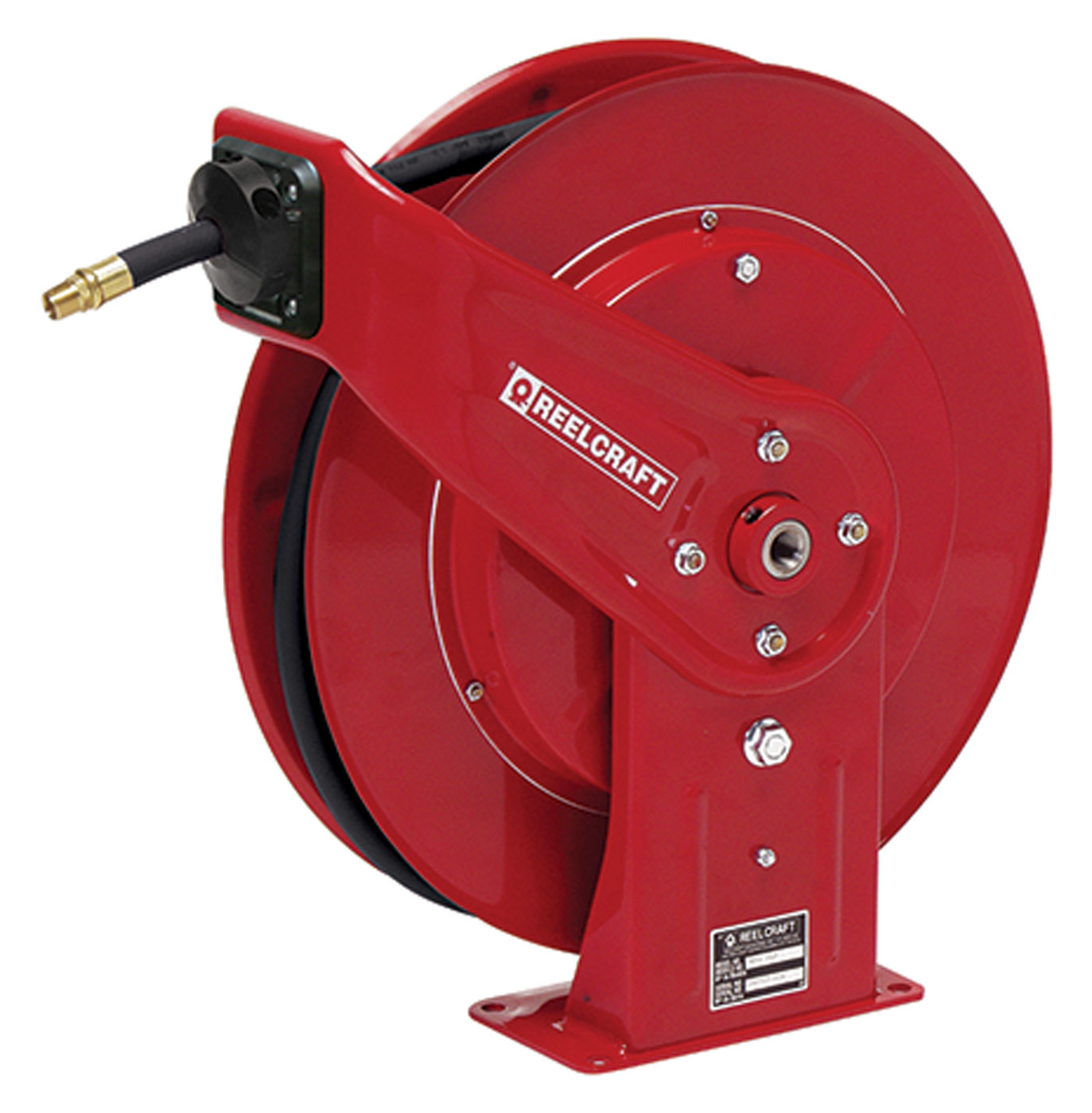

Reelcraft Industries Series PW7000

Series PW7000 hose reels from Reelcraft Industries are fitted with a nickel-plated, carbon-steel Aflas sealed swivel specifically for pressure-wash applications. The reel holds up to 50 feet of 3/8-inch I.D. hose. Its rigidity, compact design and powder-coat finish make it suitable for outdoor, all-weather and truck-mount applications. The guide arm adjusts to seven positions for ceiling, wall, truck, bench or pit mounting. The reel comes in standard red, but several other colors are available upon request.
800-444-3134;
www.reelcraft.com.


Pressure Washers and Sprayers

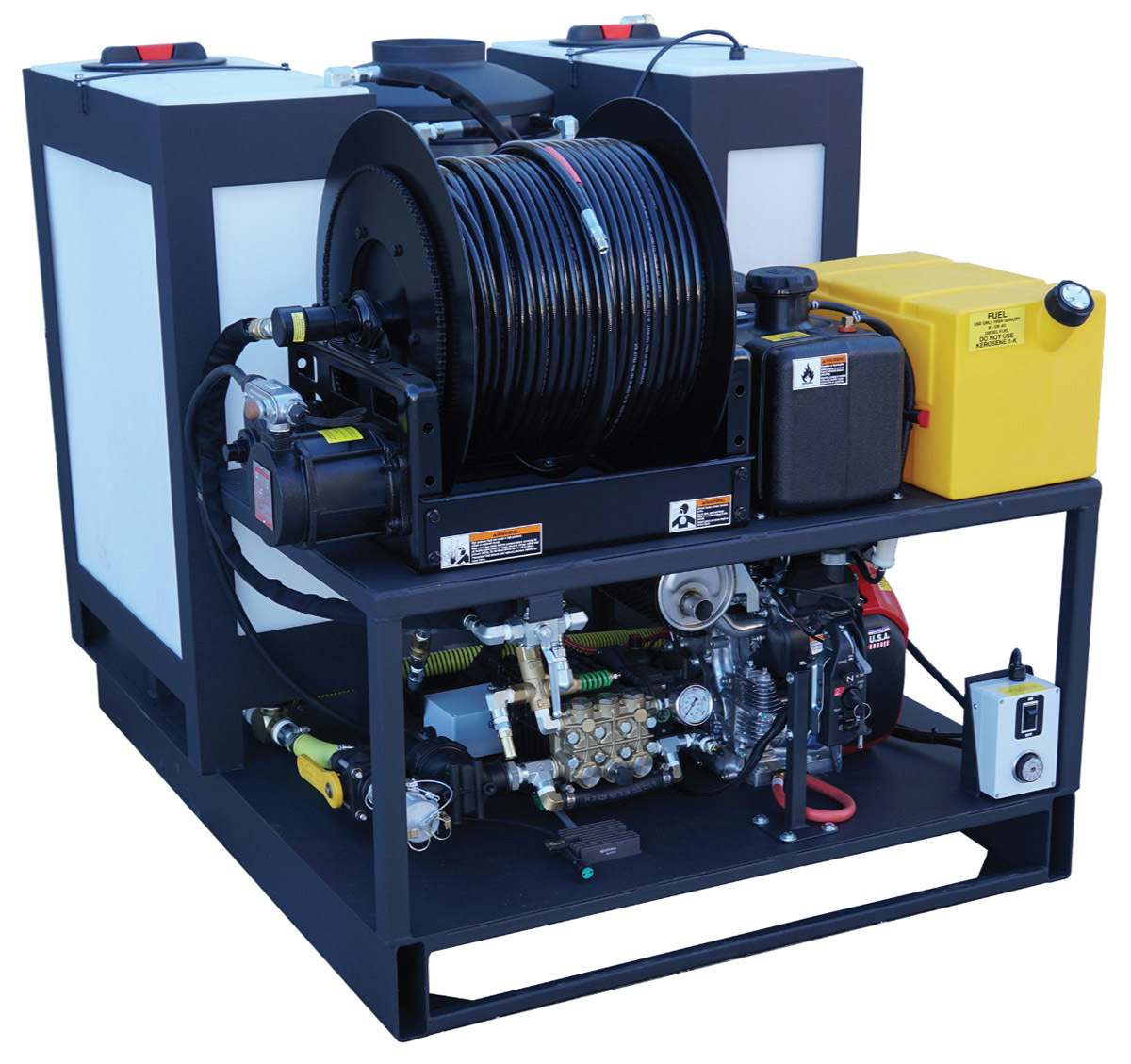

Cam Spray CV Series

The CV Series cargo van drain jet from Cam Spray offers diesel-fired hot water to add additional jetting power. Several models are available up to 4,000 psi and 12 gpm. A triplex plunger pump with power pulse valve provides an extra push when needed. Air purge and recirculation to the tank are provided for freeze protection. A 5-gallon fuel tank provides hours of runtime on a single fill. It comes with a heavily built, powder-coated frame with full deck and 130-gallon water capacity; a 12-volt DC reel with 2-1 clutch drive allowing for free spooling; and a powered hose return. It is controlled by push button or foot switch. Accessories include a four-nozzle set, storage box, tip cleaner, tiger tail, safety shield, rubber gloves, high-visibility safety vest, 50-foot washdown hose and trigger gun. 800-648-5011; www.camspray.com.

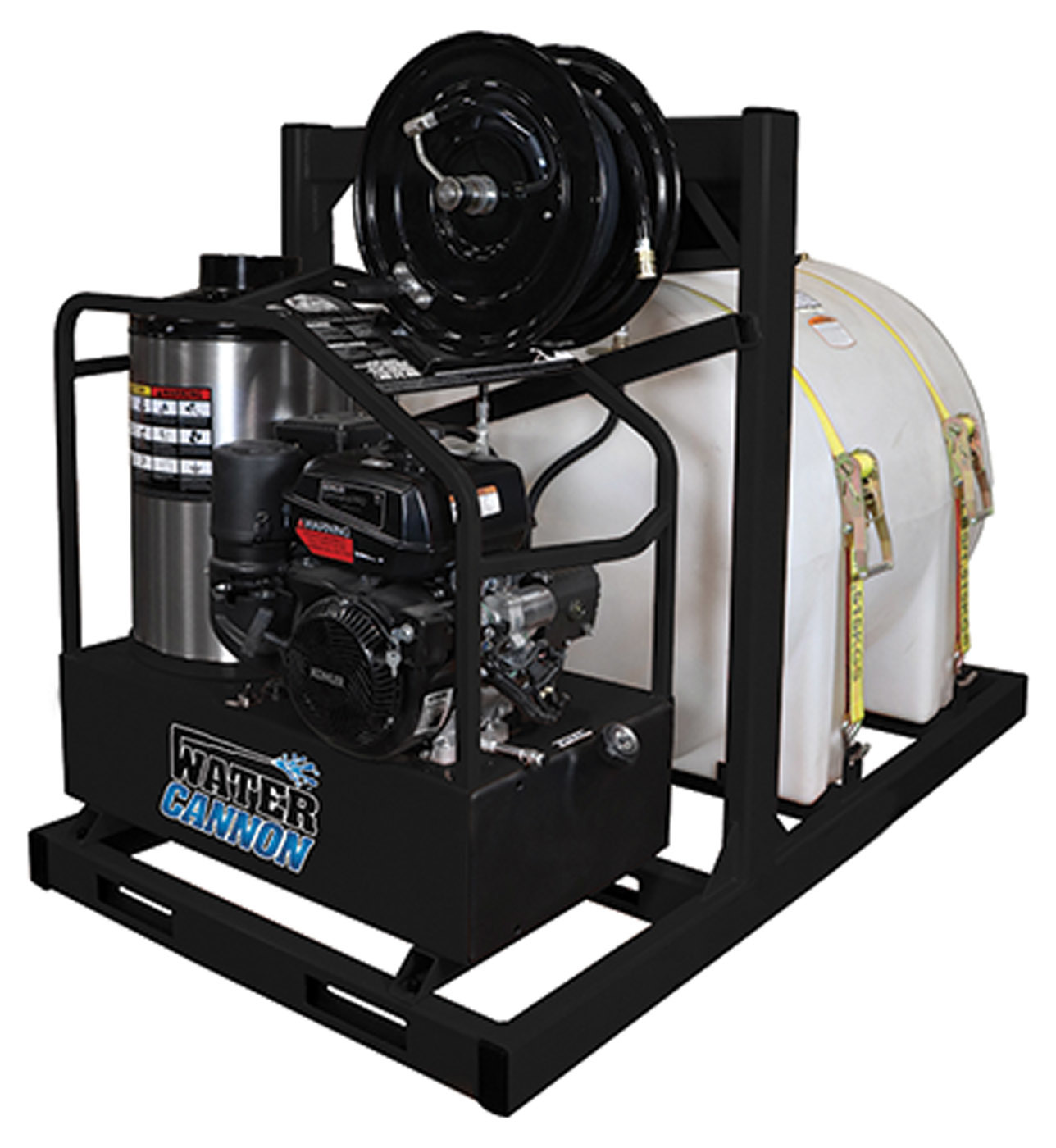

Water Cannon 19K02

The 19K02 commercial-duty, 225-gallon, 12-volt, tank-fed, self-contained, skid-mounted, hot-water cleaning system from Water Cannon Inc. - MWBE can be permanently mounted in a truck bed or trailer or moved to multiple locations or trucks with minimal effort. It arrives ready for use, serving up powerful performance and helping users complete jobs rapidly at remote job sites or when on the move at any location with or without an external water source. 800-333-9274; www.watercannon.com.


Vacuum Hose

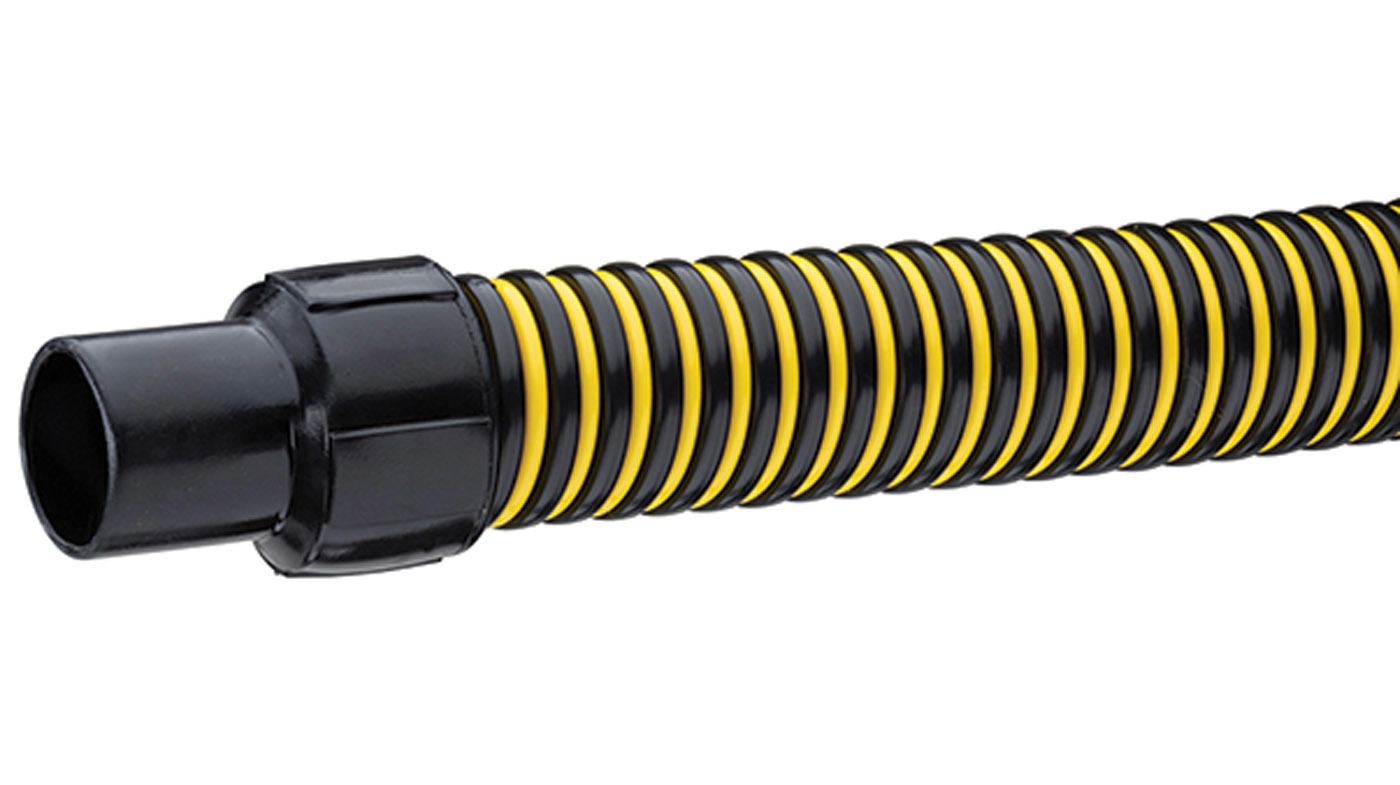

Kuriyama of America King Bee KBEE Series

King Bee KBEE Series polyethylene liquid suction hose from Kuriyama of America provides flexibility for maneuvering in tight areas such as portable restrooms. The hose remains flexible in subzero temperatures, is crush resistant and will not kink. The easy-slide helix protects the hose tube from cover wear and moves easily over rough surfaces. Overmolded cuffs help prevent leaking. It is available in 2- and 3-inch I.D. sizes in multiple lengths. The 3-inch I.D. hose is also available as a 3-foot hose guard. 847-755-0360; www.kuriyama.com.


Vacuum Pumps

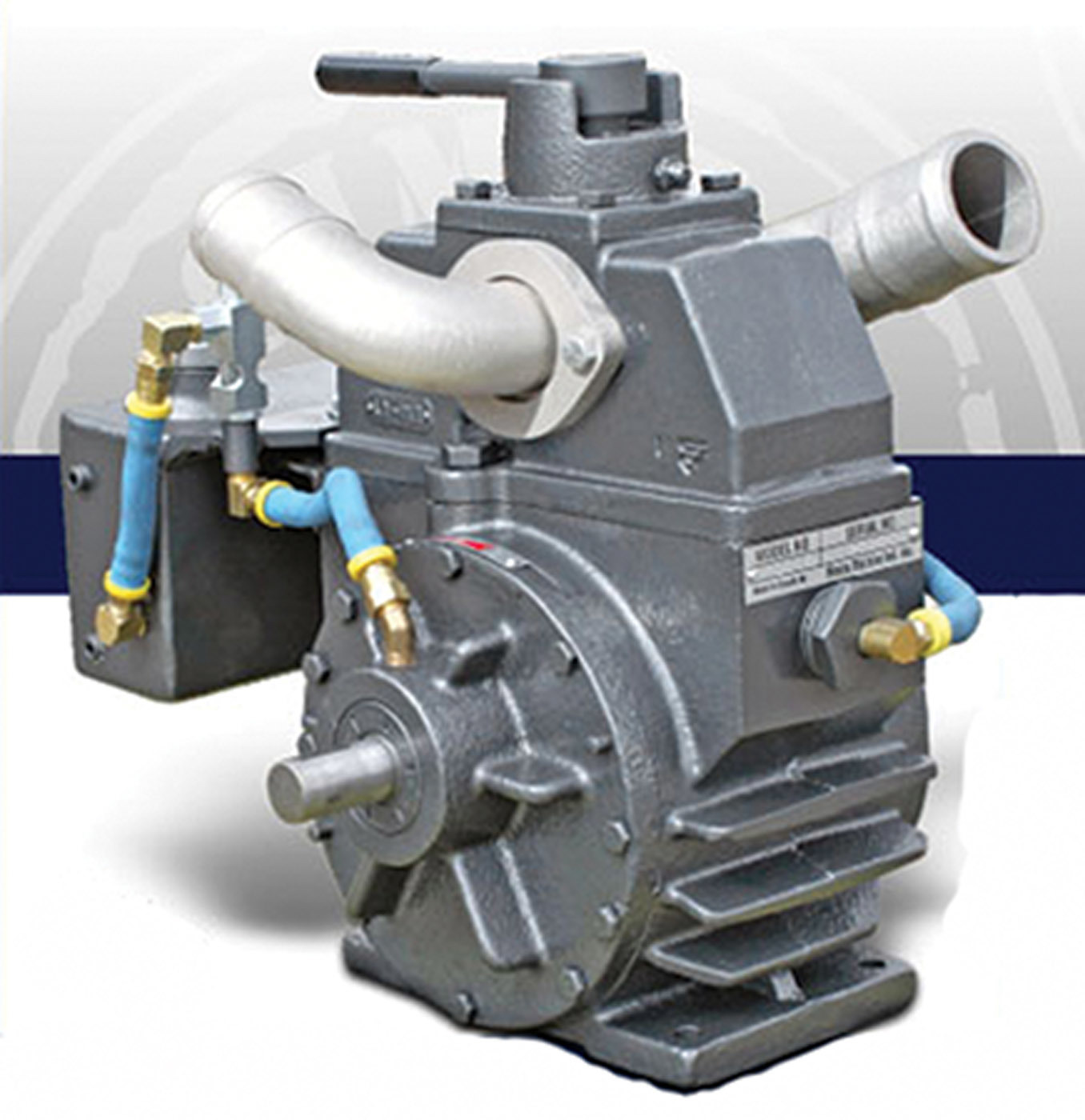

Elmira Machine Industries / Wallenstein Vacuum Model 151

The Model 151 from Elmira Machine Industries / Wallenstein Vacuum can be used on portable sanitation tanks, slide-in units, campgrounds and marinas that require a compact package. It offers 80 cfm at 15 inches Hg, with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counterclockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven. 800-801-6663; www.wallenstein.com.

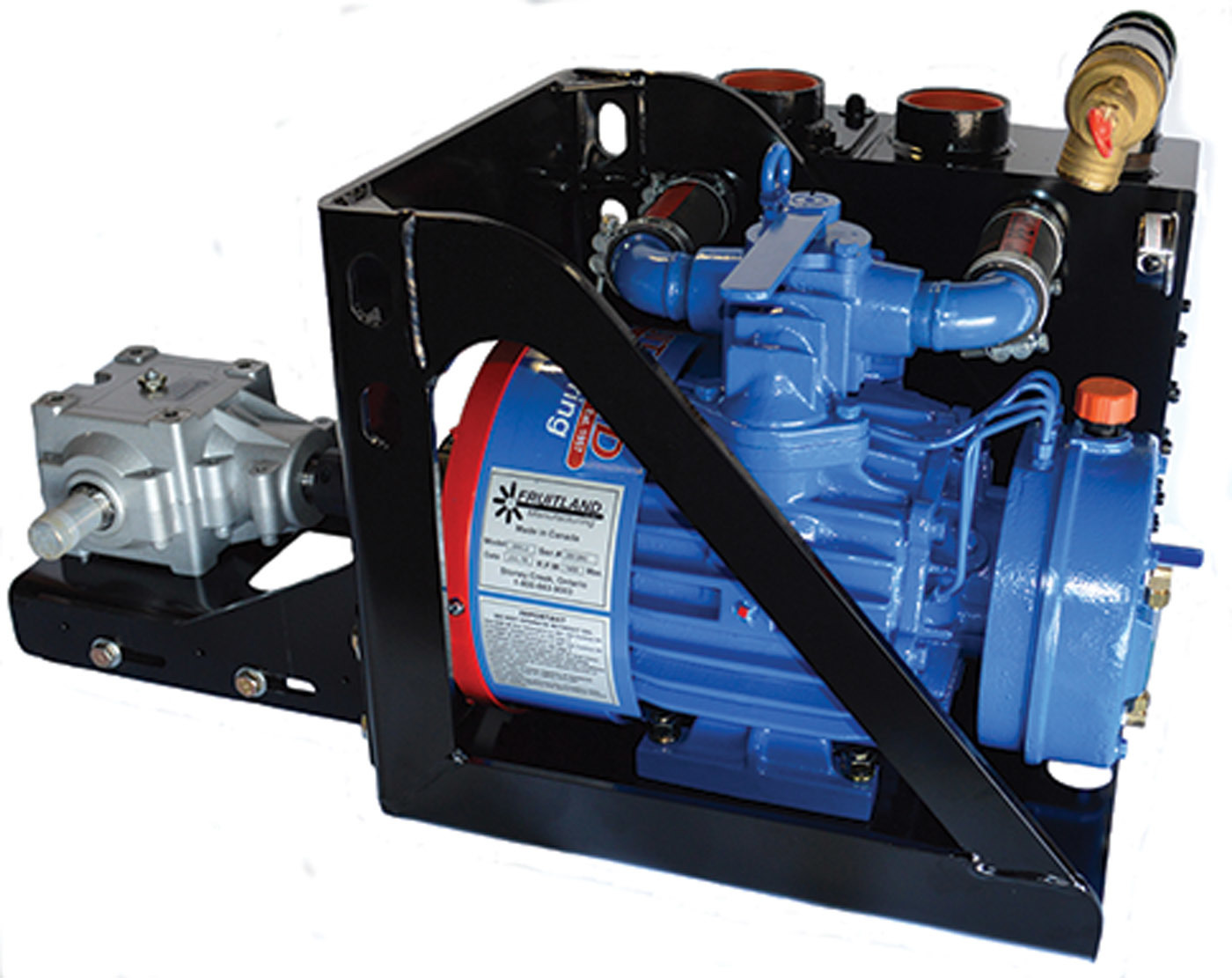

Fruitland Eliminator 250PT

The Eliminator 250PT from Fruitland was designed with a smaller mount and accessories, allowing it to fit on most portable restroom service trucks while still allowing for big-truck, continuous-duty performance. The package includes an RCF250 180 cfm vacuum pump with an integral heavy-duty secondary shut-off and oil-catch muffler. The design is 26 inches wide and 19 inches high to take up less frame rail space. The package comes with hydraulic or gearbox drive options; the gearbox drive allows for five distance options for alignment to the PTO shaft (8, 9, 10, 11 and 12 inches). It offers low oil consumption, including an automated oiling system with all-steel oil lines, pump oil-level sight gauge, vane gauging ports and anti-shock design. 800-663-9003; www.fruitlandmanufacturing.com.

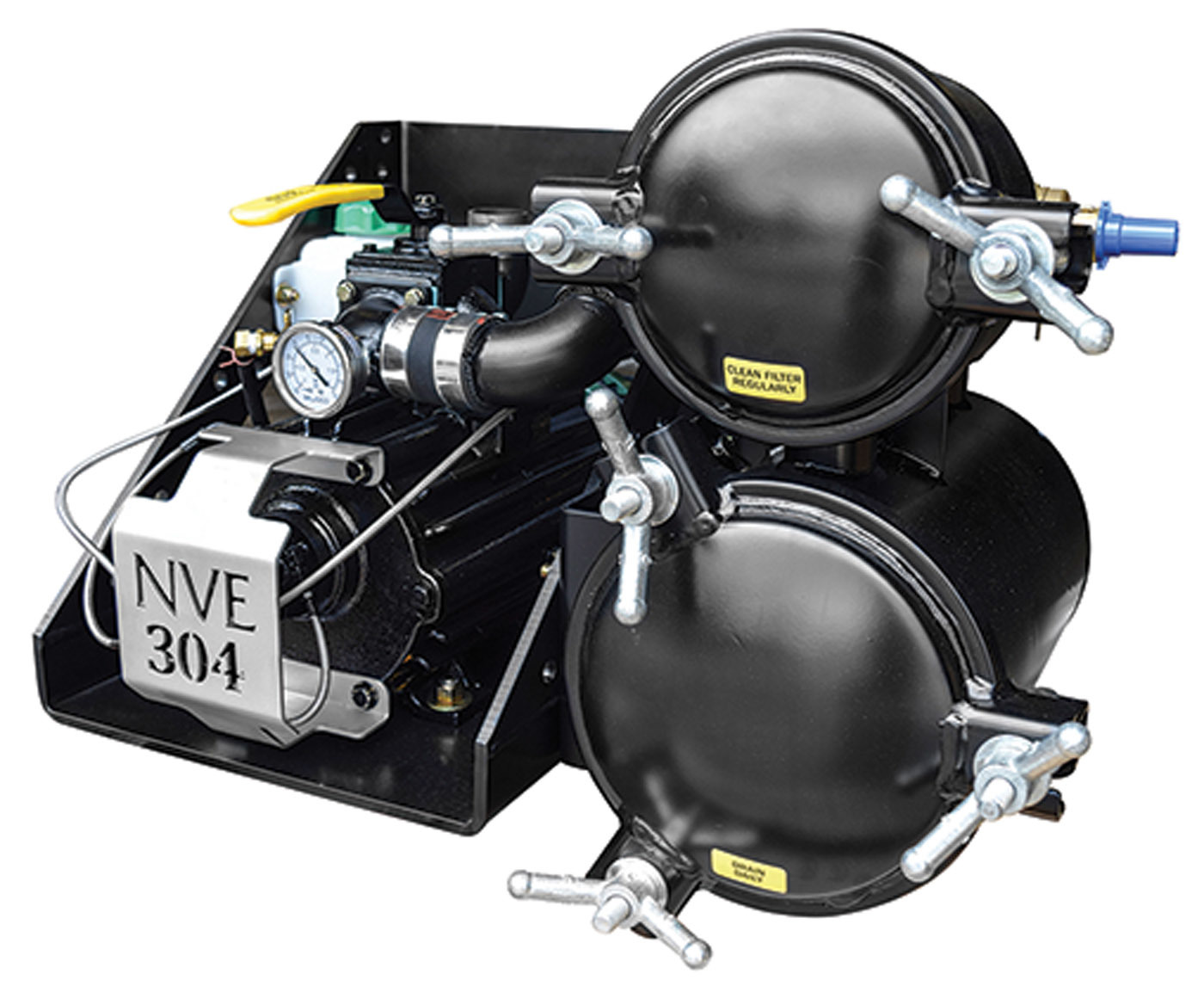

National Vacuum Equipment Challenger 304

The Challenger 304 vacuum pump from National Vacuum Equipment delivers 210 cfm in a number of compact packages that include a pump with a pump stand; a pump with a stand, prefilter and moisture trap in two variations; and an engine drive unit with a 13 hp electric-start engine. Standard packages are available in gearbox drive or with a hydraulic drive adapter. The package is designed with a ductile iron housing and stainless steel braided oil lines for durability. Routine maintenance, such as vane inspection and replacement, can be done without removing the pump from the truck. 800-253-5500; www.natvac.com.

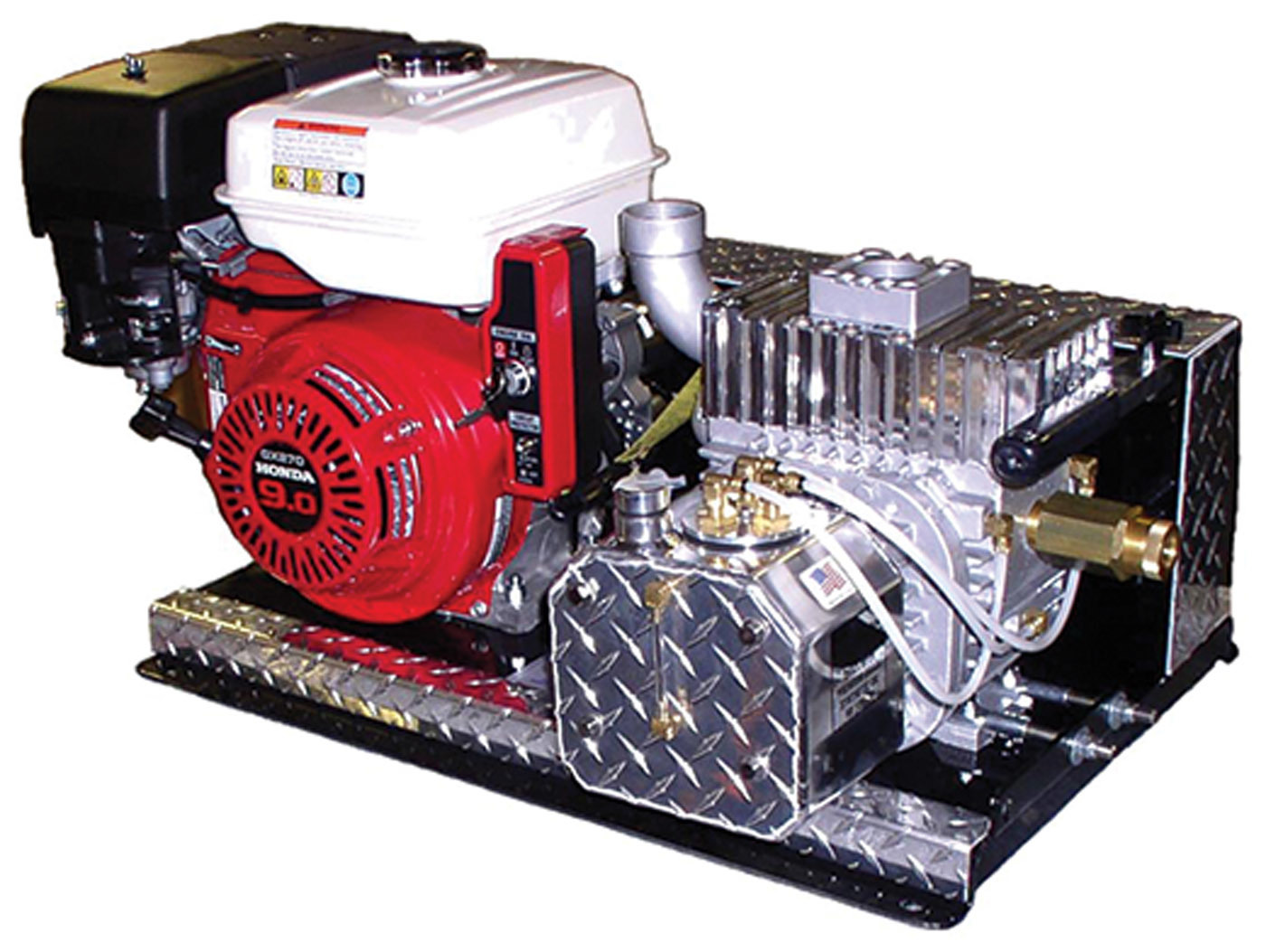

Westmoor Conde PowerPaks

Conde PowerPaks preassembled gasoline- or diesel-powered vacuum pump units from Westmoor are easy to install, according to the maker. They include a heavy-duty steel base with aluminum diamond plate trim and belt guard for aesthetics. Rigid assembly is designed for minimum vibration and maximum power. They are available with either vacuum/pressure or vacuum-only pumps. A wide range of cubic-feet-per-minute options ensures matching the right unit to tank size and application. They are powered with optional Honda GX commercial-series gasoline engines or Hatz industrial air-cooled diesel engines. Units are designed for easy transfer to another tank system when needed. 800-367-0972; www.westmoorltd.com.

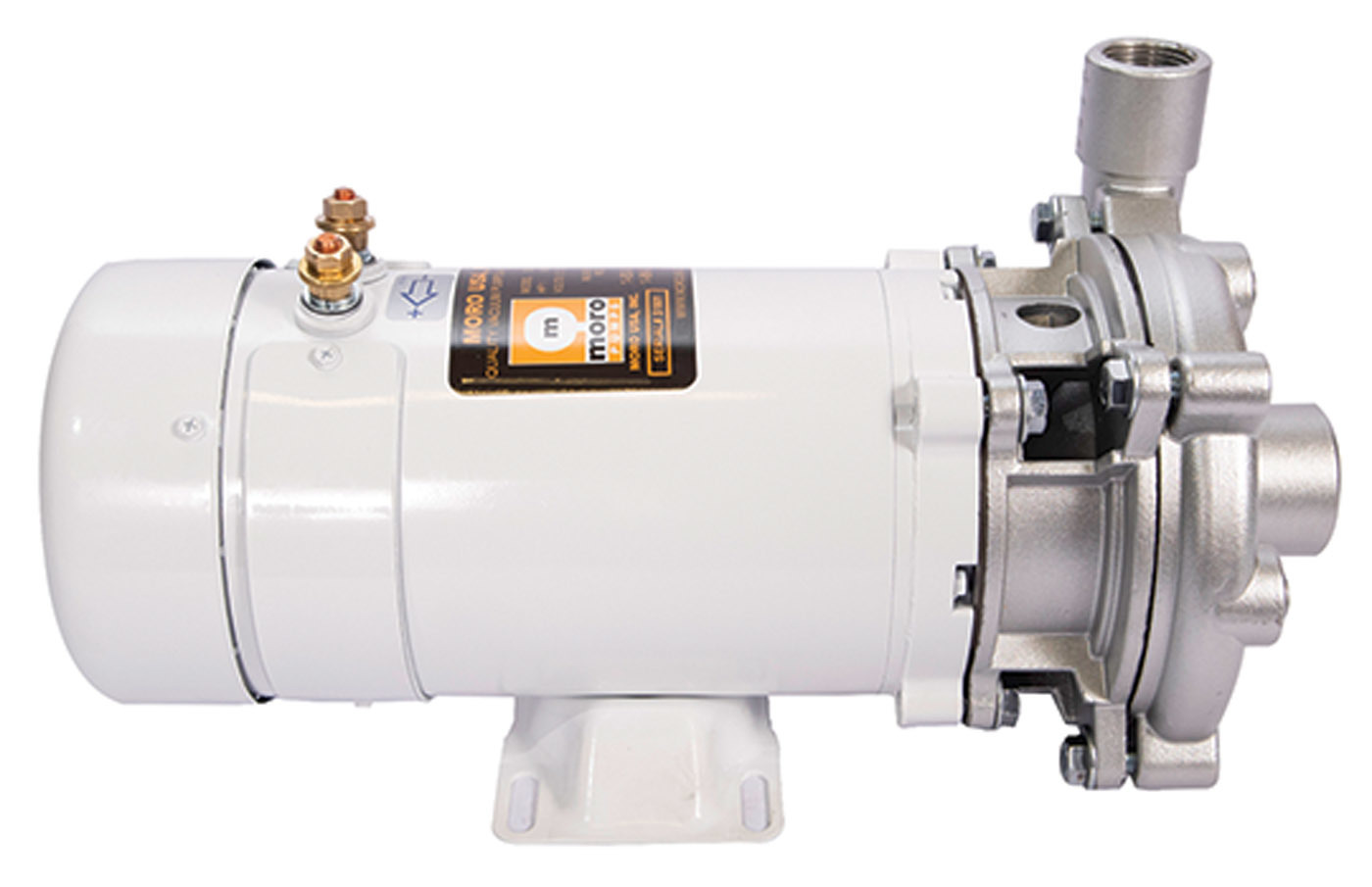

Washdown Pumps Moro USA DC

Heavy-duty Moro USA DC water pumps offer 20 gpm maximum flow for quick restroom fills, while 42 psi maximum pressure makes for quick high-pressure cleaning. Available with cast iron or stainless steel pump body, both models offer a stainless steel impeller and Viton elastomers. Fan-cooled, 12-volt (83-amp maximum draw) motors are epoxy-coated for durability. These continuous-duty pumps come solenoid- and pressure-switch standard for easy installation. They have 1.25-inch suction and 1-inch discharge ports. The discharge can be mounted in four different positions. 800-383-6304; www.morousa.com.
