Hose Reel

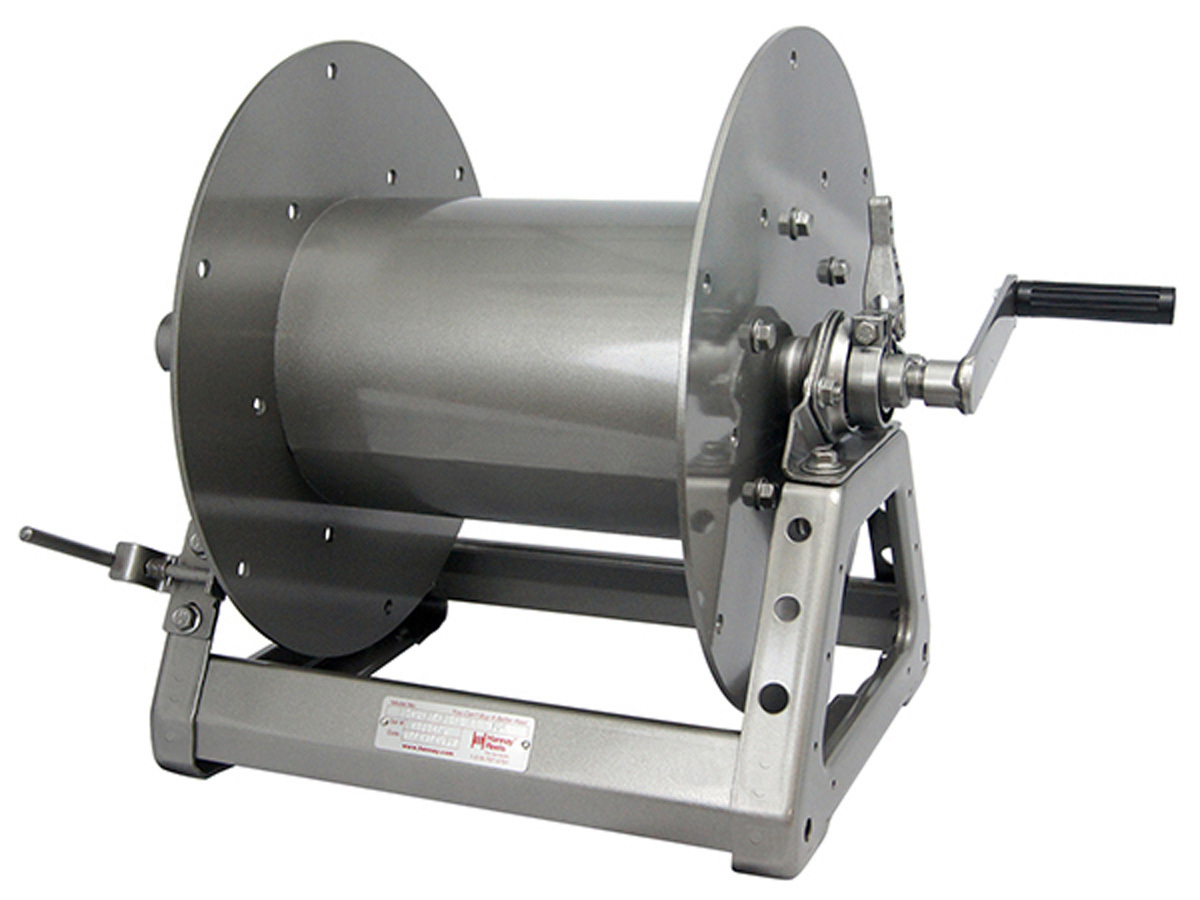

Hannay Reels Heavy-Duty 1500 Series

The Heavy-Duty 1500 Series from Hannay Reels is designed to provide durable, reliable pressure washing for portable restroom and other pumper and cleaner applications. With 3/16-inch-thick discs, a reinforced frame and an 8-inch-diameter steel 14-gauge drum, the reel counters high-pressure hose expansion concerns, provides stability and accommodates hoses with a higher bend radius. Single 3/8- through 5/8-inch I.D. hose and pressures up to 3,000 psi are supported, with optional pressures of 5,000 or 10,000 psi available upon request. With either a manual direct-crank rewind or a chain-and-sprocket drive powered by an electric, hydraulic or air motor, the reels offer simple, swift hose deployment and retraction, while keeping lengthy hose organized, according to the maker. 877-467-3357; www.hannay.com

Screen/Strainer/Screening System

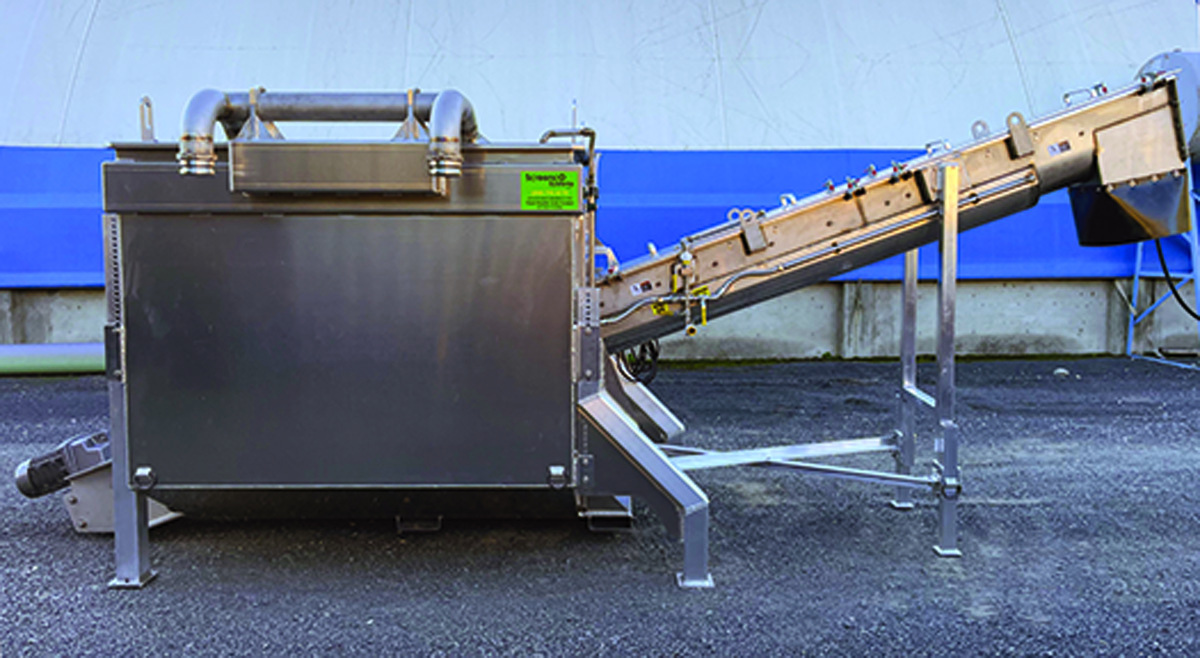

ScreencO Systems Trash Master 600 Auto Screen

The Trash Master 600 Auto Screen from ScreencO Systems uses gravity to separate the trash from the flow stream through a 6-inch inlet with dual fan spreaders. It is capable of power-offloading vacuum trucks with a single 6-inch offload or 2- to 4-inch offloads at the same time at a rate of up to 800 gpm. It comes with an aluminum hopper (optional stainless steel), with 8-inch outlet cam and 3/8-inch gapped 1/4-inch stainless steel bar screen. The durable stainless steel U-channel with ultra-high molecular weight plastic-lined titanium alloy 11.5-inch shaftless screw that moves trash to a waste container. The stainless steel U-channel has slotted drain holes and a center channel bar screen for cleaner and dryer trash. A custom-built stainless steel bar rake and cleaning brush are included. 208-790-8770; www.screencosystems.com

Vacuum Hose

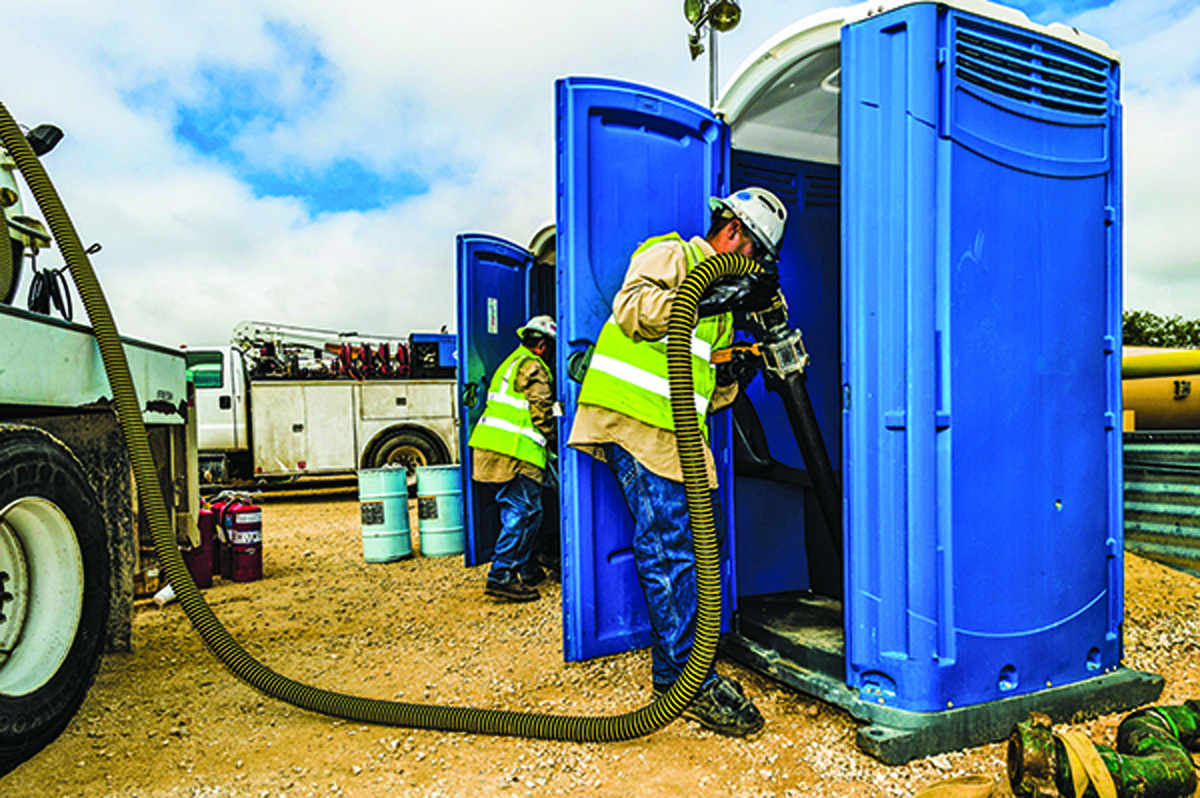

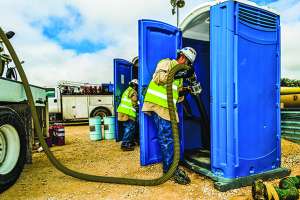

Kuriyama of America King Bee KBEE Series

King Bee KBEE Series polyethylene liquid suction hose from Kuriyama of America provides flexibility for maneuvering in tight areas such as portable restrooms. The hose remains flexible in subzero temperatures, is crush resistant and will not kink, according to the maker. The easy-slide helix is designed to protect the hose tube from cover wear and move easily over rough surfaces. Over-molded cuffs help prevent leaking. It is available in 2- and 3-inch I.D. sizes in multiple lengths. The 3-inch I.D. hose is also available as a 3-foot hose guard. 847-755-0360; www.kuriyama.com

Vacuum Pumps

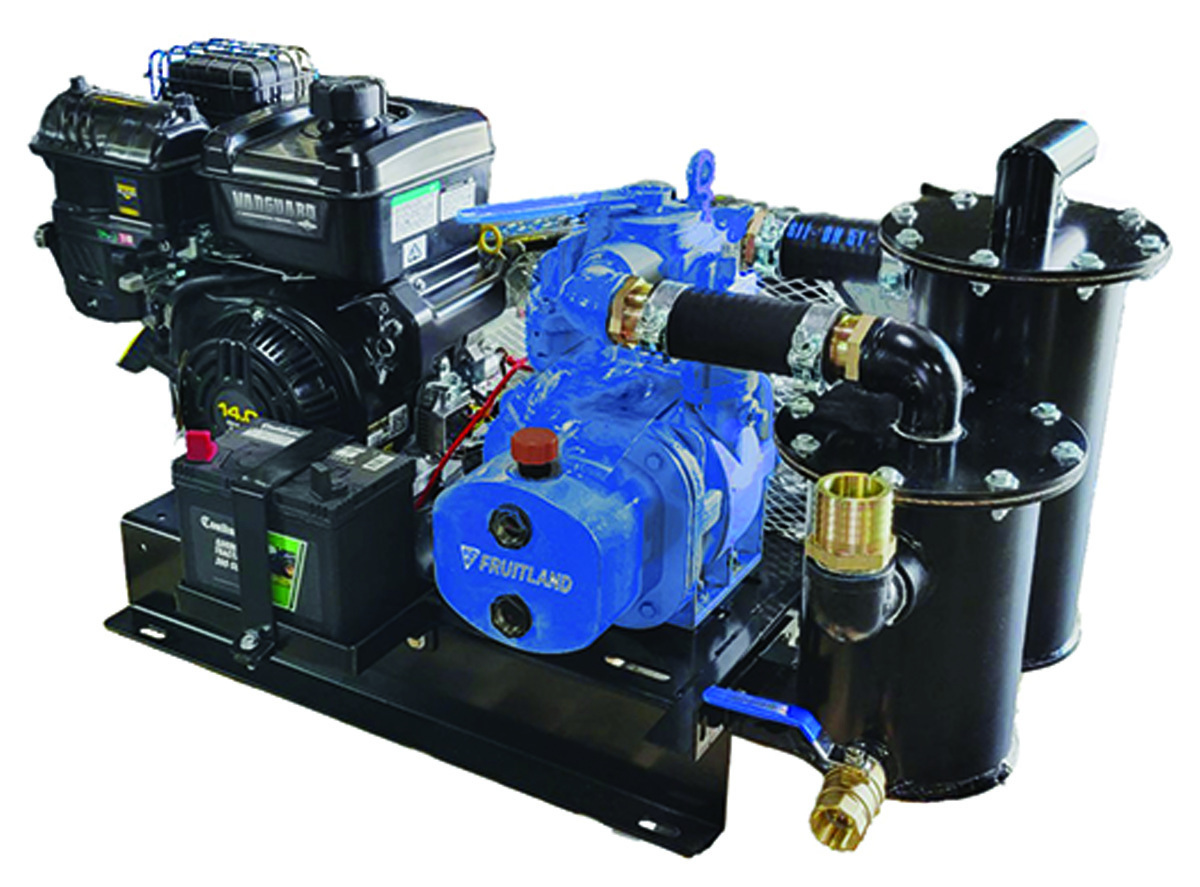

Fruitland Manufacturing ELIM G-172

The ELIM G-172 gas engine-driven system from Fruitland Manufacturing is the most compact option in the Eliminator slide-in engine-driven line. It is suitable for portable restroom and septic vacuum truck applications, especially where space and efficiency are required. This package comes with a 14 hp Briggs and Stratton Vanguard engine, a 127 cfm free-airflow Fruitland RCF172 vacuum pump, a standard bolt-in truck mount, and it is available in left-hand or right-hand orientation. Packages are also available with various pump models and types and in many different configurations. 800-663-9003; www.fruitlandmanufacturing.com

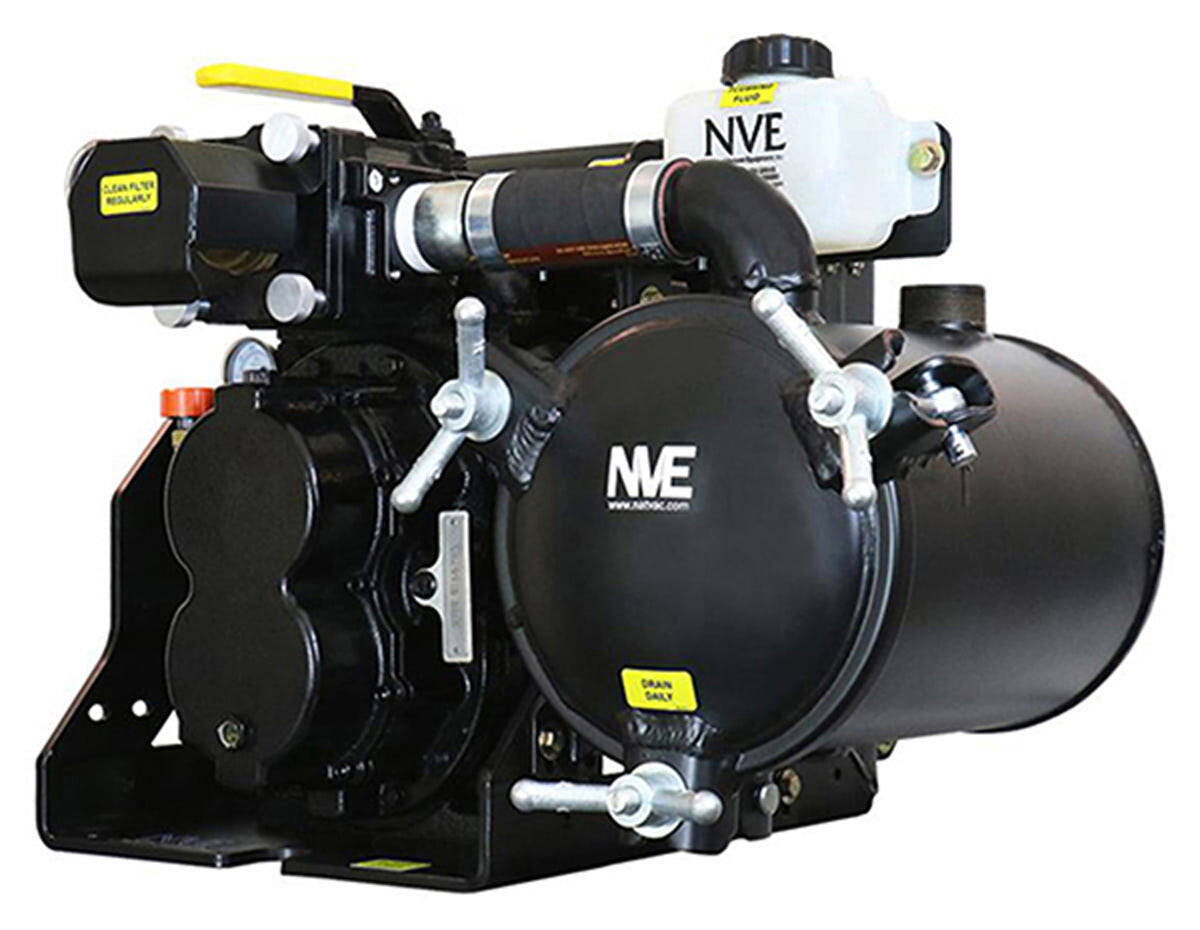

National Vacuum Equipment B250 Max Pak

The National Vacuum Equipment B250 Max Pak is designed for the portable restroom market, using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil-free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1-to-1.5 ratio gearbox makes it easy to provide optimum revolutions per minute to the blower, while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and Ram 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel-drive. 800-253-5500; www.natvac.com

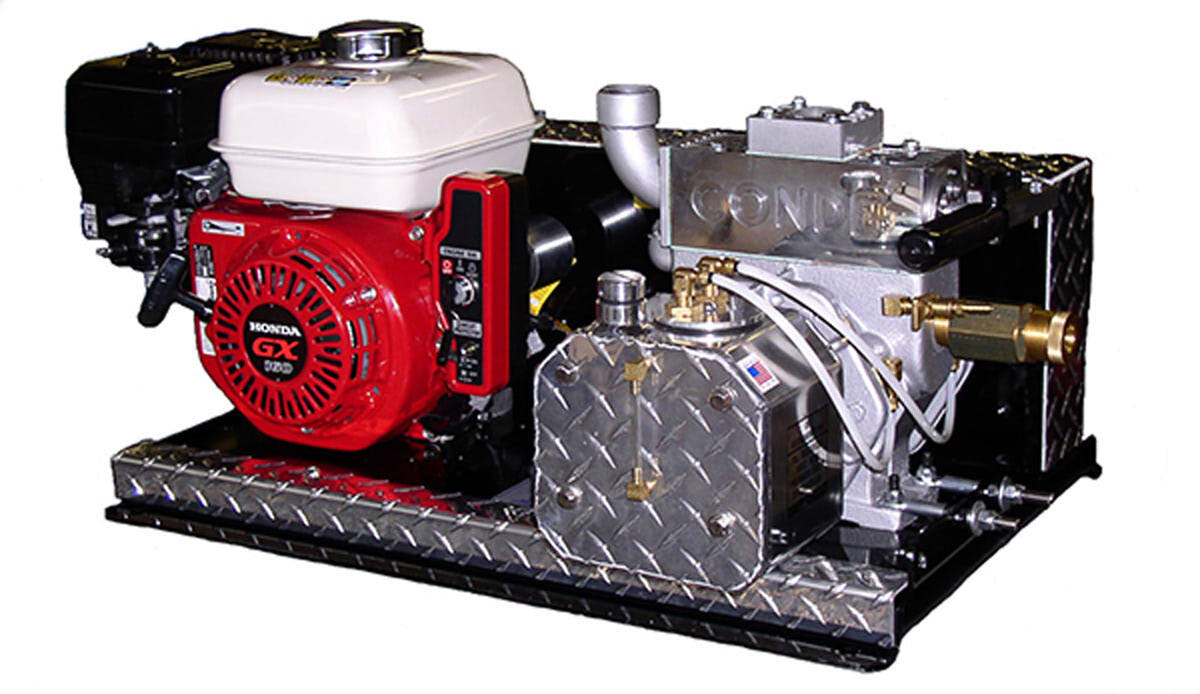

Westmoor Conde PowerPaks

Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations. Direct-drive units incorporate a centrifugal clutch that allows throttling down the engine and disengaging the vacuum pump. Throttle up and the pump is in action. Specify either vacuum and pressure, or vacuum-only pump choice. Diesel-powered units are also available for applications where non-sparking engines are required. 800-367-0972; www.westmoorltd.com

Vacuum Trucks

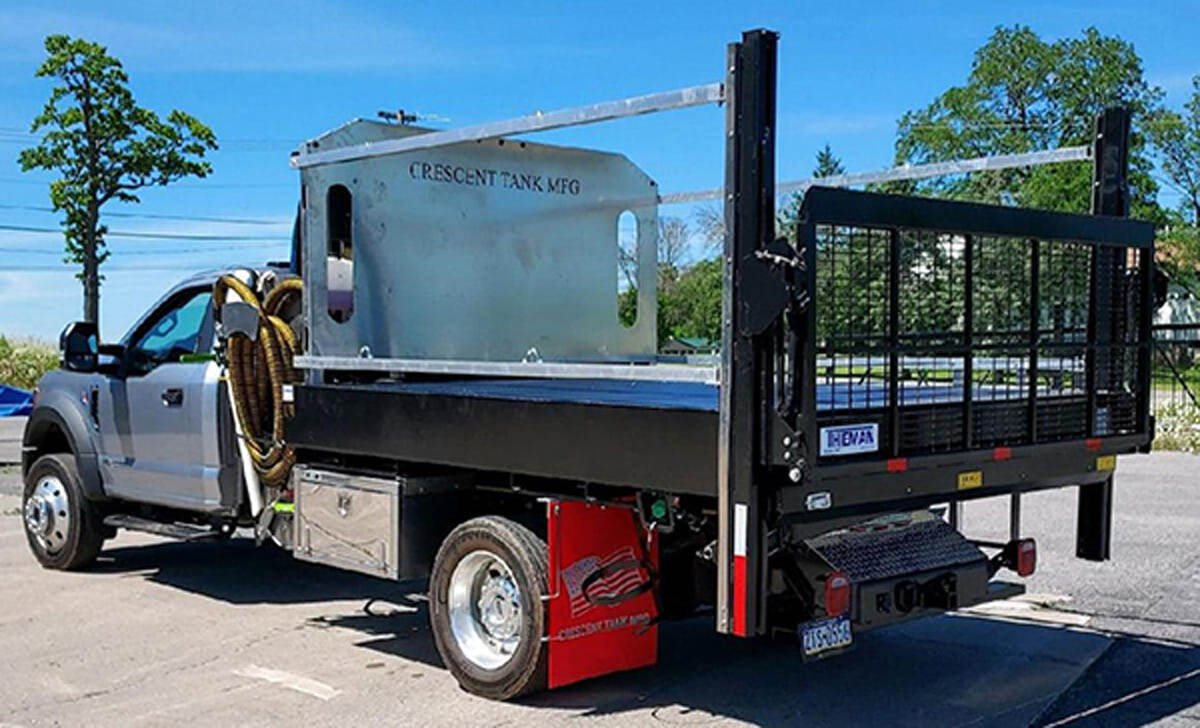

Crescent Tank vacuum tank

The Crescent Tank vacuum tank is flat inside and out. It can carry up to 10 portable restrooms, and the weight capacity is the same as a flatbed truck. It has no baffles, allowing it to be emptied completely to avoid internal corrosion. With the included pump at specified cfm, unnecessary structural fatigue is eliminated. It is fabricated from 1/4-inch steel for structural strength. Its workstation is designed for the portable restroom industry. The liftgate rail width allows units to fit, and multiple liftgate decks and rail options are available. Fresh water is held inside the external 1/2-inch-thick poly tank. It can be installed on any chassis within the specifications required for each model based on axle ratings and maximum load capacity. 585-657-4104; www.crescenttank.com

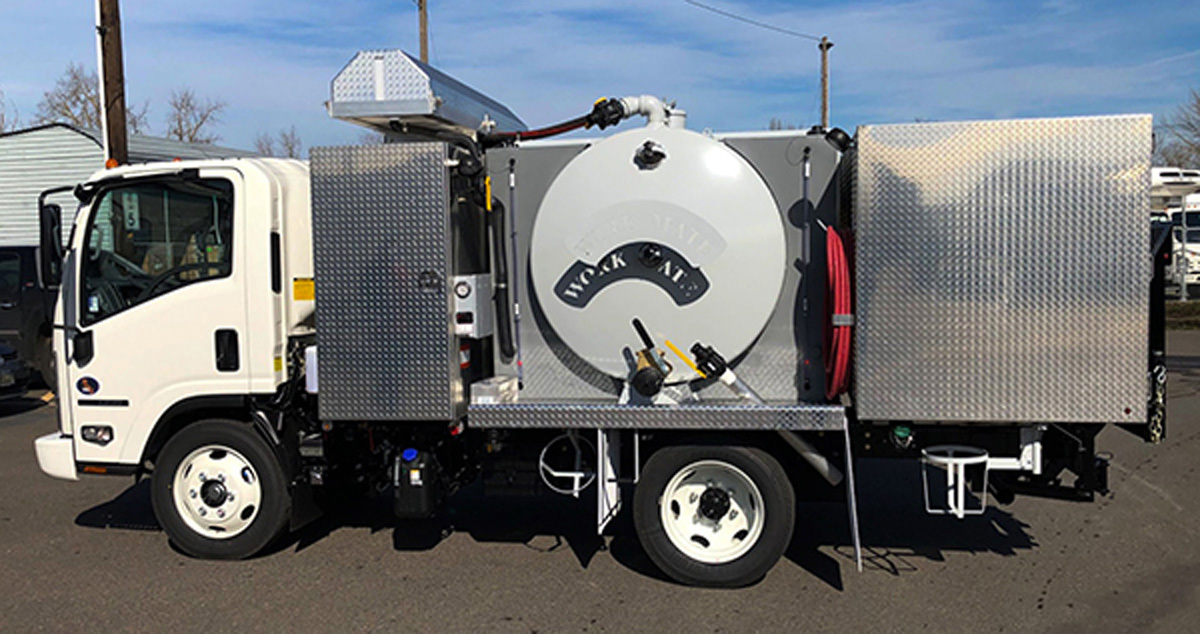

FMI Truck Sales & Service WorkMate

The WorkMate service truck from FMI Truck Sales & Service is designed with efficiency and operator comfort in mind, according to the maker. The ergonomically designed workstation can be operated from the driver’s side of the vehicle. It more than 60 cubic feet of storage space for supplies. The unit can be modified to carry up to six restrooms without a trailer. The unit pairs well with Isuzu’s maneuverable and fuel efficient N-Series chassis as well as Hino, Ford, Ram, GM or International chassis. The modular design allows for easy replacement of components if repair is needed. 800-927-8750; www.fmitrucks.com

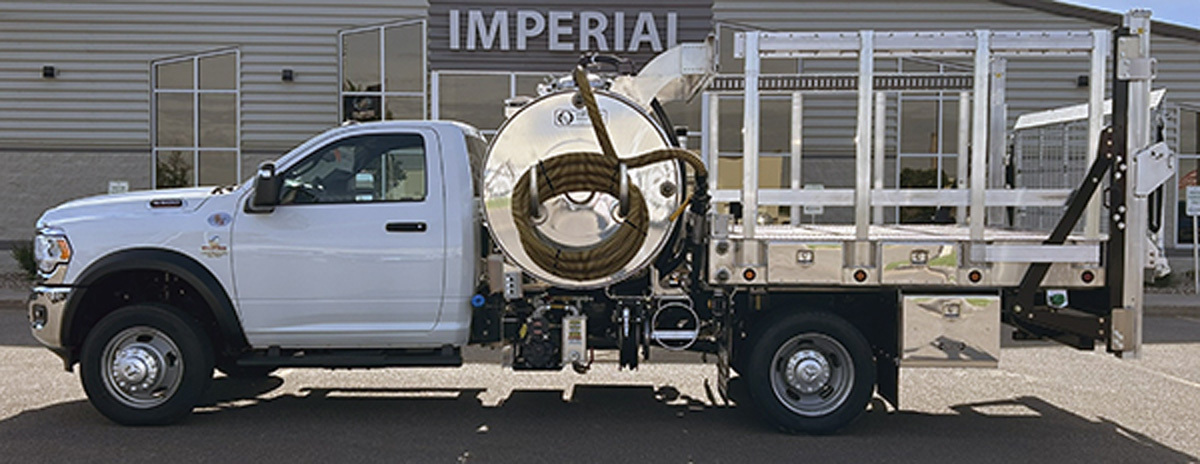

Imperial Industries Flatvac

The 1,000-gallon stainless steel Flatvac from Imperial Industries can carry up to six portable restrooms. The baffled, internally divided tank carries 700 gallons of waste and 300 gallons of freshwater. The unit offers dual-side bucket fill, dual Hannay hose reels with 50 feet of hose, a Pumptec X-5 washdown pump, Masport HXL4 plug-and-play vacuum pump system, Thieman liftgate, and a 3-inch stainless steel boom with 30 feet of 2-inch intake hose and a suction nozzle. 800-558-2945; www.imperialind.com

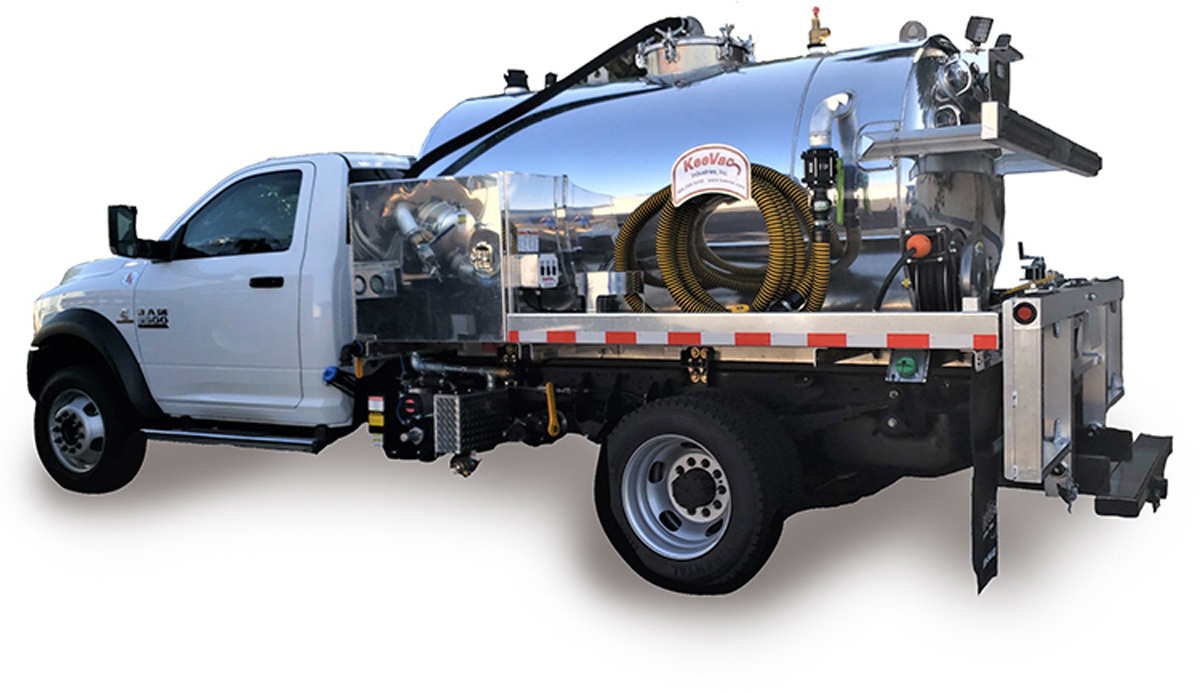

KeeVac Industries KV999

The KV999 from KeeVac Industries carries a 999-gallon vacuum tank for operators who want to stay under the U.S. Department of Transportation tanker endorsement requirement. It is available in steel, stainless steel and aluminum, with single- or dual-side service, holds 699 gallons of waste and 300 gallons of freshwater, and includes a two-unit fold-down restroom carrier with trailer hitch. The tank can be mounted on a variety of chassis and with a variety of pumps. Each unit comes with an upgraded DC-10 washdown pump and hose reel from Hannay Reels. Exterior controls and dual cabinets are designed for operator safety and convenience. An arctic package and safety lighting are available. 866-789-9440; www.keevac.com

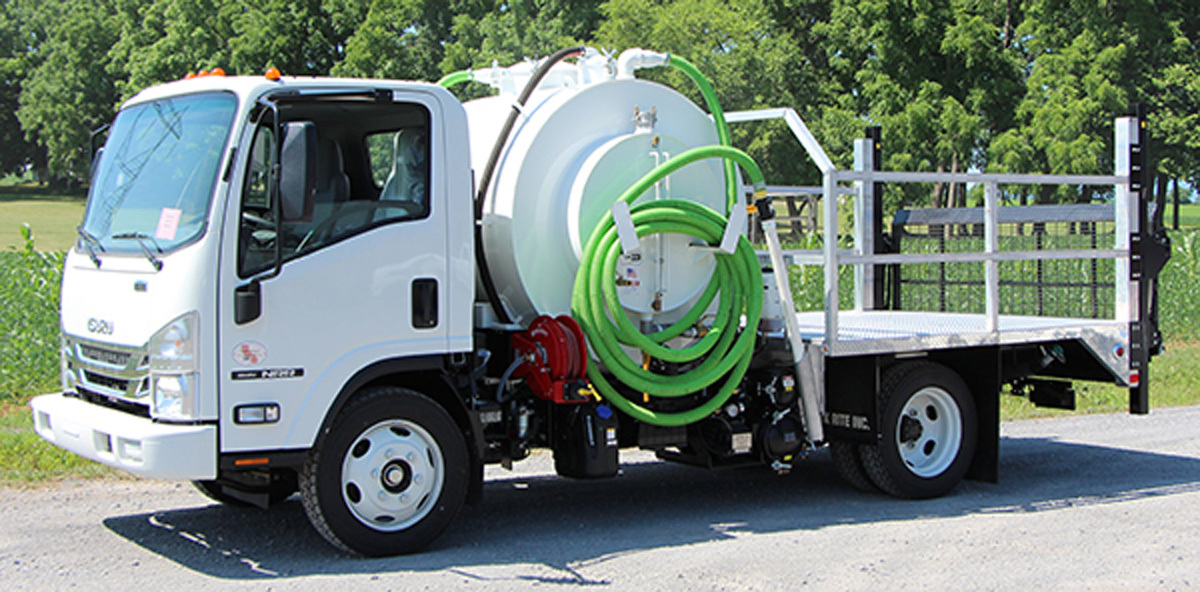

Pik Rite Flatbed Restroom Hauler

The Flatbed Restroom Hauler from Pik Rite has a 400-gallon waste compartment and internal 250-gallon freshwater compartment for even weight distribution, flatbed and liftgate. The truck has a National Vacuum Equipment 304 vacuum pump, dual 2-inch fill hoses, 20 gpm washdown system, dual-spring return freshwater hose reels and dual 2-inch bucket fills. A 20-inch top manway, 5-inch sight eyes and clear-hose sight tube are included. The truck is equipped with a 98-by-102-inch aluminum flatbed and Thieman TVL liftgate. Two diamond plate toolboxes are mounted on the passenger side. The truck has an LED running light kit with a durable, fully molded wiring harness. 800-326-9763; www.pikrite.com

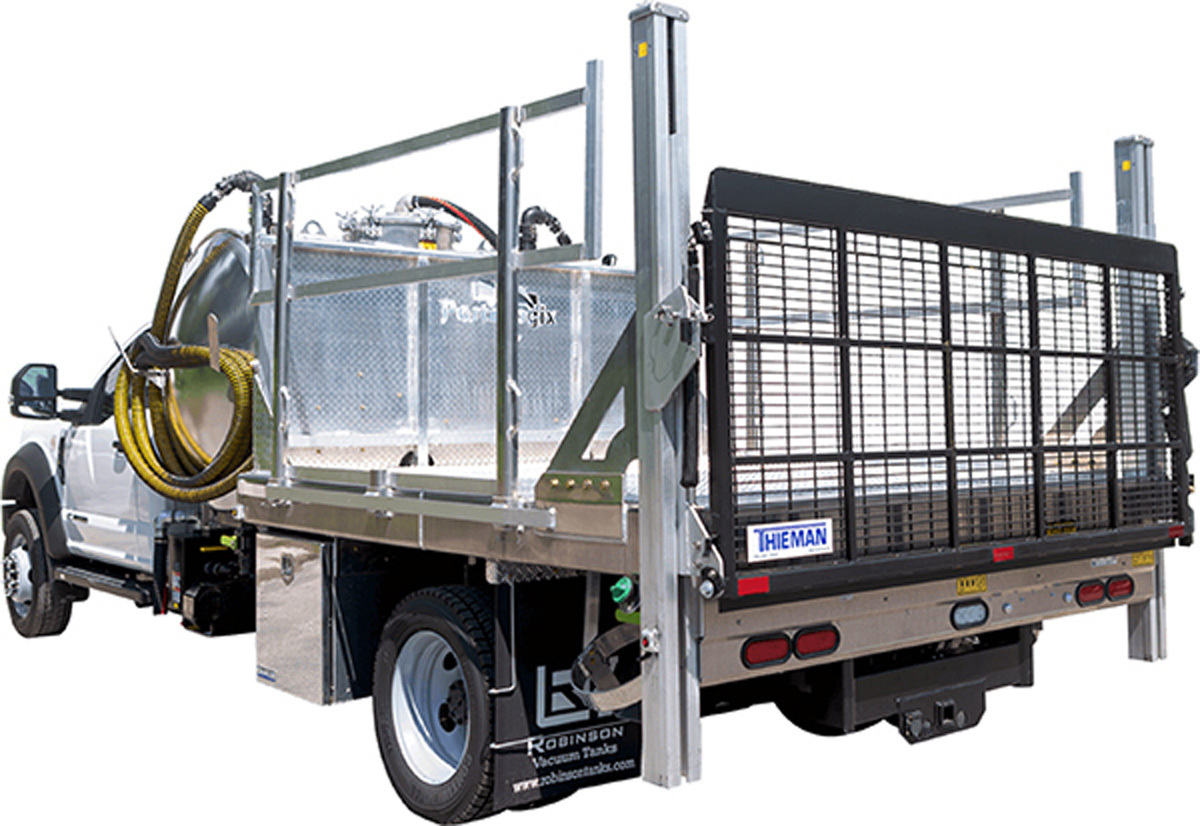

PortaLogix service truck

The mid-size PortaLogix service truck accommodates waste, water and the ability to carry up to six units. It utilizes a transverse waste tank and freshwater tank that doubles as the truck bed. It can carry 800 gallons of wastewater, 350 gallons of freshwater while transporting standard size restrooms. They feature dual-side service allowing operators to access water drop points on all four corners of the bed. They are available in two- and four-wheel drive. The service trucks can be driven without a CDL. 585-484-7009; www.portalogix.com

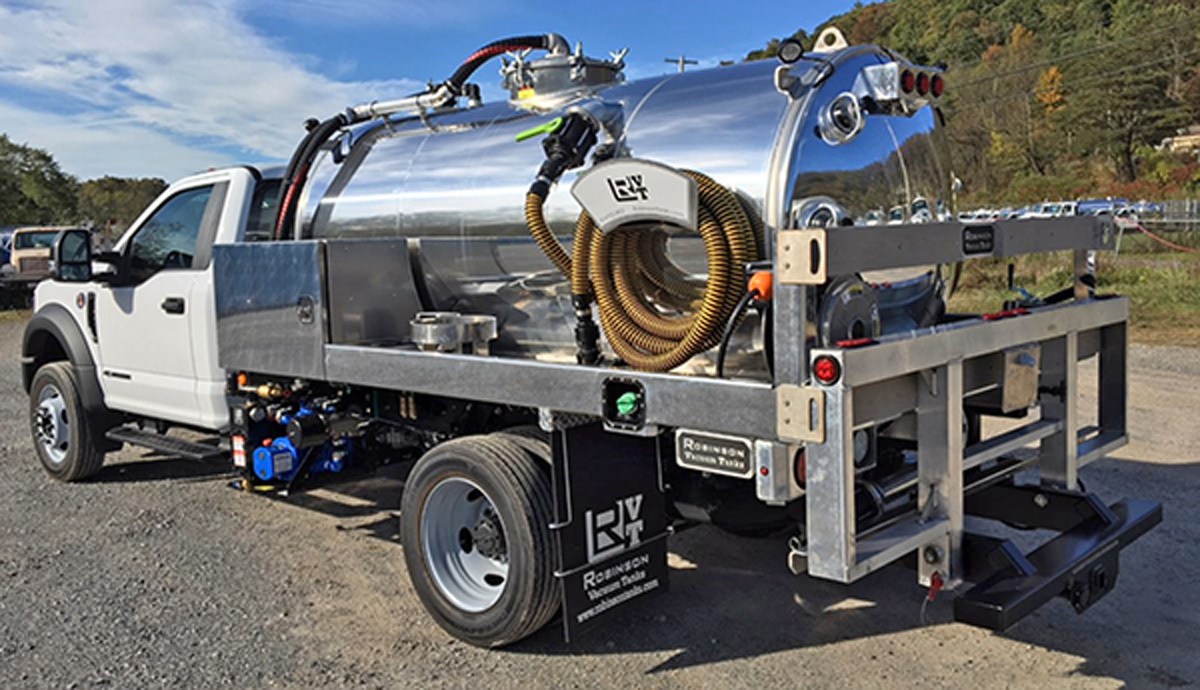

Robinson Vacuum Tanks PR1200A

The PR1200A truck from Robinson Vacuum Tanks carries a 900-gallon waste/300-gallon freshwater aluminum portable restroom service tank. This model has standard dual-side service including tool box, suction hose and bucket fill. The unit comes with a bumper capable of towing a trailer, and it has a folding platform to haul two portable restrooms. Chassis options include choice of manufacturer, two- or four-wheel drive, and gas or diesel. There are also multiple options for vacuum and water pumps. 814-933-0927; www.robinsontanks.com

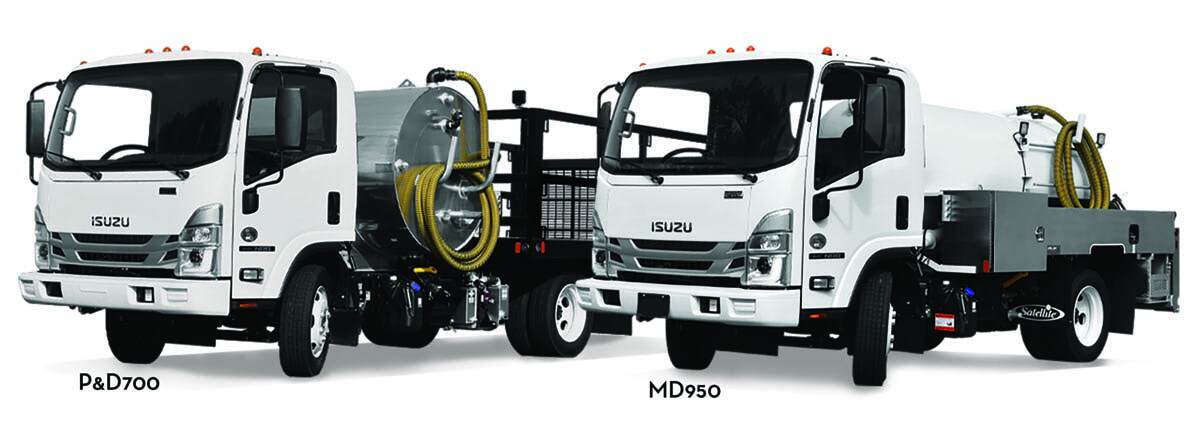

Satellite Vacuum Trucks Cabover Line

The Satellite Vacuum Trucks Cabover Line comes on Isuzu chassis that have a tight turning radius, making the trucks suitable for maneuvering in tight spots like urban areas, and for quickly positioning trailers. Available in gas and diesel, the chassis can be upfitted in several operator- and route-friendly configurations. With increased workspace in the hose tray area, the vacuum and washdown systems are a custom fit for specific service functions. The tank comes in aluminum, steel or stainless steel. 800-883-1123; www.satelliteindustries.com

Washdown Pump

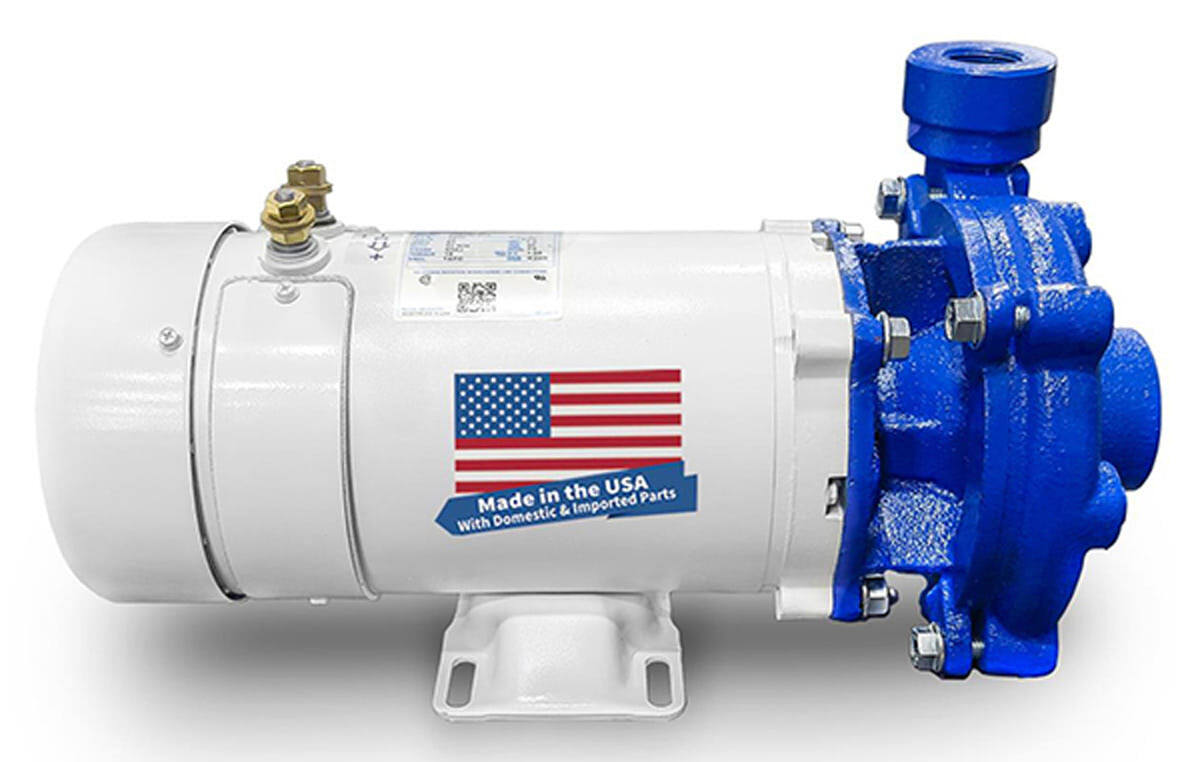

Moro USA DC Washdown Pumps

Moro USA DC Washdown Pumps have a maximum delivery rate of 20 gpm, 42 psi and are primarily utilized for filling sinks and cleaning portable restrooms. The centrifugal pumps are designed with corrosion-resistant materials for operating in wet conditions, and can be used in other applications such as industrial, marine and water circulation. They have an epoxy-coated 12V DC motor, stainless steel impeller, four front drain plugs, and a carbon/ceramic/Viton mechanical seal. They require the installation of an in-line circuit breaker and a 12V solenoid. Models include the DCC cast iron washdown pump with stainless impeller, DCSC cast iron washdown pump with stainless steel impeller kit, DCS stainless steel washdown pump, and the DCSS stainless steel washdown pump kit. 866-383-6304; www.morousa.com
