Slide-In Units

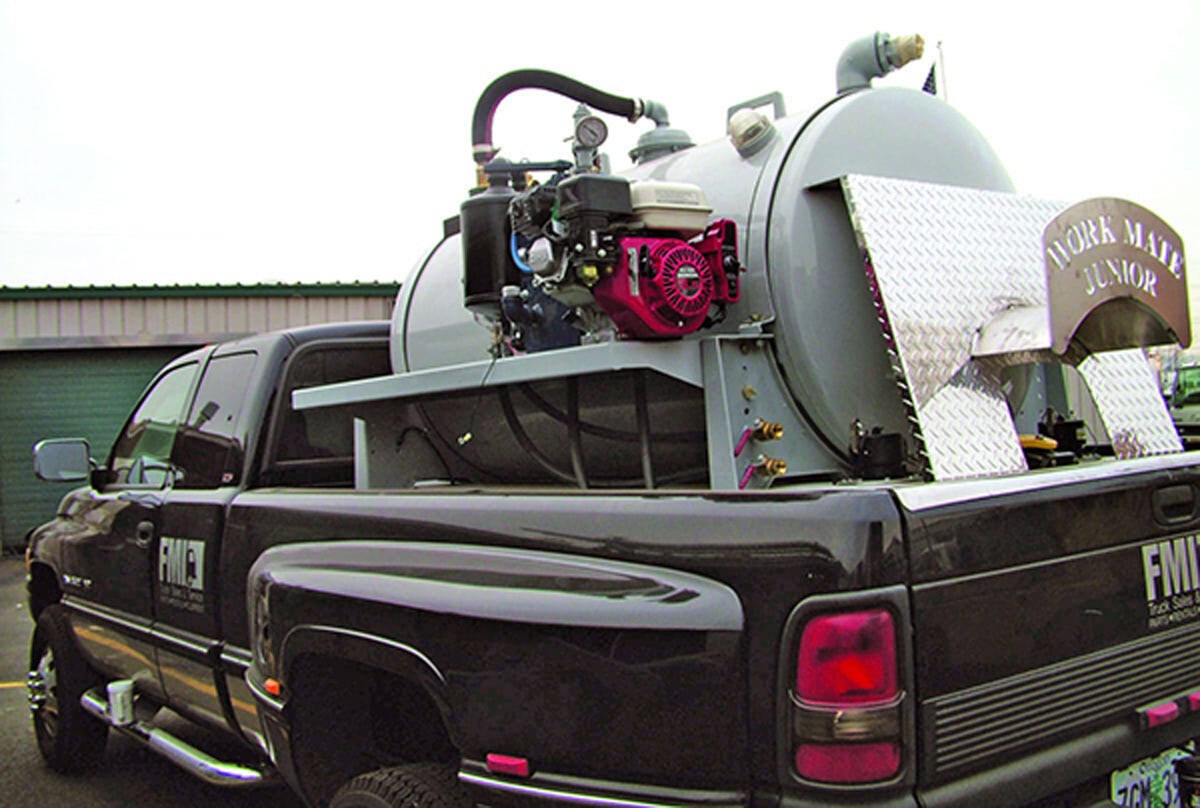

FMI Truck Sales & Service WorkMate Junior
The WorkMate Junior slide-in unit from FMI Truck Sales & Service is an option for small operators or those getting started. It has a 325-gallon waste capacity and twin 75-gallon poly water tanks to fit in the bed of a 1-ton pickup truck or flatbed. The twin 75-gallon poly tanks can be isolated or flow together with the turn of a valve. The unit comes ready to work with all necessary hoses, wands, buckets, straps and an ergonomic workstation. Options include primary and secondary shut-offs, 12-volt freshwater delivery, an oil-catch muffle, easy-drain manifold system and increased storage. 800-927-8750; www.fmitrucks.com

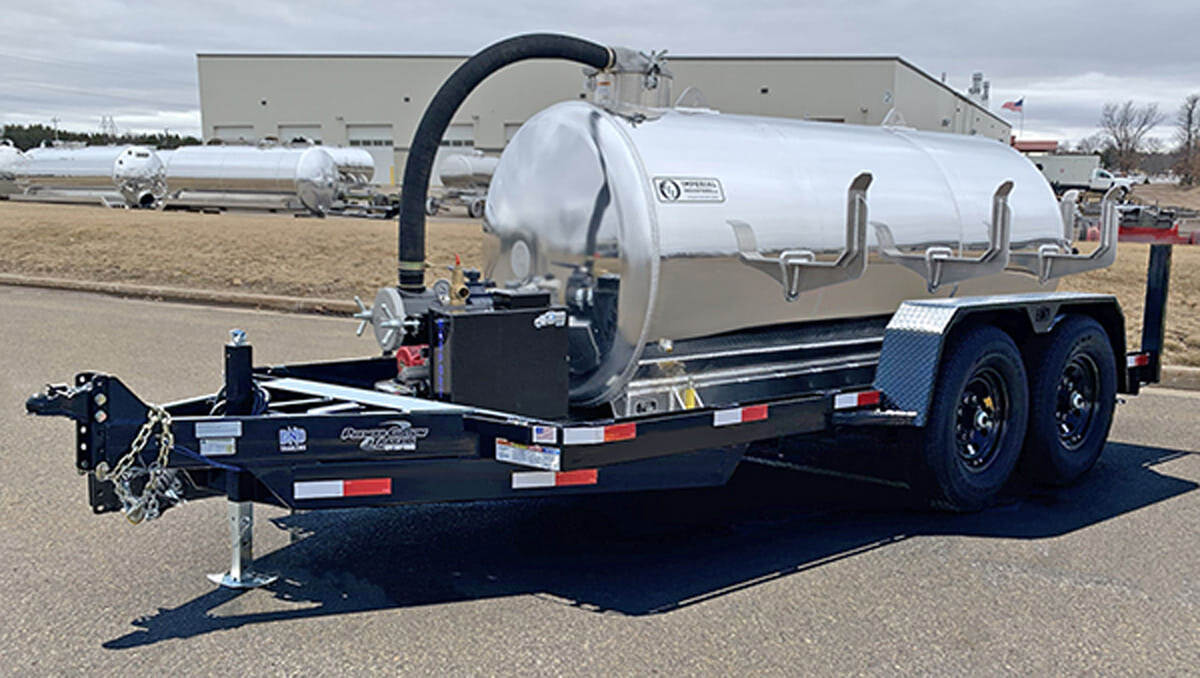

Imperial Slide-In Trailer Unit
The Imperial Industries Slide-In Trailer Unit is equipped with a 1,000-gallon aluminum vacuum tank. Tank features include a 6-inch discharge valve, 4-inch intake valve, wraparound hose hooks and two 5-inch sight glasses. It also comes with a 230 cfm Masport HXL75 vacuum pump powered by a Honda 13 hp electric motor. The trailer is a 14-by-6-foot scissor lift trailer with a 14,000-pound suspension. This model allows easy access to height-restricted areas, making it suitable for parking ramps. 800-558-2945; www.imperialind.com

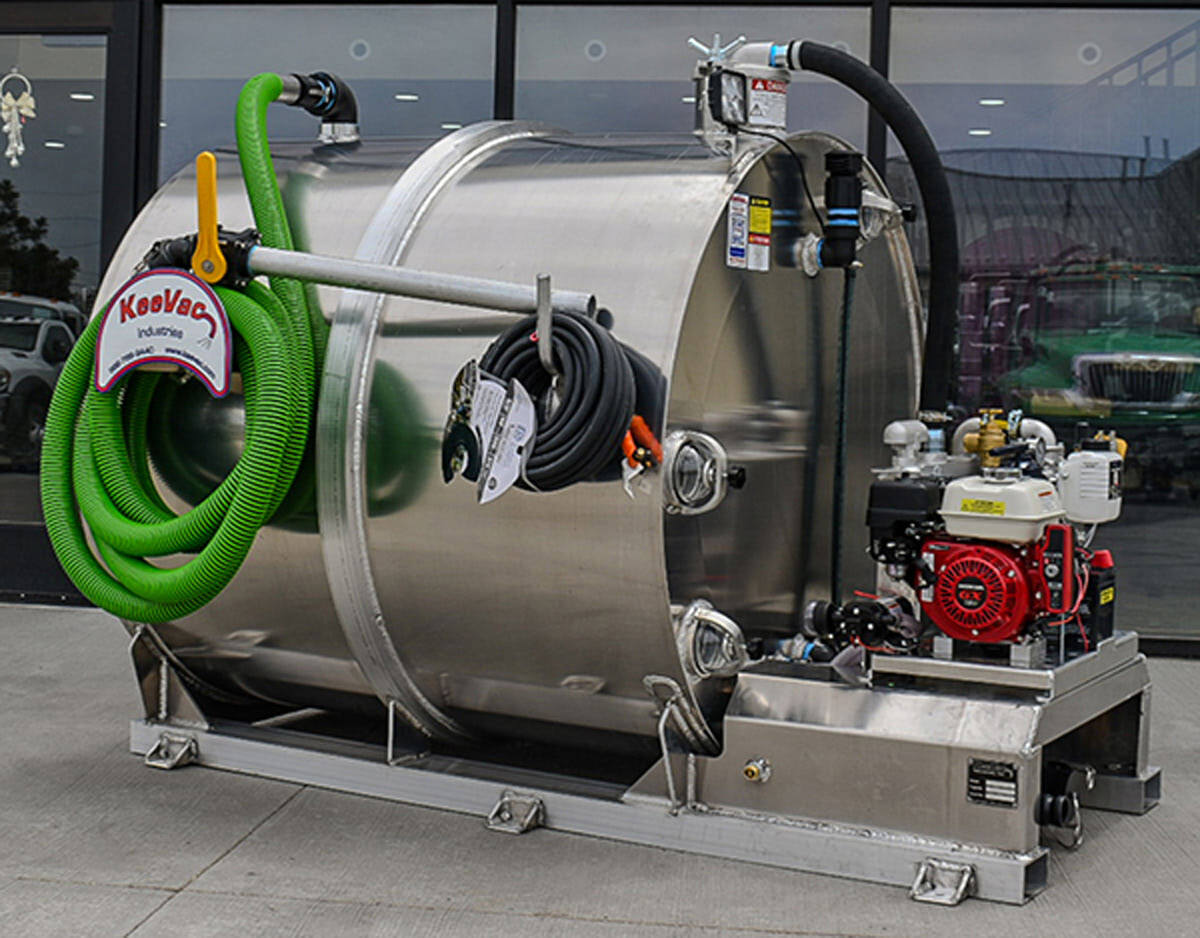

KeeVac 600-Gallon Polished Aluminum Slide-In Unit
KeeVac 600-Gallon Polished Aluminum Slide-In Units are designed to fit into the 8-foot bed of a 1-ton pickup truck. This design allows for conversion of any 1-ton or larger truck into a portable restroom service vehicle, eliminating the need for a flatbed or dedicated restroom truck. Crafted from 5454 polished aluminum, the slide-in units are available in both single and dual compartment configurations for septic and restroom service. They come equipped with a Masport HD2 vacuum pump, 12-volt washdown pump, 50-foot garden hose and a 30-foot GatorTail with wand. The water pump and garden hose are only included on dual-compartment units with a rear-mounted pump and motor package. Custom modifications are also available to tailor the tanks to specific needs, with larger vacuum pumps on request. 303-789-9440; www.keevac.com

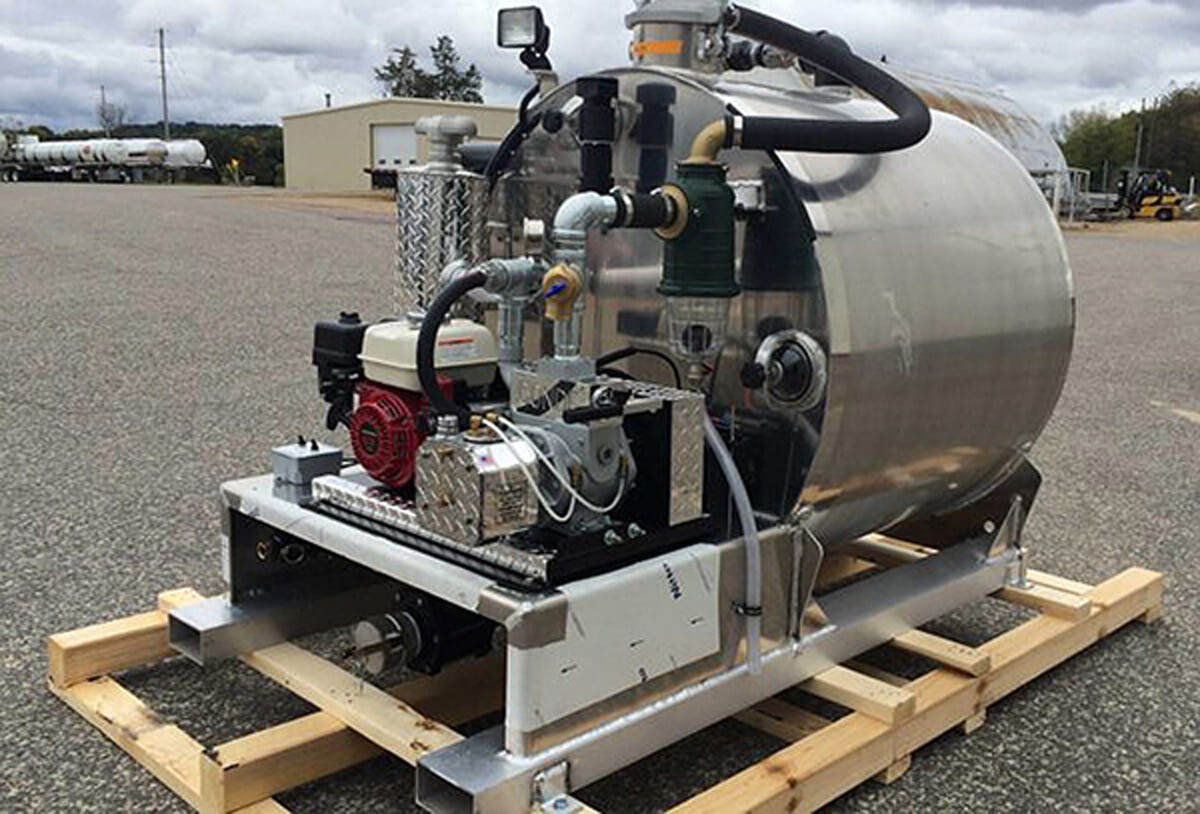

Progress, powered by Garsite Slide-Ins
Progress, powered by Garsite, offers a wide range of in-stock slide-in vacuum tanks, with capacities ranging from 300 to 995 gallons to meet the demands of any job size. Whether you need a compact 300-gallon unit for tight spaces or a high-capacity 995-gallon tank for heavy-duty service, each model is engineered for superior performance, durability and ease of use. These ready-to-go solutions are ideal for portable sanitation, septic and grease applications. 800-467-5600; www.progresstank.com

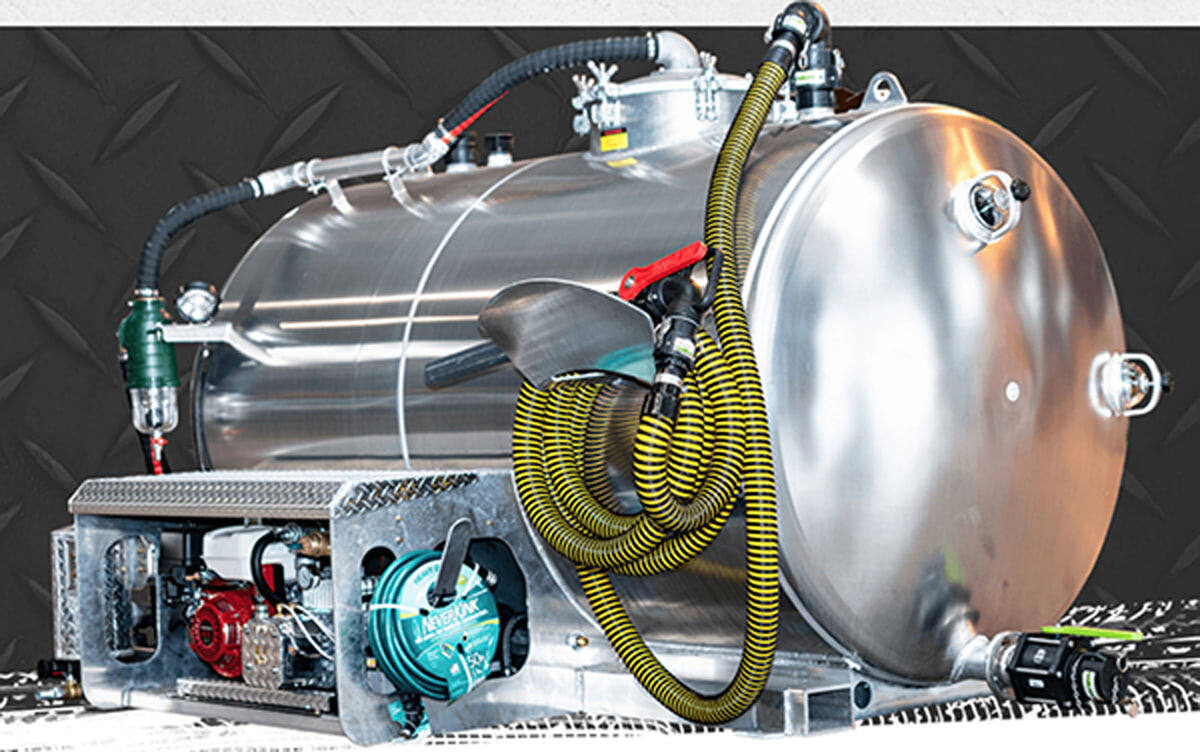

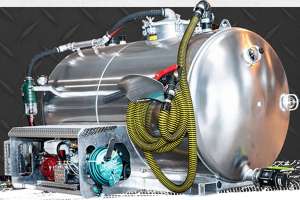

Robinson Vacuum Tanks FD Series
The FD Series from Robinson Vacuum Tanks is available in single- and multiple-compartment models. The aluminum tank offers two configurations and is available from 300 to 1,500 gallons. The RE version has the pump located on the rear side of the tank, while the SE has the pump located on the side of the tank and set up for conventional mounting. 814-933-0927; www.robinsontanks.com

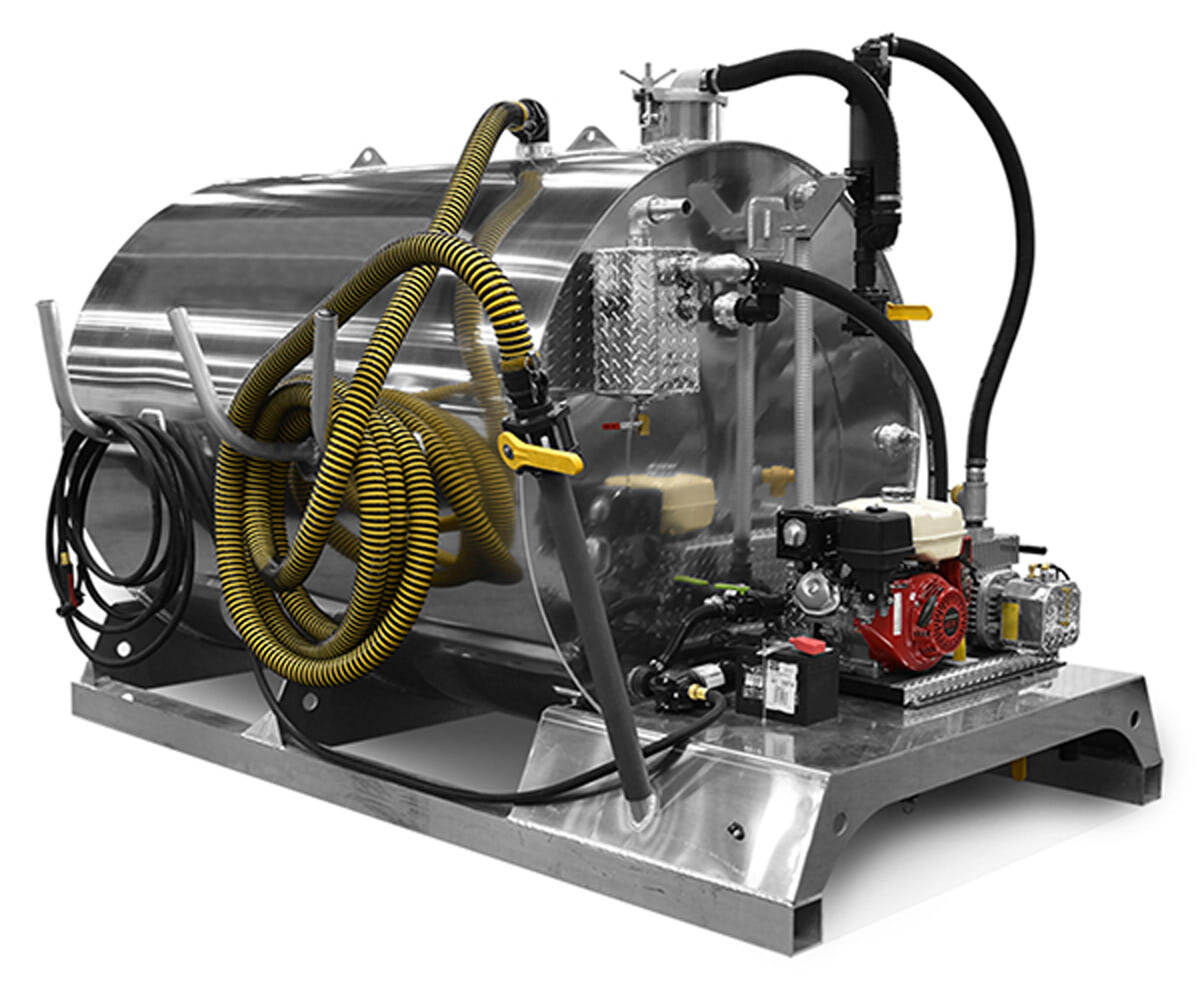

Satellite MAL 900 Slide-In
The MAL 900 Slide-In unit from Satellite is an all-in-one turnkey solution designed for PROs who need large tank capacity in a compact footprint. The unit has a 600-gallon waste/300-gallon freshwater aluminum tank, suitable for medium to large routes including events, construction sites and jobs in remote areas, according to the maker. It has a durable and high-performing vacuum pump for efficient waste removal and is built to withstand daily use. It is easy to install and fits an array of trucks and trailers. It includes a 30-foot hose for flexibility of range, storage racks for hoses, a freshwater washdown system and sight glasses. 800-883-1123; www.satelliteindustries.com

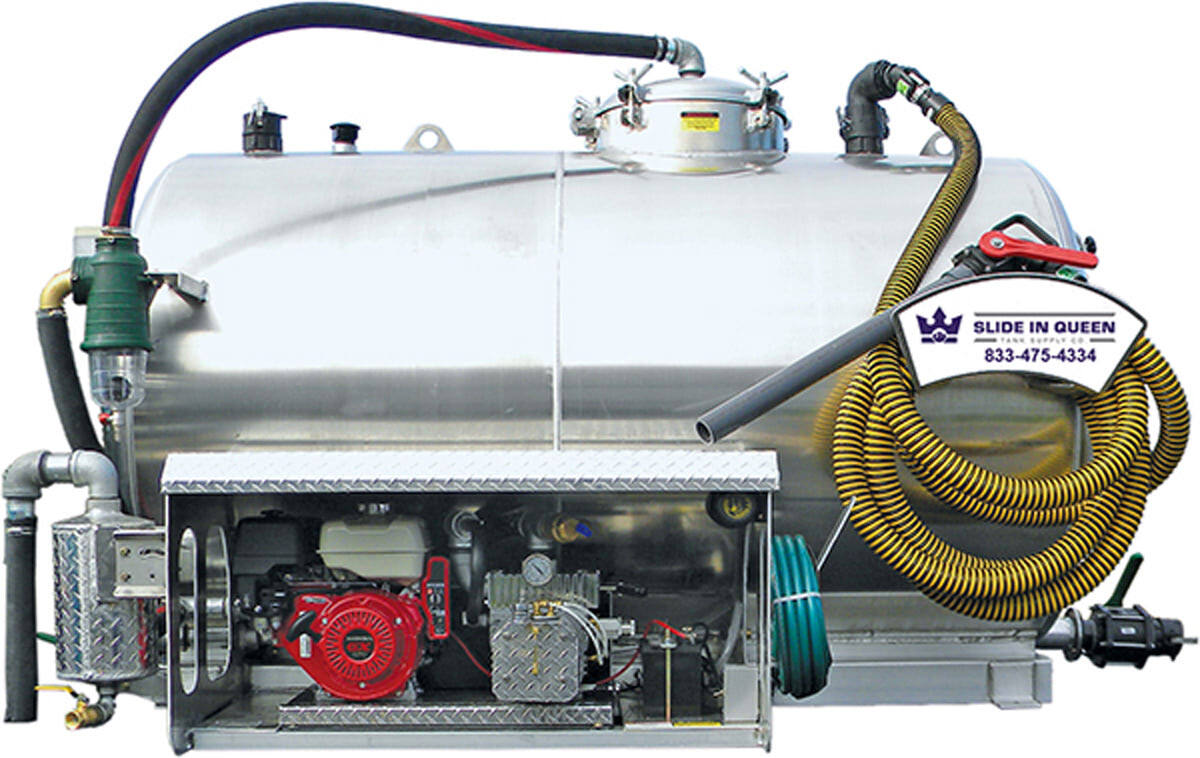

Slide In Queen Unit
Slide In Queen offers a complete unit featuring a flat deck, tank, Hannay hose reel and toolbox for portable restrooms, as well as septic and grease. The tanks are constructed from marine-grade aluminum, stainless steel or steel. These tanks are mounted onto a flat deck and can then easily be mounted to a chassis of the customer’s choosing for a complete service solution. The 995-gallon tank can be mounted on any chassis. The complete flat-deck unit offers customers the ability to use a cab and chassis truck, which are readily available in the market. Mounting 995-gallon or smaller tanks allows customers to remain under the tanker endorsement requirements while also offering space in most cases to use the truck to haul between two to four portable restrooms by adding a carrier, which can be mounted and shipped with the complete unit. Flat-deck units come in a variety of sizes and can be easily installed on any cab and chassis truck. Units are available in standard sizes ranging from 300 to 1,500 gallons, and trucks to service portable restrooms, septic and grease built to order. 833-475-4334; www.slideinqueen.com
TankTec slide-in tank
Slide-in tanks from TankTec range from 100- to 995 gallons. The tanks are available in single-compartment for grease trap and septic service or two-compartment for portable restroom service. 888-428-6422; www.tanktec.biz

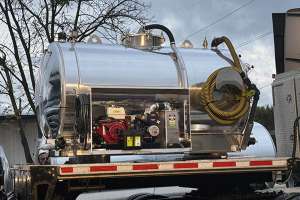

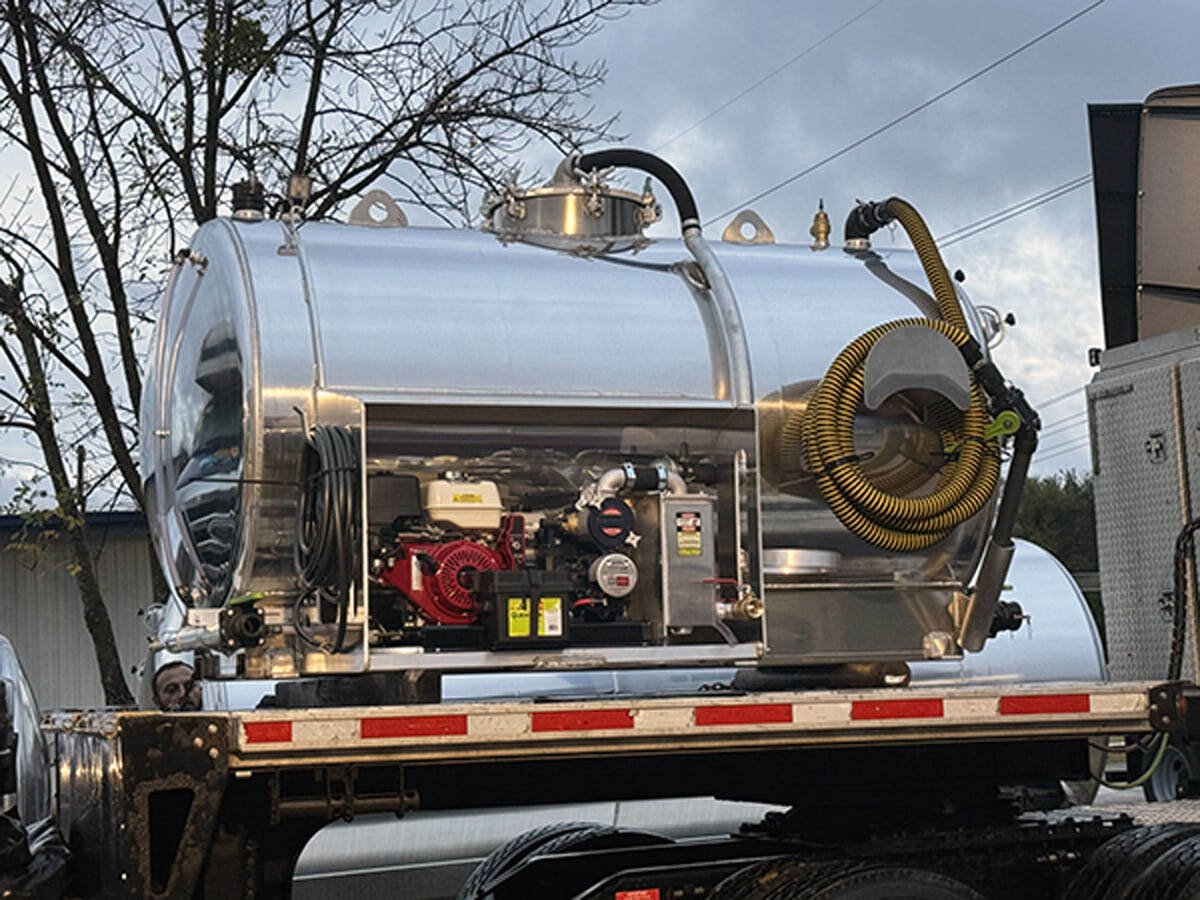

Vacuum Tank Sales 999-Gallon Vacuum Tank
Vacuum Tank Sales’ 999-Gallon Vacuum Tank offers a multitude of build options and add-ons to suit a range of applications. It can be equipped with a single or split compartment, such for portable restroom service holding 699 gallons of waste and 300 gallons of water. It can also be used to clean out grease traps. It excels at hauling 999 gallons of waste to get the highest-capacity transportation possible without requiring a U.S. DOT tanker endorsement. Mountable to a driver’s new or existing flatbed or trailer, the unit has a number of add-ons for a personalized rig, from hoses, hose hooks, wand holders, bottle holders, toolboxes, pumps and portable restroom racks. Several barrel configurations are compatible with a variety of pumps, which can be side-mounted or placed in the rear. The waste compartment is accessible via manway at the top for simple cleaning and maintenance, and all components are welded using a MIG or TIG process. 888-530-0590; www.vacuumtanksales.com
Hose Reel

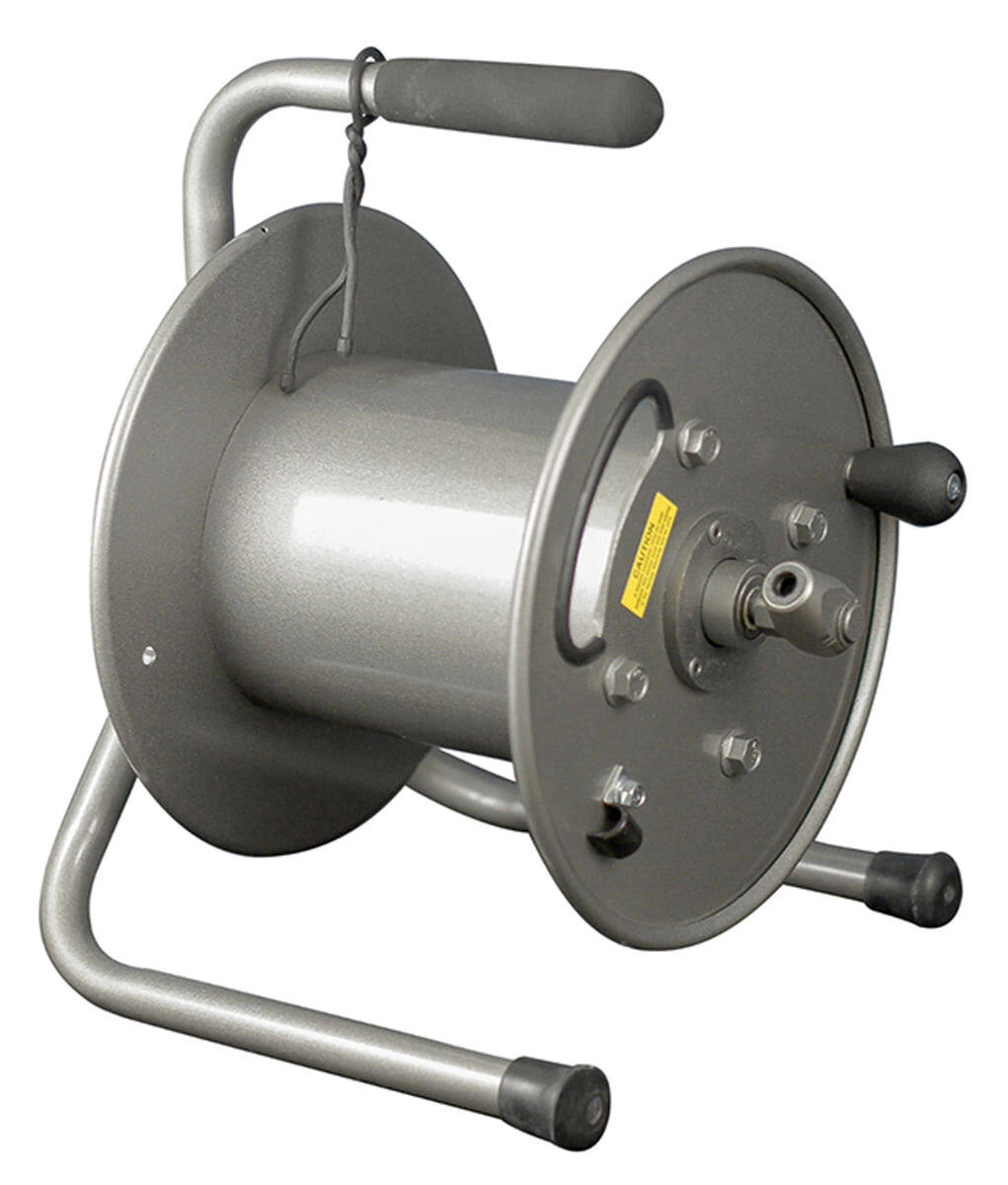

Hannay Reels H16-10-11 Portable Mini-Jetter Hose Reel
Hannay Reels offers the H16-10-11 Portable Mini-Jetter Hose Reel, designed for portable jetting operations. Built from durable steel, this compact, lightweight hose reel is suitable for use in tight or hard-to-reach spaces — its portability allowing operators to quickly connect the hose reel to a nearby water source. The reel includes manual rewind with tension brake for safety and ease of use during the hose rewinding process. Uses for this handheld hose reel include pipe cleaning, drain cleaning and high-pressure applications for residential and light commercial use. There is the option for customizable temperature and pressure ratings. 877-467-3357; www.hannay.com
Vacuum Pumps

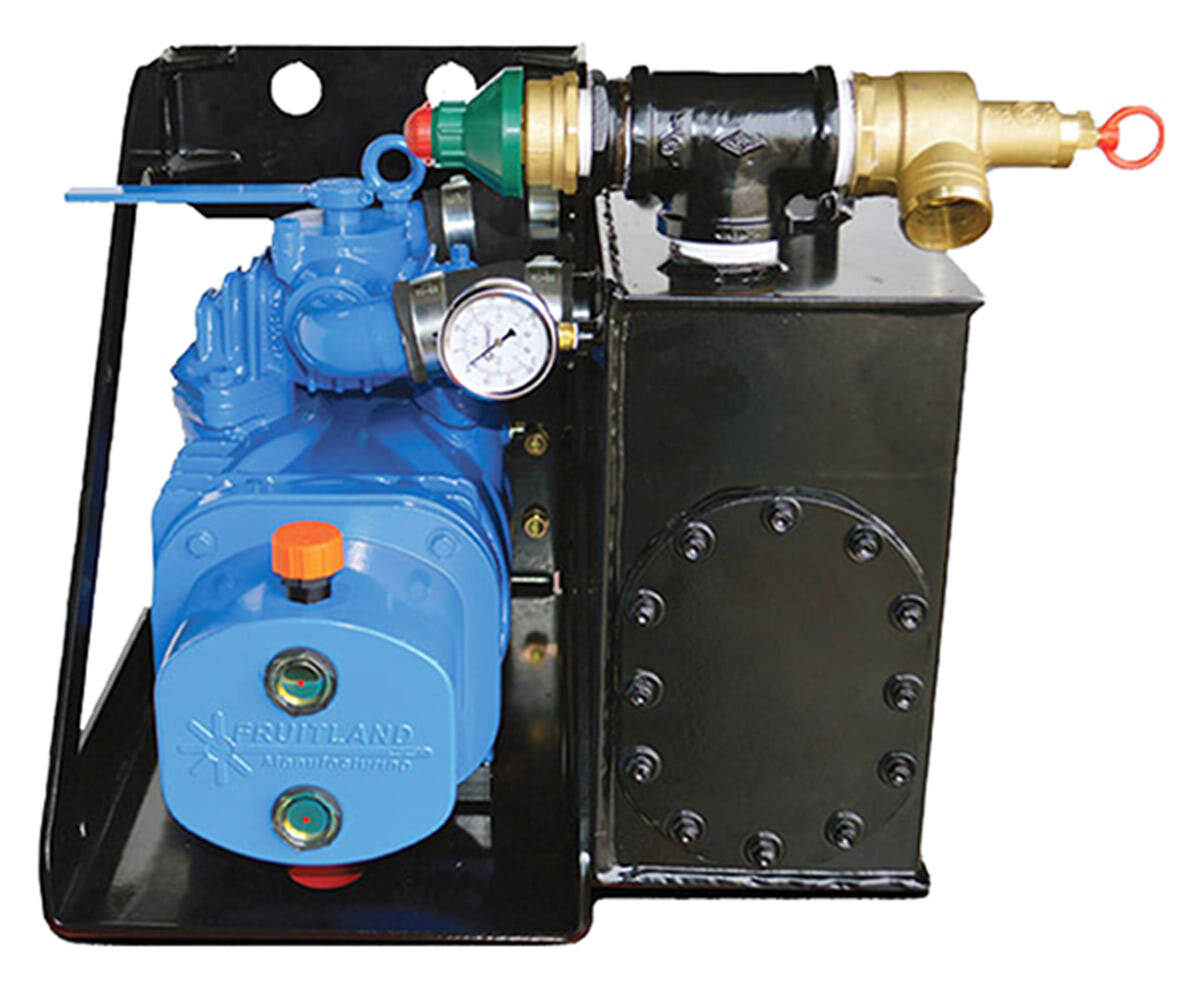

Fruitland ELIM 172
The ELIM 172 package from Fruitland offers the reliability of the RCF172 air-cooled vacuum pump combined with the ease of installation and customizability of optional components built into the “Ready To Rig” Eliminator package. It is available in the ELIM A-SM172, which includes an angle drive option, a secondary shut-off and an oil-catch muffler; or the ELIM H-SMF172R, which includes a hydraulic drive option, secondary shut-off, oil-catch muffler and integrated filter. Optional components include secondary shut-offs, mufflers, couplings, valves, additional reservoirs, flushing kits, stainless steel shrouds and automatic diverter handles. 800-663-9003; www.fruitlandmanufacturing.com

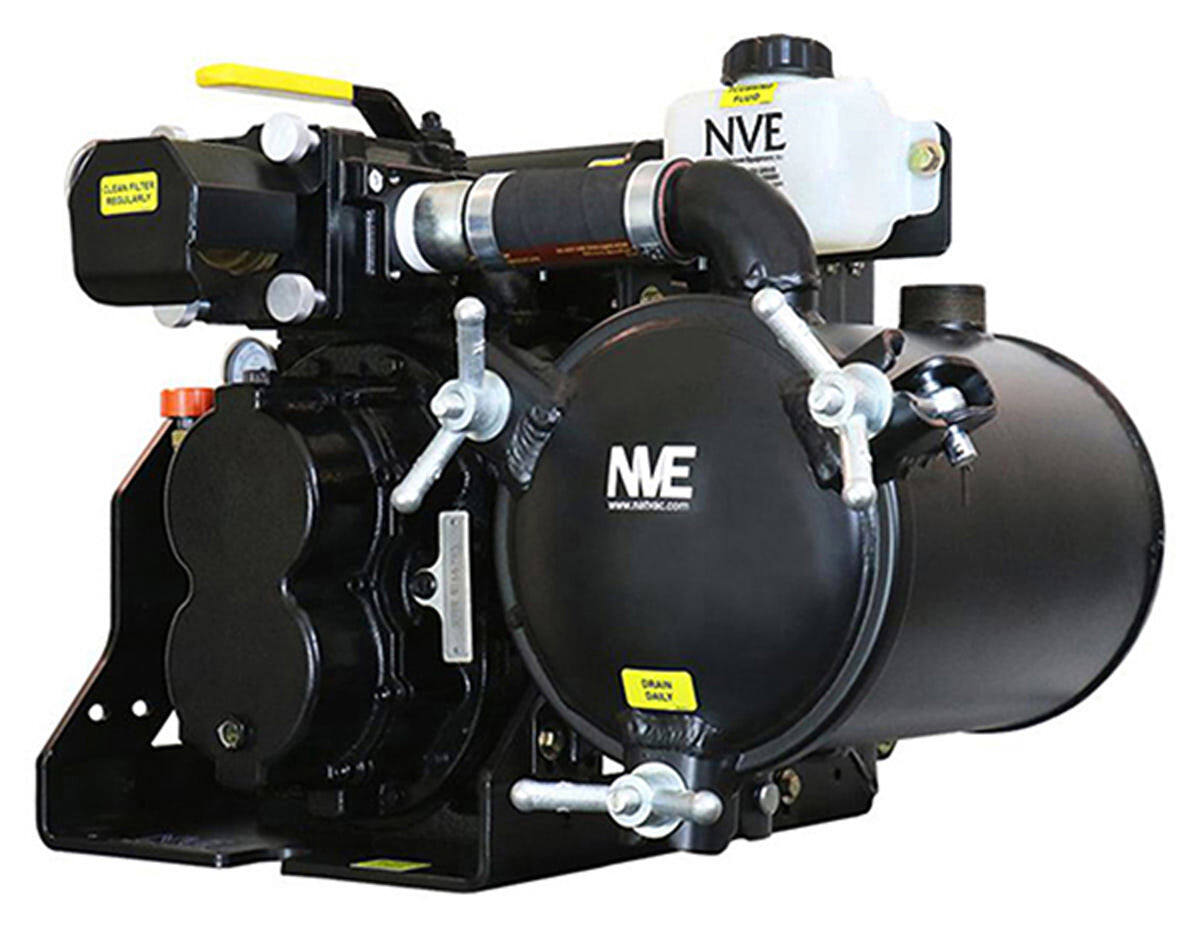

National Vacuum Equipment B250 Max Pak
The National Vacuum Equipment B250 Max Pak is designed for the portable restroom market using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil-free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1-to-1.5 ratio gearbox makes it easy to provide optimum revolutions per minute to the blower while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and Ram 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel drive. 800-253-5500; www.natvac.com

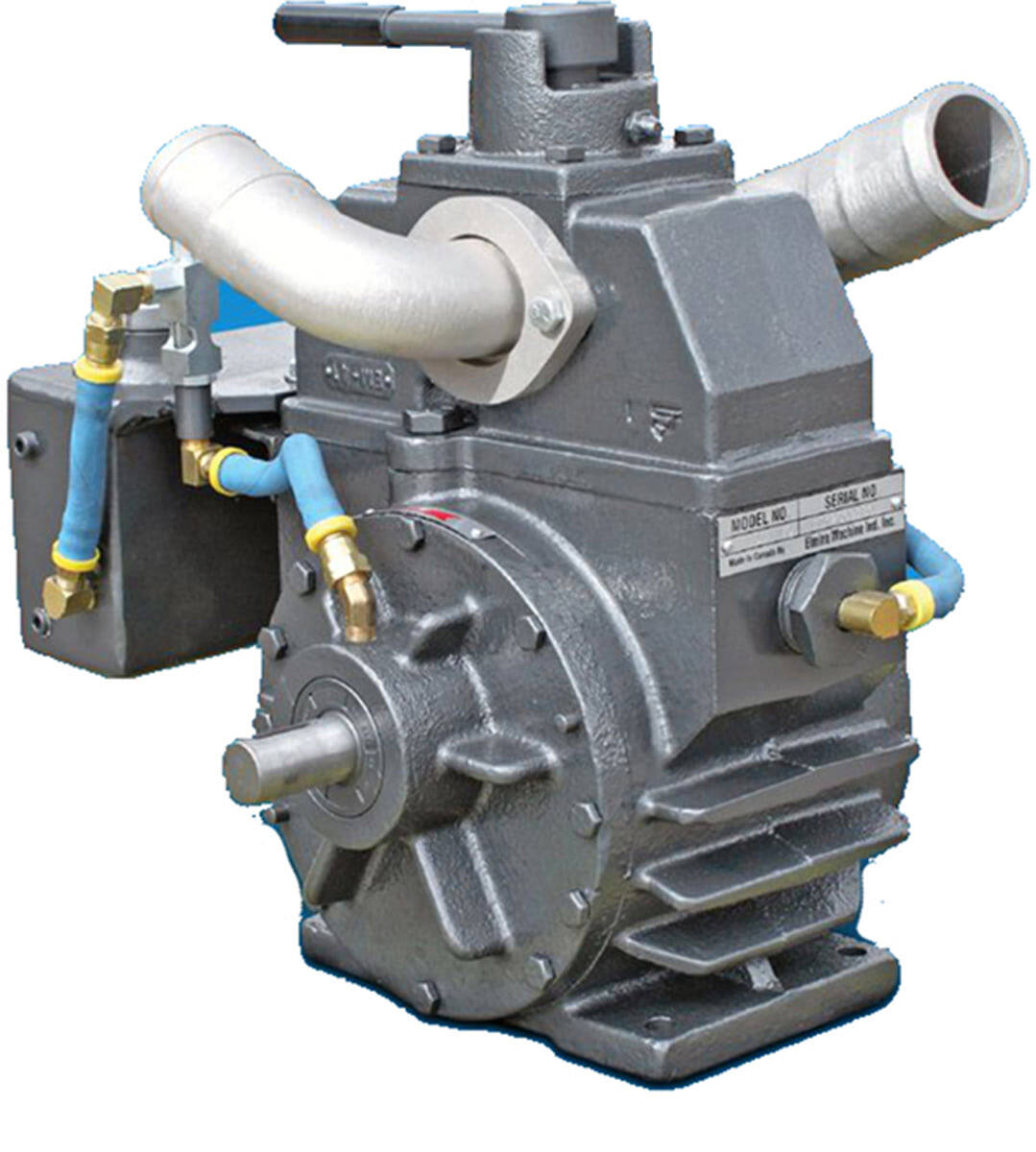

Wallenstein Vacuum Model 151
The Model 151 from Wallenstein Vacuum can be used with portable sanitation tanks and slide-in units, and at campgrounds and marinas that require a compact package. It offers 80 cfm at 15 inches Hg with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counterclockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven. 800-801-6663; www.wallenstein.com

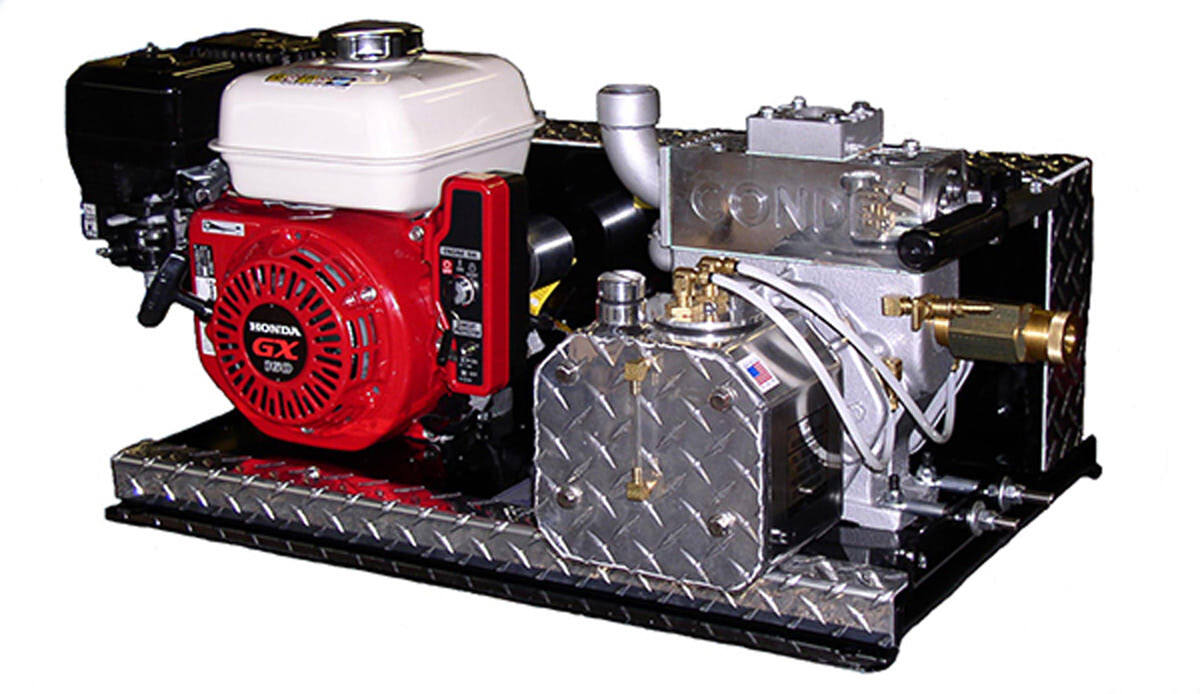

Westmoor Conde PowerPaks
Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations, and either vacuum and pressure or vacuum-only models. Direct-drive units incorporate a centrifugal clutch that allows throttling down the engine and disengaging the vacuum pump. Throttle up and the pump is in action. Diesel-powered units are also available for applications where nonsparking engines are required. 800-367-0972; www.westmoorltd.com
Washdown Pumps

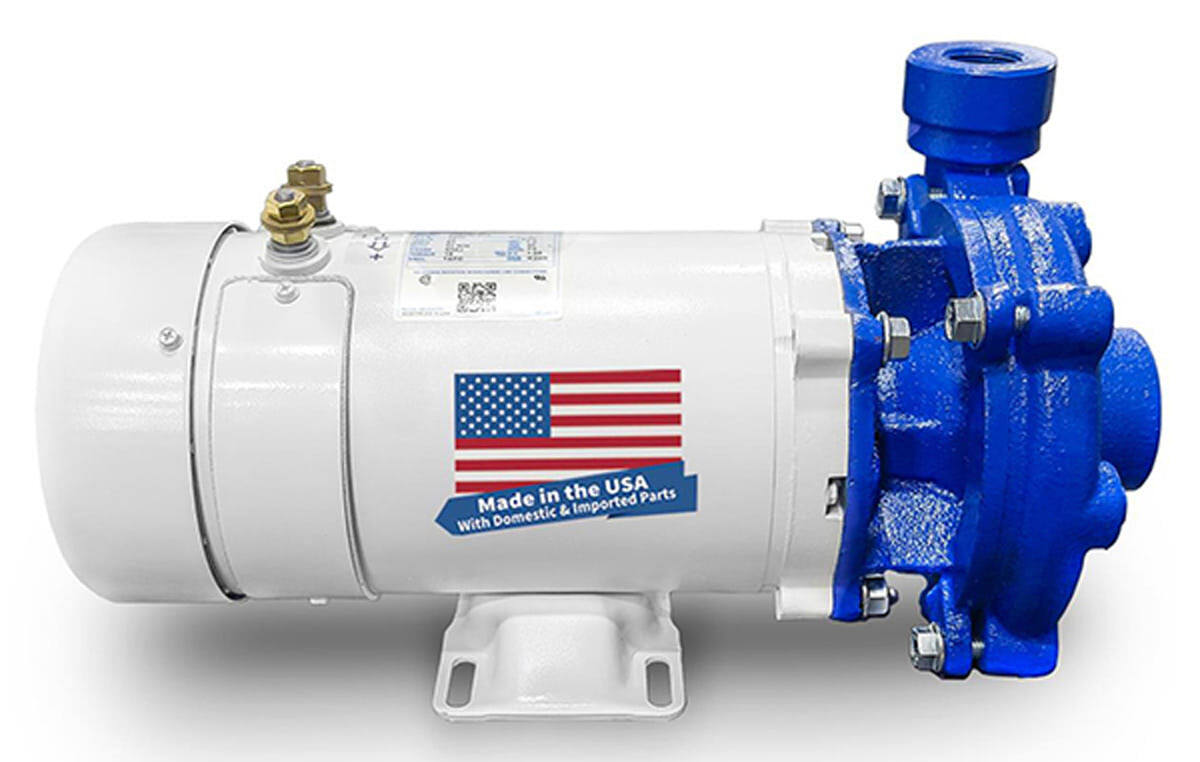

Moro USA DC Washdown Pumps
Moro USA DC Washdown Pumps achieve a maximum delivery rate of 20 gpm, 42 psi and are primarily utilized for filling sinks and cleaning portable restrooms. These centrifugal pumps are designed with corrosion-resistant materials for operating in wet conditions and can be used in other applications such as industrial, marine and water circulation. They have an epoxy-coated 12-volt DC motor, stainless steel impeller, four front drain plugs and a carbon/ceramic/VITON mechanical seal. They require installation of an in-line circuit breaker and a 12-volt solenoid. Full washdown pump kits include a 12-volt solenoid, pressure switch and in-line circuit breaker. 866-383-6304; www.morousa.com
