Hose Reels

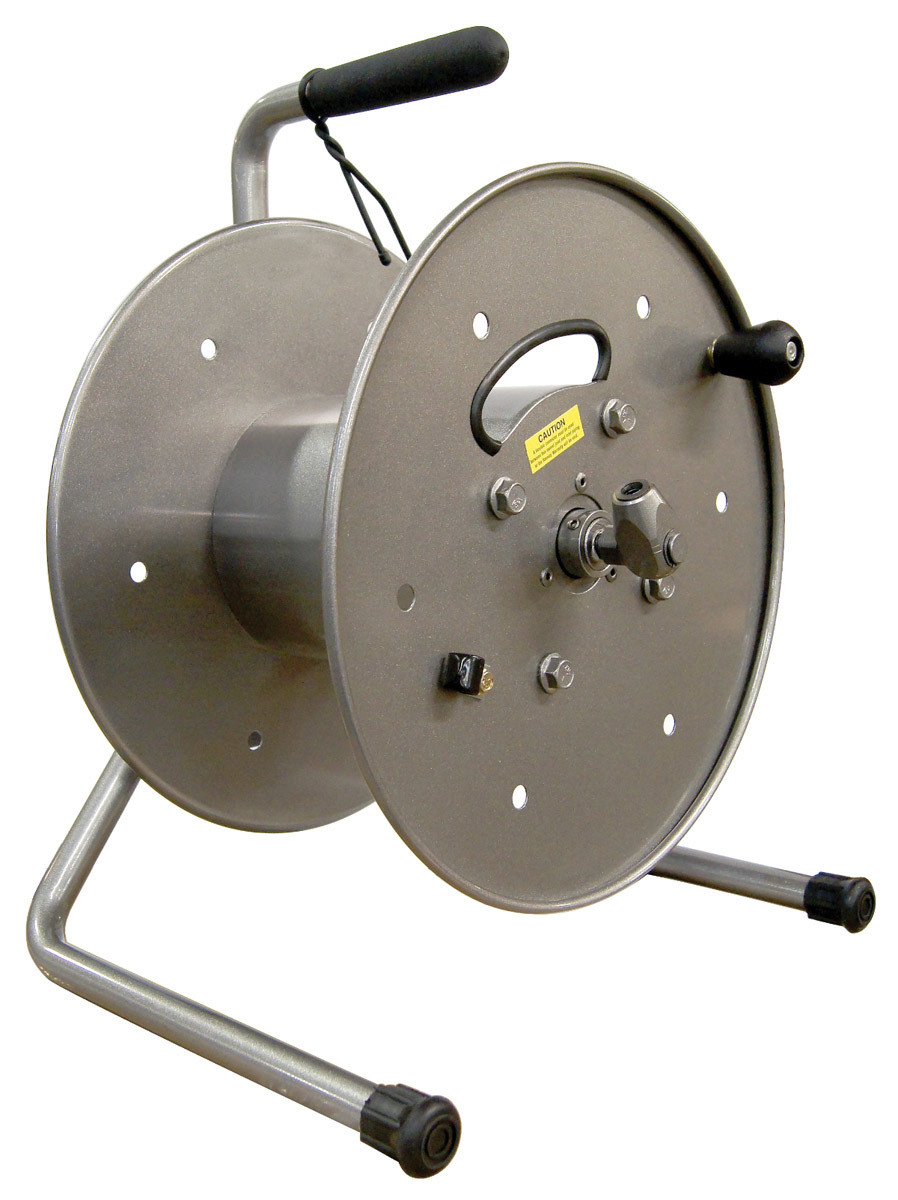

Hannay Reels H16-14-16 Portable Hose Reel

The H16-14-16 Portable Hose Reel from Hannay Reels is lightweight and suitable for use in pipe cleaning, drain cleaning and high-pressure applications in both residential and light commercial environments. Its easy-to-use carry handle and manual rewind make it suitable for use in hard-to-reach areas. Designed with a quality swivel joint, the reel can accommodate pressures up to 5,000 psi. It includes a tension brake, one twist tie to hold hose and all-steel construction. 877-467-3357; www.hannay.com.

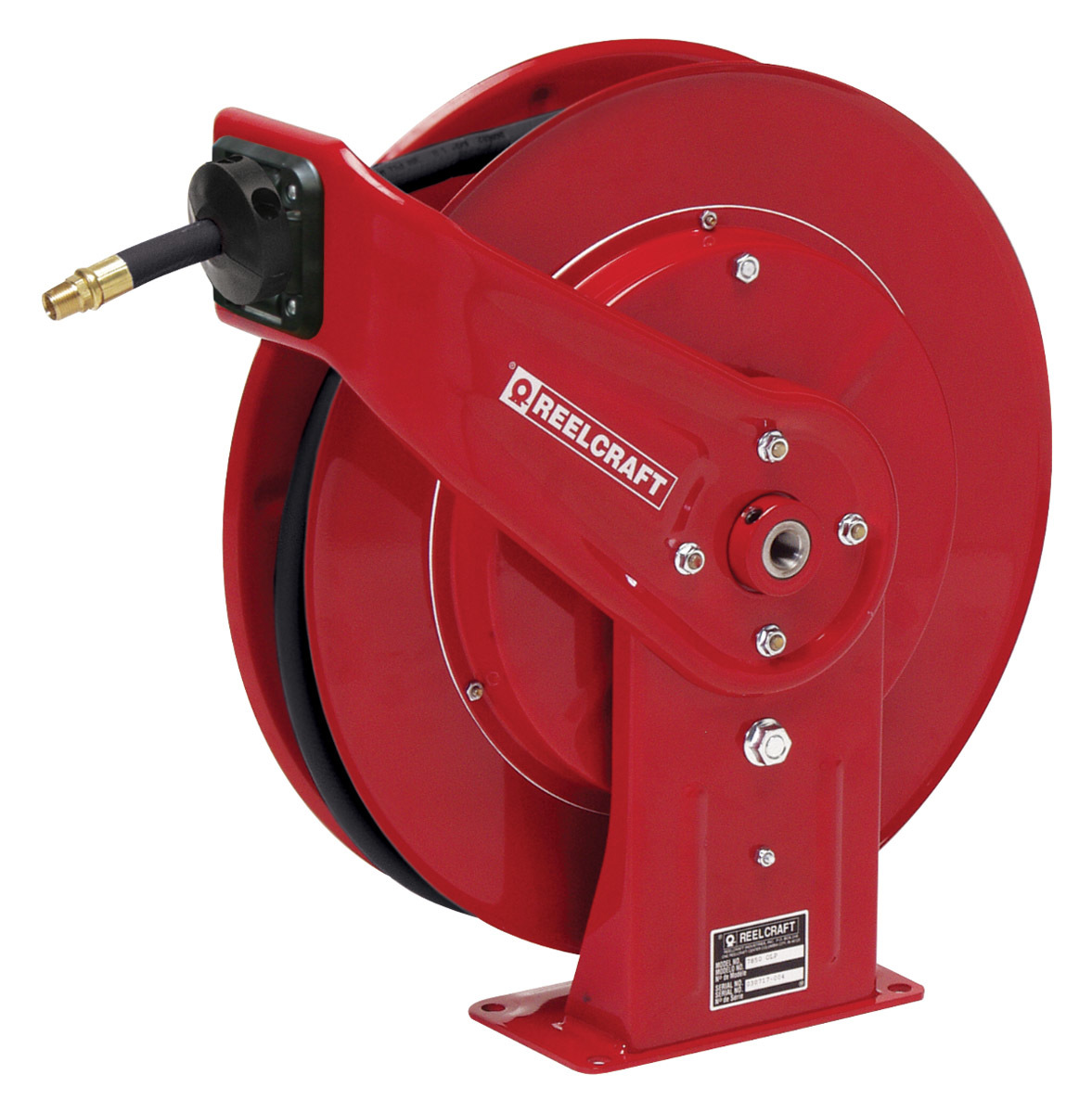

Reelcraft Industries Series PW7000

Series PW7000 hose reels from Reelcraft Industries are fitted with a nickel-plated, carbon steel AFLAS-sealed swivel specifically for pressure-wash applications. The reel holds up to 50 feet of 3/8-inch I.D. hose. Its rigidity, compact design and powder-coat finish make it suitable for outdoor, all-weather and truck-mount applications. The guide arm adjusts to seven positions for ceiling, wall, truck, bench or pit mounting. The reel comes in standard red, but several other colors are available upon request. 800-444-3134; www.reelcraft.com.


Vacuum Hose

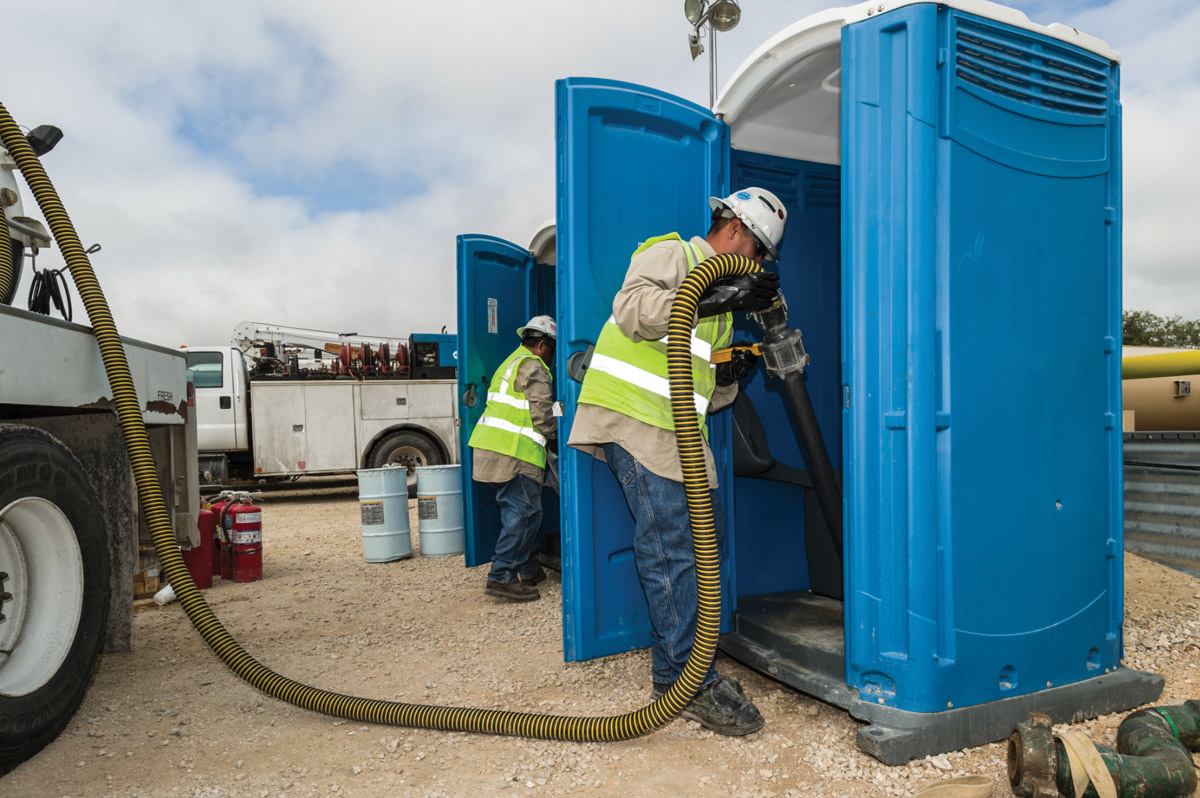

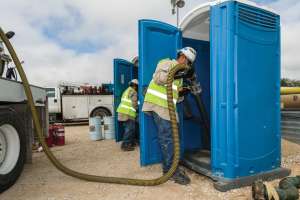

Kuriyama of America King Bee KBEE Series

King Bee KBEE Series polyethylene liquid suction hose from Kuriyama of America provides flexibility for maneuvering in tight areas such as portable restrooms. The hose remains flexible in subzero temperatures, is crush resistant and will not kink. The easy-slide helix protects the hose tube from cover wear and moves easily over rough surfaces. Overmolded cuffs help prevent leaking. It is available in 2- and 3-inch I.D. sizes in multiple lengths. The 3-inch I.D. hose is also available as a 3-foot hose guard. 847-755-0360; www.kuriyama.com.


Vacuum Pumps

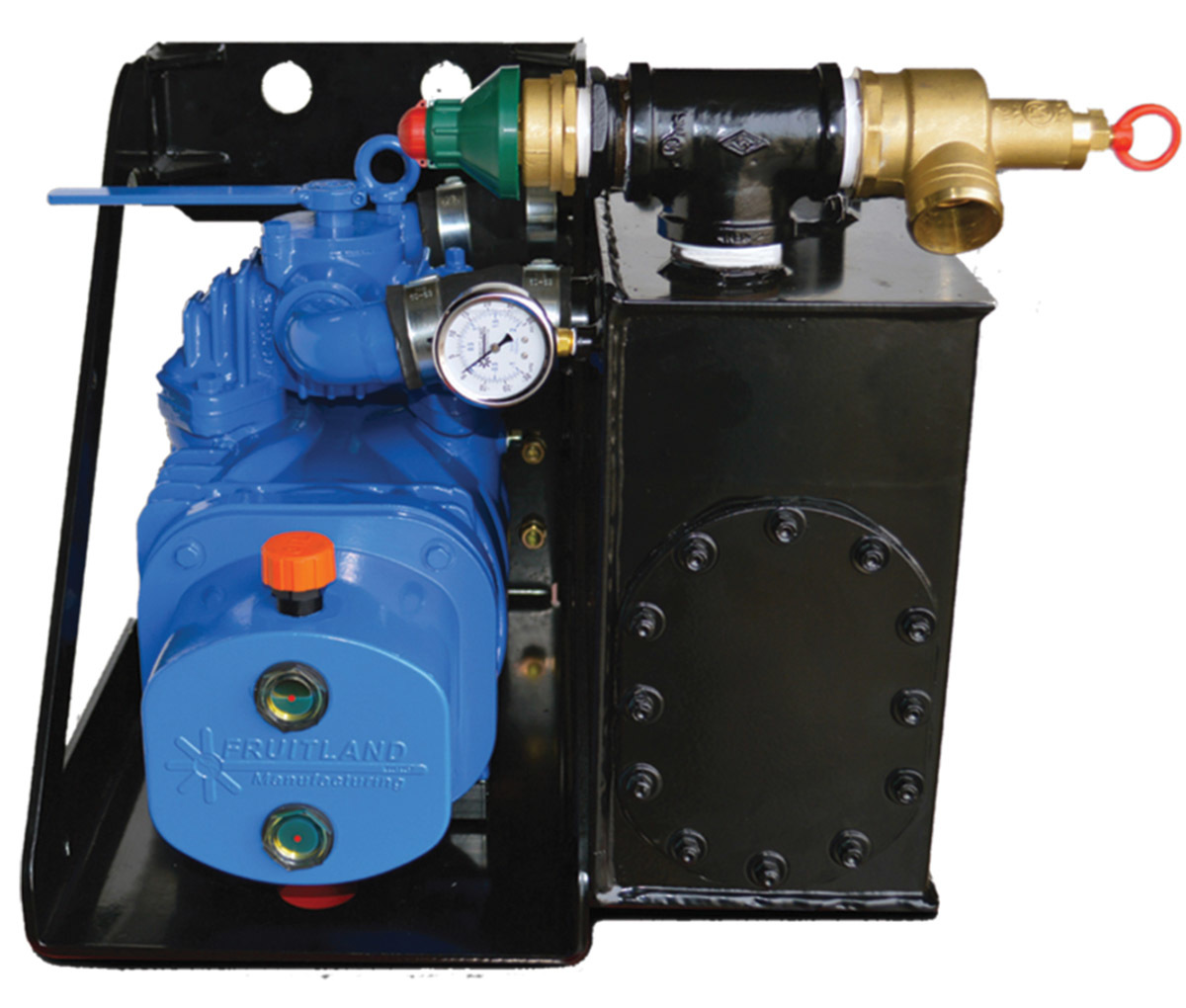

Fruitland ELIM A344 Series

The ELIM A344 Series from Fruitland is a compact, low-weight pump that offers 218 cfm of airflow and low-oil consumption. It has an automated oil delivery system through the rotor shaft, along with level sight gauges, vane gauging ports and an anti-shock design. The package includes an oil-catch muffler and secondary shut-off, which eliminates plumbing issues and makes for easy installation. This package comes in both gearbox and hydraulic drive options with integrated mounts. 800-663-9003; www.fruitlandmanufacturing.com.

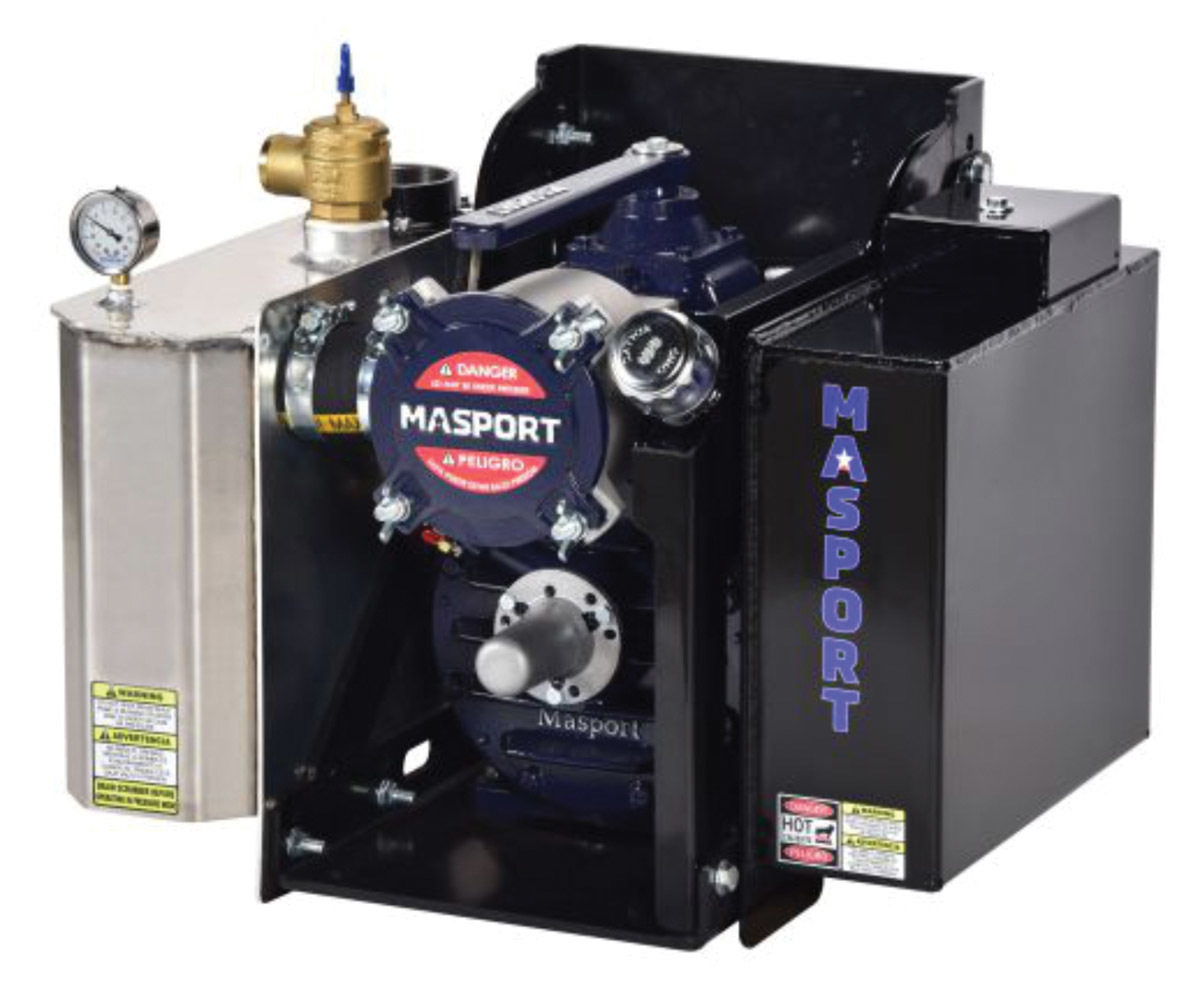

Masport HXL4V and HXL5V

HXL4V and HXL5V vacuum systems from Masport have a compact, low-profile design that incorporates an integrated scrubber, oil separator and inlet filter. The systems are fully integrated so they can slot into place for easy installation. They are available with plastic, steel or combination oil/flushing reservoir; and self-aligning gearbox and hydraulic drive options are also available. An optional extended self-aligning gearbox is available for direct alignment to the PTO on all truck models. 800-228-4510; www.masportpump.com.

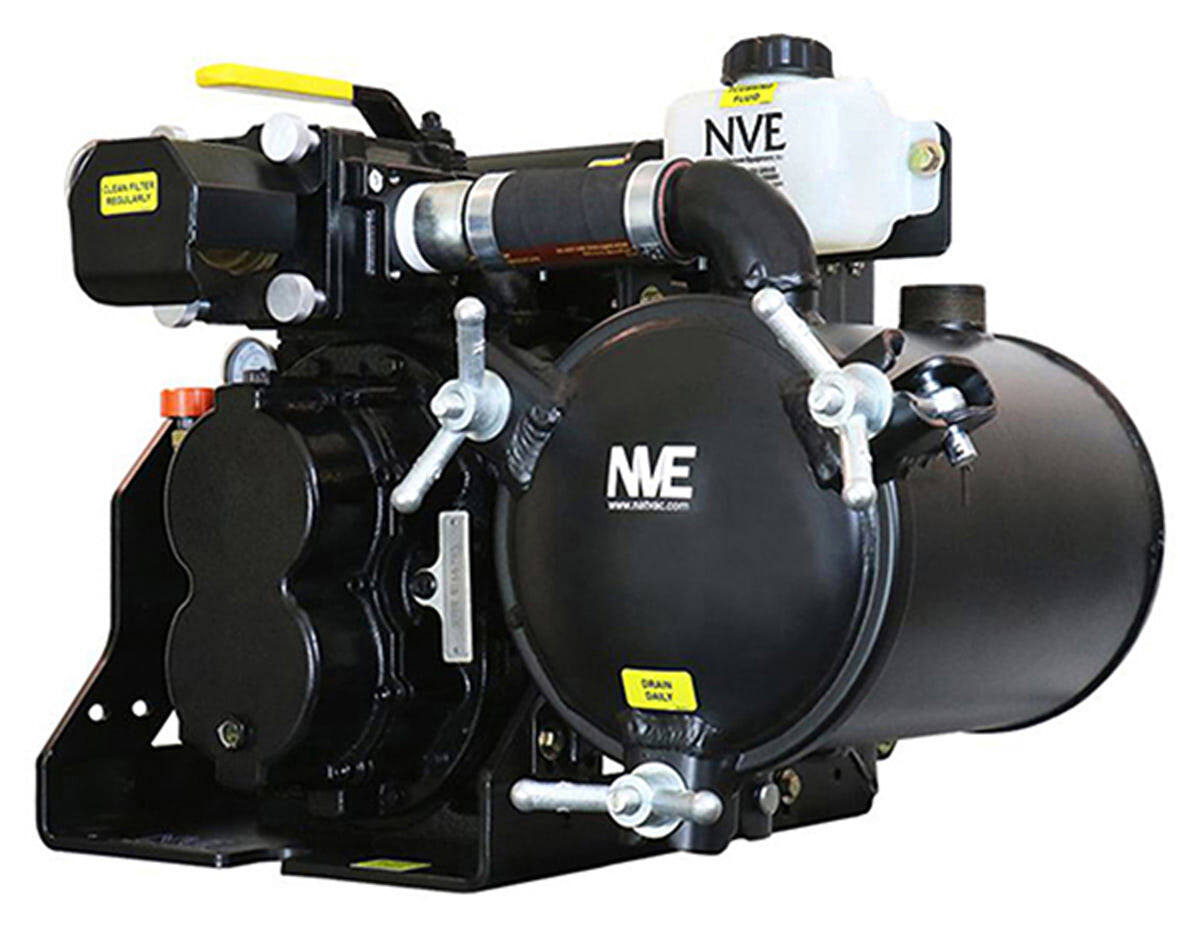

National Vacuum Equipment B250 Max Pak

The National Vacuum Equipment B250 Max Pak is designed for the portable restroom market, using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1-to-1.5 ratio gearbox makes it easy to provide the optimum revolutions per minute to the blower, while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and Ram 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel-drive. 800-253-5500; www.natvac.com.

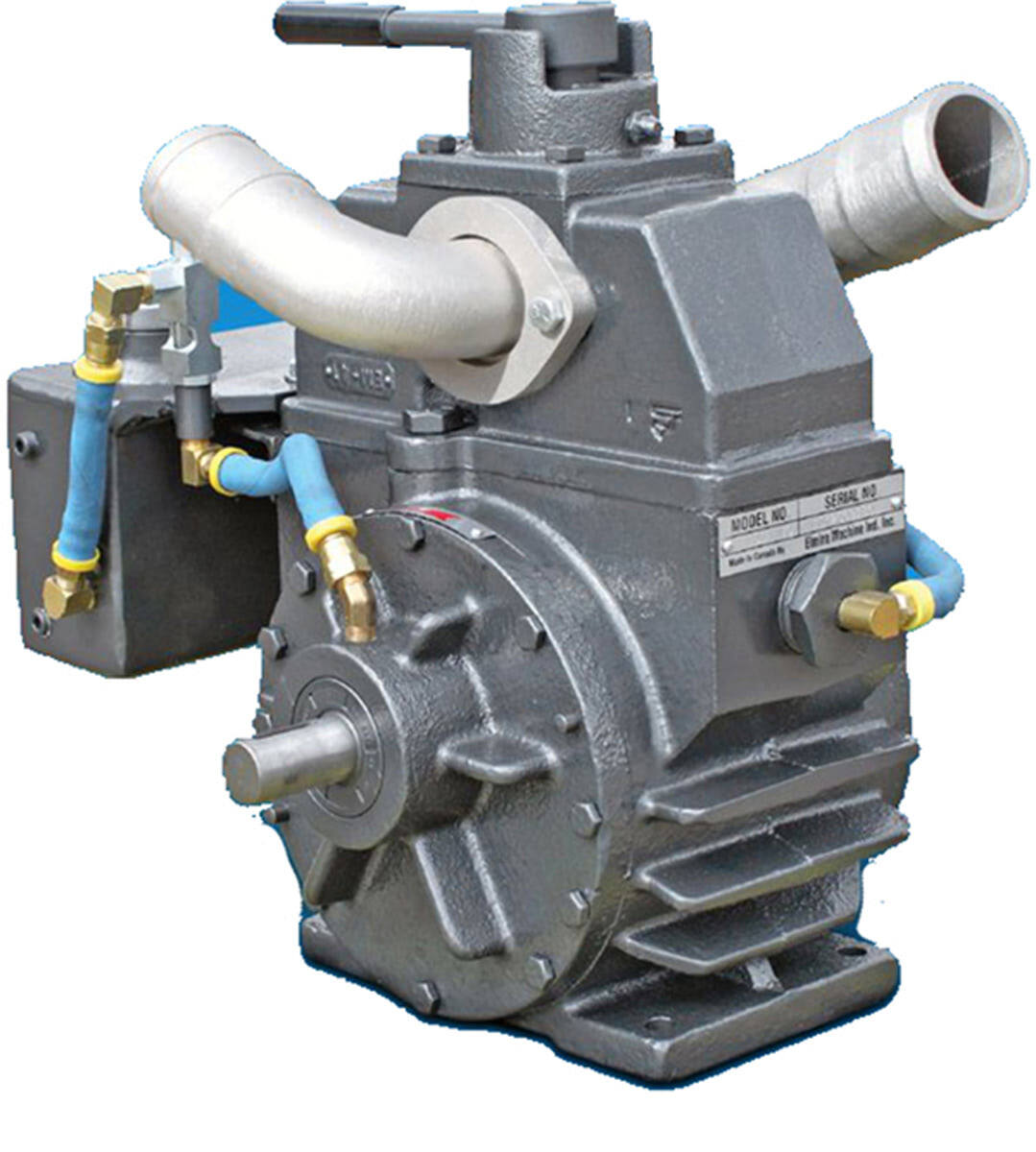

Wallenstein Vacuum Model 151

The Model 151 from Wallenstein Vacuum can be used with portable sanitation tanks and slide-in units and at campgrounds and marinas that require a compact package. It offers 80 cfm at 15 inches Hg, with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counterclockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven. 800-801-6663; www.wallenstein.com.

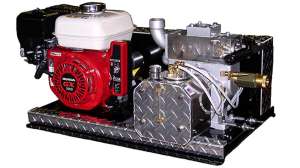

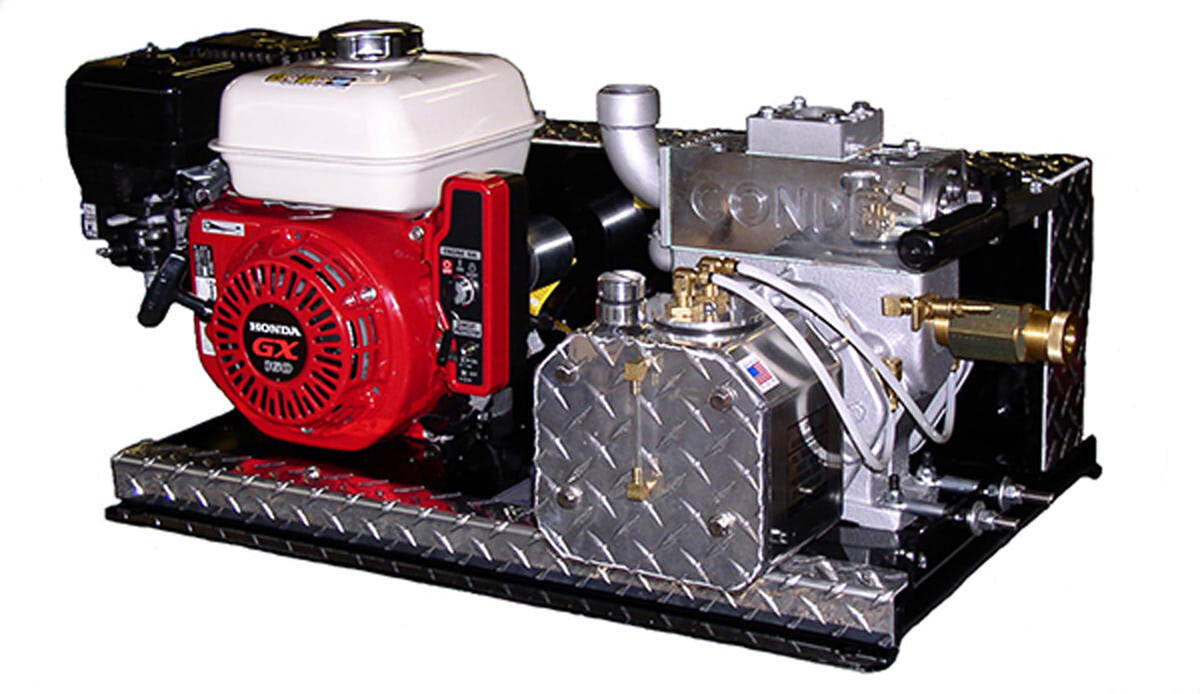

Westmoor Conde PowerPaks

Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations. Direct-drive units incorporate a centrifugal clutch that allows the user to throttle down the engine and disengage the vacuum pump. Throttle up and the pump is in action. Specify either vacuum and pressure, or vacuum-only pump choice. Diesel-powered units are also available for applications where non-sparking engines are required. 800-367-0972; www.westmoorltd.com.


Vacuum Trucks

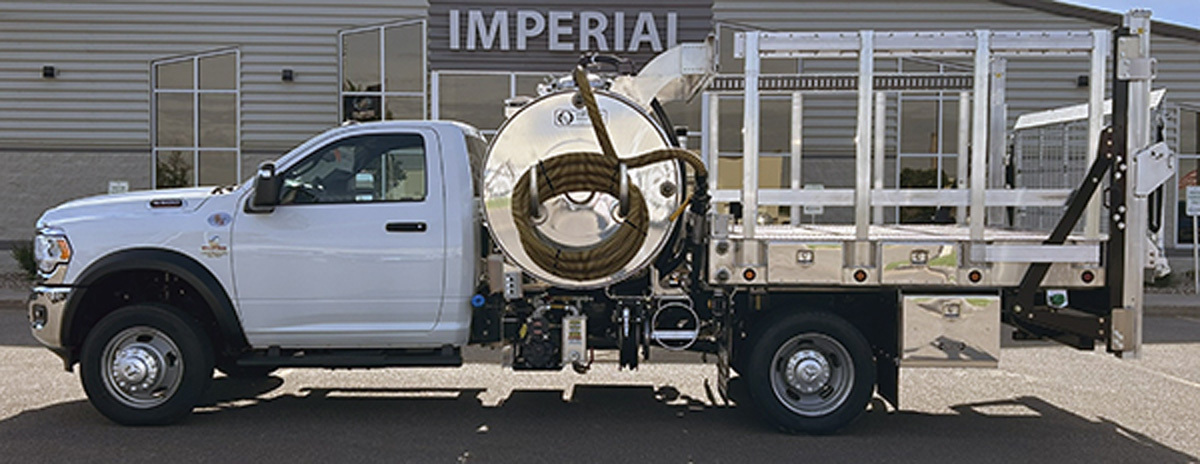

Imperial Industries Flatvac

The 1,000-gallon stainless steel Flatvac from Imperial Industries can carry up to six portable restroom units on top of the unit’s 1,000-gallon stainless steel flat vacuum tank. The baffled, internally divided tank offers 700 gallons of waste capacity and 300 gallons of freshwater capacity. In addition, the unit offers dual-sided bucket fill, dual Hannay hose reels with 50 feet of hose, a Pumptec X-5 washdown pump, Masport HXL4 plug-and-play vacuum pump system, Thieman liftgate, and a 3-inch stainless steel boom with 30 feet of 2-inch intake hose and a suction nozzle. 800-558-2945; www.imperialind.com.

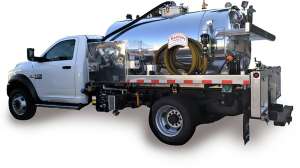

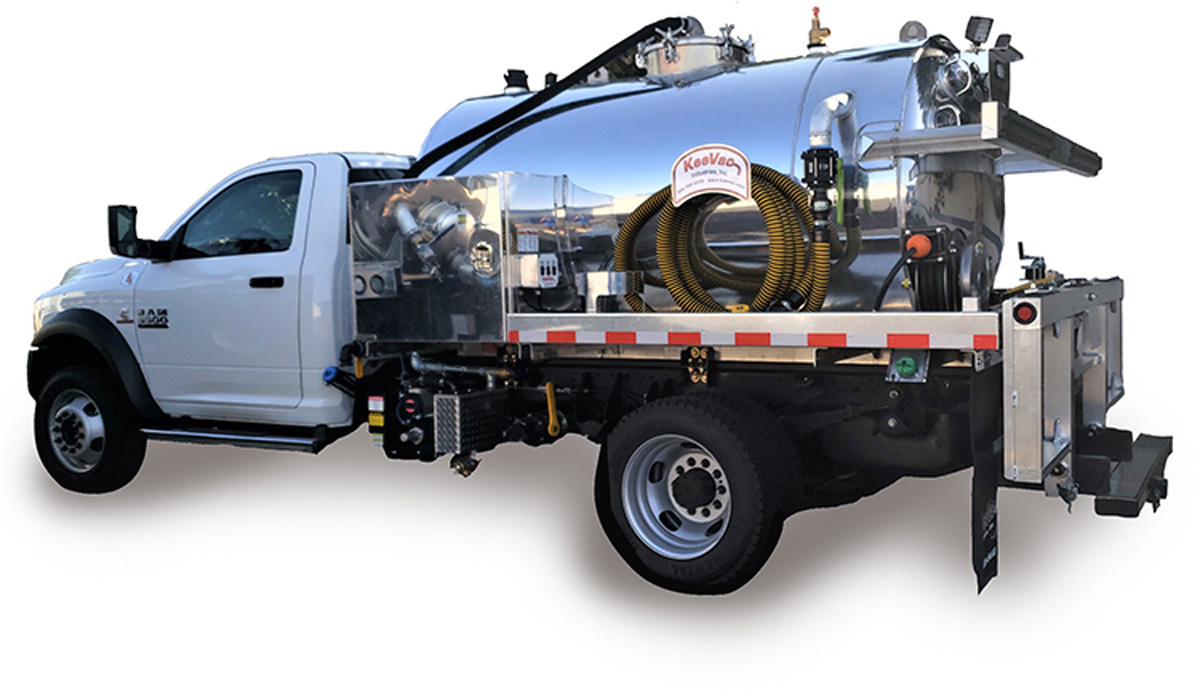

KeeVac Industries KV999

The KV999 from KeeVac Industries carries a 999-gallon portable restroom vacuum tank for operators who want to stay under the U.S. Department of Transportation tanker endorsement requirement. It is available in steel, stainless steel and aluminum, with single- or dual-side service, holds 699 gallons of waste and 300 gallons of freshwater and includes a two-unit fold-down restroom carrier with trailer hitch. The tank can be mounted on a variety of chassis and with a variety of pump options. Each unit also comes with an upgraded DC-10 washdown pump and hose reel from Hannay Reels. Exterior controls and dual cabinets are designed for operator safety and convenience. An arctic package and safety lighting are available. 866-789-9440; www.keevac.com.

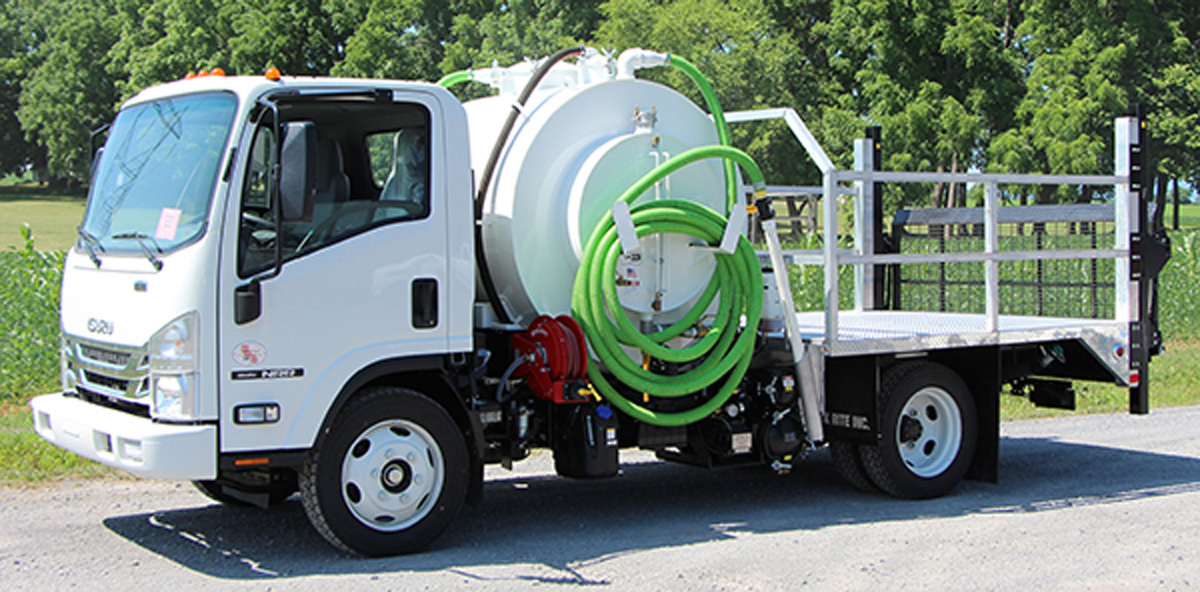

Pik Rite Flatbed Restroom Hauler

The Flatbed Restroom Hauler from Pik Rite has a 650-gallon tank, flatbed and liftgate. The tank has a 400-gallon waste compartment and internal 250-gallon freshwater compartment for even weight distribution. The truck includes a National Vacuum Equipment 304 vacuum pump, dual 2-inch fill hoses, 20-gpm washdown system, dual-spring return freshwater hose reels and dual 2-inch bucket fills. A 20-inch top manway, 5-inch sight eyes and clear hose sight tube are included. The truck is also equipped with a 98-by-102-inch aluminum flatbed and Thieman TVL liftgate. Two diamond plate toolboxes are mounted on the passenger side. The truck has an LED running light kit with a durable, fully molded wiring harness. 800-326-9763; www.pikrite.com.

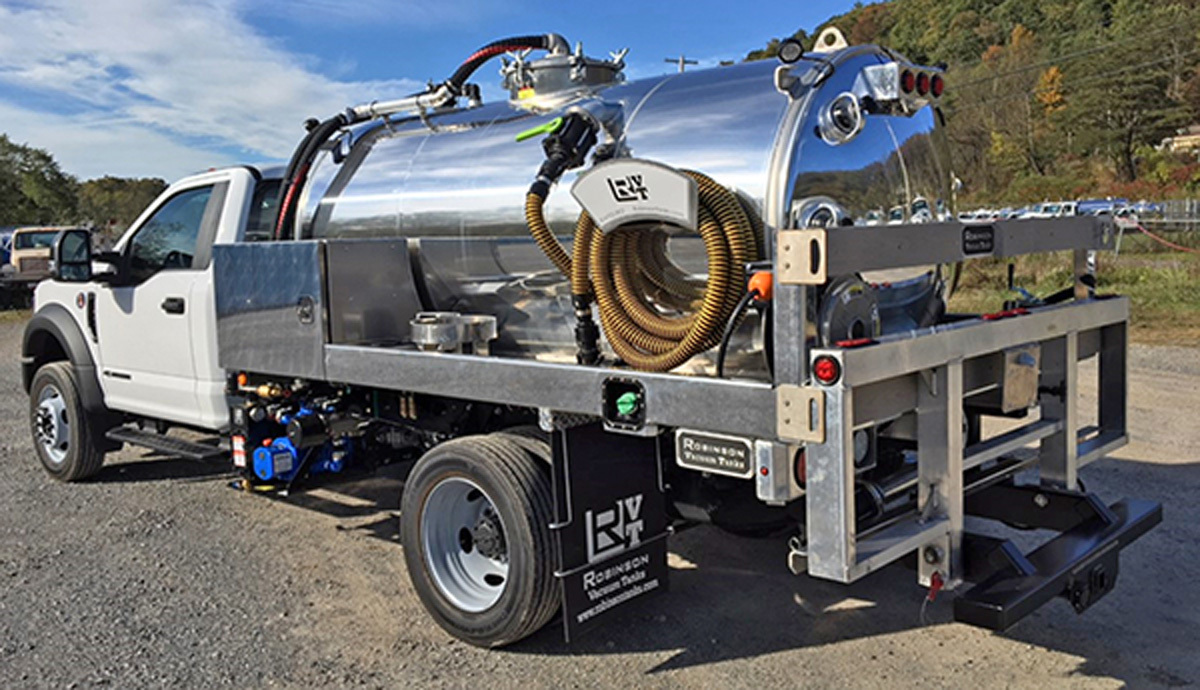

Robinson Vacuum Tanks PR1200A

The PR1200A portable restroom service truck from Robinson Vacuum Tanks provides a 1,200-gallon capacity (900 gallons wastewater and 300 gallons freshwater). Customers may choose from four different vacuum pumps, upgrade valves or add up to two built-in toolboxes and/or a washdown/jetter system. 814-933-0927; www.robinsontanks.com.

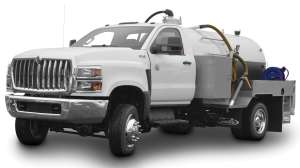

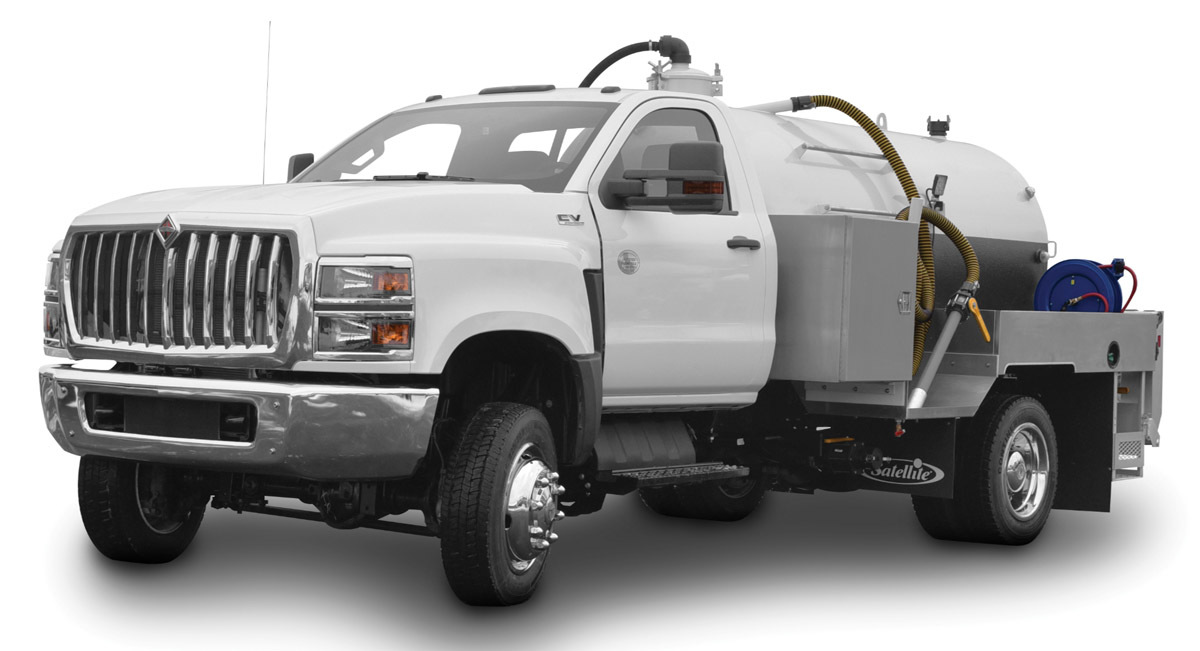

Satellite Vacuum Trucks MD1250

The MD1250 from Satellite Vacuum Trucks is now available with four-wheel drive. It has fewer steps between the wand, freshwater fill, spray hose and storage cabinets to save time. Each MD tank comes with internal baffles to help eliminate sloshing, resulting in better cornering and stopping. It can be installed on IH CV515 or the new Ford F600 chassis, both available in two- and four-wheel drive. 800-883-1123; www.satellitetruckxpress.com.


Vacuum Truck Parts/Components

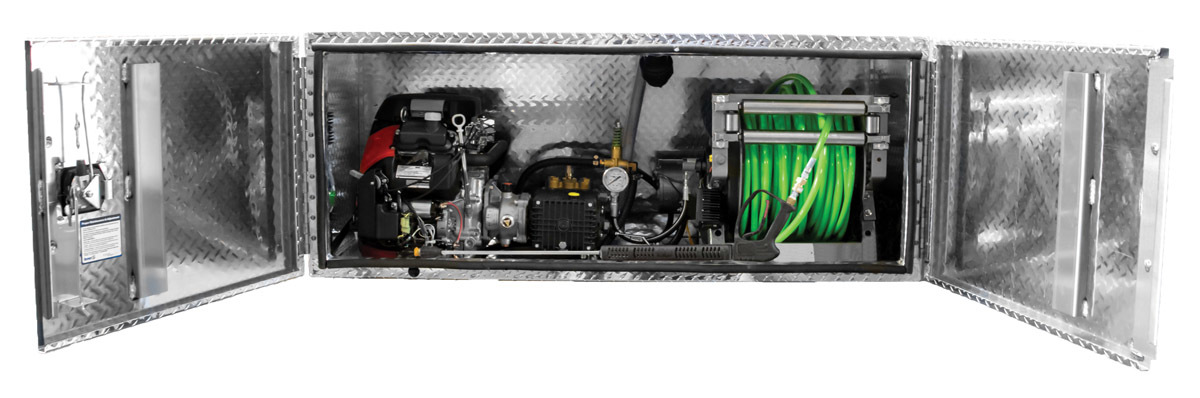

Moro USA Toolbox Mount Jetter Package

TThe Moro USA 10 gpm, 3,000 psi Toolbox Mount Jetter Package is designed to handle servicing household lines and/or grease traps, along with portable restroom cleaning. It uses 10 gpm, allowing its water supply to come from most household sources. The system is sufficient to provide flushing and jetting on routine grease trap servicing, according to the maker. 866-383-6304; www.morousa.com.
