Hose Reel

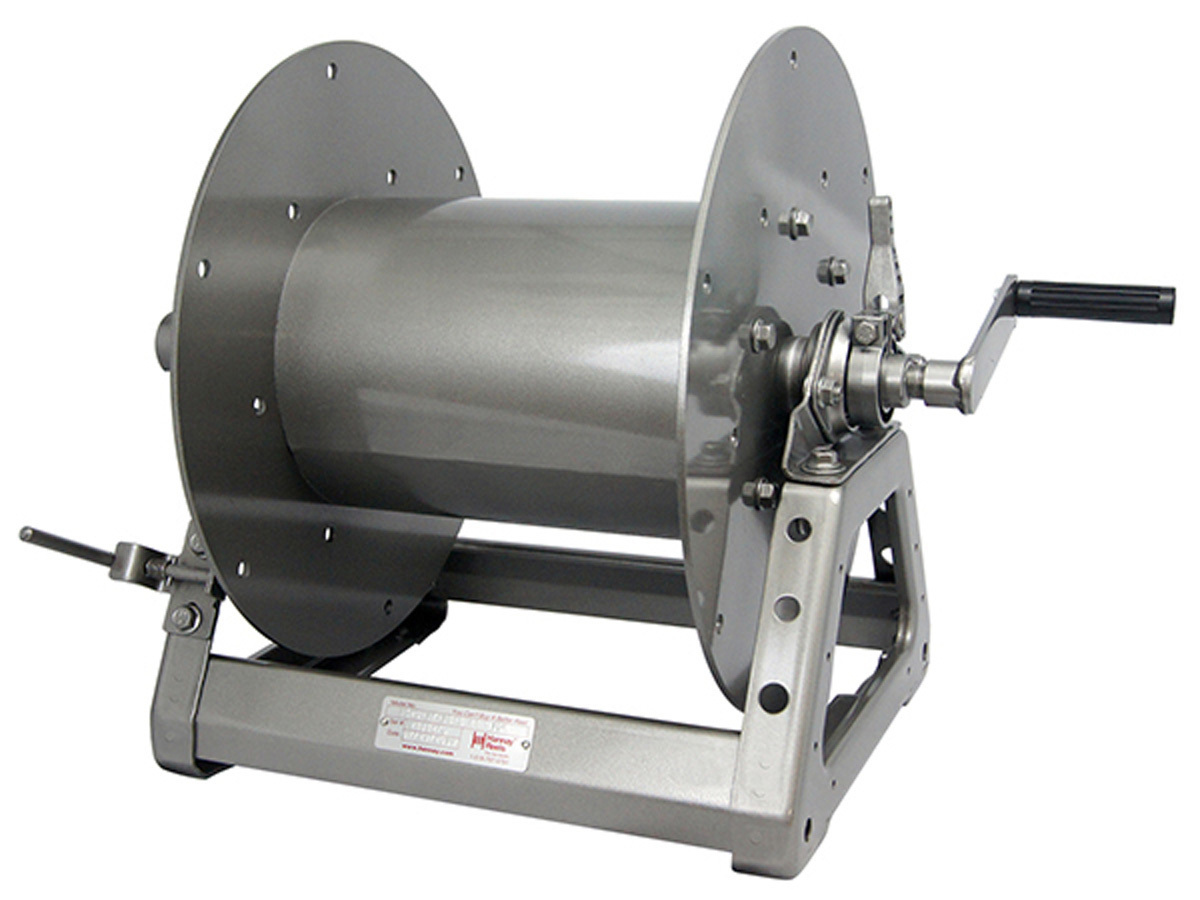

Hannay Reels Heavy-Duty 1500 Series
The Heavy-Duty 1500 Series from Hannay Reels is designed to provide durable, reliable pressure washing for portable restrooms and other pumper and cleaner applications. With 3/16-inch-thick discs, a reinforced frame and an 8-inch-diameter steel 14-gauge drum, the reel counters high-pressure hose expansion concerns, provides stability and accommodates hoses with a higher bend radius. Single 3/8- through 5/8-inch I.D. hose and pressures up to 3,000 psi are supported, with optional pressures of 5,000 or 10,000 psi available upon request. With either a manual direct-crank rewind or a chain-and-sprocket drive powered by an electric, hydraulic or air motor, the reels offer simple, swift hose deployment and retraction, while keeping lengthy hose organized, according to the maker. 877-467-3357; www.hannay.com
Screens/Strainers/Screening System

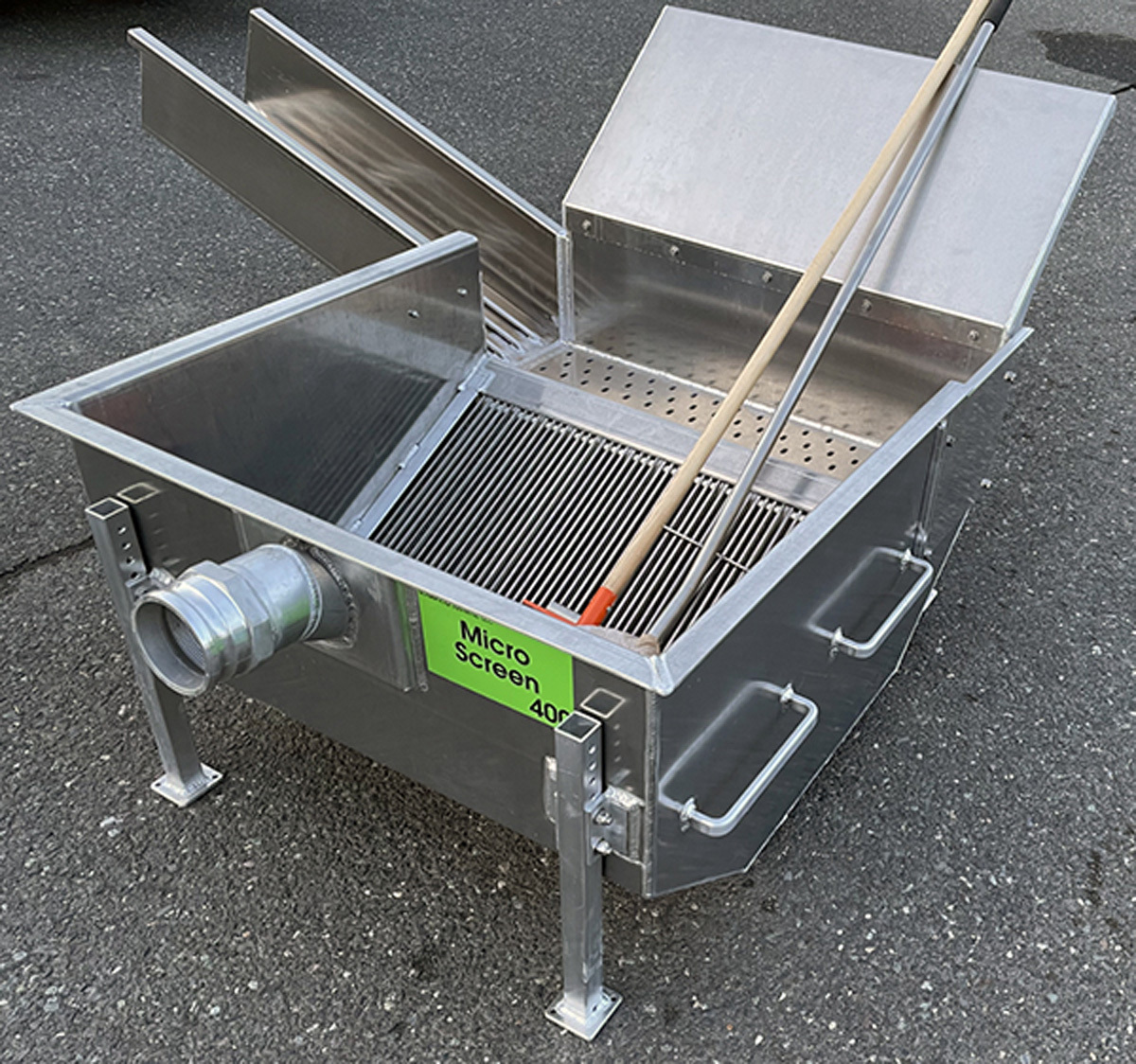

ScreencO Systems Micro Screen 400
The Micro Screen 400 septage receiving station from ScreencO Systems is designed for septic, grease, oil recycling and portable restroom truck receiving, with 8 square feet of screen area. It is capable of sitting directly over a manhole or storage tank/sump with its 18-inch mount ring, or with a 6-inch cam outlet and adjustable support legs, and optional hinged cover. It can offload at 400 gpm through a 4-inch inlet, as a fan deflects waste to the screen. The nonmechanical screen uses gravity to separate trash from the waste stream. It has all-aluminum construction with stainless steel 3/8-inch gapped bar screens on opposing angles. Its bar screens will not plug with rags or trash. Simply rake to the trash drain tray and up the bolt-on trash chute with drain bar to the receptacle using the stainless steel bar and trash rakes. At 300 pounds and with four grab handles, it can be set up anywhere. Either 3/16- or 1/4-inch gap bars are also available. 208-790-8770; www.screencosystems.com
Vacuum Pumps

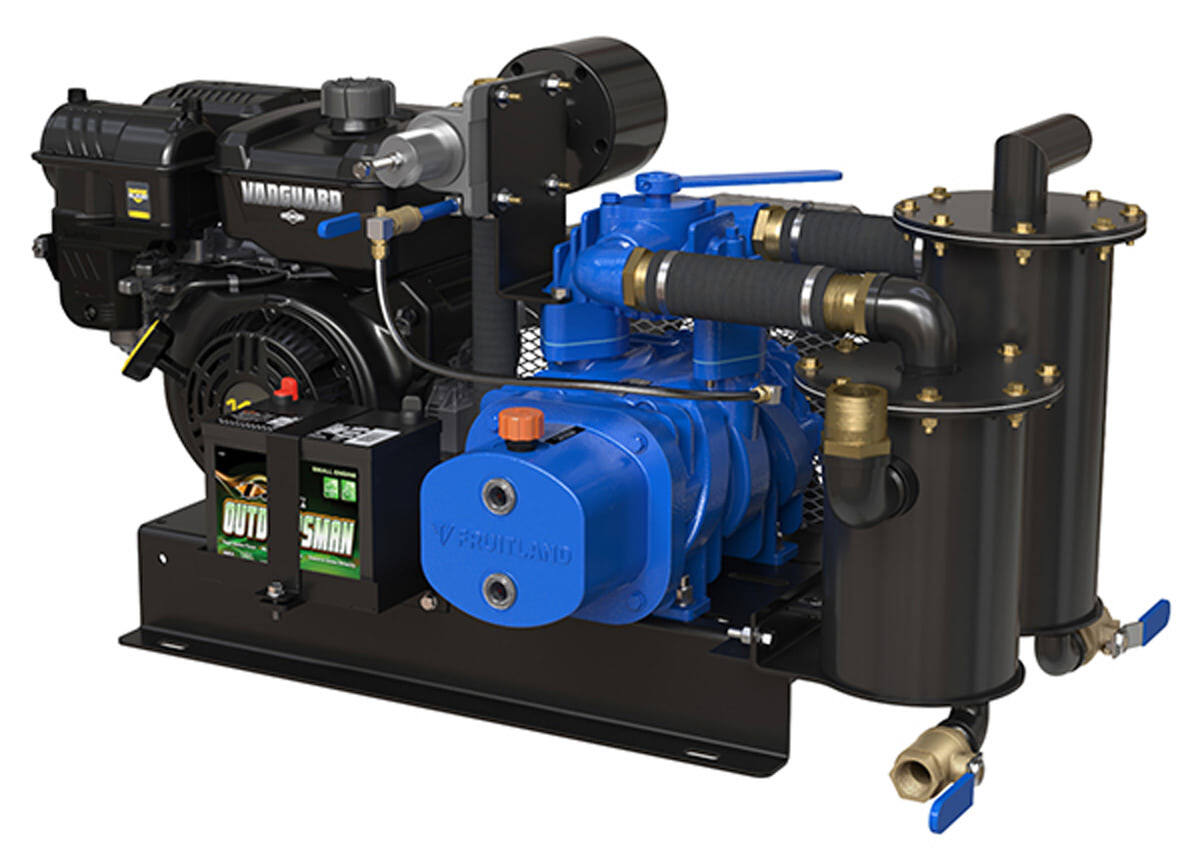

Fruitland ELIM G-SMF344
The Fruitland ELIM G-SMF344 is a modular slide-in vacuum package designed to be strong enough for any job, yet compact for single-axle and skid-mounted vacuum systems, according to the maker. The gas-driven package is suitable for smaller to medium-sized mobile vacuum systems and includes a Briggs and Stratton 14 hp gas engine, oil-catch muffler, secondary shutoff and an integrated air injection system. The package can be configured in both left- and right-hand orientations, providing flexibility in positioning on a truck or vacuum skid. The air injection system is suitable for portable restroom pumpers who need to pump quickly, drive a short distance and pump again without delay. 800-663-9003; www.fruitlandmanufacturing.com

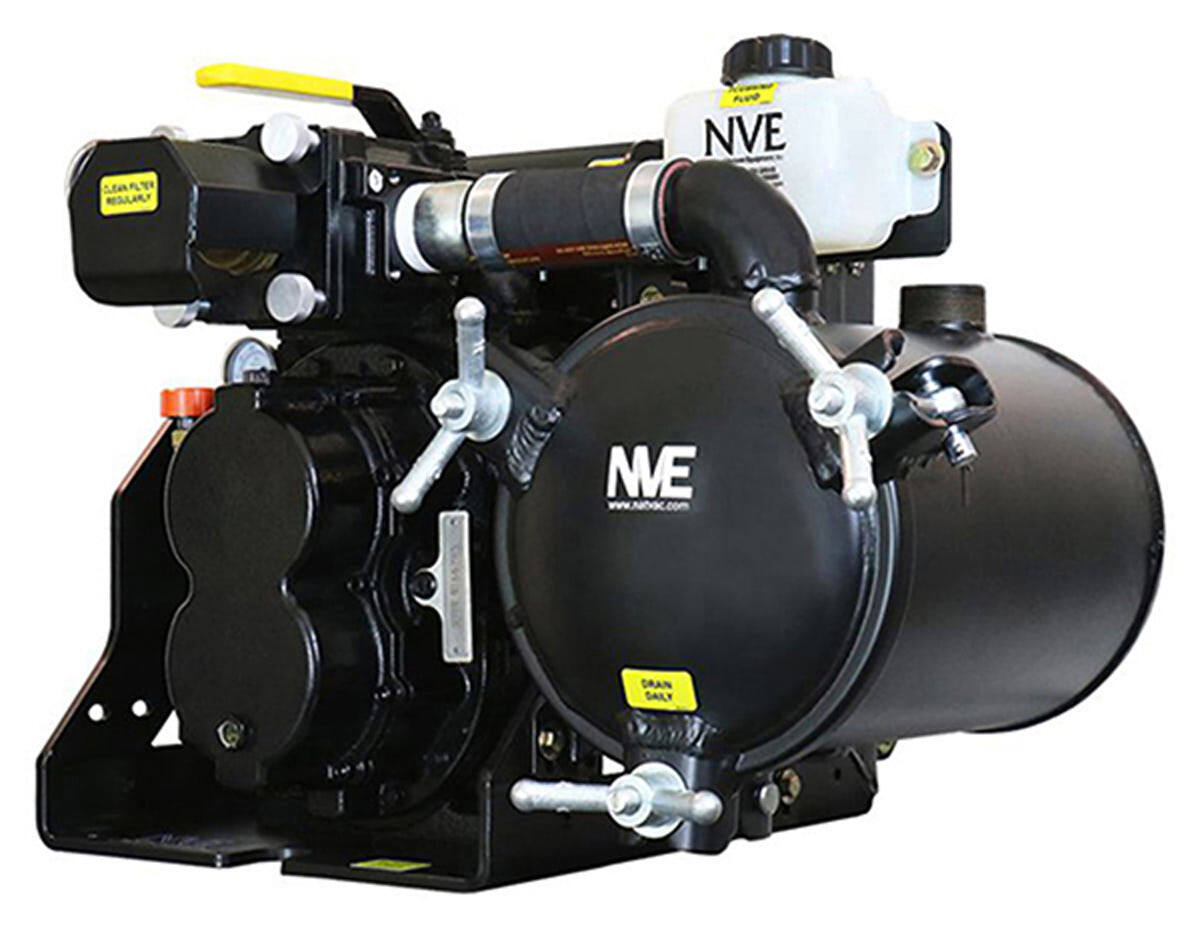

National Vacuum Equipment B250 Max Pak
The National Vacuum Equipment B250 Max Pak is designed for the portable restroom market using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil-free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1-to-1.5 ratio gearbox makes it easy to provide optimum revolutions per minute to the blower while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and Ram 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel drive. 800-253-5500; www.natvac.com

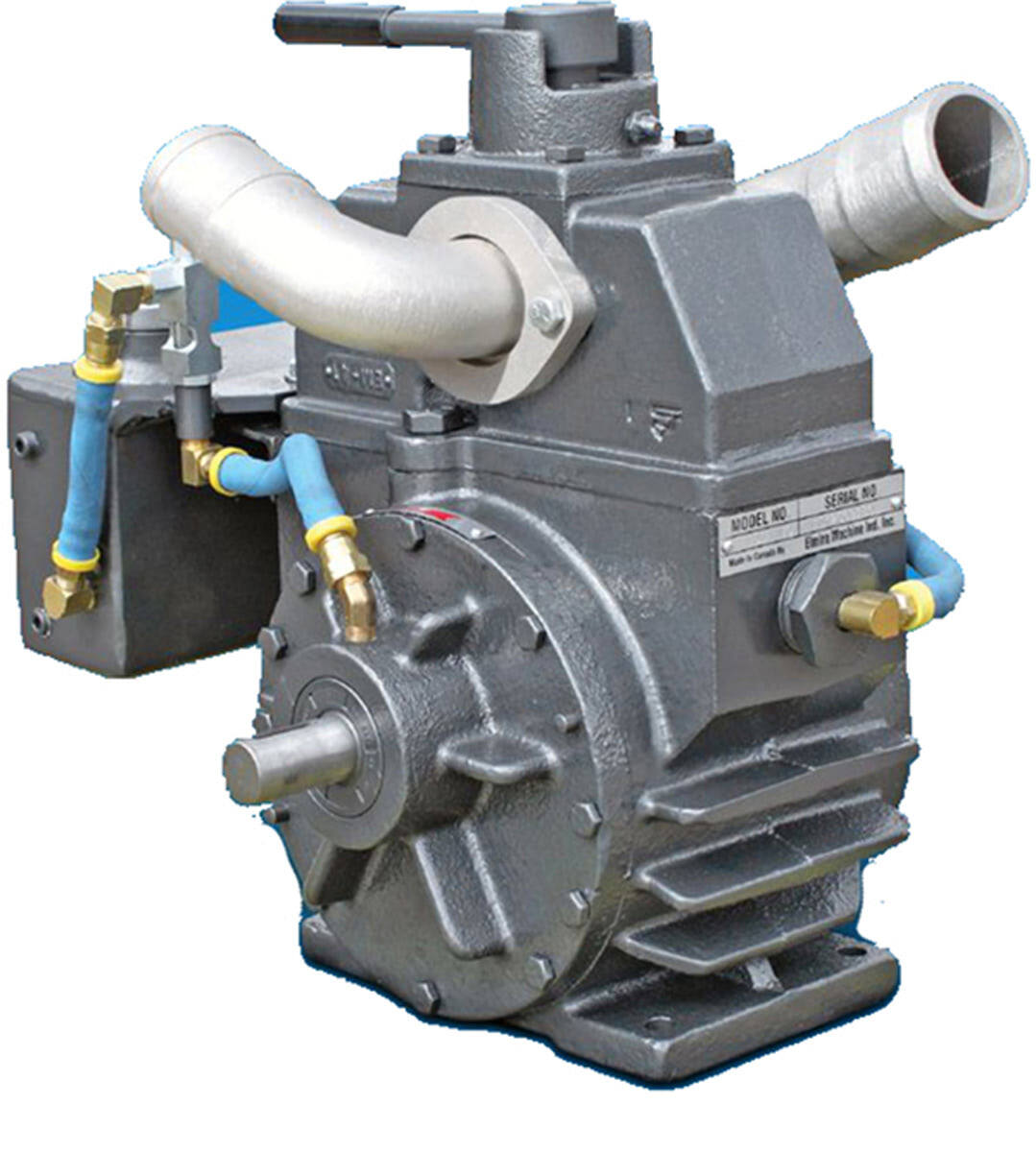

Wallenstein Vacuum Model 151
The Model 151 from Wallenstein Vacuum can be used with portable sanitation tanks and slide-in units, and at campgrounds and marinas that require a compact package. It offers 80 cfm at 15 inches Hg with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counterclockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven. 800-801-6663; www.wallenstein.com

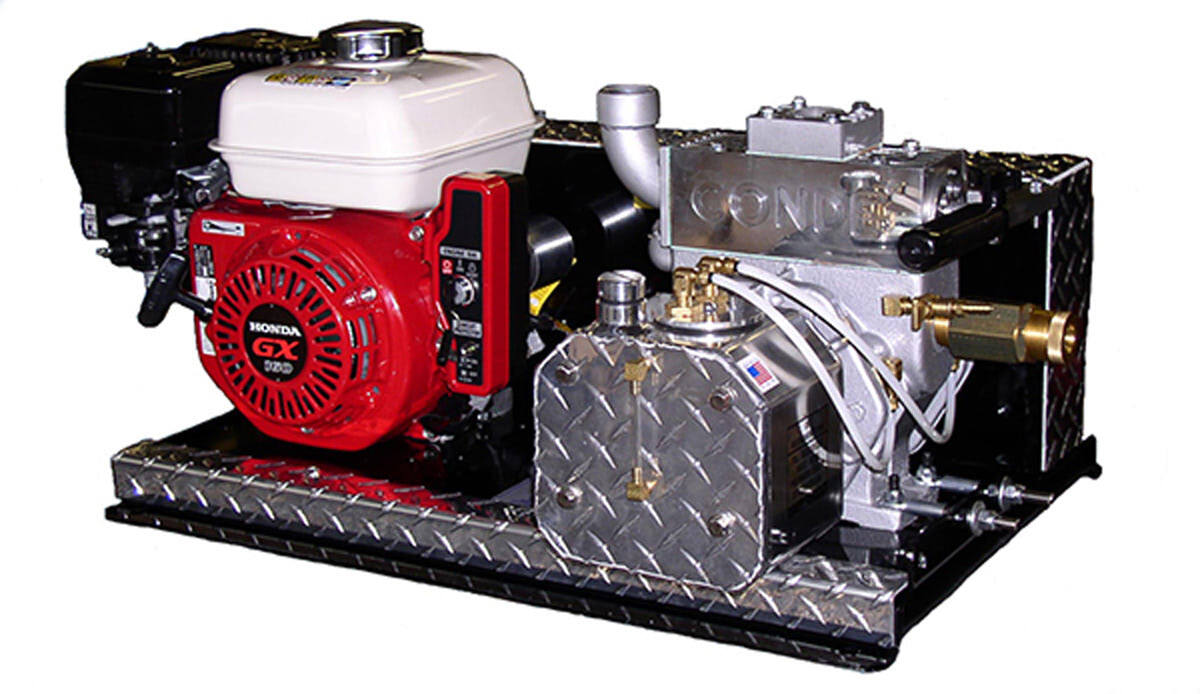

Westmoor Conde PowerPaks
Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations, and either vacuum and pressure or vacuum-only models. Direct-drive units incorporate a centrifugal clutch that allows throttling down the engine and disengaging the vacuum pump. Throttle up and the pump is in action. Diesel-powered units are also available for applications where nonsparking engines are required. 800-367-0972; www.westmoorltd.com
Vacuum Tanks

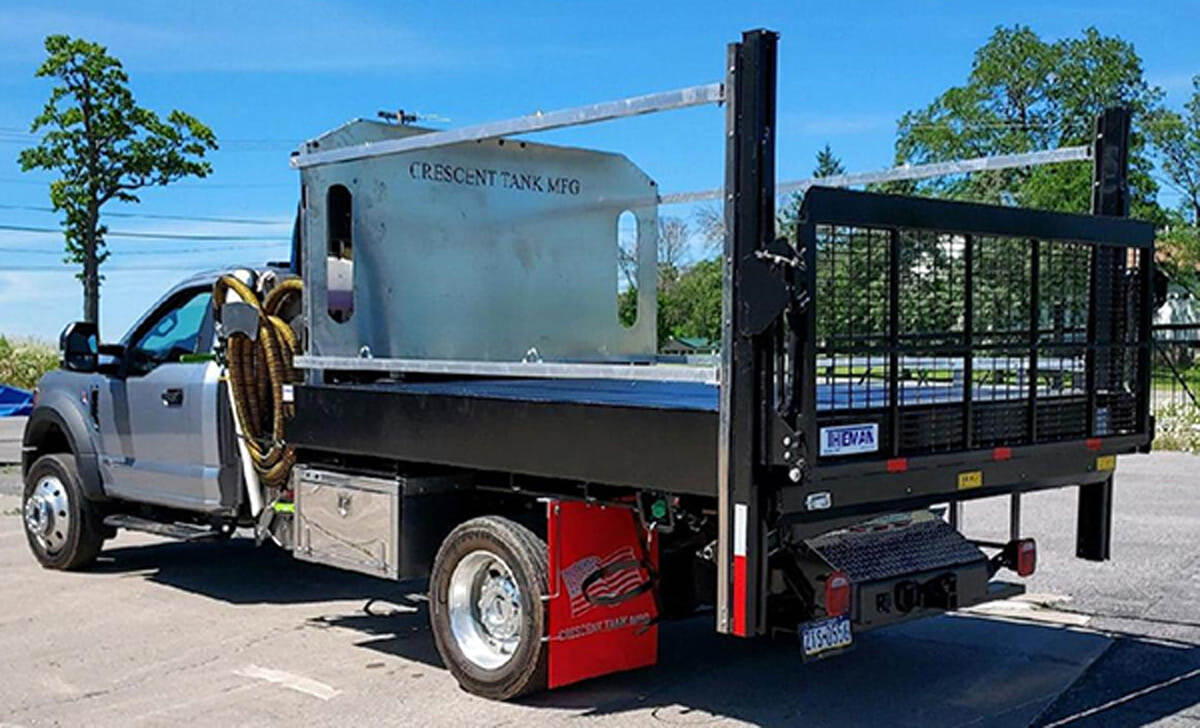

Crescent Tank vacuum tank
The Crescent Tank vacuum tank is flat inside and out. It carries up to 10 portable restrooms, and the weight capacity is the same as a flatbed truck. It has no baffles, allowing it to be emptied completely to avoid internal corrosion. With the included pump at specified cfm, unnecessary structural fatigue is eliminated. It is fabricated from 1/4-inch-thick steel for structural strength. Its workstation is designed for the portable sanitation industry. The liftgate rail width allows units to fit, and multiple liftgate decks and rail options are available. Freshwater is held in the external 1/2-inch-thick poly tank. It can be installed by Crescent on any chassis within the specifications required for each model based on axle ratings and maximum load capacity, or can be installed by the manufacturer. 585-657-4104; www.crescenttank.com

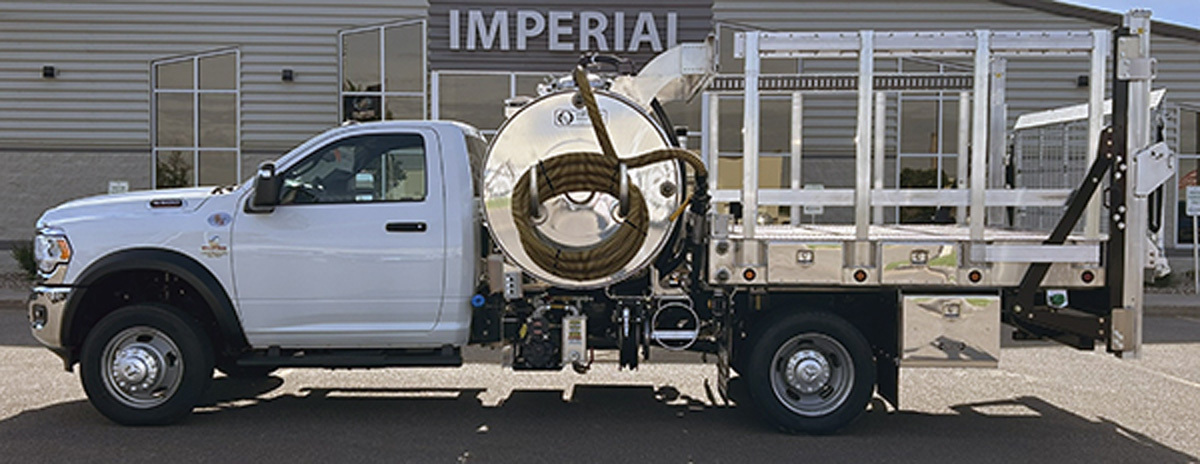

Imperial Industries Flatvac
The 1,000-gallon stainless steel Flatvac from Imperial Industries has a 700-gallon aluminum waste-only tank with anticorrosion inserts and a 20-inch manway with an external air line. It includes two 2-inch sight glasses for the waste compartment, a 3- to 2-inch top fill with a 30-foot hose, poly valve and poly wand, and a 3-inch waste discharge. The 8-foot aluminum flatbed holds 300 gallons of water with a 2-inch water fill and a 3-inch vent. The water compartment also has two 2-inch sight glasses and a 2-inch freshwater bucket fill. The Masport HXL4 vacuum pump operates at 165 cfm, complemented by vacuum/pressure relief valves with a liquid-filled gauge and a frame-mounted oil catch muffler. A soft-start PTO and Pumptec X-6 pump are included. Additional features are a retractable hose reel, U.S. Department of Transportation-specified lighting, LED work lights, aluminum toolboxes, a 2-inch receiver hitch with a seven-pin plug, a Thieman galvanized liftgate and built-in flatbed storage. This unit can be installed on a Ford or RAM chassis. 800-558-2945; www.imperialind.com

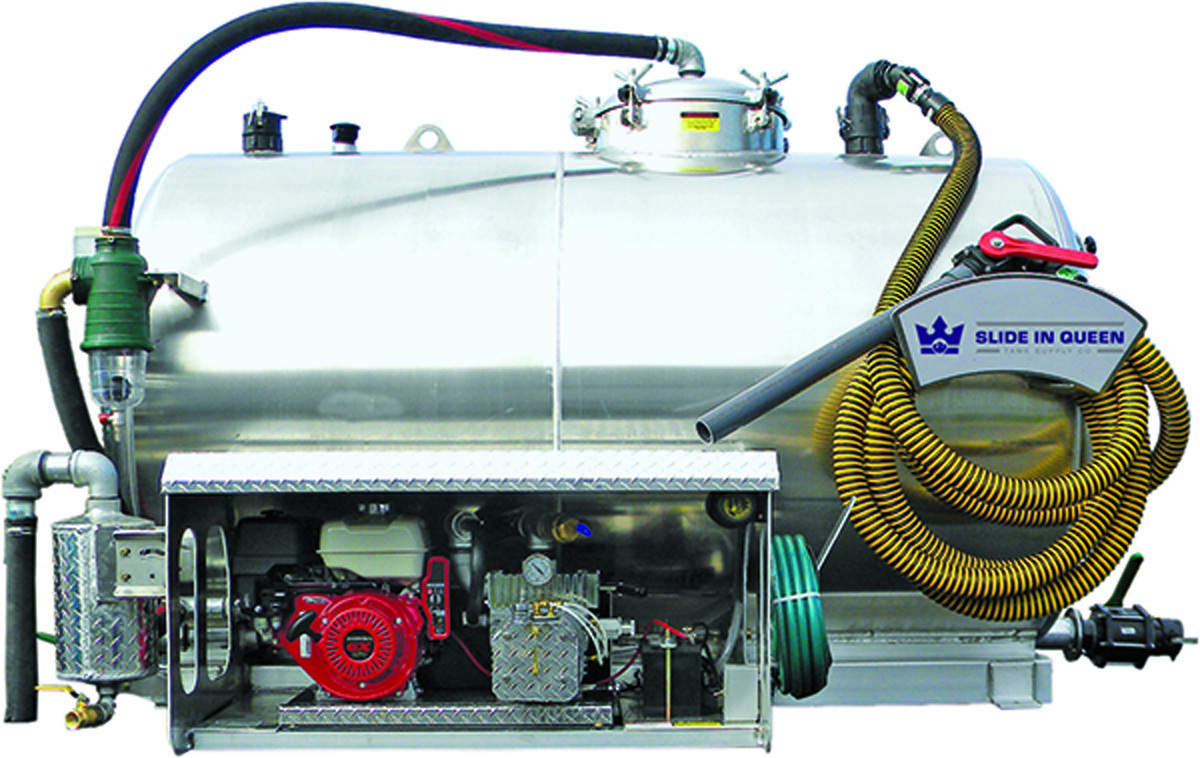

Slide In Queen FD-995-2C-SE
The FD-995-2C-SE from Slide In Queen is designed for versatility and dependability, according to the maker. A flanged and dished tank is built for on- and off-road service. It comes with a pumping system and optional washdown pump. With a smaller footprint, slide-in units can service hard-to-reach locations. Each is made from aluminum, steel or stainless steel. Units come equipped with pump, engine, Tigertail suction hose and washdown hose with spray nozzle. 833-475-4334; www.slideinqueen.com

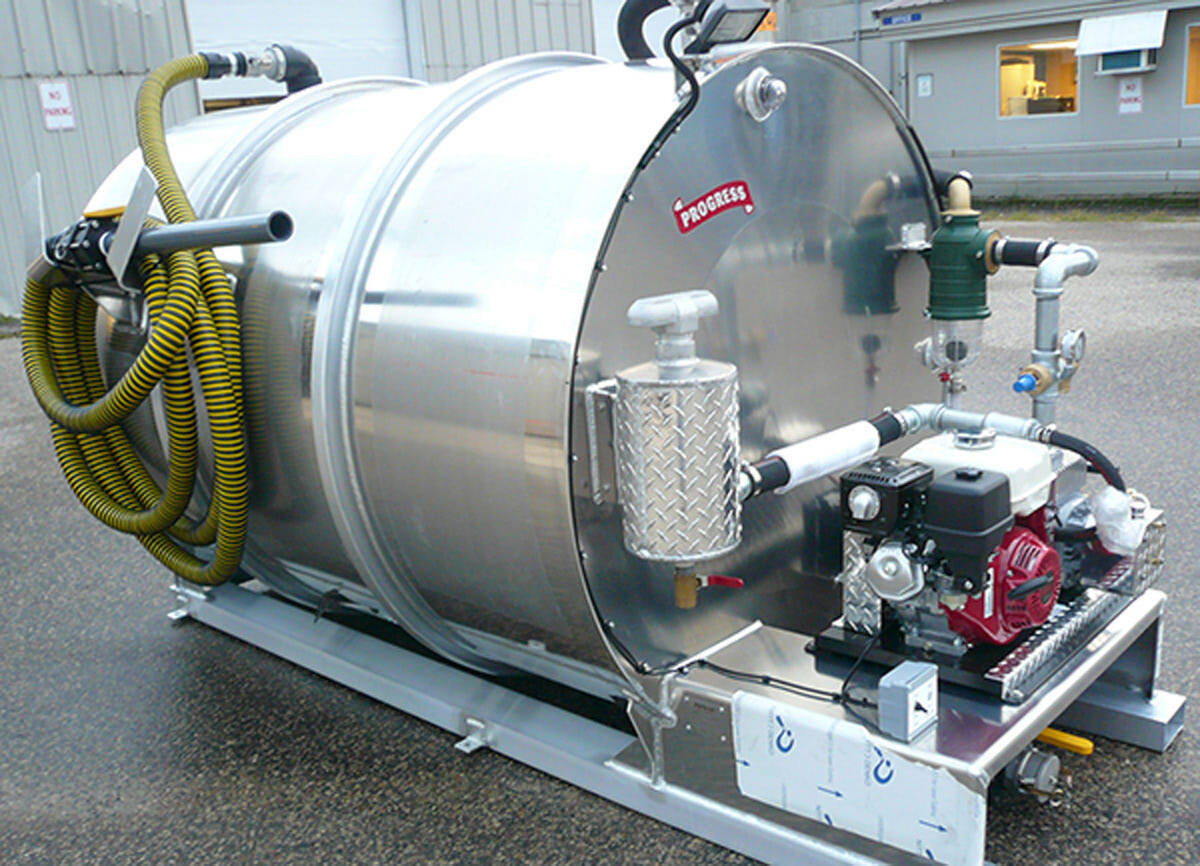

TankTec slide-in tank
Slide-in tanks from TankTec range from 100 to 995 gallons. The tanks are available in single-compartment for grease trap and septic service or two-compartment for portable restroom service. 888-428-6422; www.tanktec.biz

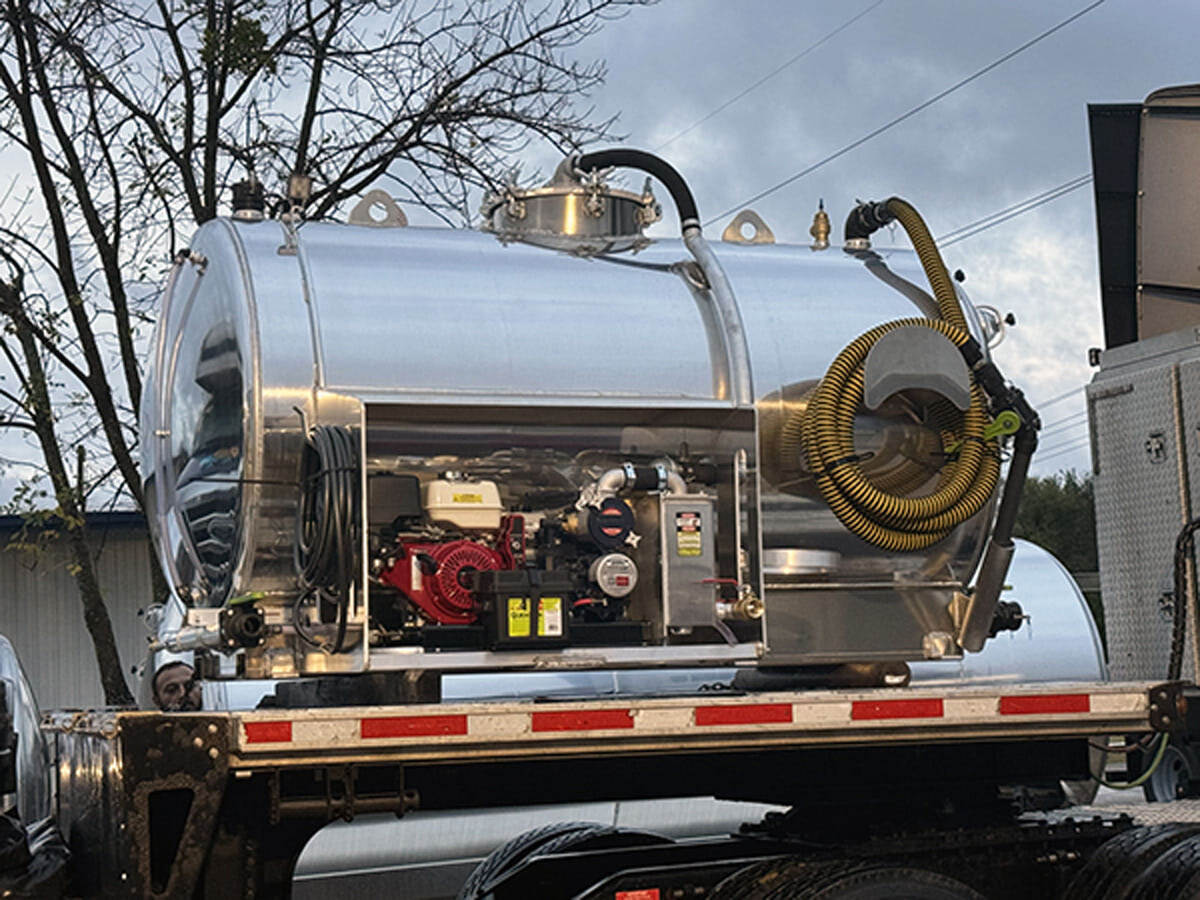

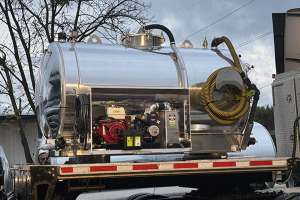

Vacuum Tank Sales 999-Gallon Vacuum Tank
Vacuum Tank Sales’ 999-Gallon Vacuum Tank offers a multitude of build options and add-ons to suit a range of applications. It can be equipped with a single or split compartment, such for portable restroom service holding 699 gallons of waste and 300 gallons of water. It can also be used to clean out grease traps. It excels at hauling 999 gallons of waste to get the highest-capacity transportation possible without requiring a U.S. DOT tanker endorsement. Mountable to a driver’s new or existing flatbed or trailer, the unit has a number of add-ons for a personalized rig, from hoses, hose hooks, wand holders, bottle holders, toolboxes, pumps and portable restroom racks. Several barrel configurations are compatible with a variety of pumps, which can be side-mounted or placed in the rear. The waste compartment is accessible via manway at the top for simple cleaning and maintenance, and all components are welded using a MIG or TIG process. 888-530-0590; www.vacuumtanksales.com
Vacuum Trucks

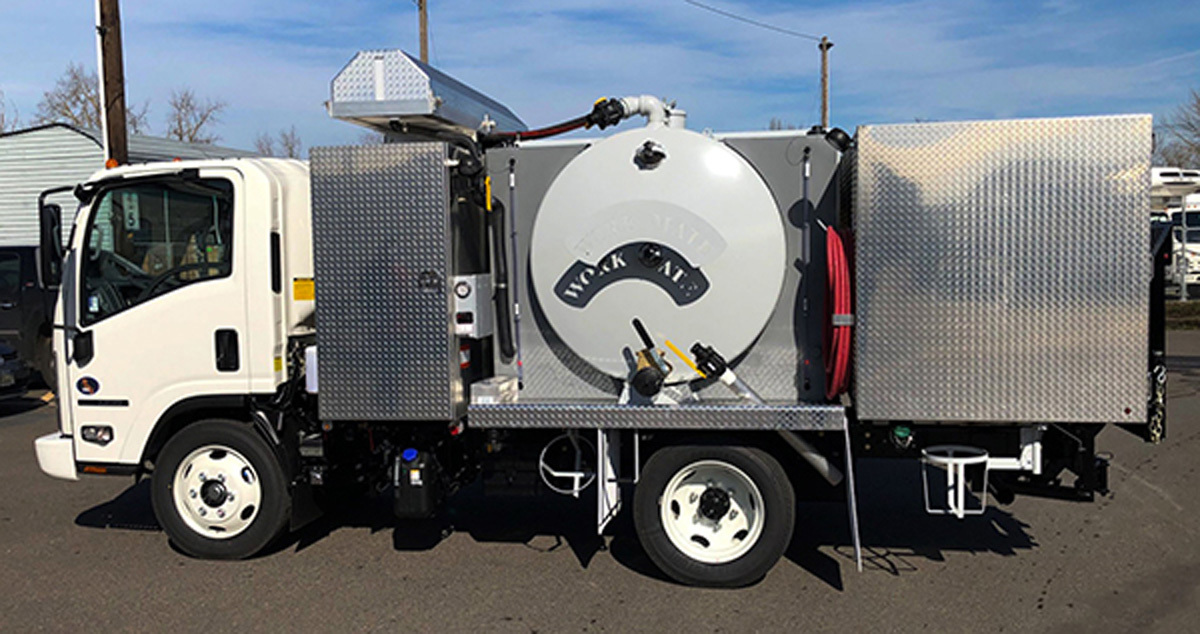

FMI Truck Sales & Service WorkMate
The WorkMate service truck from FMI Truck Sales & Service is designed with efficiency and operator comfort in mind, according to the maker. The ergonomically designed workstation can be operated from the driver’s side of the vehicle. It has more than 60 cubic feet of storage space for supplies. The unit can be modified to carry up to six restrooms. The unit pairs with Isuzu’s N-Series chassis as well as Hino, Ford, Ram, GM or International chassis. The modular design allows for easy replacement of components if repair is needed. 800-927-8750; www.fmitrucks.com

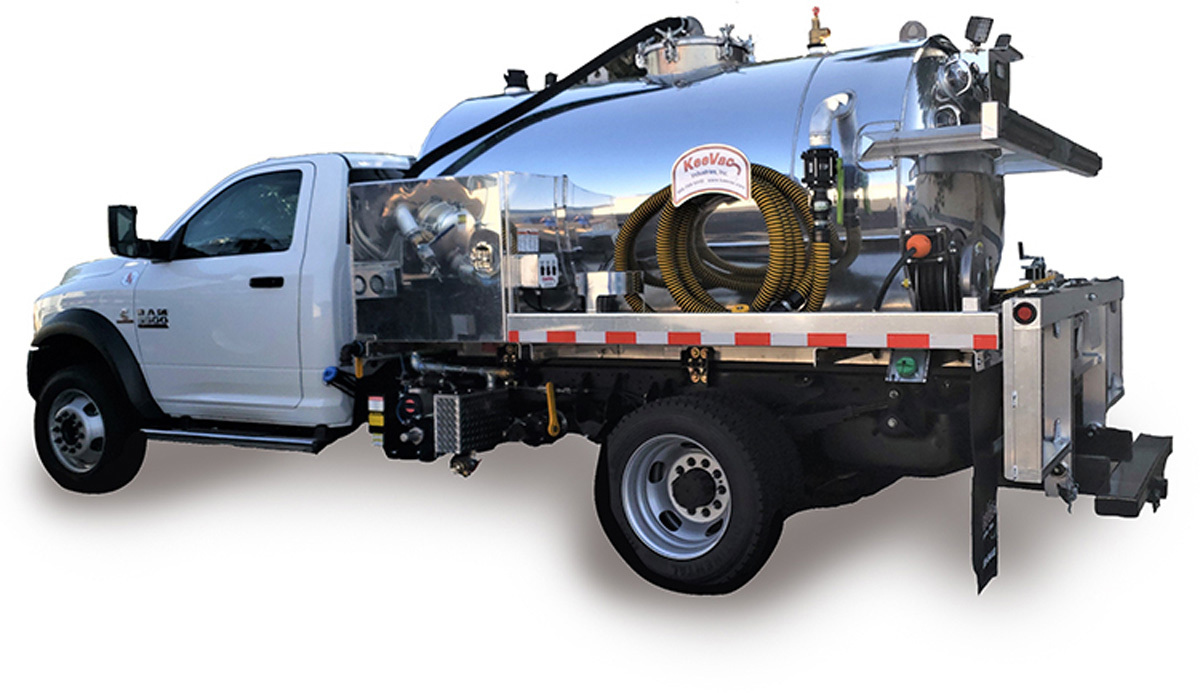

KeeVac KV999
The KV999 from KeeVac carries a 999-gallon vacuum tank for operators who want to stay under the DOT tanker endorsement requirement. It is available in steel, stainless steel and aluminum with single- or dual-side service, holds 699 gallons of waste and 300 gallons of freshwater, and includes a two-unit fold-down restroom carrier with trailer hitch. The tank can be mounted on a variety of chassis and with a variety of pumps. Each unit comes with an upgraded DC-10 washdown pump and hose reel from Hannay Reels. Exterior controls and dual cabinets are designed for operator safety and convenience. An arctic package and safety lighting are available. 866-789-9440; www.keevac.com

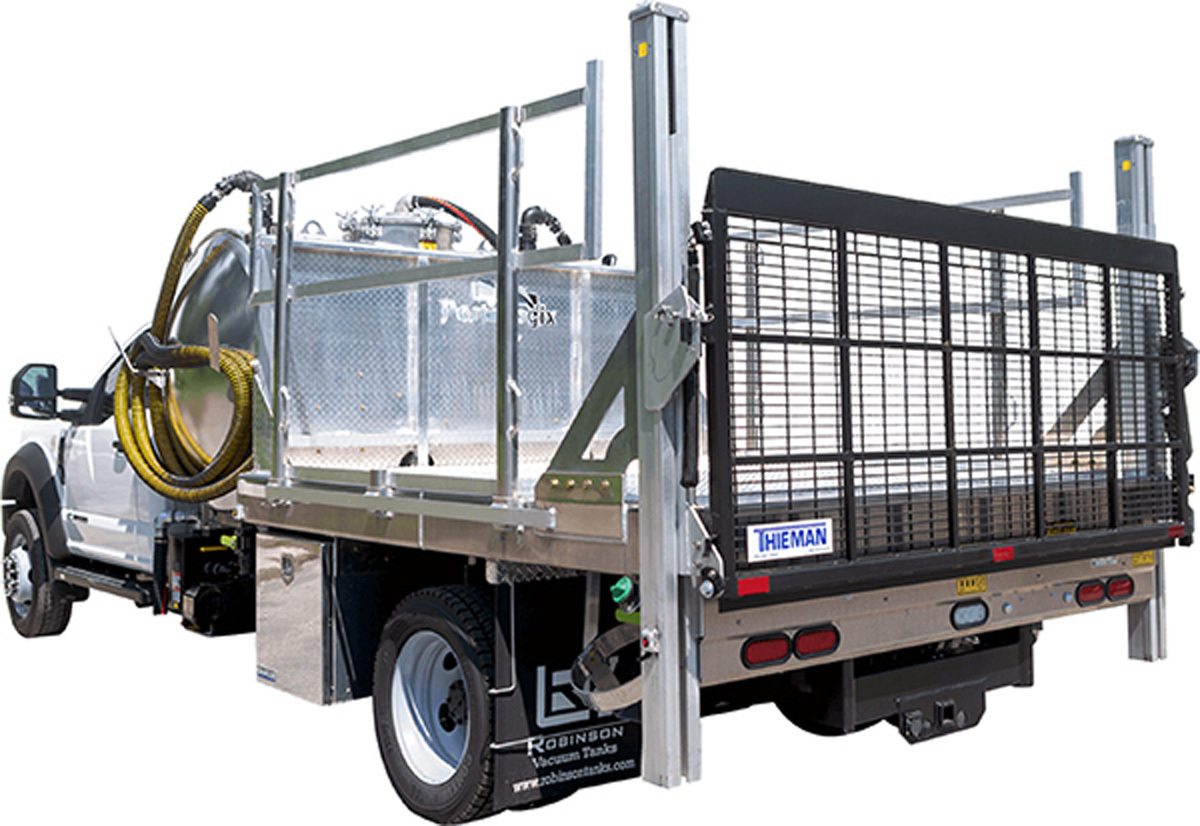

PortaLogix service truck
The midsize PortaLogix service truck accommodates waste, water and up to six standard restrooms. It utilizes a transverse tank that doubles as the truck bed and carries 800 gallons of wastewater and 350 gallons of freshwater. It features dual-side service, allowing operators to access water drop points on all four corners of the bed. It is available in two- and four-wheel drive. The service trucks can be driven without a CDL. 585-484-7009; www.portalogix.com

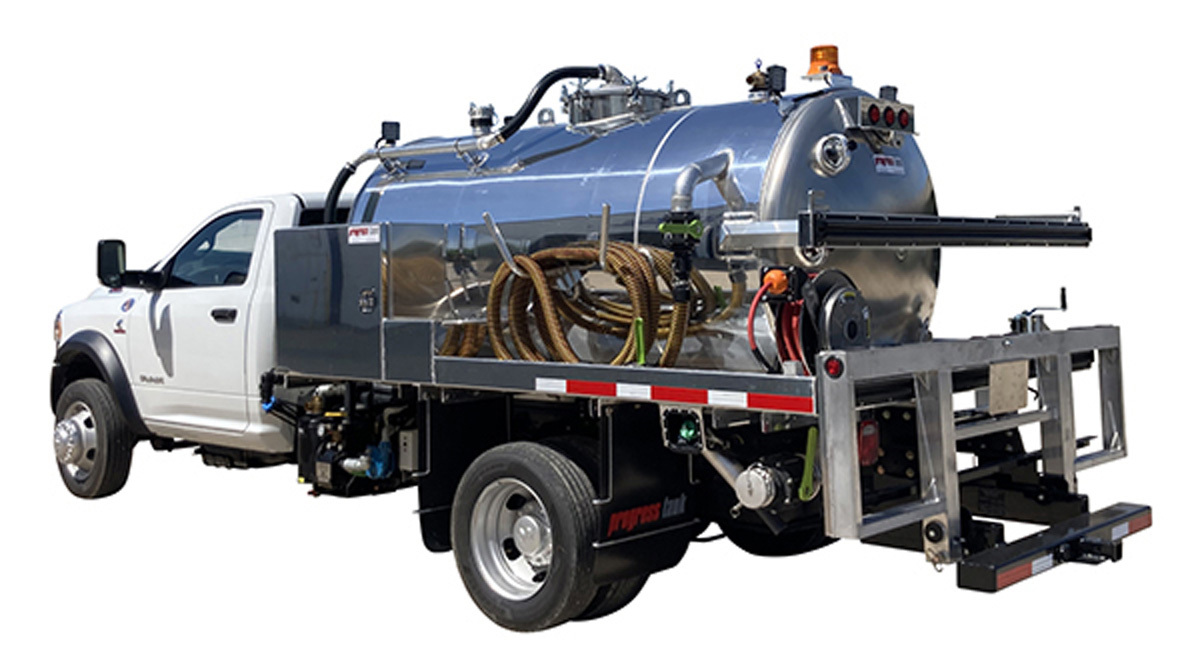

Progress PRT 1250-GAL 2CPT AL
The Progress PRT 1250-GAL 2CPT AL truck is designed with an aluminum tank with a 900-gallon waste compartment and a 350-gallon freshwater tank to meet the needs of the portable restroom industry. This model comes with standard dual-side service, which includes 30-by-36-inch aluminum toolboxes, 30 feet of 2-inch suction hose, bottle holders and a bucket fill. It includes a bumper/carrier capable of transporting two portable restrooms. Progress offers a variety of chassis options, including 4x2 or 4x4 configurations, with both gas and diesel engine choices. There are multiple options available for vacuum and water pumps. 800-467-5600; www.progresstank.com

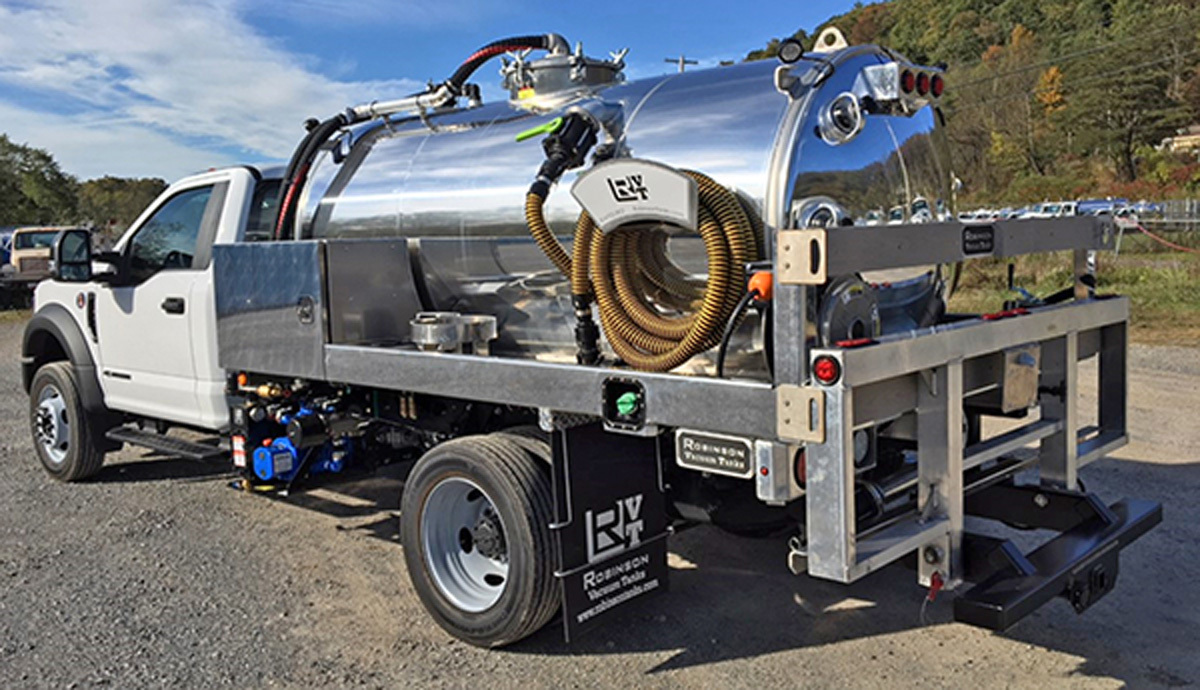

Robinson Vacuum Tanks PR1200A
The PR1200A truck from Robinson Vacuum Tanks carries a 900-gallon waste/300-gallon freshwater aluminum portable restroom service tank. This model has standard dual-side service including toolbox, suction hose and bucket fill. The unit comes with a bumper capable of towing a trailer, and it has a folding platform to haul two portable restrooms. Chassis options include choice of manufacturer, two- or four-wheel drive, and gas or diesel. There are also multiple options for vacuum and water pumps. 814-933-0927; www.robinsontanks.com

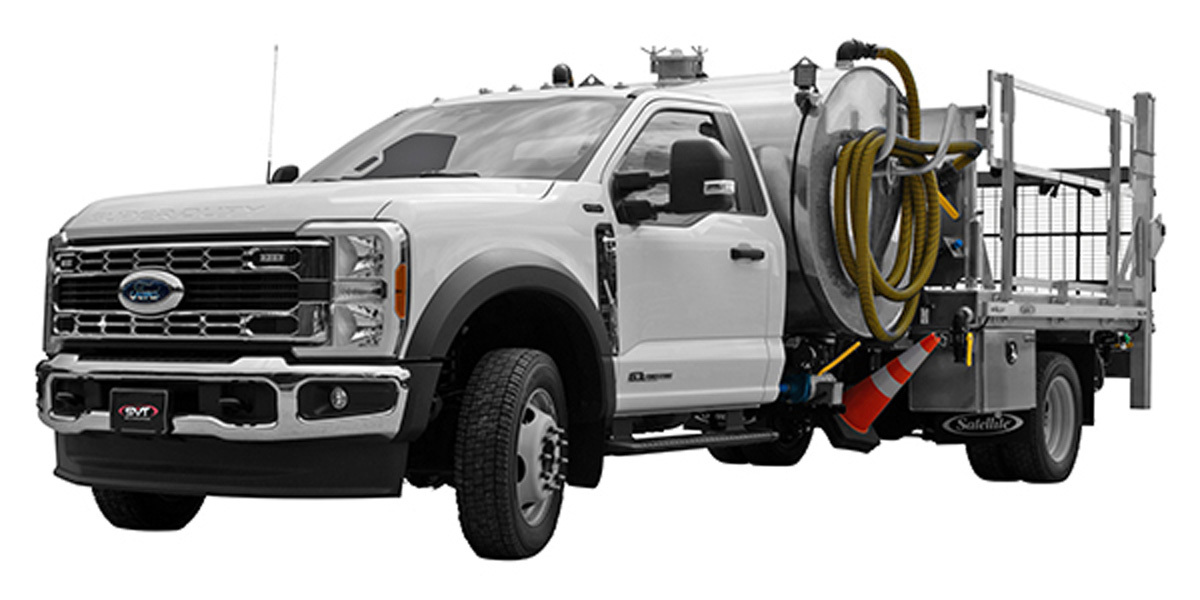

Satellite P&D 1150
The P&D 1150 from Satellite maximizes every inch, optimizing a daily route with more hauling capacity and tank volume. It includes a separate 350-gallon freshwater tank built into the truck bed and an 800-gallon aluminum wastewater tank behind the cab. This smart configuration maximizes work efficiency and extends daily reach. It also has the capacity to haul four standard restroom units and, with the hitch, tow additional units. The rear liftgate simplifies pickup and delivery tasks. To further increase efficiency, you can opt for the optional passenger-side workstation that enhances productivity and eliminates the need to navigate around obstacles. 800-883-1123; www.satelliteindustries.com

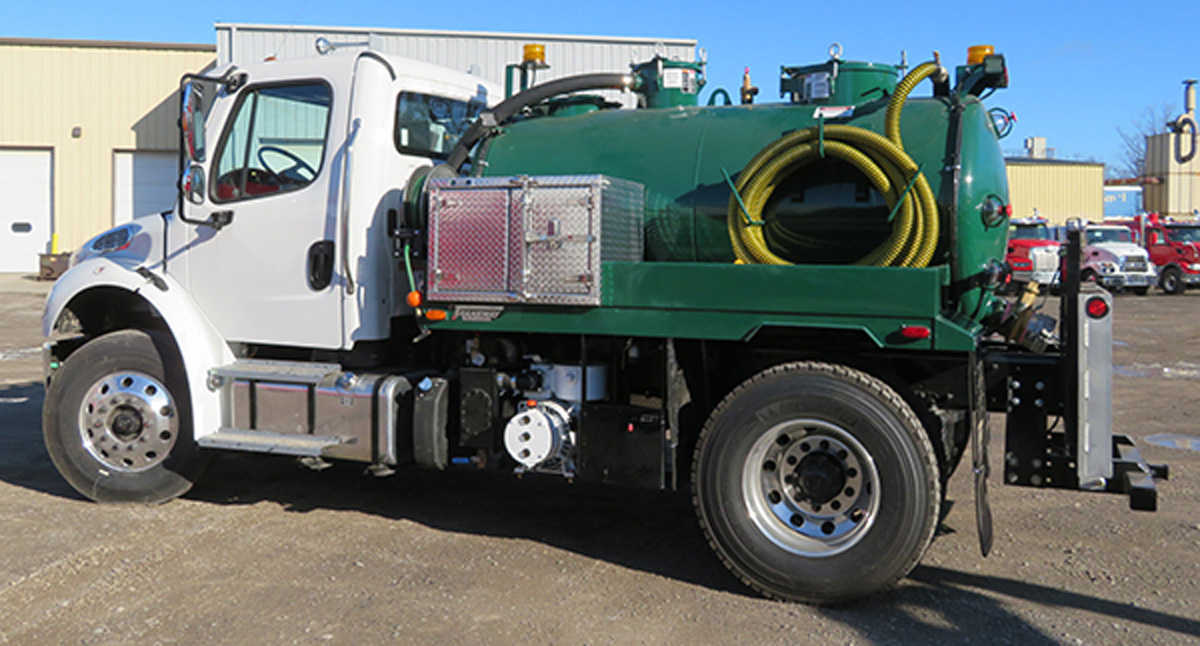

Transway Systems Portable Restroom Truck
The Transway Systems Portable Restroom Truck is a high-performance solution for servicing portable sanitation needs. Engineered for efficiency and reliability, this specialized vehicle is suitable for pumping, cleaning and maintaining portable toilets in various environments, including construction sites, events and outdoor locations. The truck features a two-compartment tank: a vacuum compartment designed to handle liquid waste and a freshwater compartment for cleaning and sanitation. Its user-friendly layout allows operators to quickly and safely complete service tasks, improving workflow and minimizing downtime. It is equipped with a powerful vacuum pump, ergonomic hose connections and optional add-ons such as heated valves and advanced monitoring systems. 800-263-4508; www.transwaysystems.com
Washdown Pump

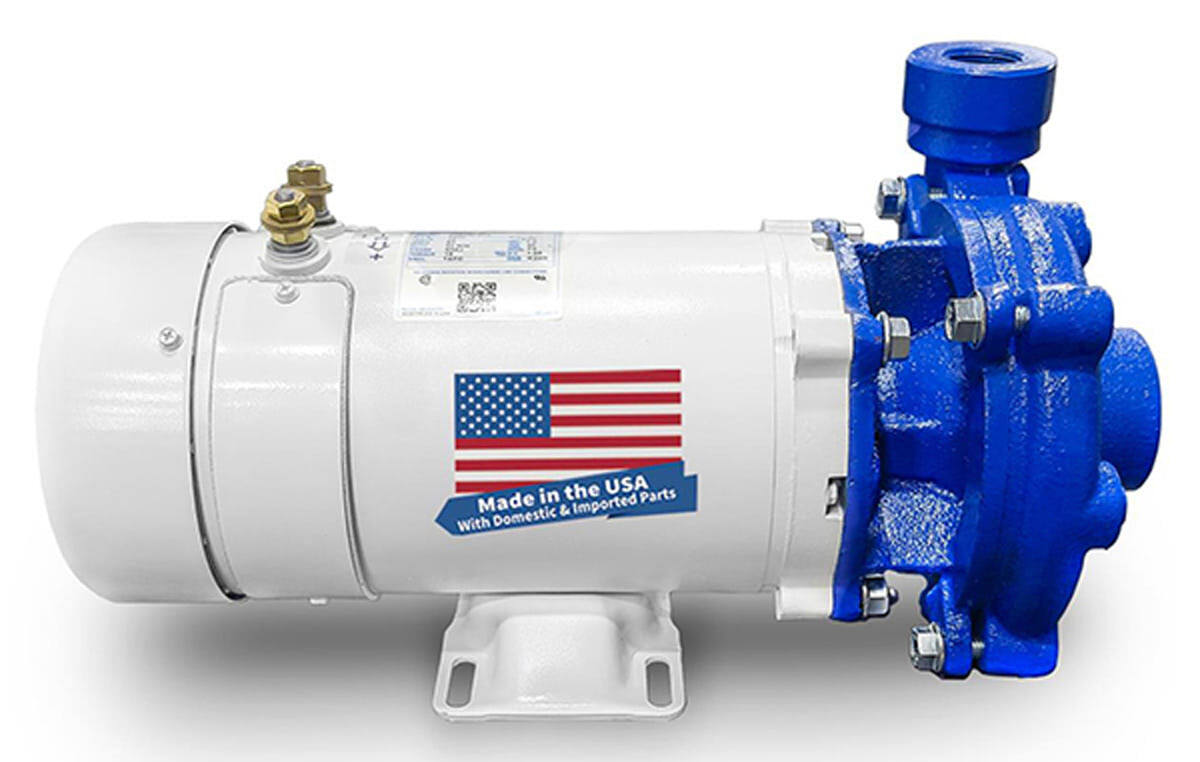

Moro USA DC Washdown Pumps
Moro USA DC Washdown Pumps achieve a maximum delivery rate of 20 gpm, 42 psi and are primarily utilized for filling sinks and cleaning portable restrooms. These centrifugal pumps are designed with corrosion-resistant materials for operating in wet conditions and can be used in other applications such as industrial, marine and water circulation. They have an epoxy-coated 12-volt DC motor, stainless steel impeller, four front drain plugs and a carbon/ceramic/VITON mechanical seal. They require installation of an in-line circuit breaker and a 12-volt Solenoid. Full washdown pump kits include a 12-volt Solenoid, pressure switch and in-line circuit breaker. 866-383-6304; www.morousa.com
