Slide-In Units

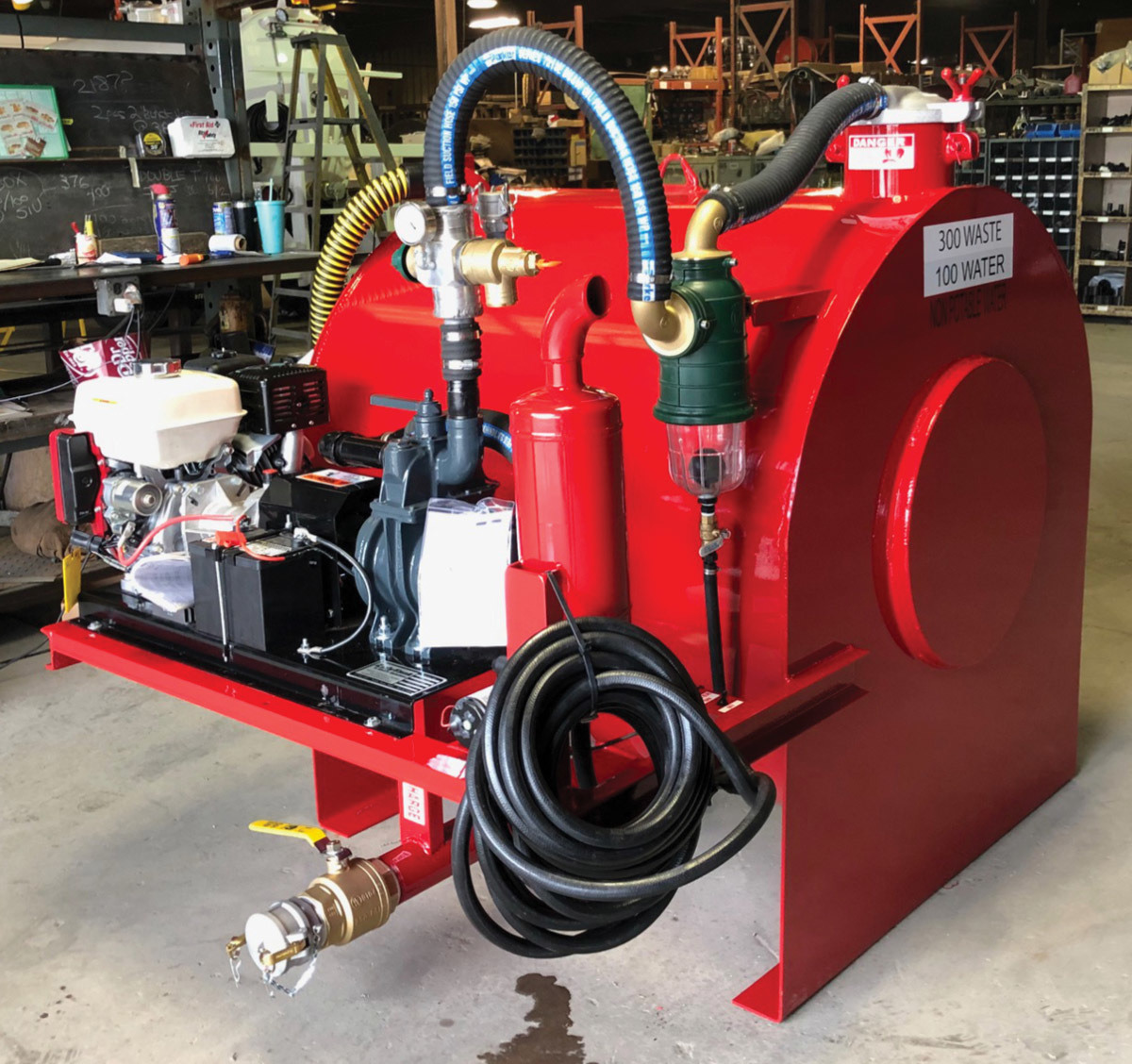

American Tank 400-Gallon Service Unit
The 400-Gallon Service Unit from American Tank has a 300-gallon waste/100-gallon freshwater tank designed to back up to the headache rack on a flatbed truck, fitting in the center of the bed allowing easy access and workability. The unit is available in aluminum or steel and fits on any type of chassis and can be mounted on a smaller truck such as a Ford F-350. It weighs approximately 1,150 pounds empty. The engine/pump package can be installed in several locations, including on the driver’s side on the end of the tank so that the driver/operator can access it when they step out of the cab. The tank/pump package can be any combination, including Masport, Jurop, Fruitland, National Vacuum or Conde. It comes with 30 feet of suction hose and wand and a 15-foot section of discharge hose. Various water pump options are available, and the unit comes in a variety of colors. 254-938-2564; www.atcvacuumtruck.com

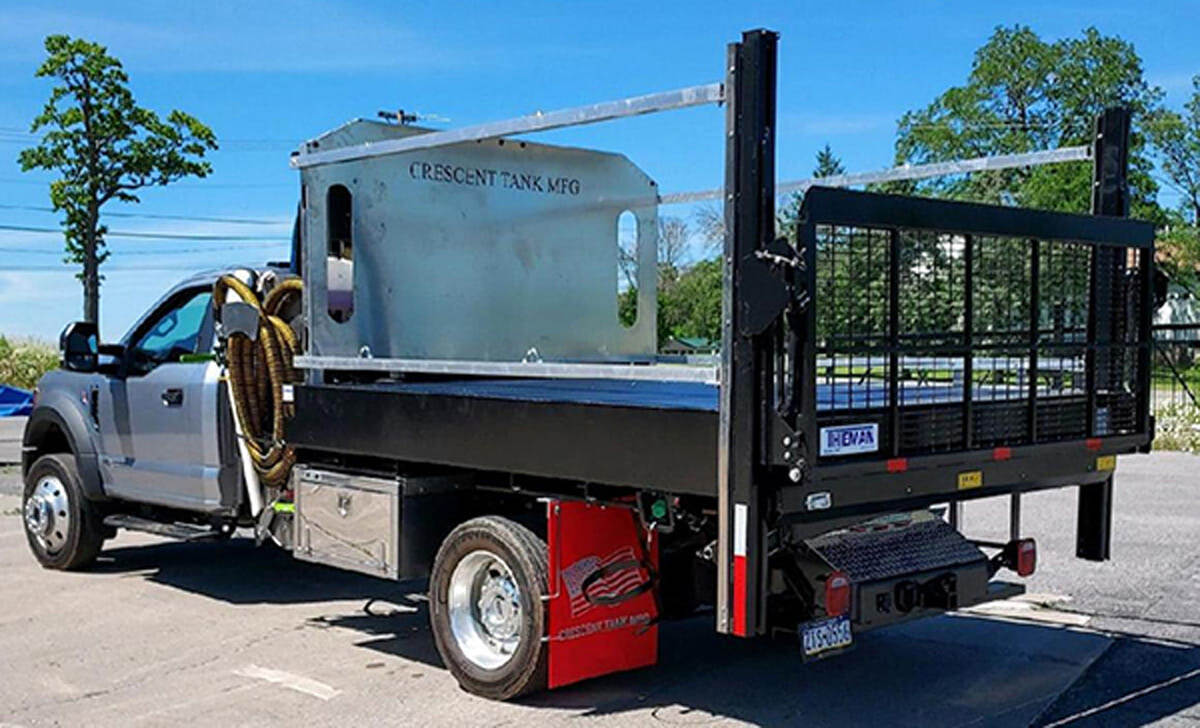

Crescent Tank vacuum tank
The Crescent Tank vacuum tank is flat inside and out. It has no baffles, allowing it to be emptied completely to avoid internal corrosion. With the included pump at specified CFM, unnecessary fatigue of the structure is eliminated and the life of the tank is prolonged. It is made from 1/4-inch-thick steel for structural soundness. The workstation is designed for the portable restroom industry. Freshwater is held inside the external 1/2-inch-thick poly tank. The slide-in is low profile for better weight distribution and is barely visible in the bed of a pickup truck. The chassis required is a 1-ton or greater, 8-foot bed pickup or flatbed truck, based on maximum load capacity. 585-657-4104; www.crescenttank.com

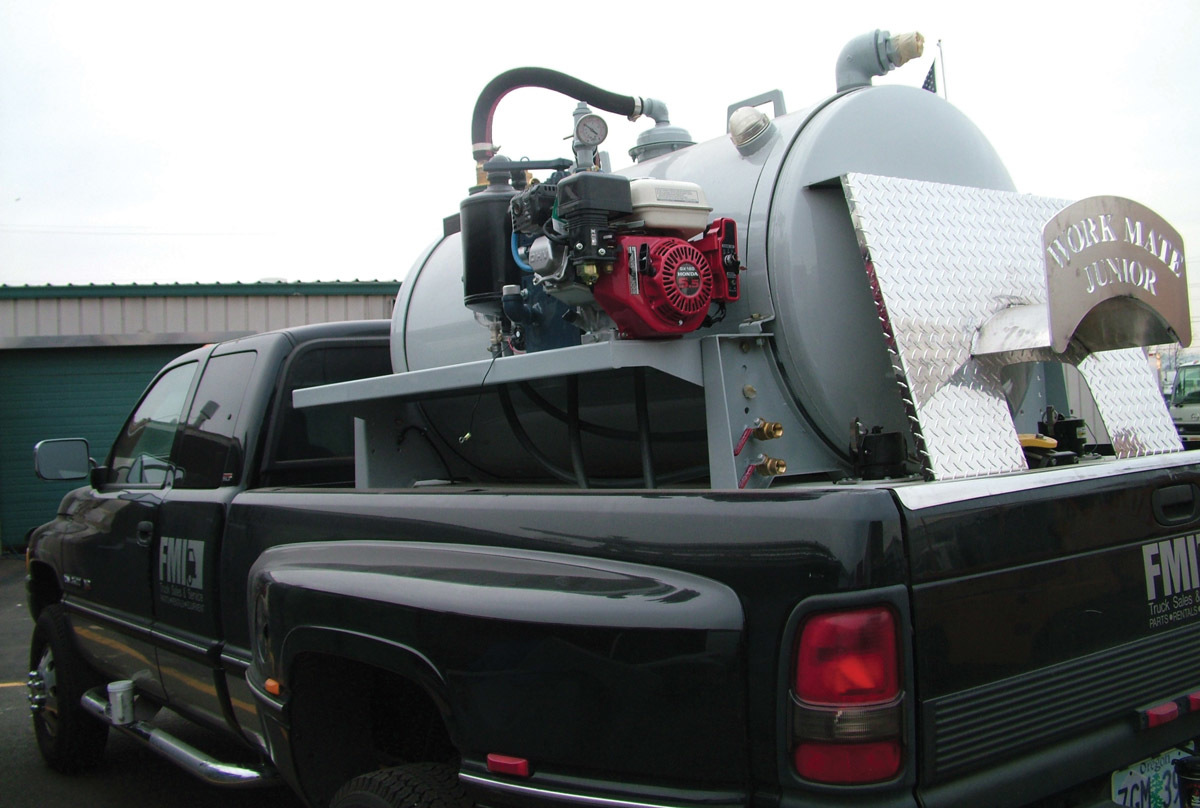

FMI Truck Sales & Service WorkMate Three-Compartment Slide-in Unit
The WorkMate Three-Compartment Slide-in Unit from FMI Truck Sales & Service is suitable for the operator just getting started in the portable sanitation business. It fits easily into the back of a 1-ton pickup truck and is easy to operate. It also works efficiently across a flatbed truck or special event truck. The unit has a steel 325-gallon waste compartment and twin 75-gallon poly water tanks. The water tanks can be isolated for a three-compartment system or flow together for a two-compartment system. Standard options include a primary and secondary shut-off, 12-volt freshwater delivery, an oil catch muffler, and an easy-drain manifold system. It comes ready to work with hoses, wand, bucket, straps and an ergonomic workstation. Options include a stainless steel supply storage box on the passenger side and tool storage on the driver’s side. 800-927-8750; www.fmitrucks.com

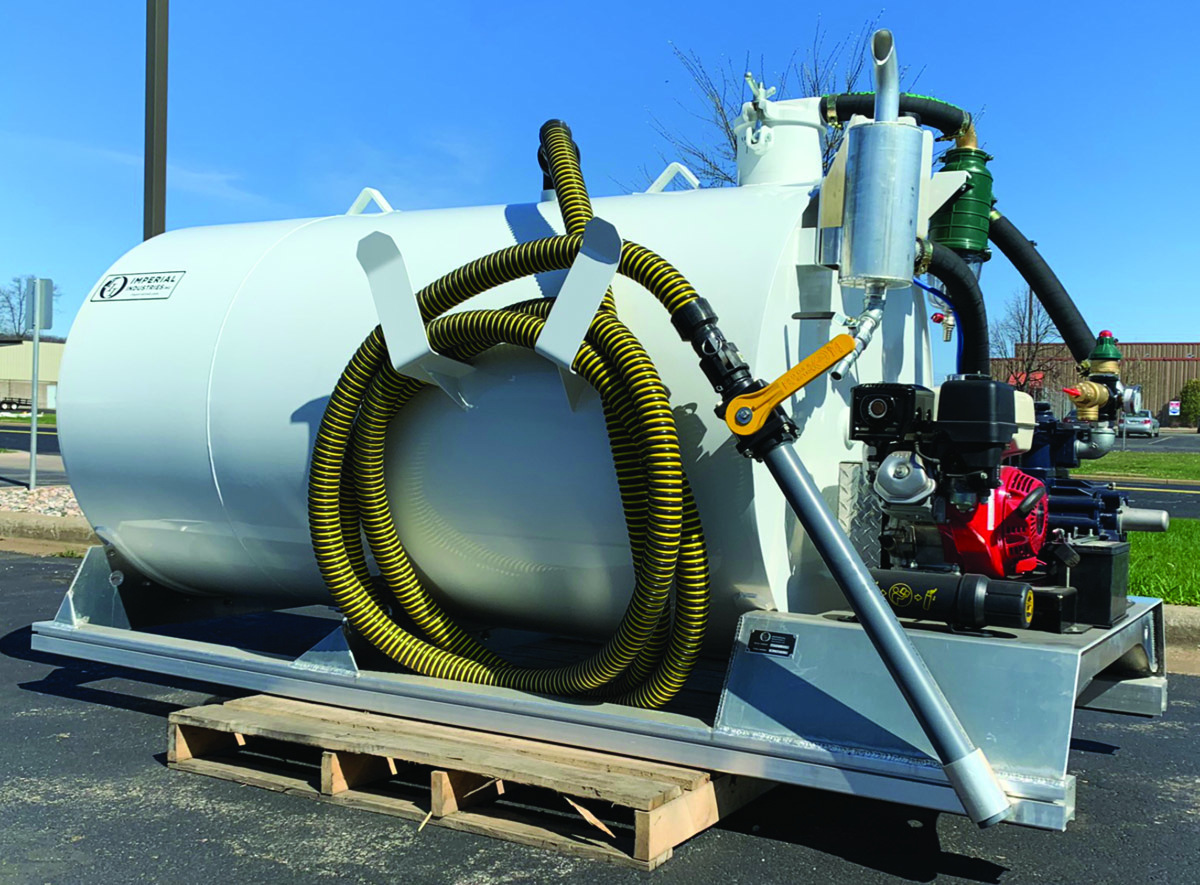

Imperial Industries Self-Contained Slide-In Unit
The Self-Contained Slide-In Unit from Imperial Industries allows for the equalized weight distribution of water and waste levels and offers versatility. It is frequently used for portable restroom maintenance, grease service, oil spill clean-up and other applications for specialized industries. Optional freshwater compartments or waste-only units are available with a choice of vacuum pump and engine package. It is available in steel, aluminum or stainless steel, and stock sizes of 300-, 450-, 550- and 650-gallon capacities. 800-558-2945; www.imperialind.com

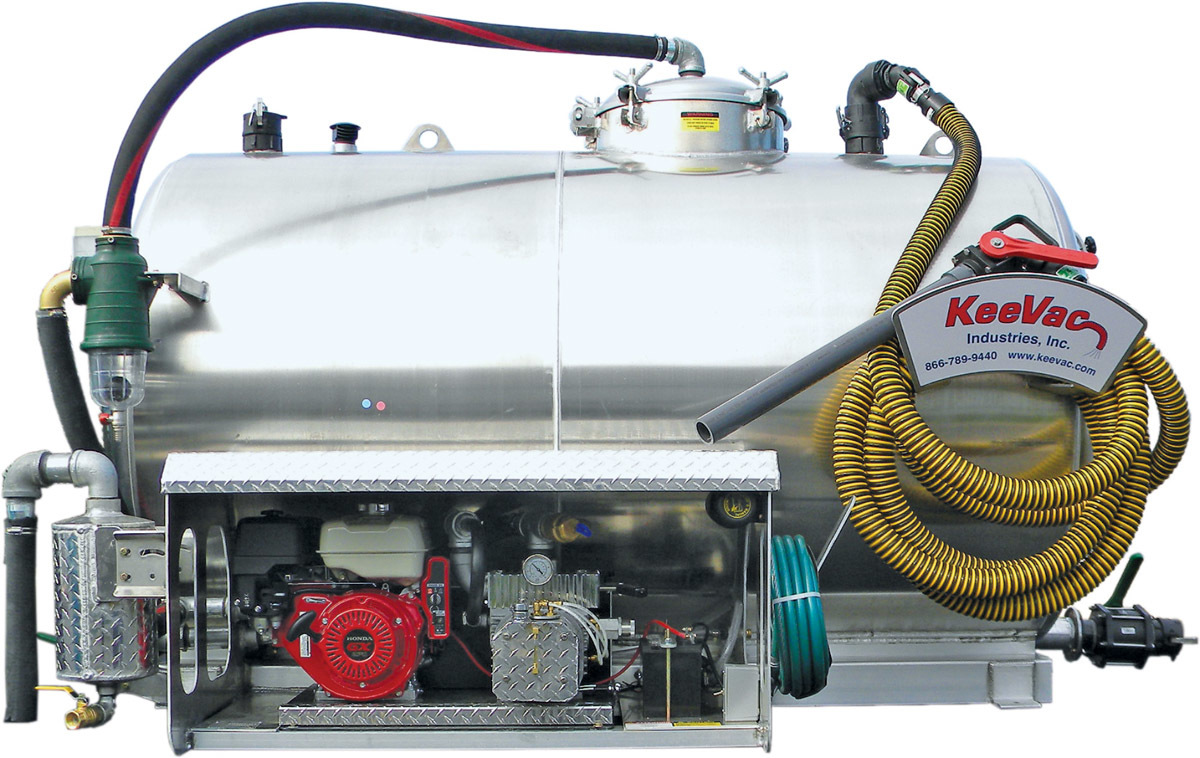

KeeVac Industries FD-950-2C-SE
The FD-950-2C-SE from KeeVac Industries offers a flanged and dished tank built for both on- and off-road service. Customers can add this work-ready unit with a powerful pumping system and optional power-twin washdown pump. With a smaller footprint than larger tanks, slide-in units can service hard-to-reach locations for increased service area growth with reduced downtime. Each unit is made from all aluminum or stainless steel. All units come fully equipped and ready to work, complete with pump, motor, Tiger Tail suction hose and washdown hose with spray nozzle. 866-789-9440; www.keevac.com

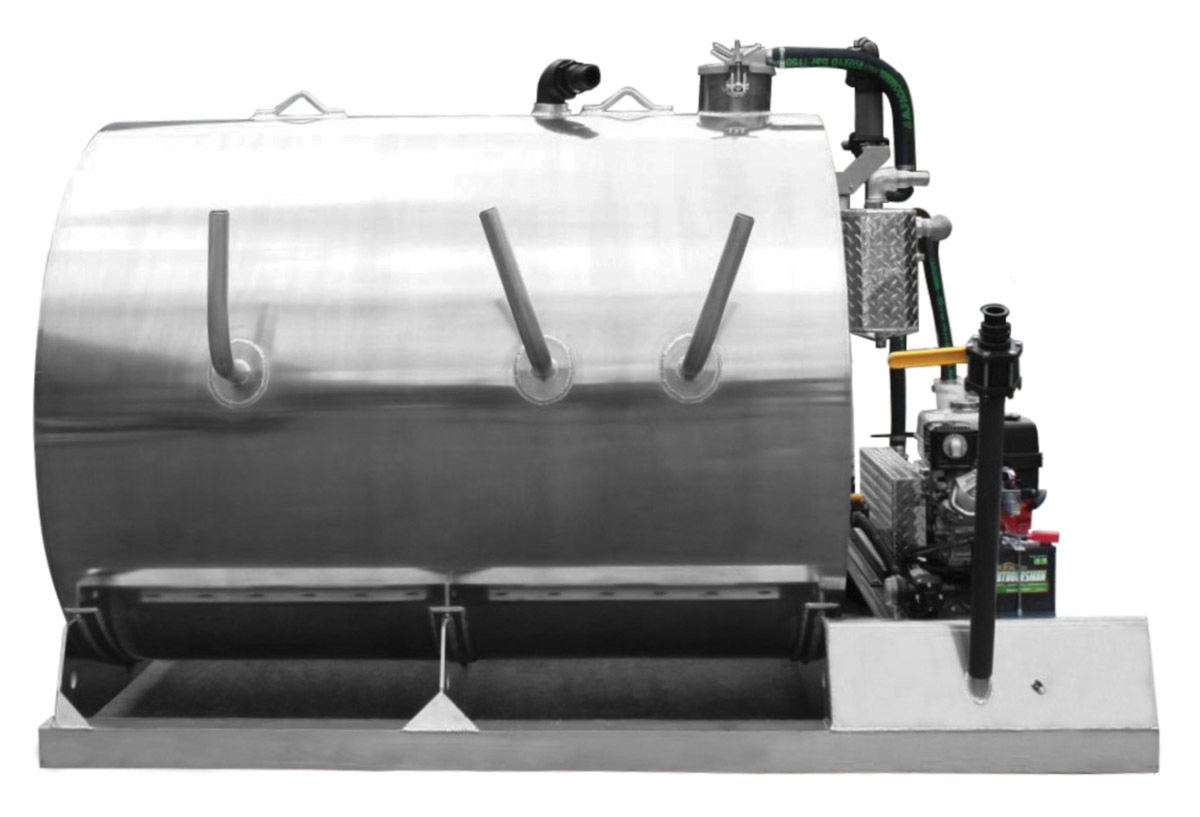

Satellite Vacuum Trucks 900-Gallon Slide-In Vacuum Tank
Satellite Vacuum Trucks offers slide-in units in three materials with three pump systems and sizes ranging from 300 to 900 gallons. The 900-Gallon Slide-In Vacuum Tank has a 650-gallon waste capacity, and 250 gallons of freshwater. It is offered with Conde 6SS, Conde 6SDS or Masport HXL3V pumps. Satellite technicians custom-build each tank to match operators’ needs, creating an ergonomically friendly design to reduce driver fatigue. 800-883-1123; www.satelliteindustries.com
Hose Reels

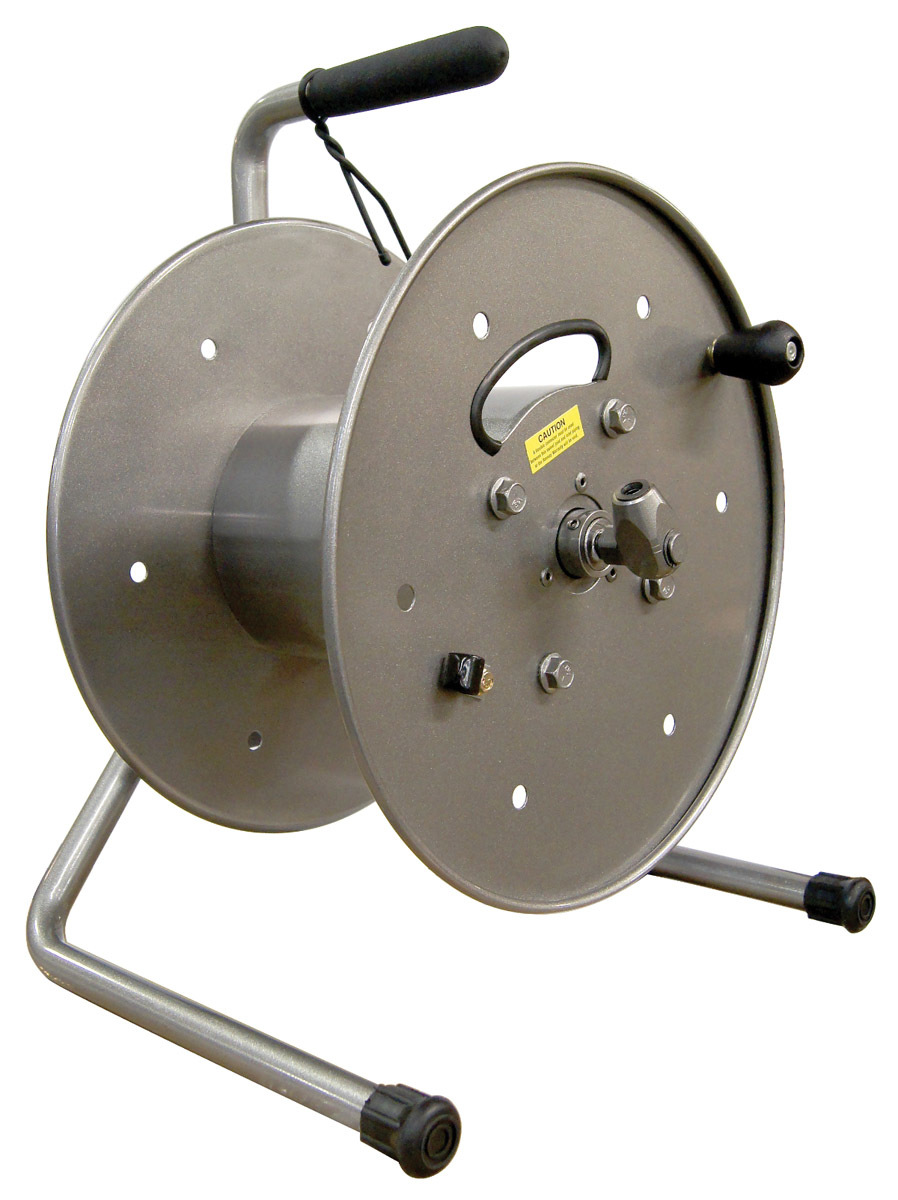

Hannay Reels H16-14-16 Portable Hose Reel
The H16-14-16 Portable Hose Reel from Hannay Reels is lightweight and suitable for use in pipe cleaning, drain cleaning and high-pressure applications in residential and light commercial environments. Its easy-to-use carry handle and manual rewind make it suitable for use in hard-to-reach areas. Designed with a quality swivel joint, the reel can accommodate pressures up to 5,000 psi. It includes a tension brake, one twist tie to hold hose and all-steel construction. 877-467-3357; www.hannay.com

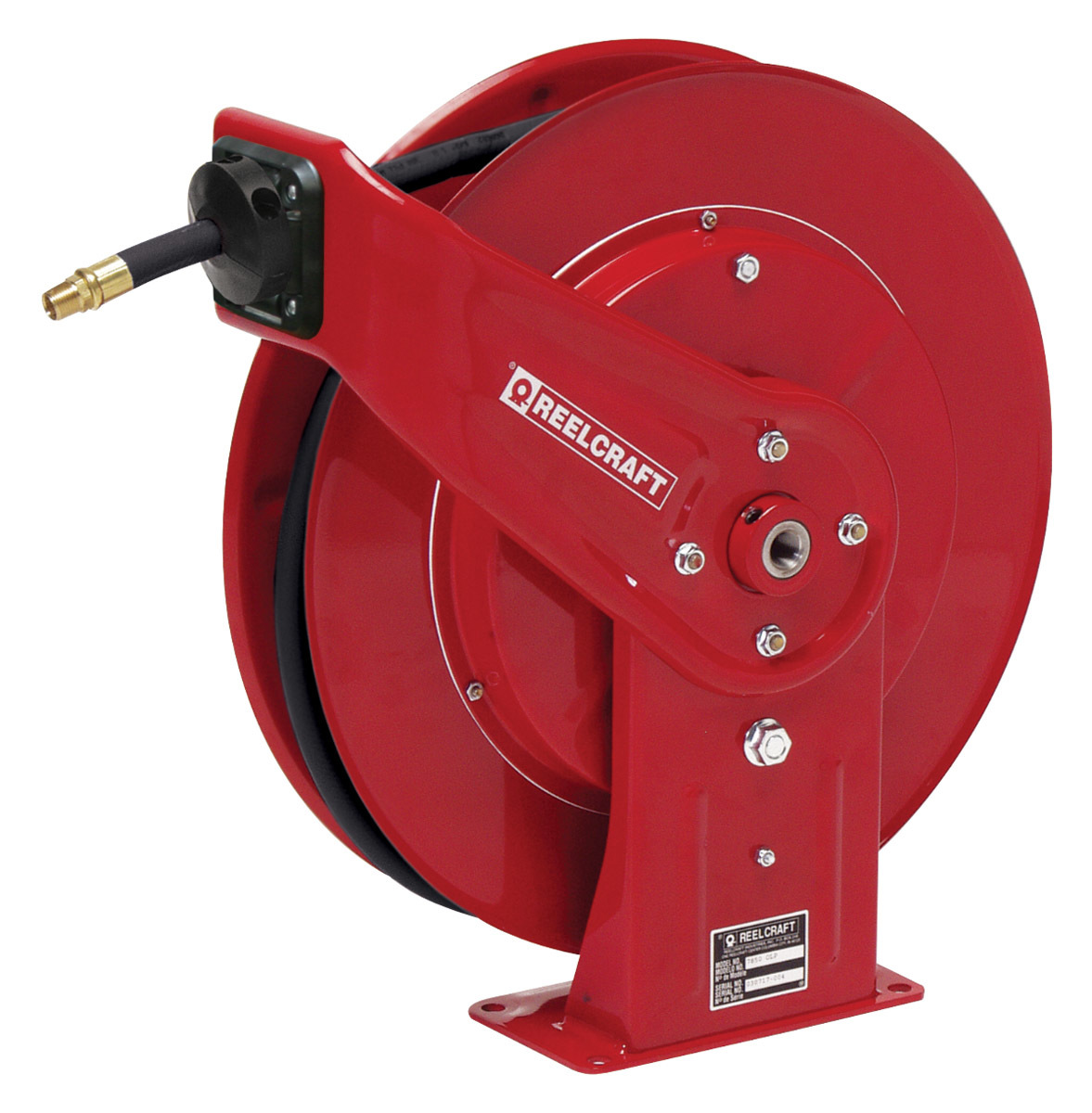

Reelcraft Industries Series PW7000
Series PW7000 hose reels from Reelcraft Industries are fitted with a nickel-plated, carbon steel AFLAS-sealed swivel specifically for pressure-wash applications. The reel holds up to 50 feet of 3/8-inch I.D. hose. Its rigidity, compact design and powder-coat finish make it suitable for outdoor, all-weather and truck-mount applications. The guide arm adjusts to seven positions for ceiling, wall, truck, bench or pit mounting. The reel comes in standard red, but other colors are available. 800-444-3134; www.reelcraft.com
Pressure Washers & Sprayers

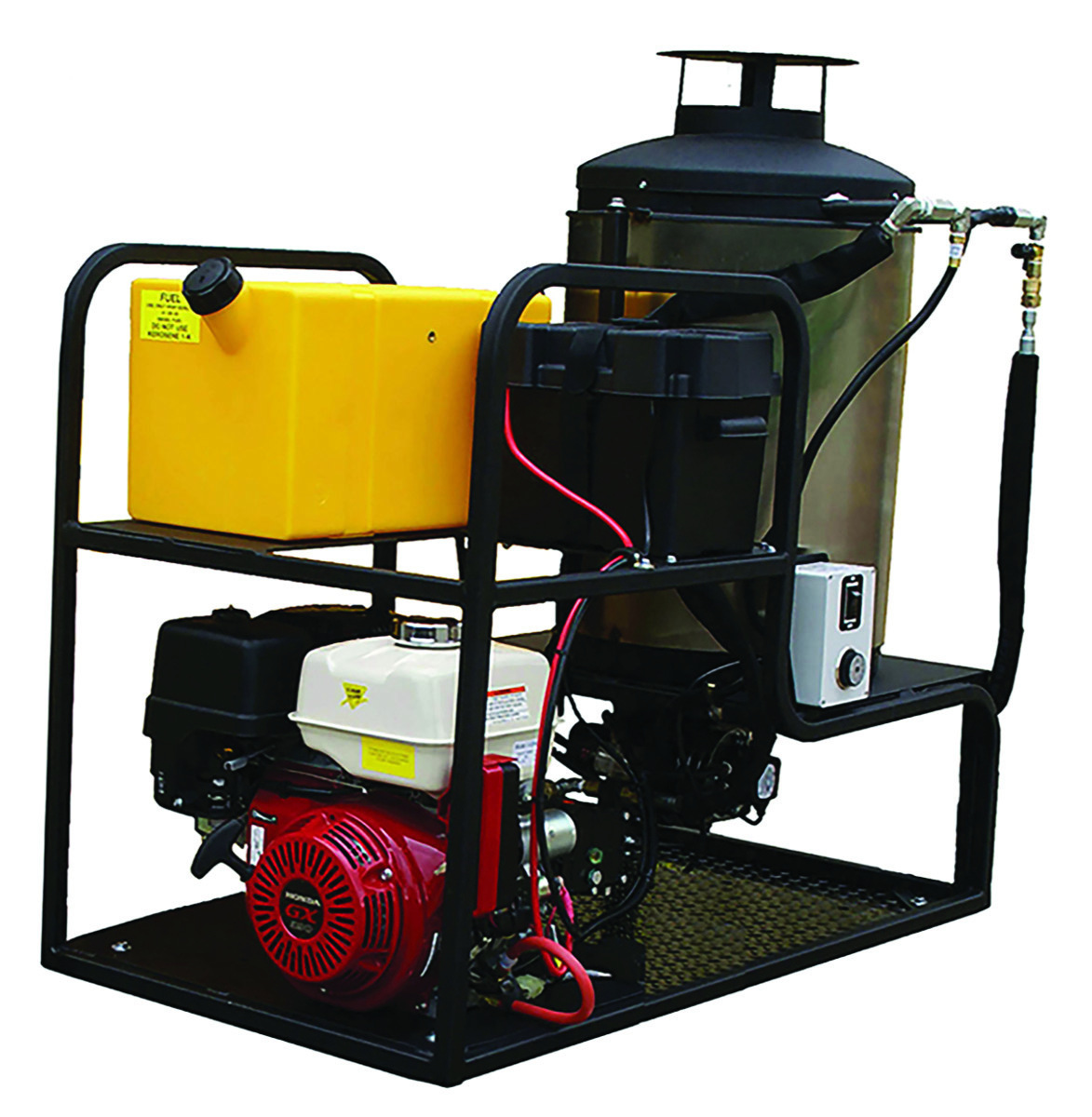

Cam Spray MCB3040
The MCB3040 skid-mount, hot-water pressure washer from Cam Spray is designed to move easily from truck to van to trailer. It offers 4 gpm at 3,000 psi from a Honda GX390 industrial gas engine and triplex plunger pump with ceramic plungers and stainless steel valves. It is equipped with low-pressure chemical injection and is protected by an unloader valve and secondary pressure pop off. The burner system includes a rust-free fuel tank, Schedule 80 coil with stainless steel wrap, is controlled by an adjustable thermostat and temperature limit switch for a maximum temperature of 195 degrees F. The frame is constructed using industrial coated 2-inch tubing and comes equipped with a wand/hose rack. A heavy-duty trigger gun with a dual wand and side handle valve allows switching from high pressure cleaning to detergent application and is equipped with quick change 0-, 15-, 25- and 40-degree nozzles. 800-648-5011; www.camspray.com
Vacuum Hose

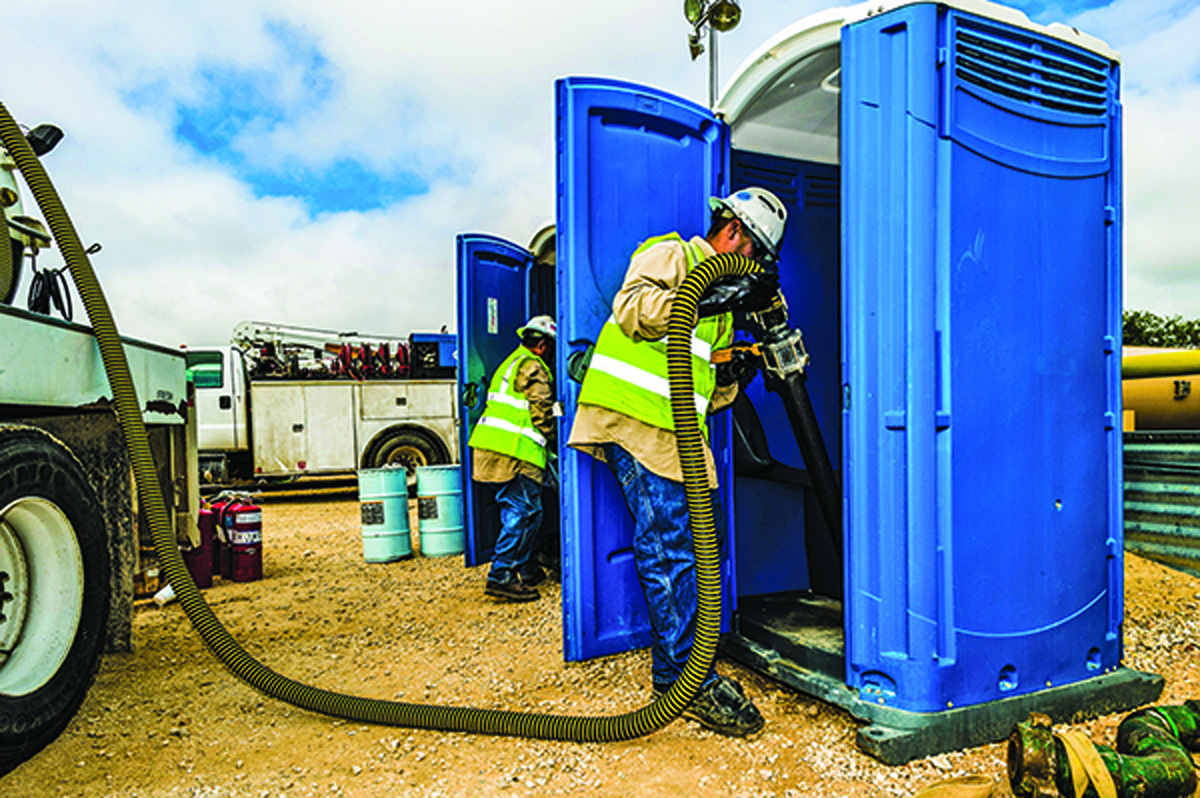

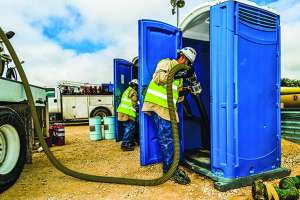

Kuriyama of America King Bee KBEE Series
King Bee KBEE Series polyethylene liquid suction hose from Kuriyama of America provides flexibility for maneuvering in tight areas such as portable restrooms. The hose remains flexible in subzero temperatures, is crush resistant and will not kink. The easy-slide helix protects the hose tube from cover wear and moves easily over rough surfaces. Overmolded cuffs help prevent leaking. It is available in 2- and 3-inch I.D. sizes in multiple lengths. The 3-inch I.D. hose is also available as a 3-foot hose guard. 847-755-0360; www.kuriyama.com
Vacuum Pumps

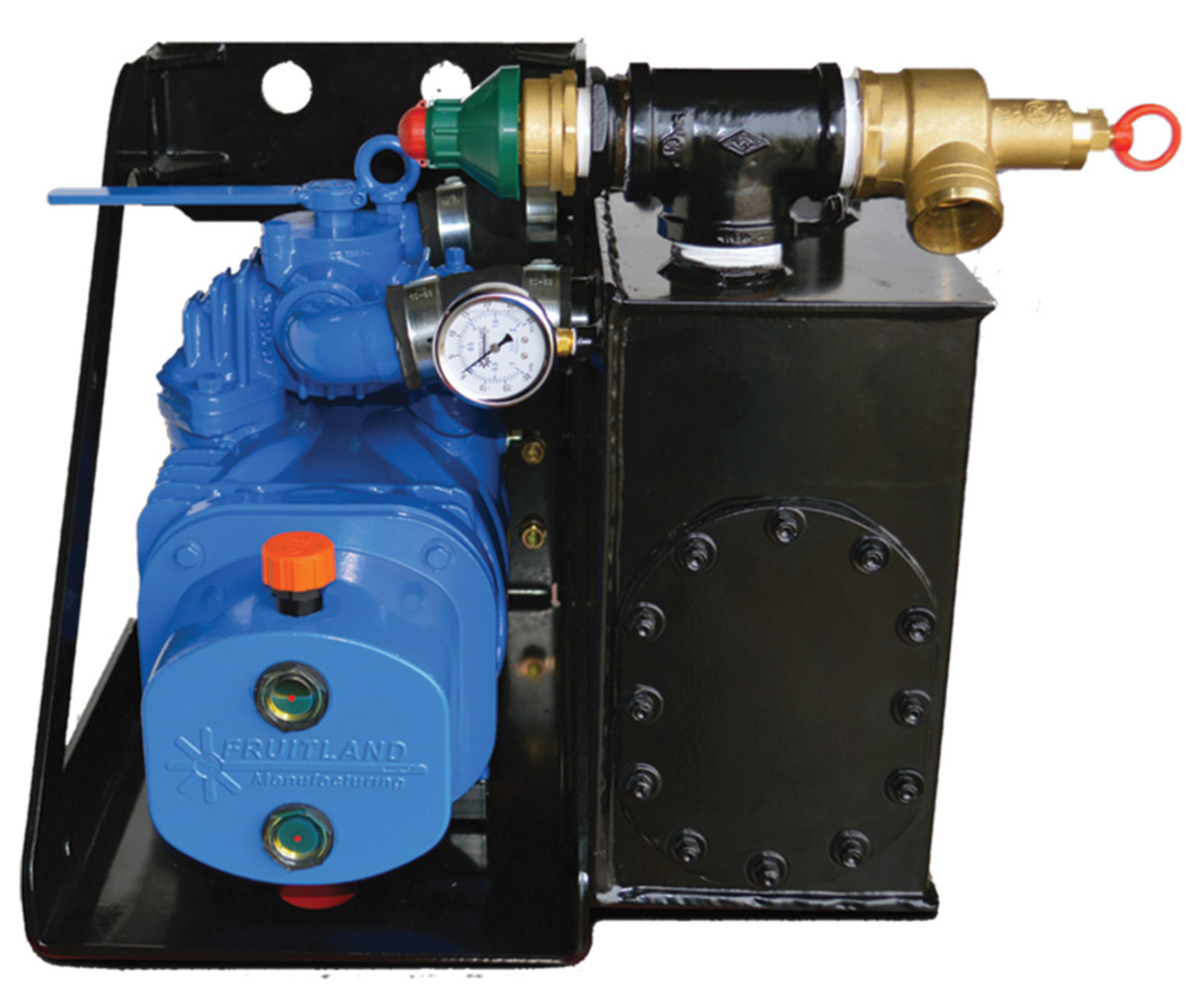

Fruitland ELIM A344 Series
The ELIM A344 Series from Fruitland is a compact, low-weight pump offering 218 cfm of airflow and low oil consumption. It has an automated oil delivery system through the rotor shaft, along with level sight gauges, vane gauging ports and an anti-shock design. The package includes an oil-catch muffler and secondary shut-off, which eliminates plumbing issues and eases installation. This package comes in both gearbox and hydraulic drive options with integrated mounts. 800-663-9003; www.fruitlandmanufacturing.com

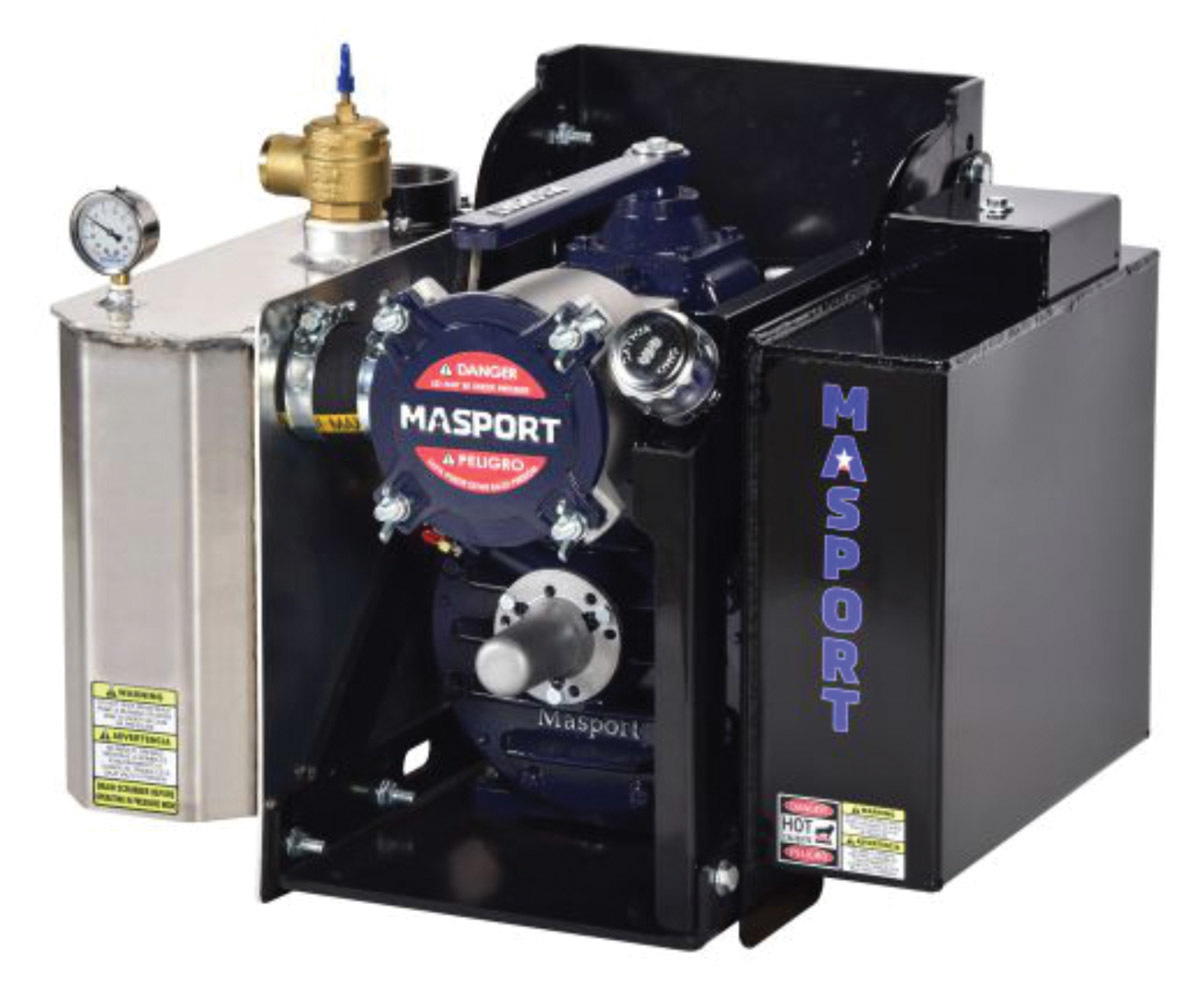

Masport HXL4V and HXL5V
HXL4V and HXL5V vacuum systems from Masport have a compact, low-profile design that incorporates an integrated scrubber, oil separator and inlet filter. The systems are fully integrated so they can slot into place for easy installation. They are available with plastic, steel or combination oil/flushing reservoir; and self-aligning gearbox and hydraulic drive options are also available. An optional extended self-aligning gearbox is available for direct alignment to the PTO on all truck models. 800-228-4510; www.masportpump.com

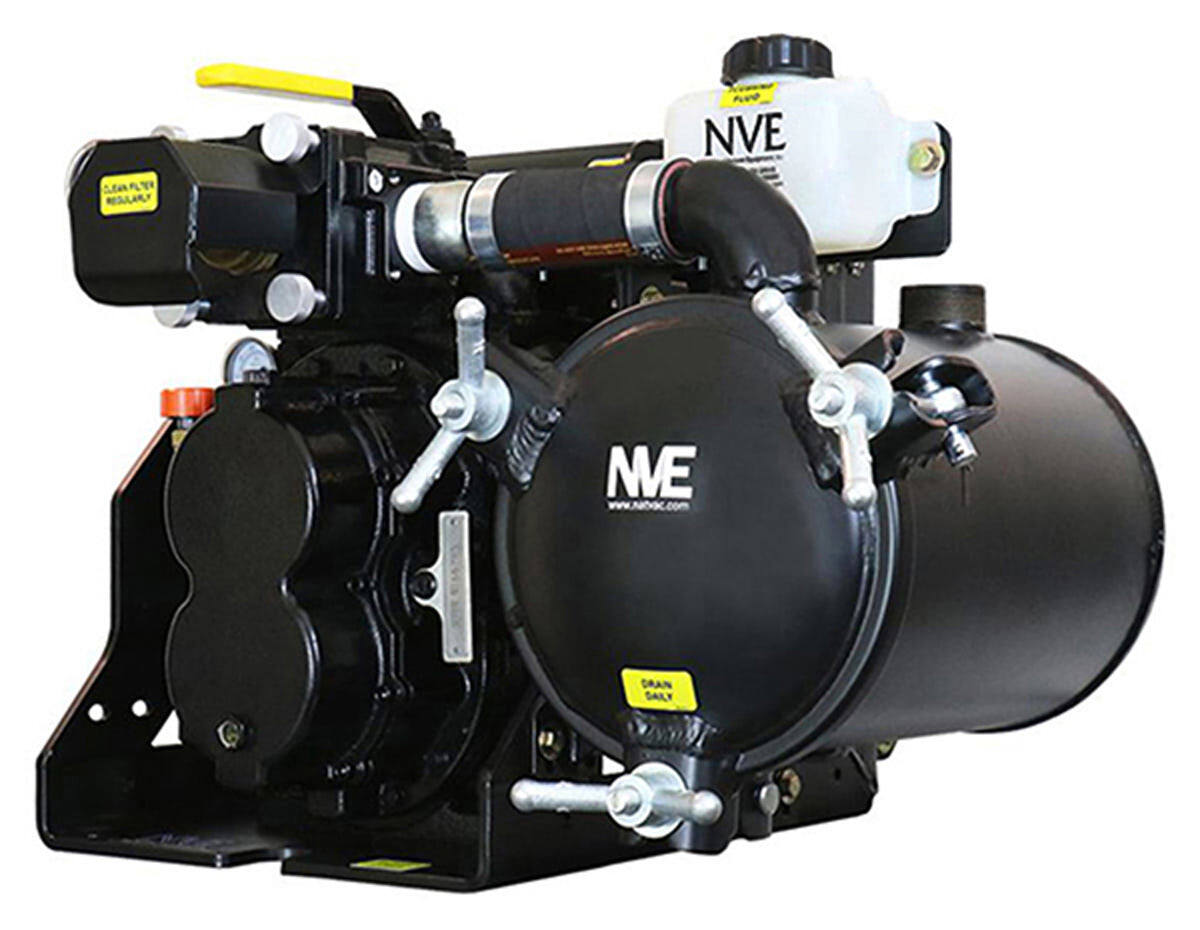

National Vacuum Equipment B250 Max Pak
The National Vacuum Equipment B250 Max Pak is designed for the portable restroom market, using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1-to-1.5 ratio gearbox makes it easy to provide the optimum revolutions per minute to the blower, while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and Ram 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel-drive. 800-253-5500; www.natvac.com

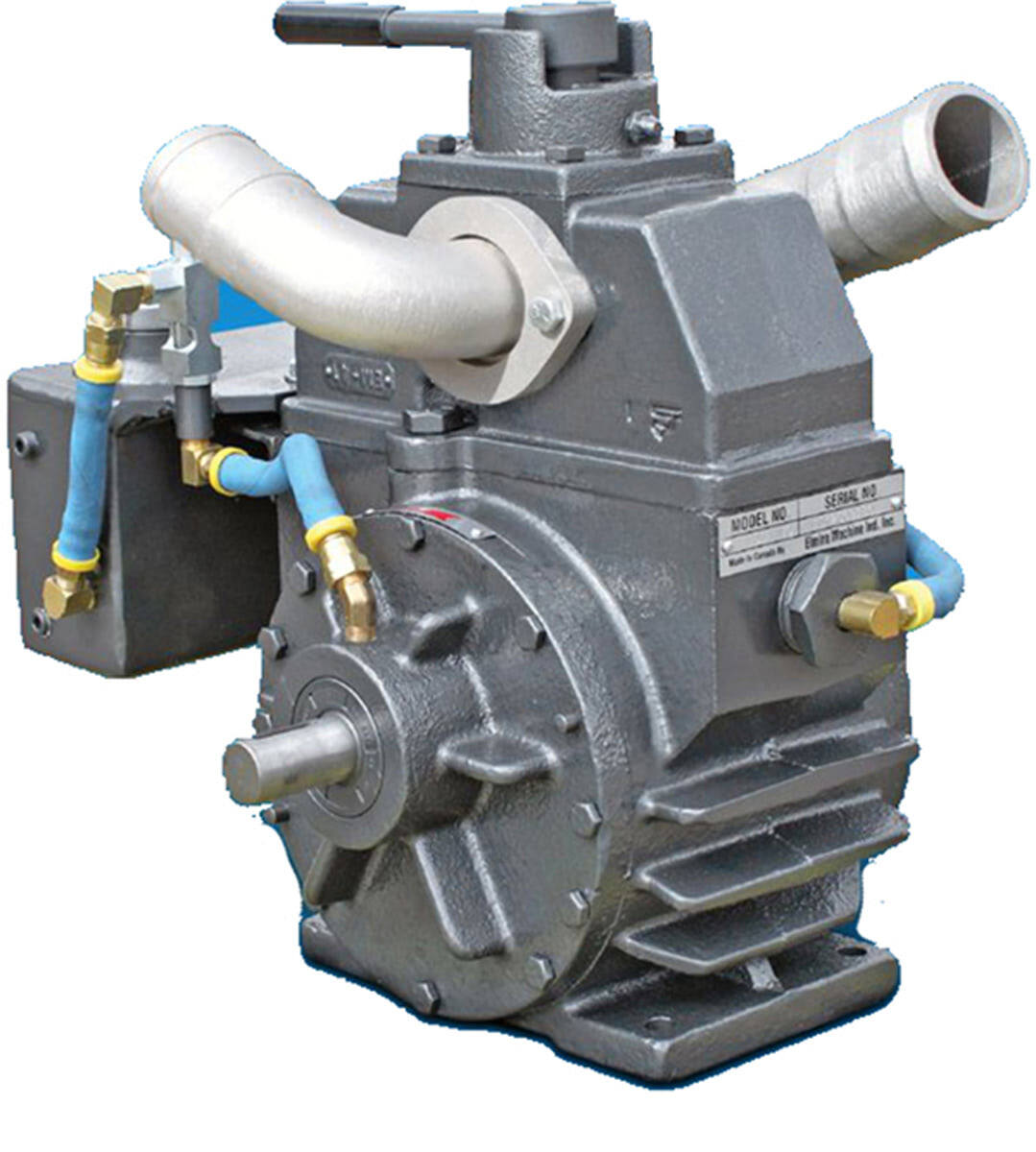

Wallenstein Vacuum Model 151
The Model 151 from Wallenstein Vacuum can be used with portable sanitation tanks and slide-in units and at campgrounds and marinas that require a compact package. It offers 80 cfm at 15 inches Hg, with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counterclockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven. 800-801-6663; www.wallenstein.com

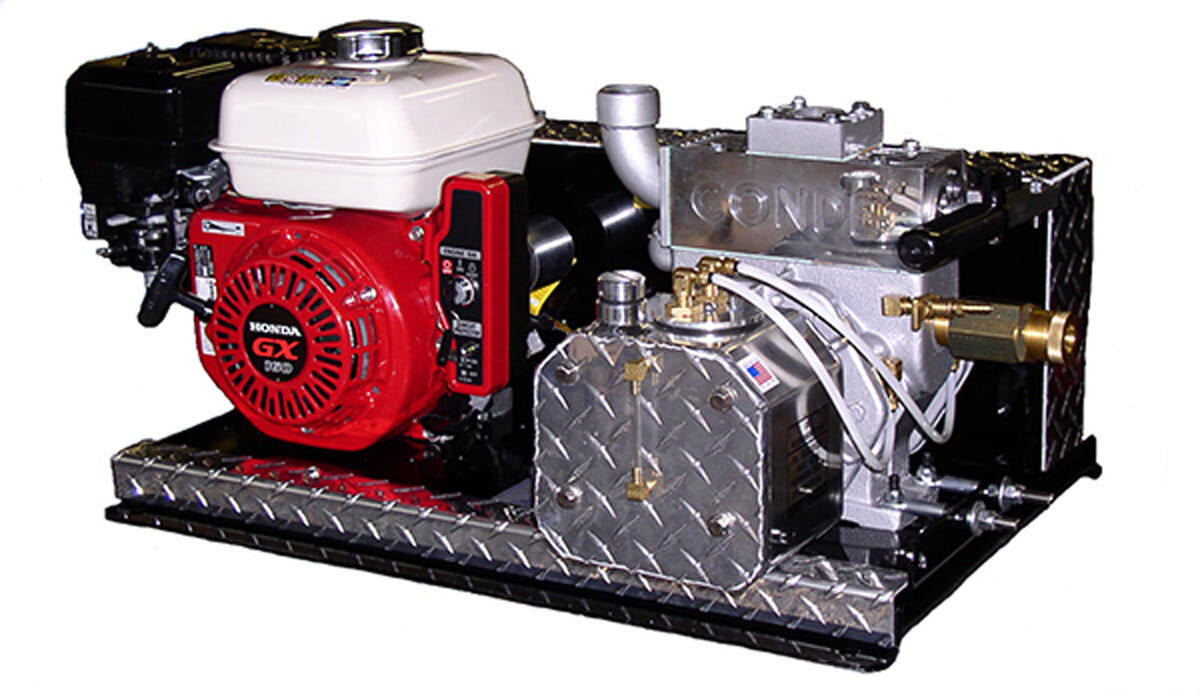

Westmoor Conde PowerPaks
Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations. Direct-drive units incorporate a centrifugal clutch that allows the user to throttle down the engine and disengage the vacuum pump. Throttle up and the pump is in action. Specify either vacuum and pressure, or vacuum-only pump choice. Diesel-powered units are also available for applications where non-sparking engines are required. 800-367-0972; www.westmoorltd.com
Washdown Pumps

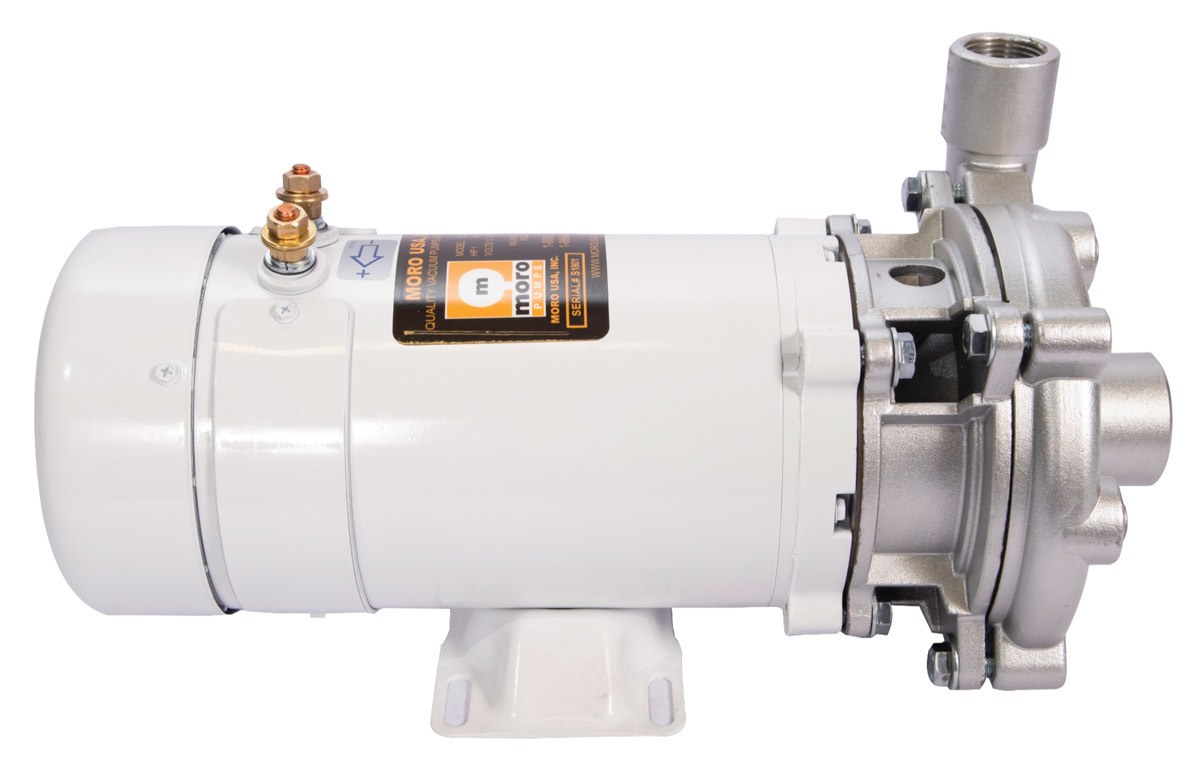

Moro USA DC
Heavy-duty Moro USA DC water pumps offer 20 gpm maximum flow for quick restroom fills, while 42 psi maximum pressure provides quick high-pressure cleaning. Available with cast iron or stainless steel pump body, both models offer a stainless steel impeller and Viton elastomers. Fan-cooled, 12-volt (83-amp maximum draw) motors are epoxy-coated for durability. These continuous-duty pumps come solenoid- and pressure-switch standard for easy installation. They have 1.25-inch suction and 1-inch discharge ports. The discharge can be mounted in four positions. 800-383-6304; www.morousa.com
