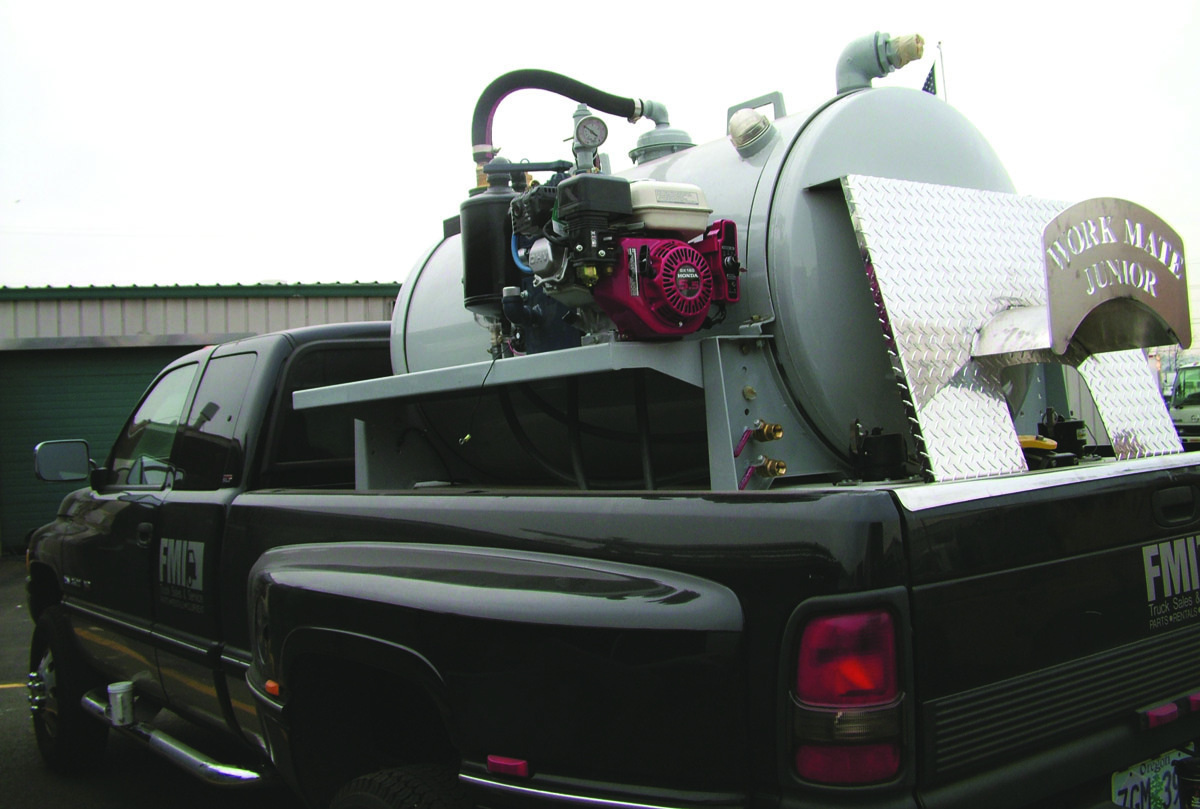

The WorkMate Slide-In Unit from FMI Trucks Sales & Service is a suitable option for small operators or those getting started. It has a 325-gallon waste capacity and twin 75-gallon poly water tanks to fit in the bed of a 1-ton pickup truck or on any flatbed. The unit allows for the water tanks to be isolated for a three-compartment system or flow together for a two-compartment system. The unit comes ready to work with all necessary hoses, wands, buckets, straps and an ergonomic workstation. Options include a primary and secondary shutoff, 12-volt freshwater delivery, an oil catch muffler, easy-drain manifold system and increased storage.
800-927-8750; www.fmitrucks.com

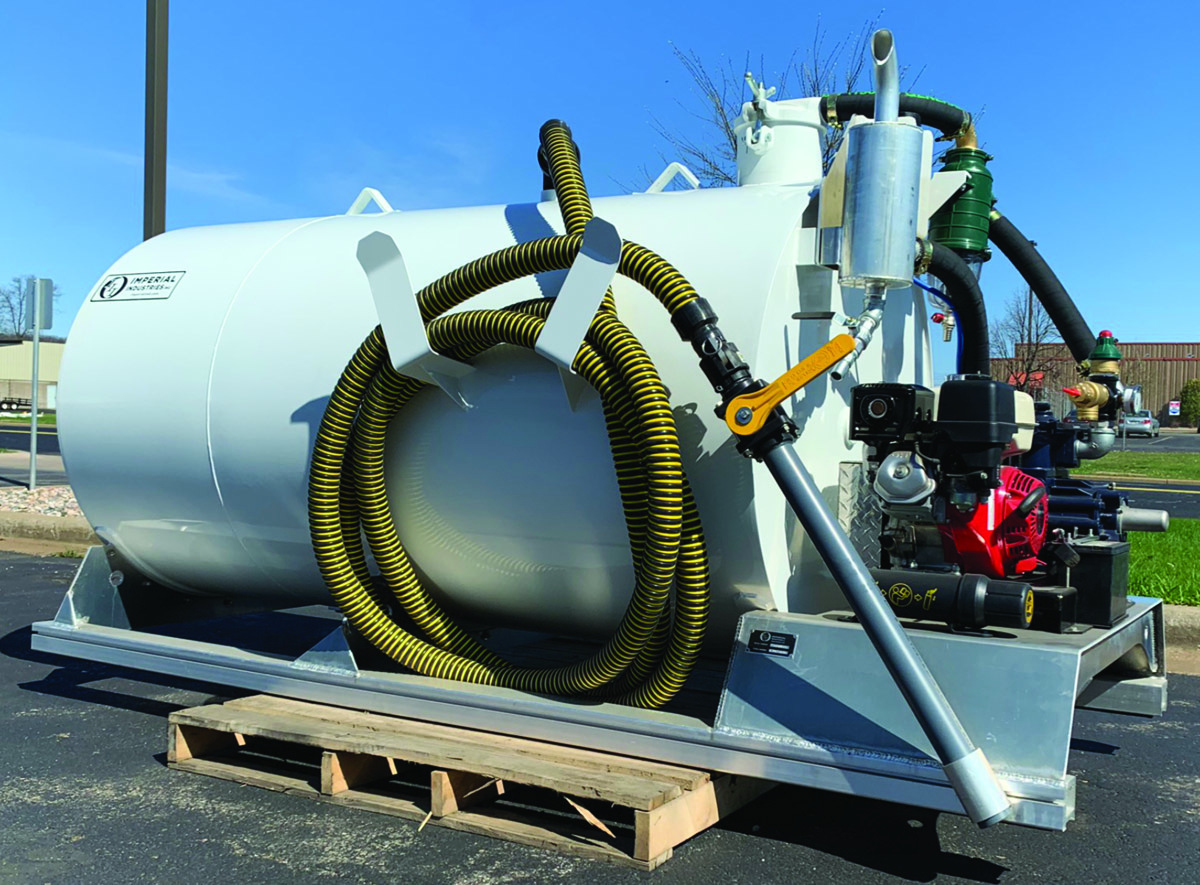

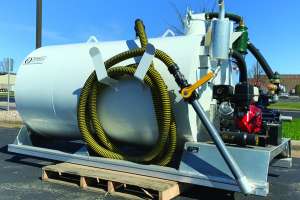

IMPERIAL INDUSTRIES SELF-CONTAINED SLIDE-IN UNIT
The versatile Self-Contained Slide-In Unit from Imperial Industries allows for the equalized weight distribution of water and waste. It is frequently used for portable sanitation, grease service, oil spill cleanup and other applications for specialized industries. Optional freshwater compartments or waste-only units are available with a choice of vacuum pump and engine package. It is available in steel, aluminum or stainless steel, and stock sizes of 300-, 450-, 550- and 650-gallon capacities. 800-558-2945; www.imperialind.com

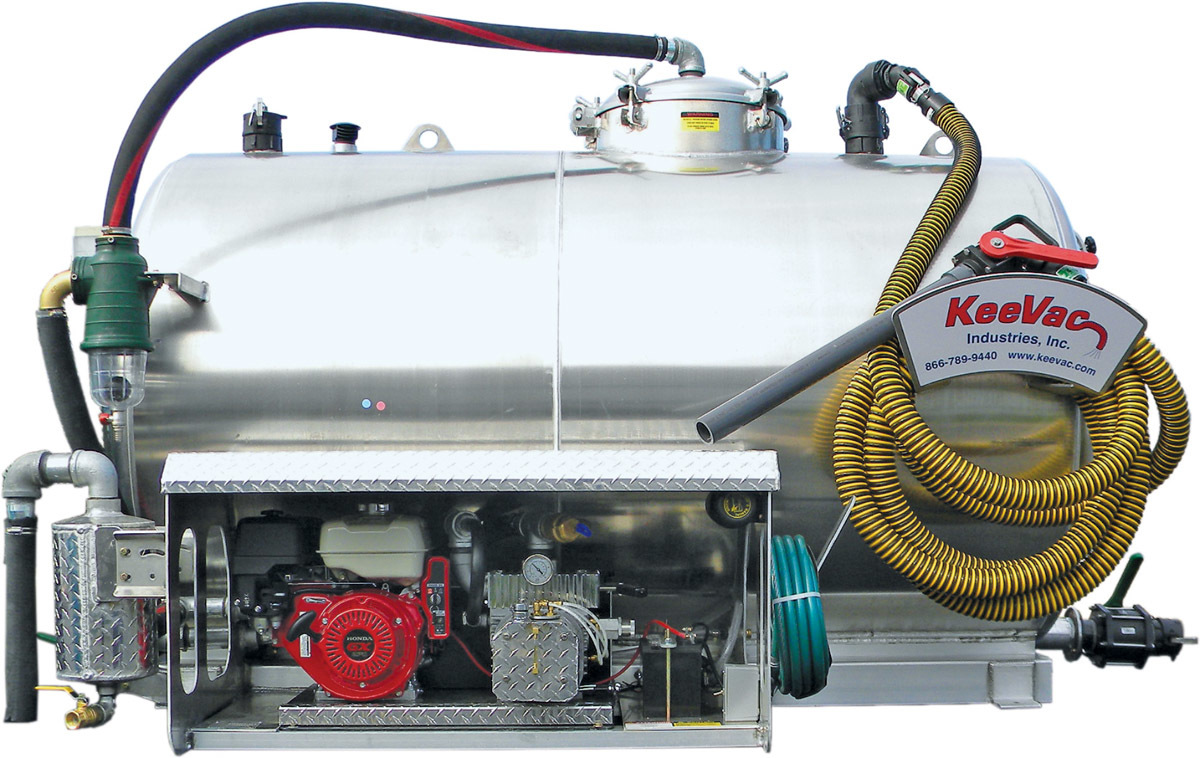

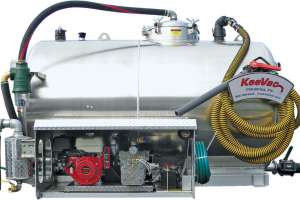

KEEVAC INDUSTRIES FD-950-2C-SE
The FD-950-2C-SE from KeeVac Industries offers a flanged and dished tank built for both on- and off-road service. Customers can add the unit with a powerful pumping system and optional power-twin washdown pump. With a smaller footprint than larger tanks, slide-in units can service hard-to-reach locations for increased service area growth with reduced downtime. Each unit is made from all aluminum or stainless steel. All units come fully equipped and ready to work, complete with pump, motor, Tiger Tail suction hose and washdown hose with spray nozzle. 866-789-9440; www.keevac.com

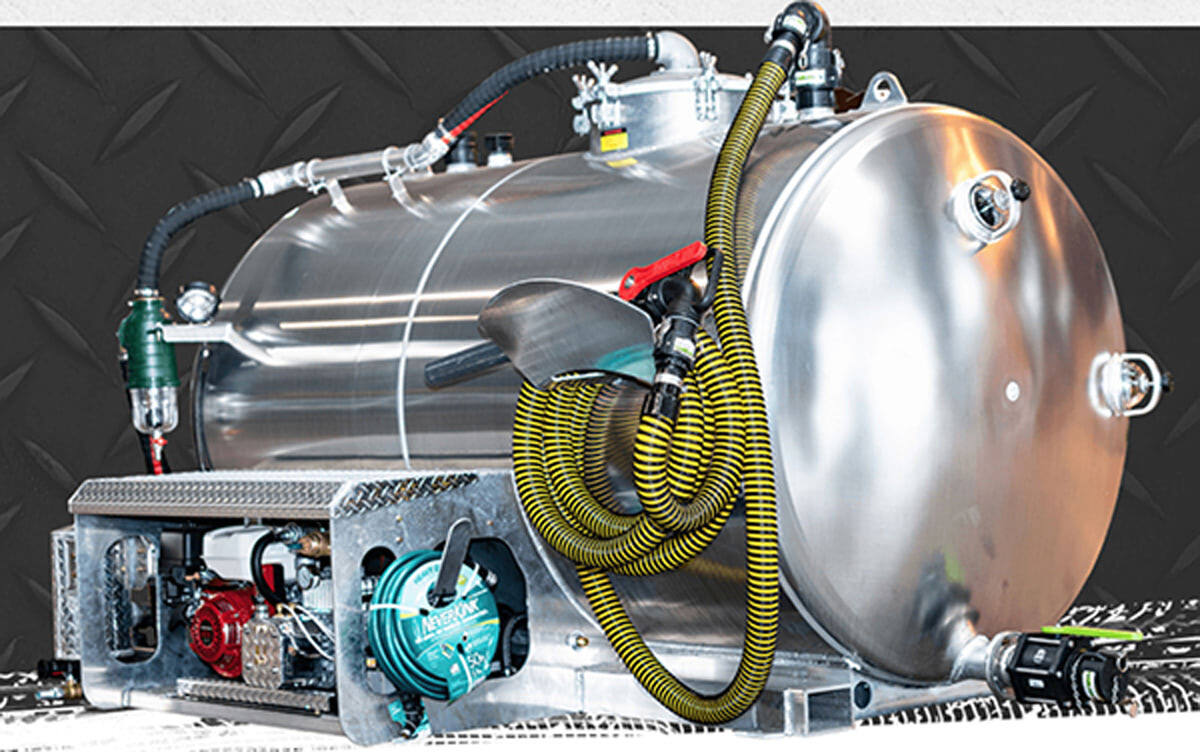

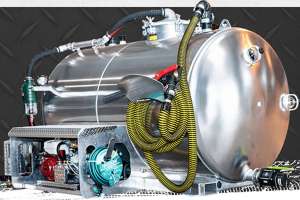

ROBINSON VACUUM TANKS FD SERIES
The FD Series from Robinson Vacuum Tanks is available in single- and multiple-compartment models. The aluminum tank offers two configurations: RE with the pump located on the rear side of the tank, and SE with the pump located on the side of the tank and set up for conventional mounting. The FD Series includes larger-capacity tanks than the company’s more compact SC design. 814-933-0927; www.robinsontanks.com

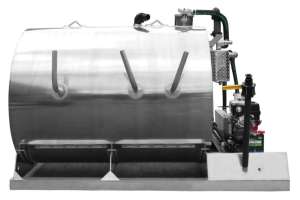

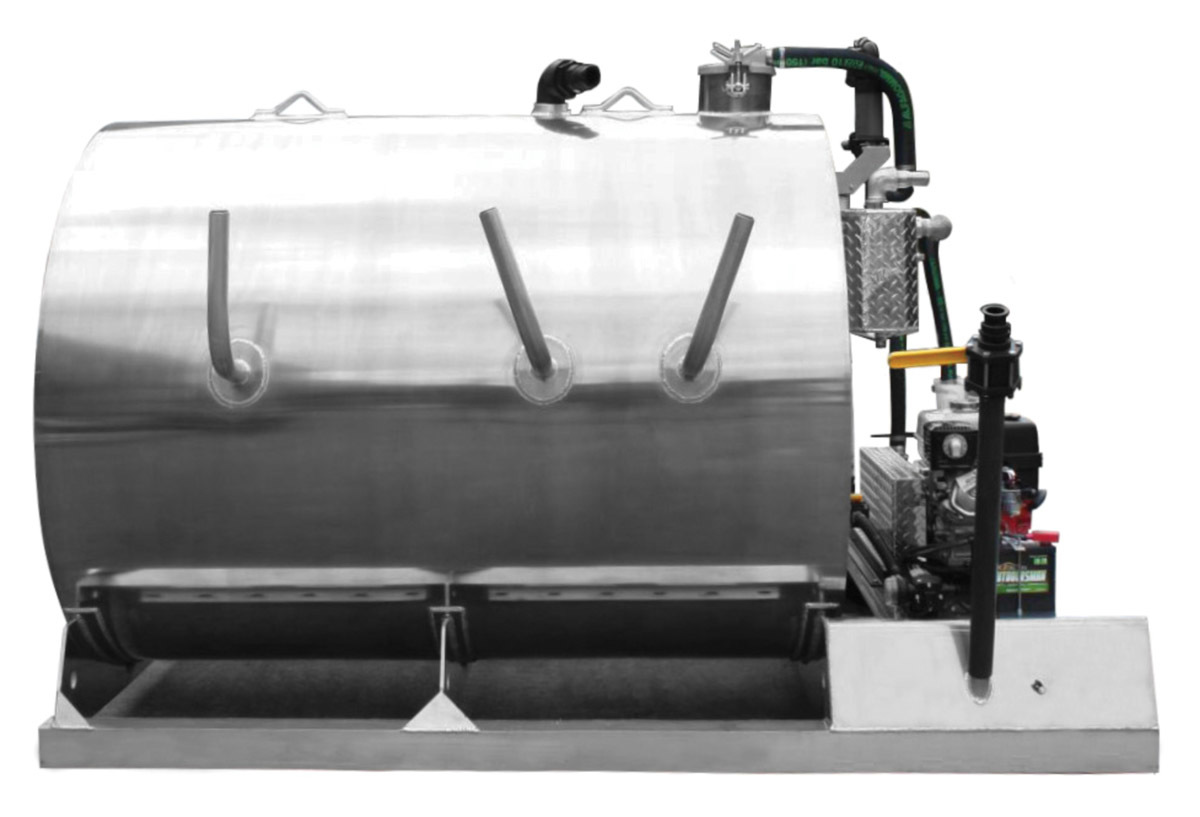

SATELLITE VACUUM TRUCKS 900-GALLON SLIDE-IN VACUUM TANK
Satellite Vacuum Trucks offers slide-in units in three materials with three pump systems and sizes ranging from 300 to 900 gallons. The 900-Gallon Slide-In Vacuum Tank has a 650-gallon waste capacity, and 250 gallons of freshwater. It is offered with Conde 6SS, Conde 6SDS or Masport HXL3V pumps. Tanks can be custom-built to match operators’ needs, creating an ergonomically friendly design to reduce driver fatigue. 800-883-1123; www.satelliteindustries.com

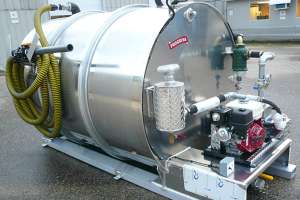

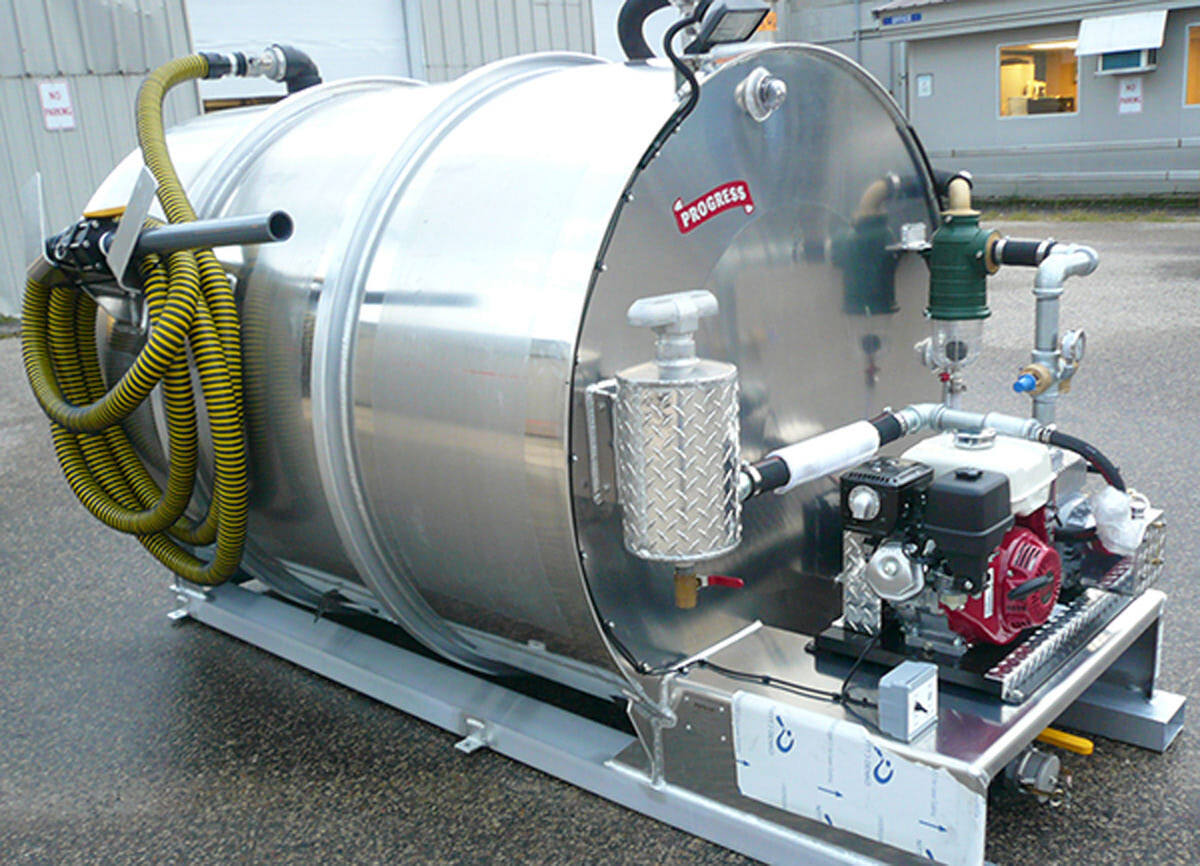

TANKTEC SLIDE-IN TANK
Slide-in tanks from TankTec range from 100 to 995 gallons. The tanks are available in single-compartment for grease trap and septic service or two-compartment for portable restroom service. 888-428-6422; www.tanktec.biz
HOSE REEL

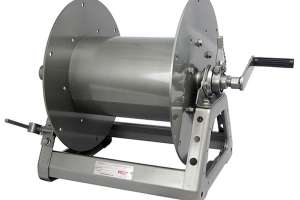

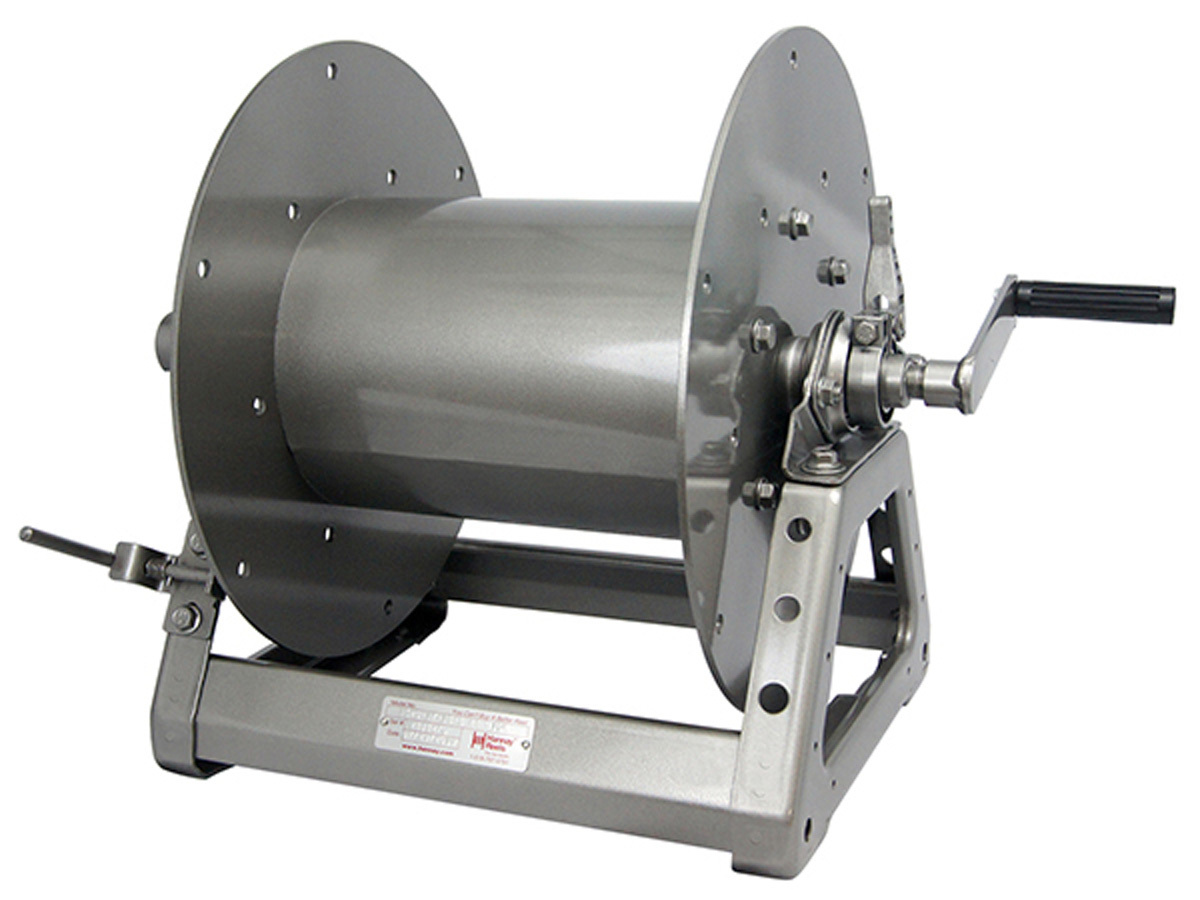

HANNAY REELS HEAVY-DUTY 1500 SERIES
The Heavy-Duty 1500 Series from Hannay Reels delivers a durable, reliable pressure washing solution for portable restroom and other pumper and cleaner applications. With 3/16-inch-thick discs, a reinforced frame and an 8-inch-diameter steel 14 gauge drum, this reel counters high-pressure hose expansion concerns, provides stability and accommodates hoses with a higher bend radius. Single 3/8- through 5/8-inch I.D. hose and pressures up to 3,000 psi are supported, with optional pressures of 5,000 or 10,000 psi available upon request. With either a manual direct crank rewind or a chain and sprocket drive powered by an electric, hydraulic or air motor, the reels ensure simple, swift hose deployment and retraction while keeping lengthy hose organized.
877-467-3357; www.hannay.com
VACUUM HOSE

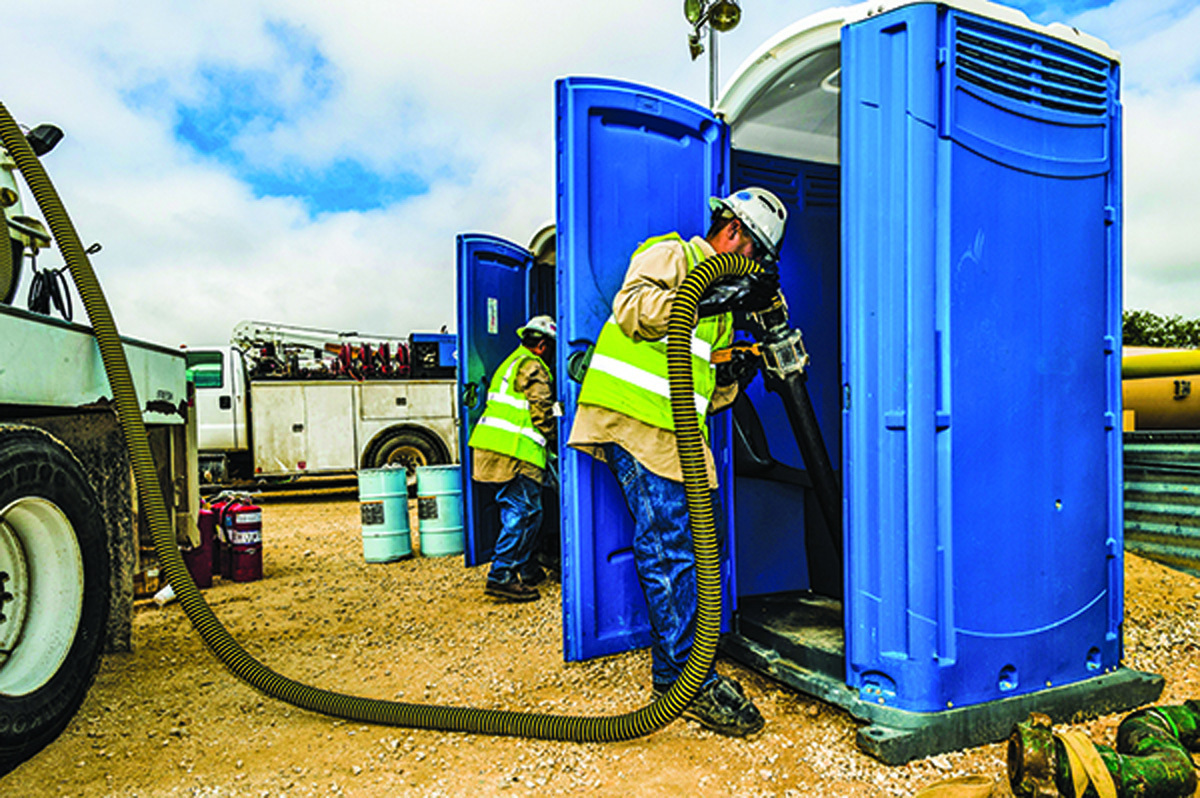

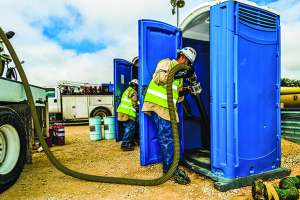

KURIYAMA OF AMERICA KING BEE KBEE SERIES
King Bee KBEE Series polyethylene liquid suction hose from Kuriyama of America provides flexibility for maneuvering in tight areas such as portable restrooms. The hose remains flexible in subzero temperatures, is crush resistant and will not kink. The easy-slide helix protects the hose tube from cover wear and moves easily over rough surfaces. Over-molded cuffs help prevent leaking. It is available in 2- and 3-inch I.D. sizes in multiple lengths. The 3-inch I.D. hose is also available as a 3-foot hose guard. 847-755-0360; www.kuriyama.com
VACUUM PUMPS

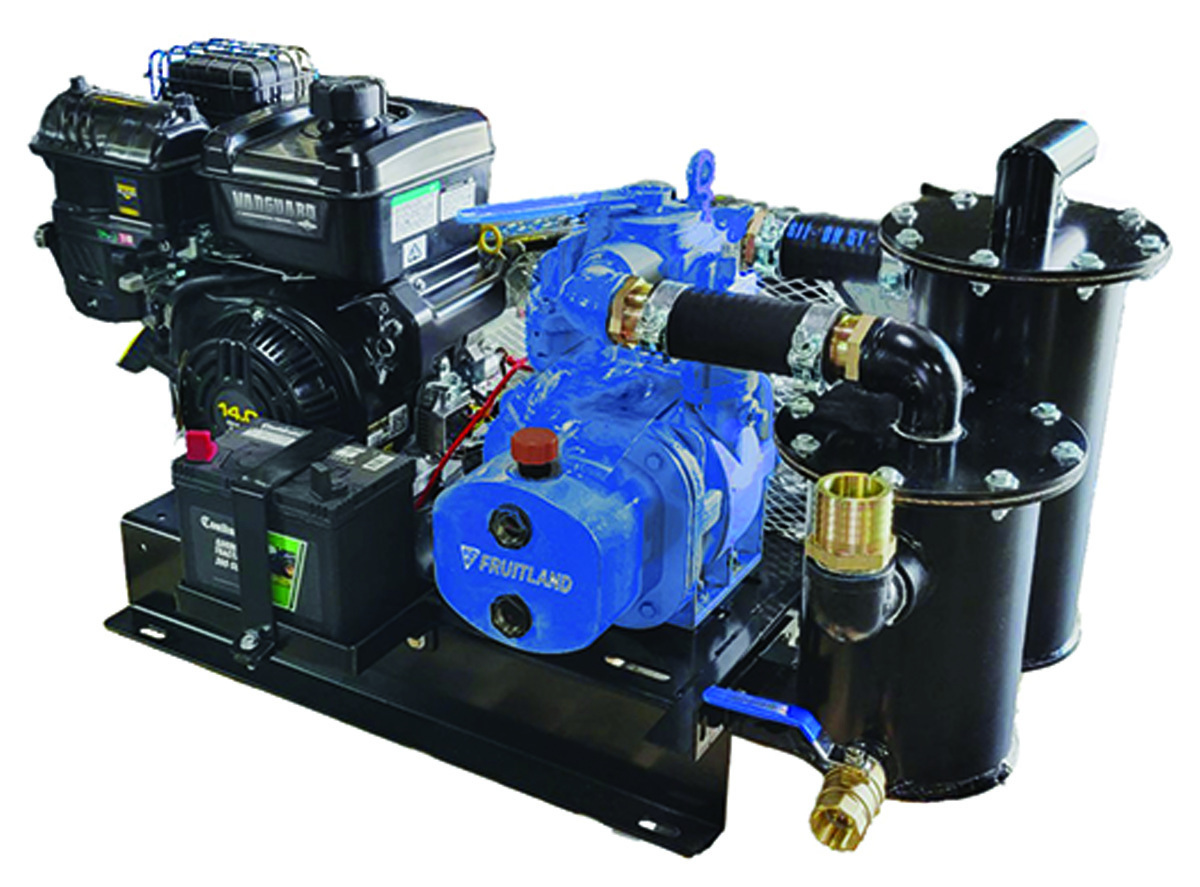

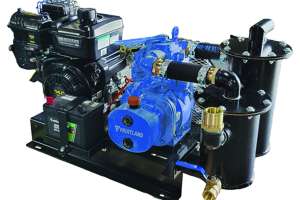

FRUITLAND MANUFACTURING ELIM G-172
The ELIM G-172 gas engine-driven system from Fruitland Manufacturing is the most compact option in the Eliminator slide-in engine-driven line. It is suitable for portable restroom and septic vacuum truck applications, especially where space and efficiency are required. This package comes with a 14 hp Briggs and Stratton Vanguard engine, a 127 cfm free airflow Fruitland RCF172 vacuum pump, a standard bolt-in truck mount, and is available in left-hand or right-hand orientation. Packages are also available with various pump models and types and in many different configurations. 800-663-9003;
www.fruitlandmanufacturing.com

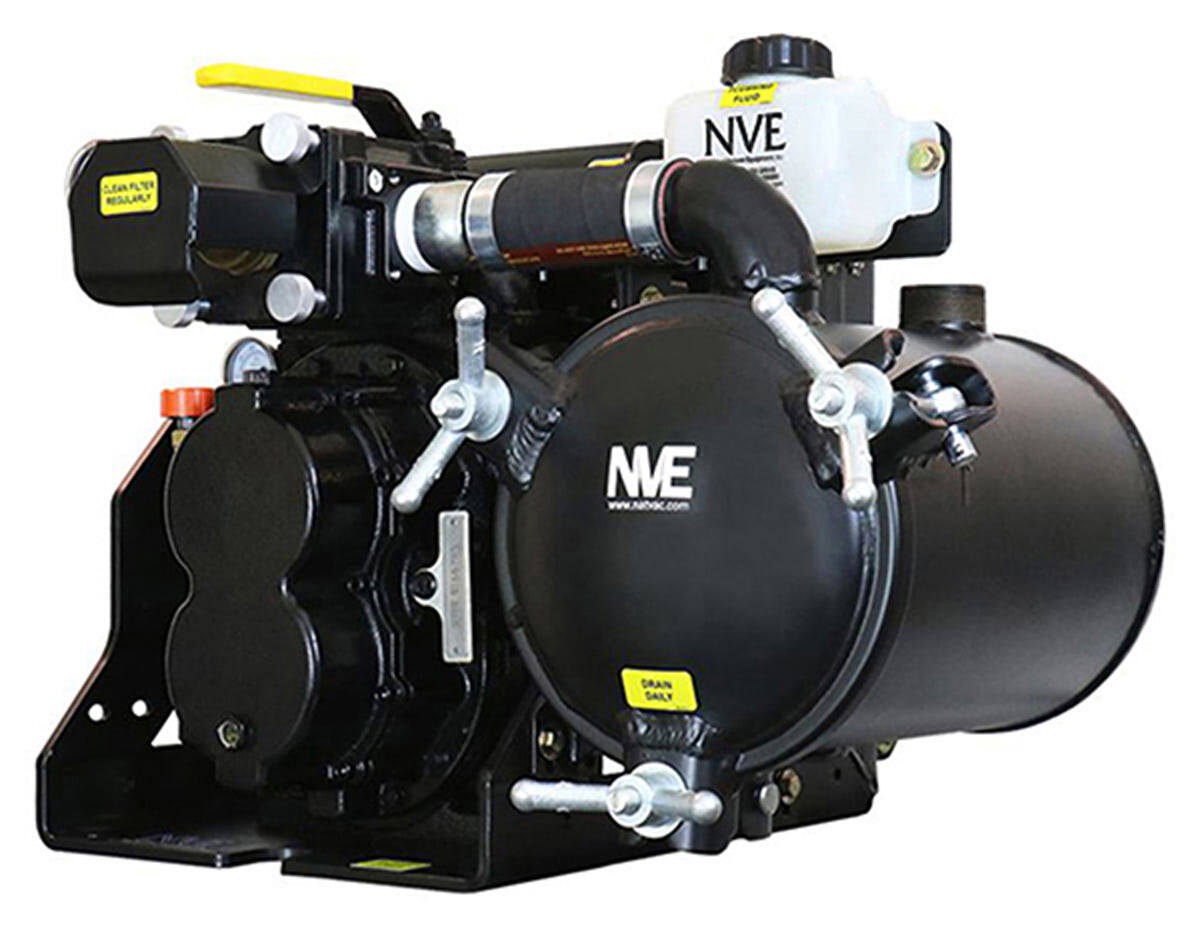

NATIONAL VACUUM EQUIPMENT B250 MAX PAK
The National Vacuum Equipment B250 Max Pak is designed for the portable restroom market, using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil-free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1-to-1.5 ratio gearbox makes it easy to provide optimum revolutions per minute to the blower, while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and Ram 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel-drive. 800-253-5500; www.natvac.com

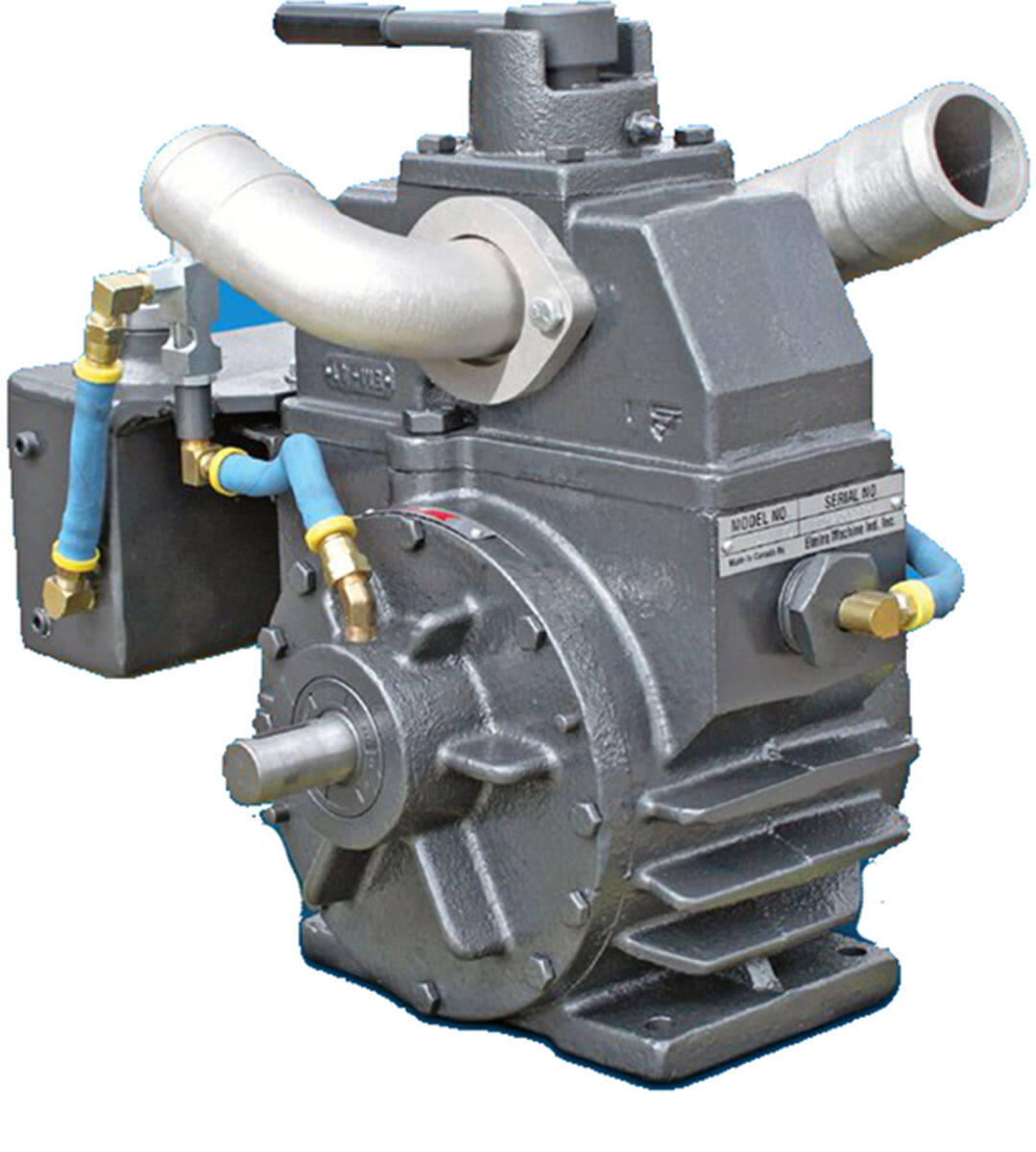

WALLENSTEIN VACUUM MODEL 151
The Model 151 from Wallenstein Vacuum can be used with portable sanitation tanks and slide-in units and at campgrounds and marinas that require a compact package. It offers 80 cfm at 15 inches Hg, with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counterclockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven. 800-801-6663; www.wallenstein.com

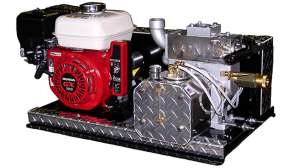

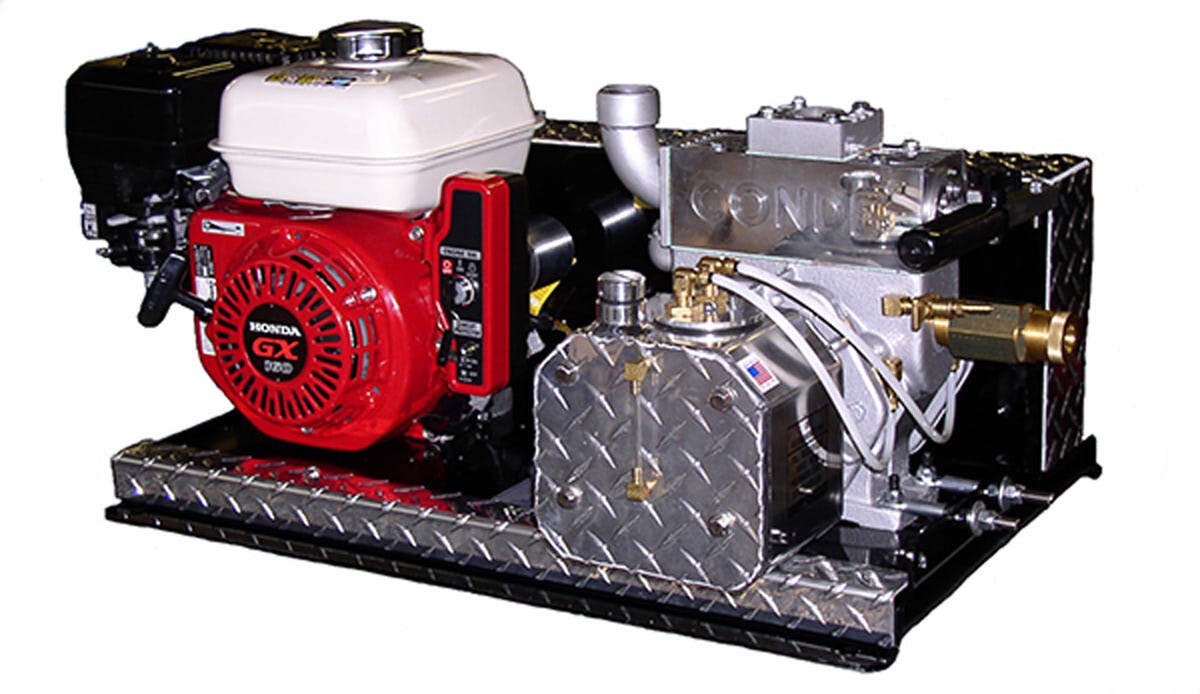

WESTMOOR CONDE POWERPAKS
Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations. Direct-drive units incorporate a centrifugal clutch that allows throttling down the engine and disengaging the vacuum pump. Throttle up and the pump is in action. Specify either vacuum and pressure, or vacuum-only pump choice. Diesel-powered units are also available for applications where non-sparking engines are required.
800-367-0972; www.westmoorltd.com
WASHDOWN PUMP

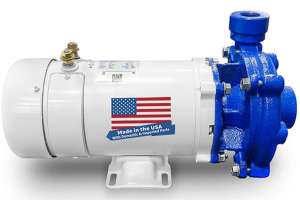

MORO USA DC WASHDOWN PUMPS
Moro USA DC Washdown Pumps have a maximum delivery rate of 20 gpm, 42 psi and are primarily utilized for filling sinks and cleaning portable restrooms. The centrifugal pumps are designed with corrosion-resistant materials for operating in wet conditions, and can be used in other applications such as industrial, marine and water circulation. They have an epoxy-coated 12V DC motor, stainless steel impeller, four front drain plugs, and a carbon/ceramic/Viton mechanical seal. They require the installation of an in-line circuit breaker and a 12V solenoid. Models include the DCC cast iron washdown pump with stainless impeller, DCSC cast iron washdown pump with stainless steel impeller kit, DCS stainless steel washdown pump, and the DCSS stainless steel washdown pump kit.
866-383-6304; www.morousa.com
