Slide-In Service Units
FMI Trucks Sales & Service WorkMate Slide-In Unit
The WorkMate Slide-In Unit from FMI Trucks Sales & Service is an option for small operators or those getting started. It has a 325-gallon waste capacity and twin 75-gallon poly water tanks to fit in the bed of a 1-ton pickup truck or flatbed. The unit allows for the water tanks to be isolated for a three-compartment system or flow together for a two-compartment system. The unit comes ready to work with all necessary hoses, wands, buckets, straps and an ergonomic workstation. Options include a primary and secondary shutoff, 12-volt freshwater delivery, an oil-catch muffler, easy-drain manifold system and increased storage. 800-927-8750; www.fmitrucks.com

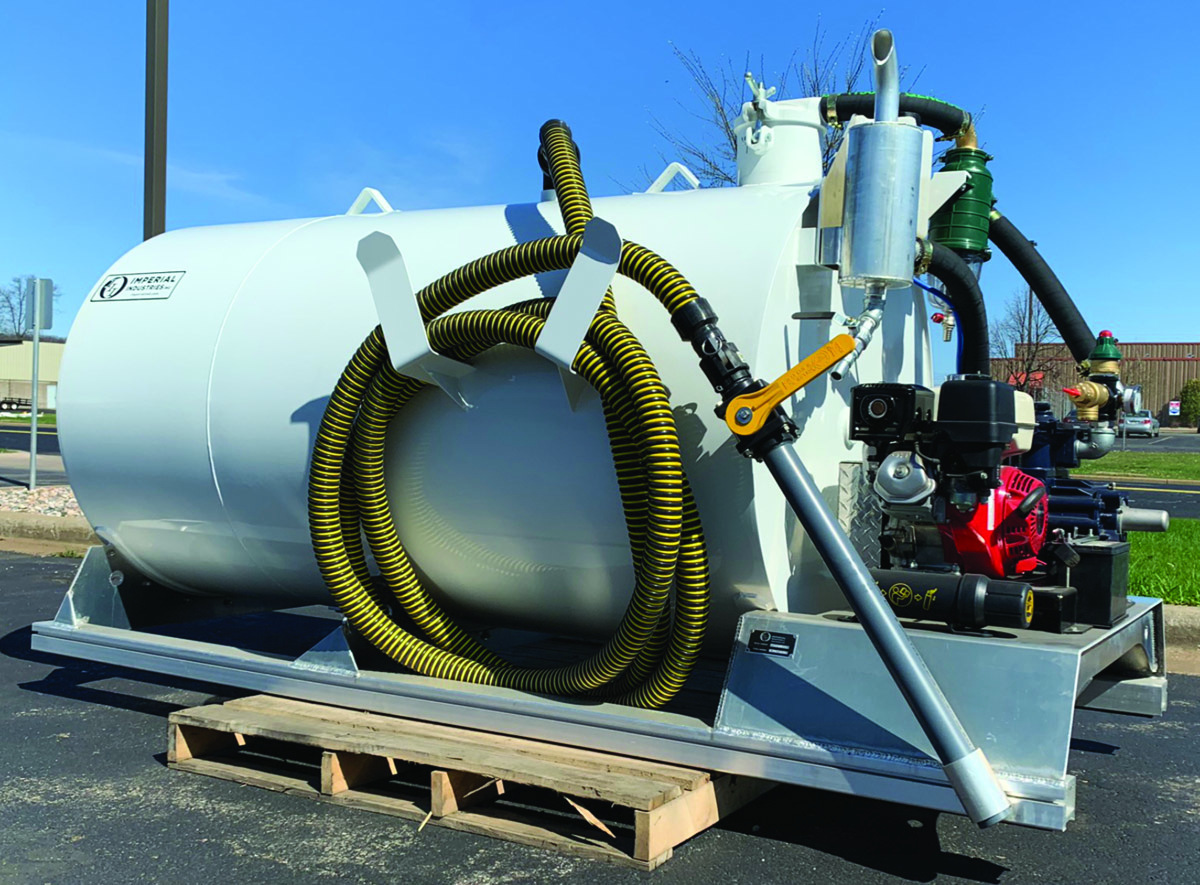

Imperial Industries Self-Contained Slide-In Unit
The versatile Self-Contained Slide-In Unit from Imperial Industries allows for equalized weight distribution of water and waste. It is frequently used for portable sanitation, grease service, oil spill cleanup and other applications for specialized industries. Optional freshwater compartments or waste-only units are available with a choice of vacuum pump and engine package. It is available in steel, aluminum or stainless steel, and stock sizes of 300, 450, 550 and 650-gallon capacities. 800-558-2945; www.imperialind.com

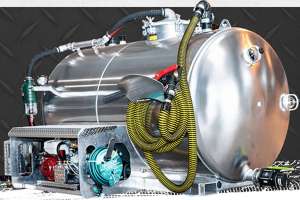

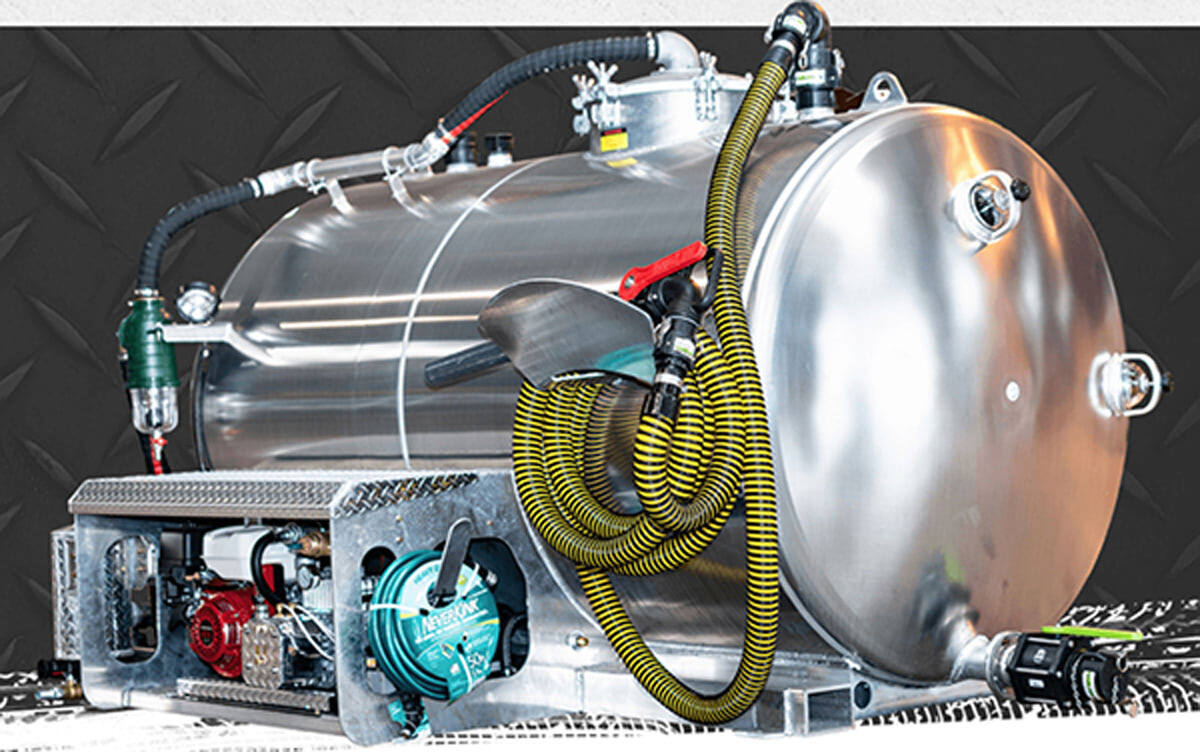

Robinson Vacuum Tanks FD Series
The FD Series from Robinson Vacuum Tanks is available in single- and multiple-compartment models. The aluminum tank offers two configurations: RE with the pump located on the rear side of the tank, and SE with the pump located on the side of the tank and set up for conventional mounting. The FD Series includes larger-capacity tanks than the company’s more compact SC design. 814-933-0927; www.robinsontanks.com

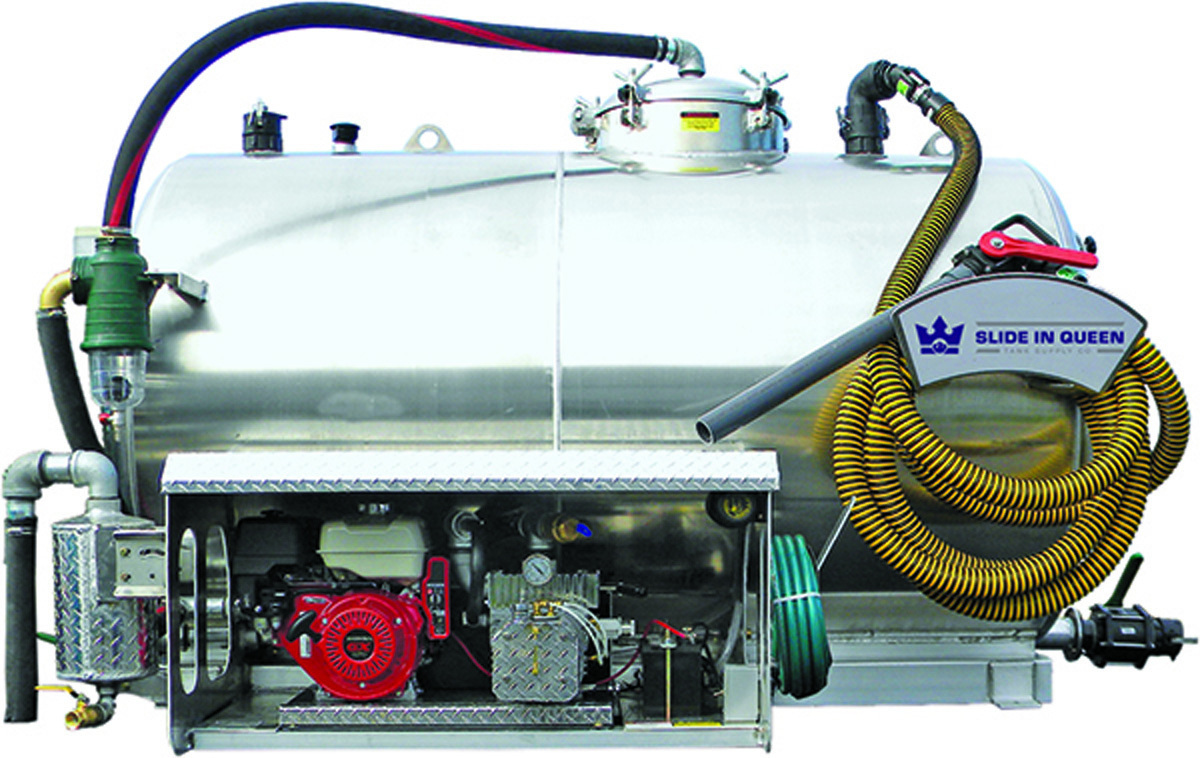

Slide In Queen FD-995-2C-SE
The FD-995-2C-SE from Slide In Queen offers the versatility and dependability of larger portable restroom systems, according to the maker. A flanged and dished tank is built for both on- and off-road service. It comes with a pumping system and optional power-twin washdown pump. With a smaller footprint than larger tanks, slide-in units can service hard-to-reach locations. Each is made from aluminum, steel or stainless-steel. Units come equipped with pump, motor, Tigertail suction hose and washdown hose with spray nozzle. 833-475-4334; www.slideinqueen.com

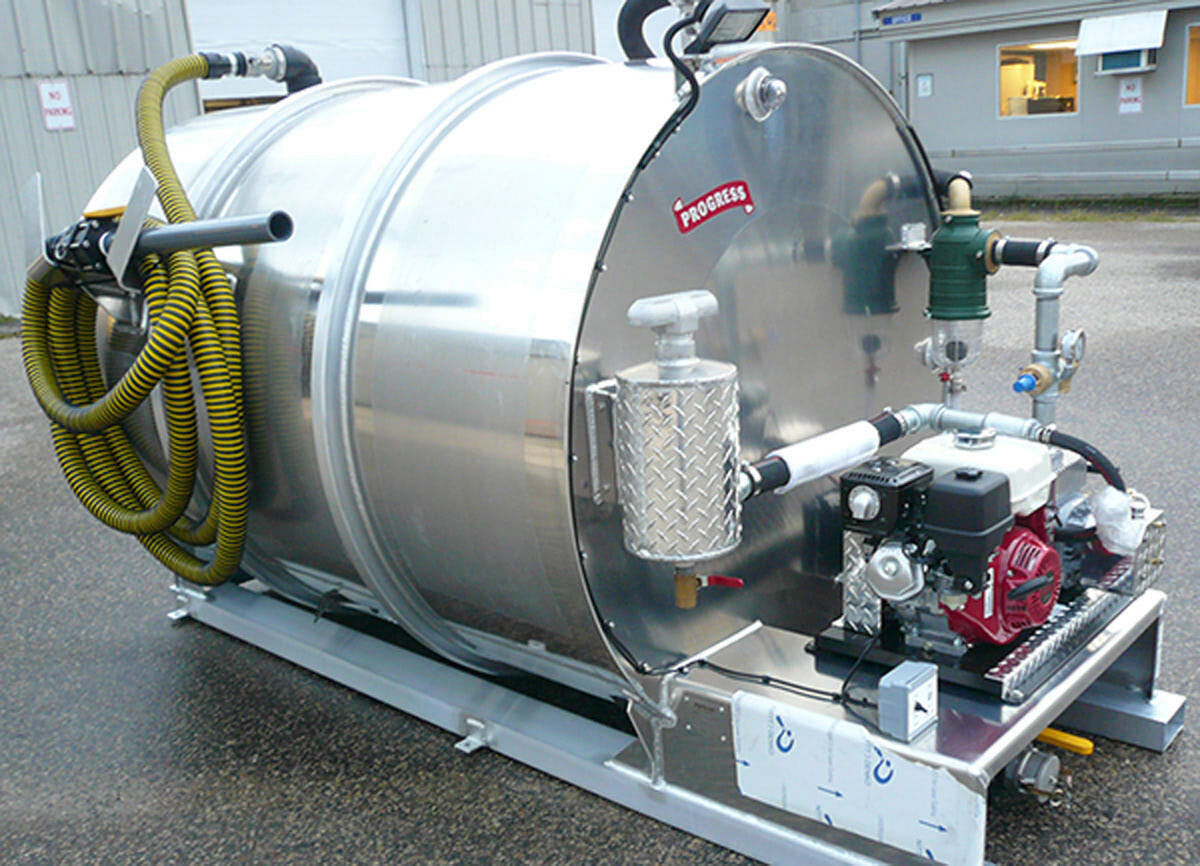

TankTec slide-in tank
Slide-in tanks from TankTec range from 100 to 995 gallons. The tanks are available in single-compartment for grease trap and septic service or two-compartment for portable restroom service. 888-428-6422; www.tanktec.biz
Hose Reels

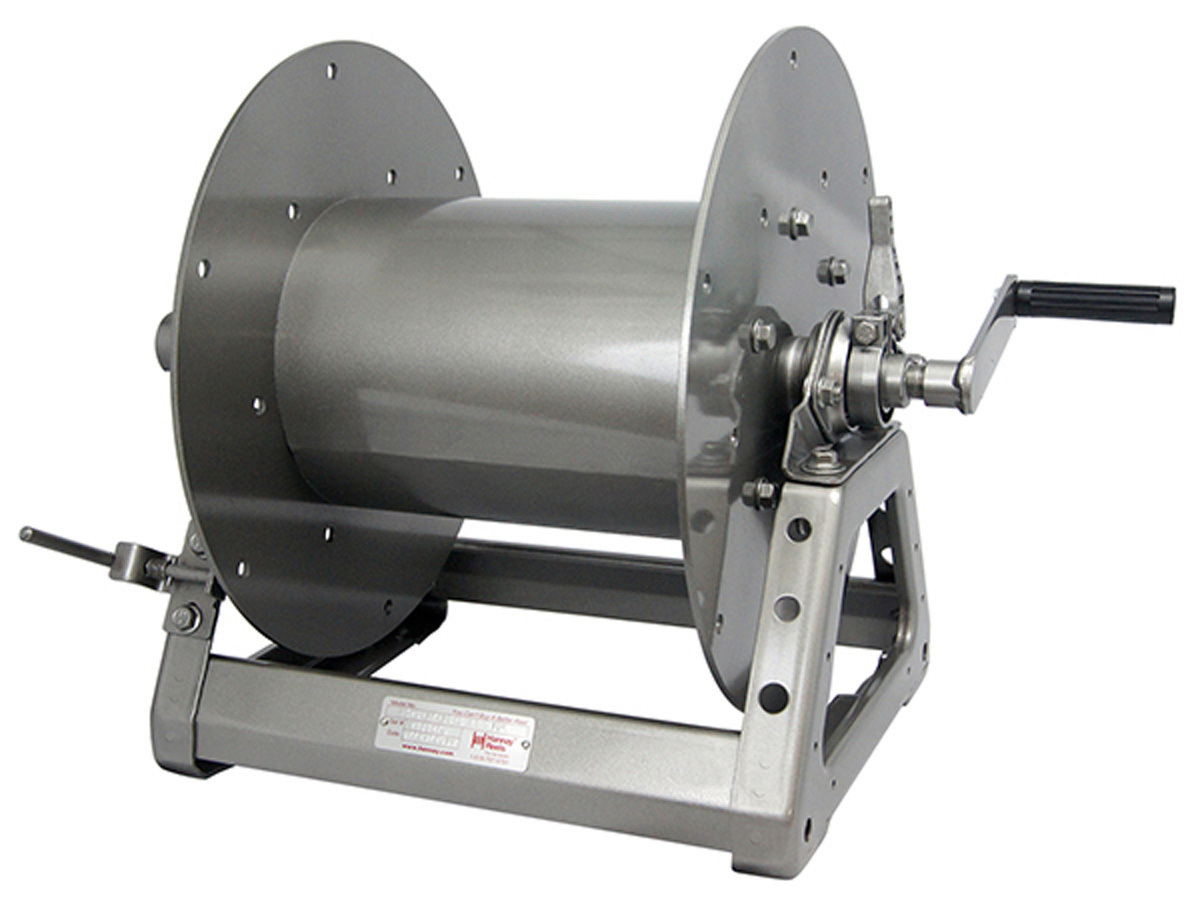

Hannay Reels Heavy-Duty 1500 Series
The Heavy-Duty 1500 Series from Hannay Reels is designed to provide durable, reliable pressure washing for portable restroom and other pumper and cleaner applications. With 3/16-inch-thick discs, a reinforced frame and an 8-inch-diameter steel 14-gauge drum, the reel counters high-pressure hose expansion concerns, provides stability and accommodates hoses with a higher bend radius. Single 3/8- through 5/8-inch I.D. hose and pressures up to 3,000 psi are supported, with optional pressures of 5,000 or 10,000 psi available upon request. With either a manual direct-crank rewind or a chain-and-sprocket drive powered by an electric, hydraulic or air motor, the reels offer simple, swift hose deployment and retraction, while keeping lengthy hose organized, according to the maker. 877-467-3357; www.hannay.com
Pressure Washers and Sprayers

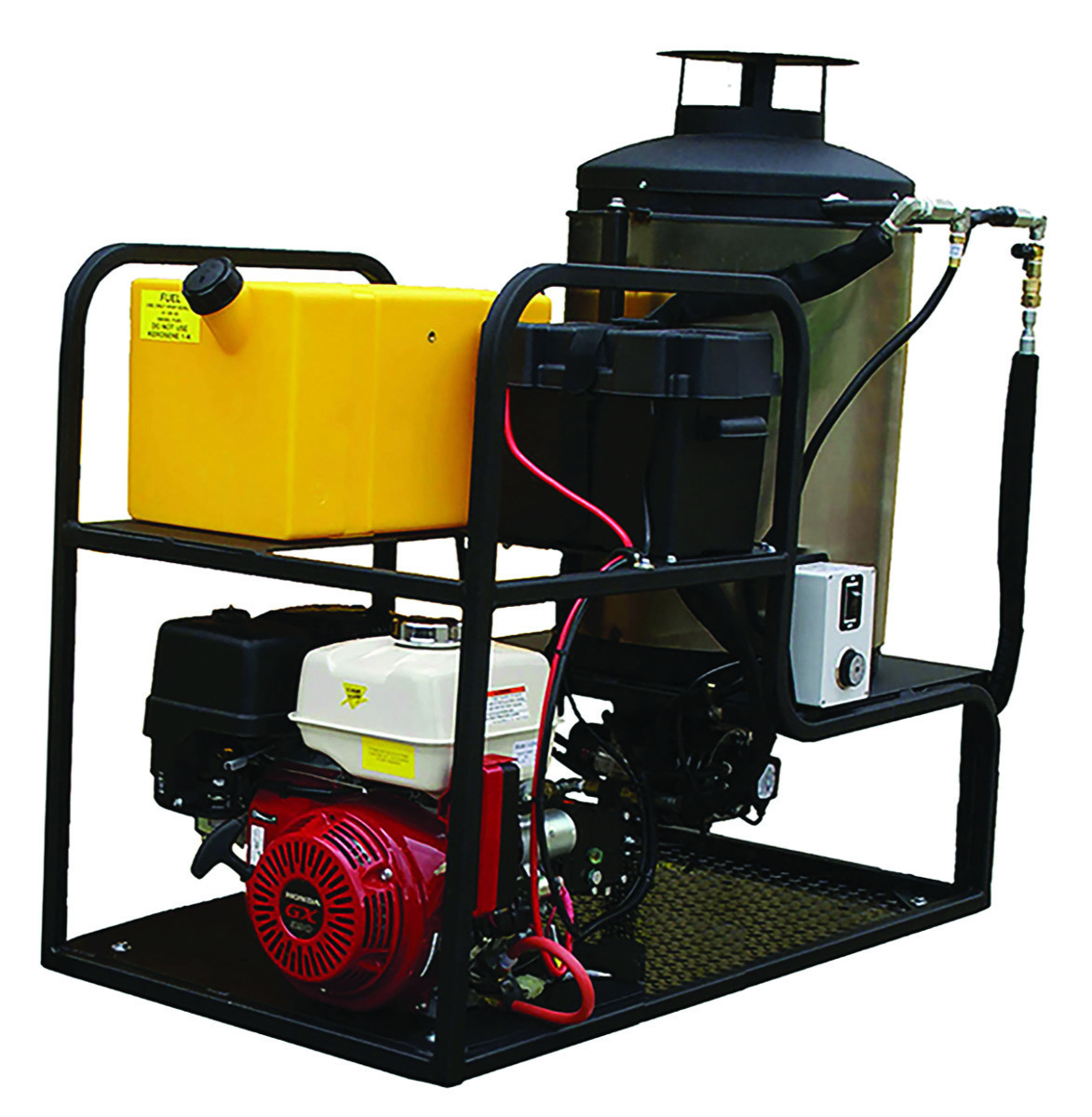

Cam Spray MCB3040
The MCB3040 skid-mounted, hot-water pressure washer from Cam Spray is designed to move easily from truck to van to trailer. It offers 4 gpm at 3,000 psi from a Honda GX390 industrial gas engine and triplex plunger pump with ceramic plungers and stainless steel valves. It is equipped with low-pressure chemical injection and is protected by an unloader valve and secondary pressure pop off. The burner system includes a rust-free fuel tank, Schedule 80 coil with stainless steel wrap, and is controlled by an adjustable thermostat and temperature limit switch for a maximum temperature of 195 degrees F. The frame is constructed using industrial-coated 2-inch tubing and comes with a wand/hose rack. A heavy-duty trigger gun with a dual wand and side handle valve allows switching from high pressure cleaning to detergent application and comes with quick change 0-, 15-, 25- and 40-degree nozzles. 800-648-5011; www.camspray.com

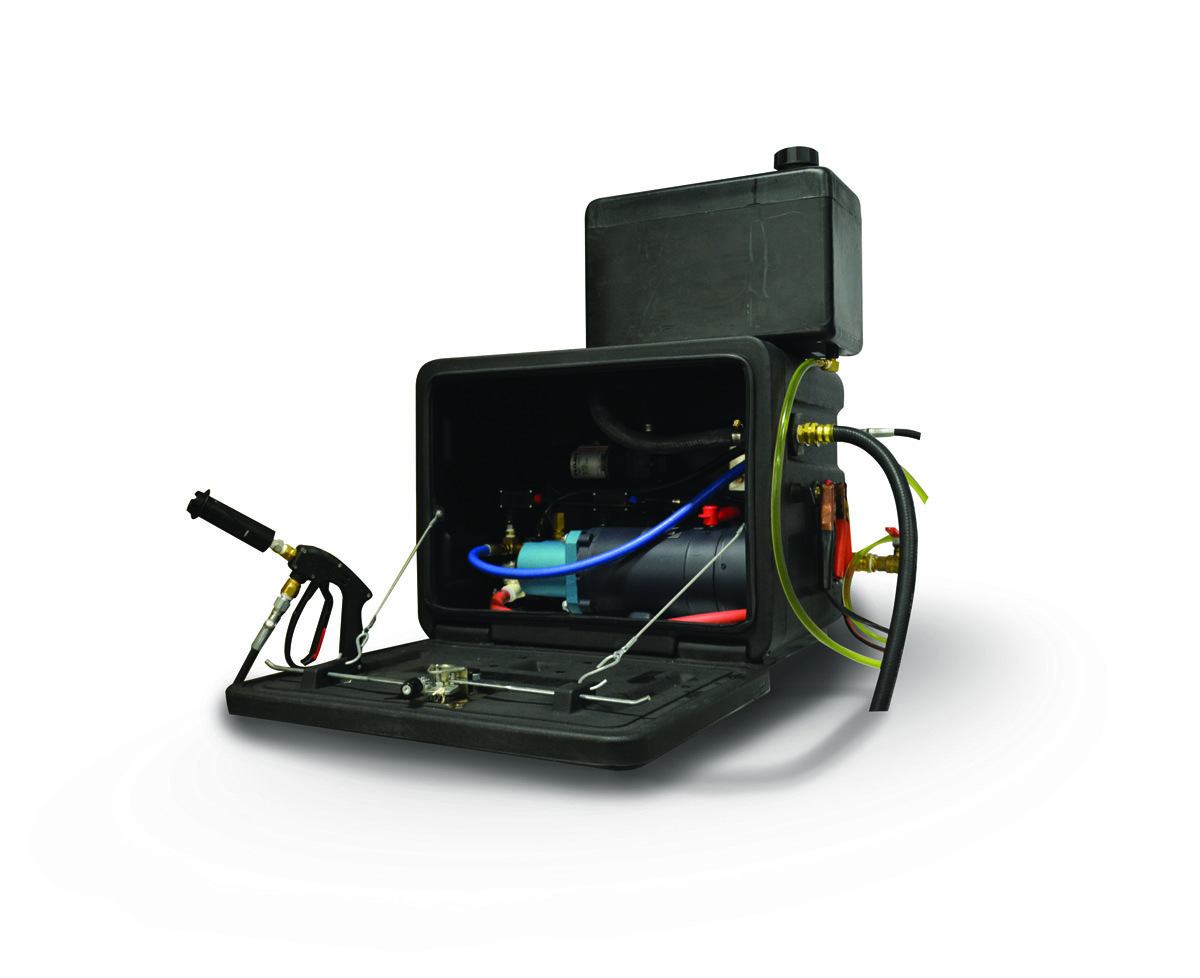

Satellite Pathfinder Sanitizing System
The self-contained Pathfinder Sanitizing System from Satellite boasts a low-pressure, chemical injection delivery mechanism, ensuring an optimized chemical-to-water ratio for cleaning and mounts on any service vehicle. The system seamlessly disperses cleaning agents like the Pathfinder Solution or hospital-grade disinfectants such as Enviro Bac 2, which neutralizes mold and odor-causing bacteria, with even distribution within restrooms. The spray gets sanitizer solution into the crevices and hard-to-reach spots that a brush and soap cannot reach and leaves surfaces shiny. It is useful in servicing portable restrooms, hand-wash sinks, holding tanks, along with restroom and specialty trailers. 800-883-1123; www.satelliteindustries.com
Vacuum Hoses

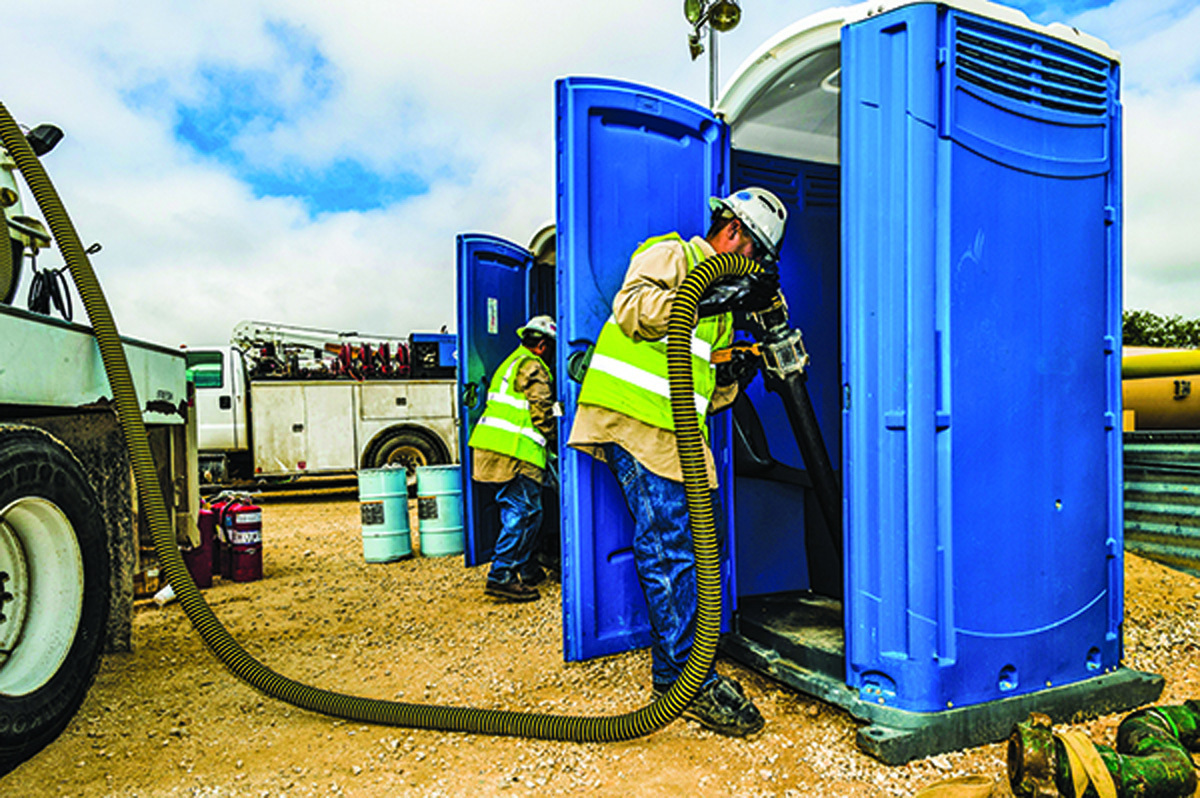

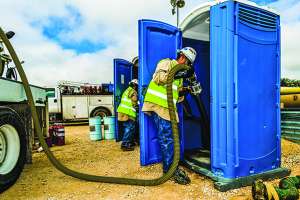

Kuriyama of America King Bee KBEE Series
King Bee KBEE Series polyethylene liquid suction hose from Kuriyama of America provides flexibility for maneuvering in tight areas such as portable restrooms. The hose remains flexible in subzero temperatures, is crush resistant and will not kink. The easy-slide helix protects the hose tube from cover wear and moves easily over rough surfaces. Over-molded cuffs help prevent leaking. It is available in 2- and 3-inch I.D. sizes in multiple lengths. The 3-inch I.D. hose is also available as a 3-foot hose guard. 847-755-0360; www.kuriyama.com
Vacuum Pumps

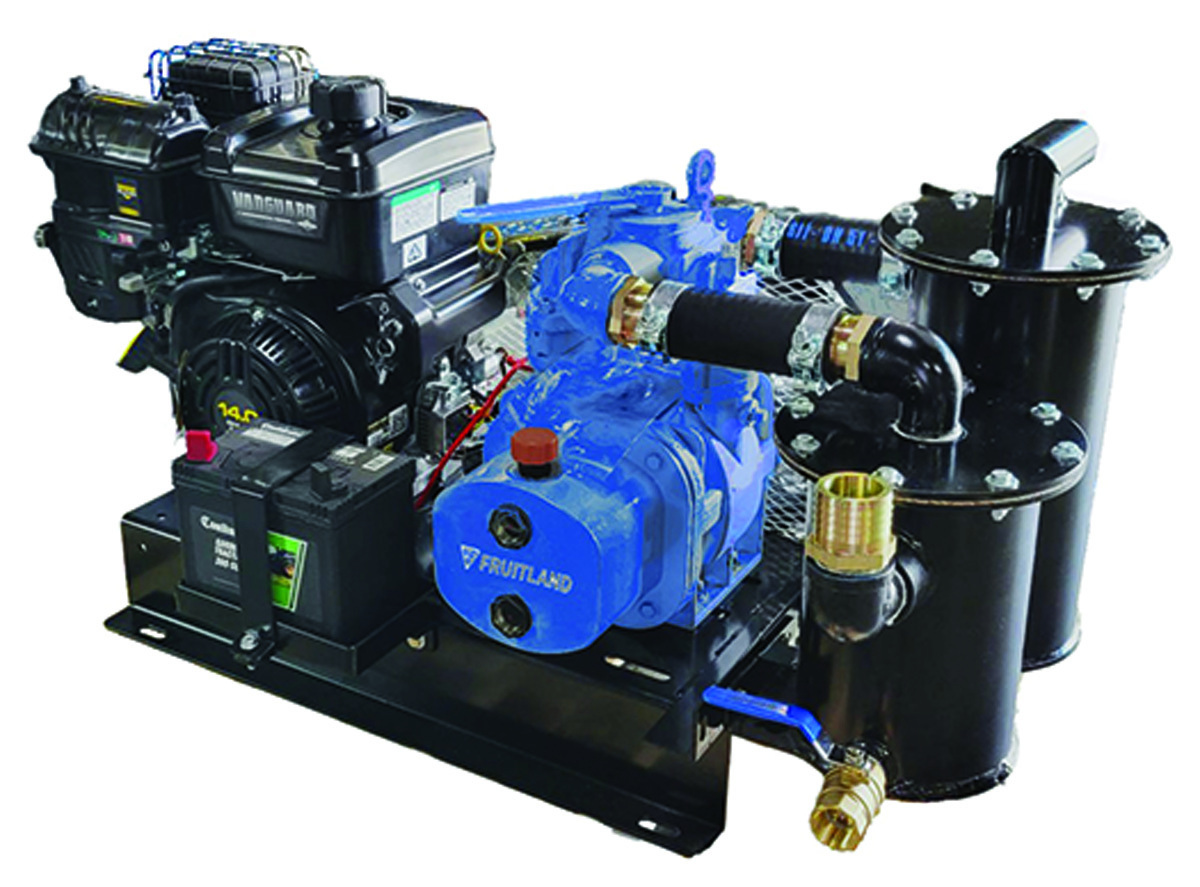

Fruitland Manufacturing ELIM G-172
The ELIM G-172 gas engine-driven system from Fruitland Manufacturing is the most compact option in the Eliminator slide-in engine-driven line. It is suitable for portable restroom and septic vacuum truck applications, especially where space and efficiency are concerns. This package comes with a 14 hp Briggs and Stratton Vanguard engine, a 127 cfm free airflow Fruitland RCF172 vacuum pump, a standard bolt-in truck mount, and is available in left-hand or right-hand orientation. Packages are also available with various pump models and types and in many different configurations. 800-663-9003; www.fruitlandmanufacturing.com

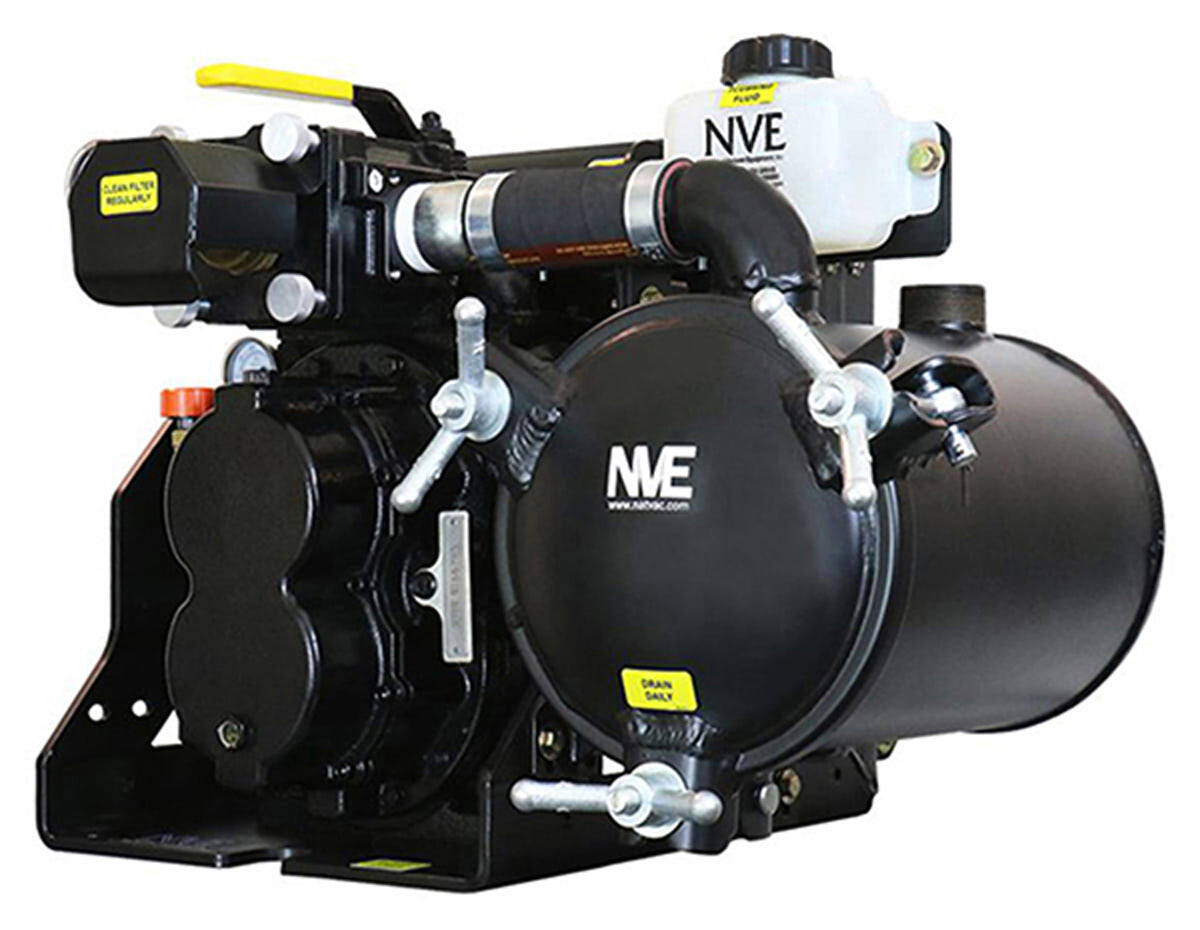

National Vacuum Equipment B250 Max Pak
The National Vacuum Equipment B250 Max Pak is designed for the portable restroom market, using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil-free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1-to-1.5 ratio gearbox makes it easy to provide optimum revolutions per minute to the blower, while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and Ram 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel-drive. 800-253-5500; www.natvac.com

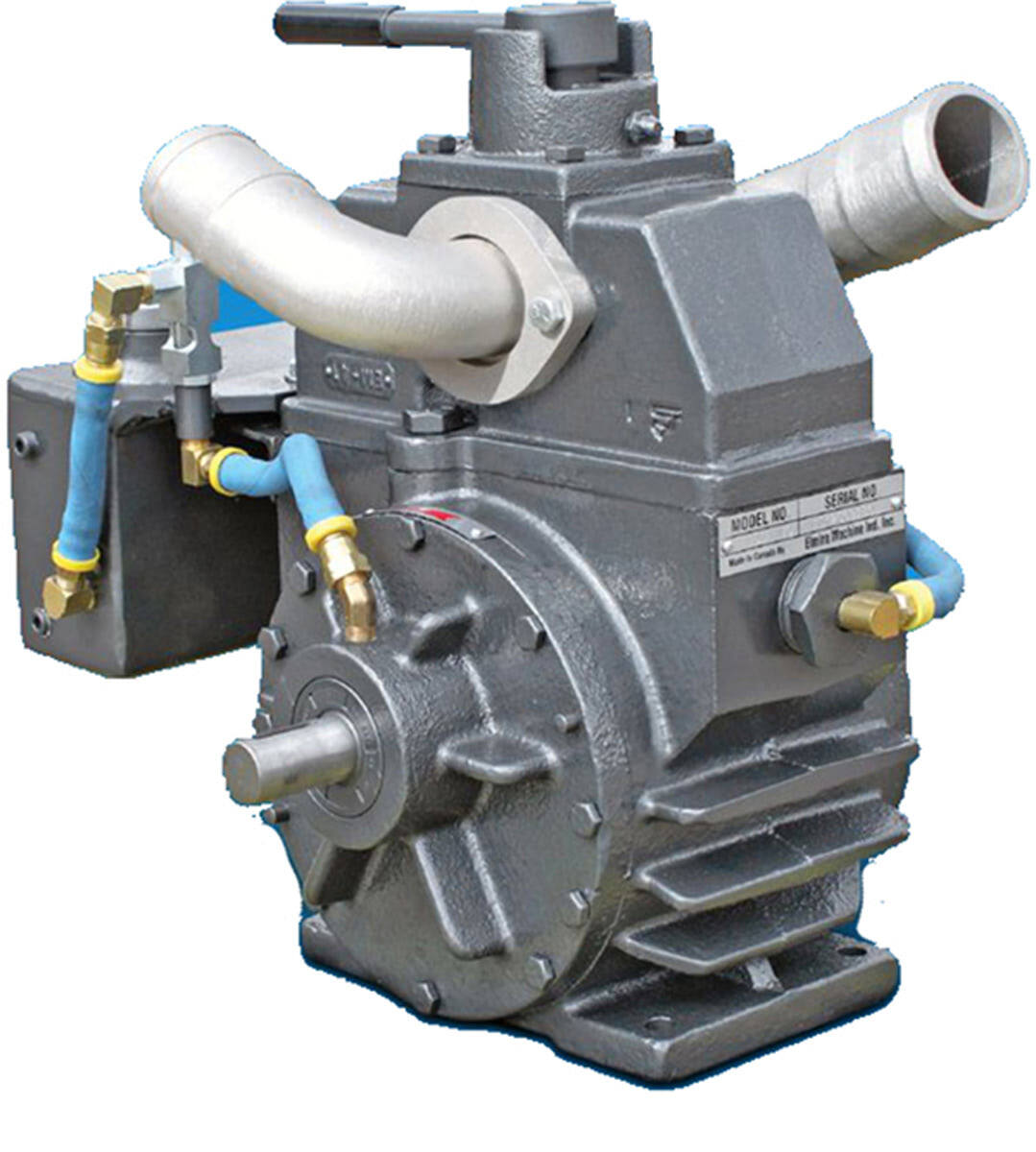

Wallenstein Vacuum Model 151
The Model 151 from Wallenstein Vacuum can be used with portable sanitation tanks and slide-in units, and at campgrounds and marinas that require a compact package. It offers 80 cfm at 15 inches Hg, with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counterclockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven. 800-801-6663; www.wallenstein.com

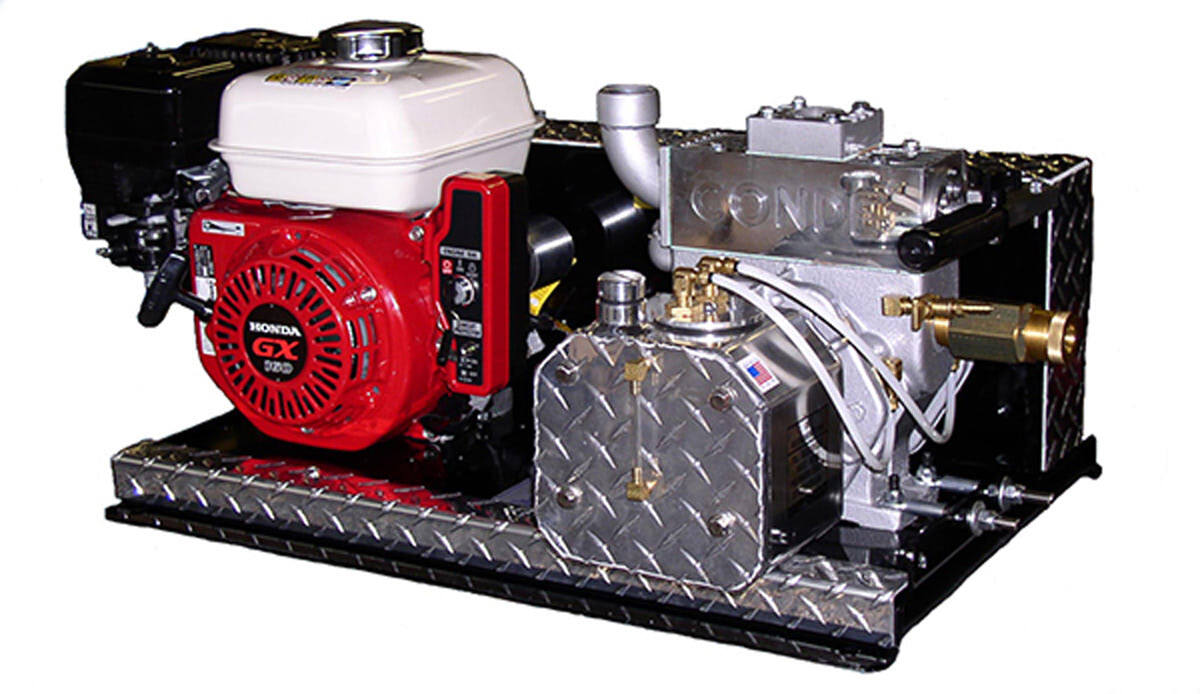

Westmoor Conde PowerPaks
Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations. Direct-drive units incorporate a centrifugal clutch that allows throttling down the engine and disengaging the vacuum pump. Throttle up and the pump is in action. Specify either vacuum and pressure, or vacuum-only pump choice. Diesel-powered units are also available for applications where non-sparking engines are required. 800-367-0972; www.westmoorltd.com
Washdown Pumps

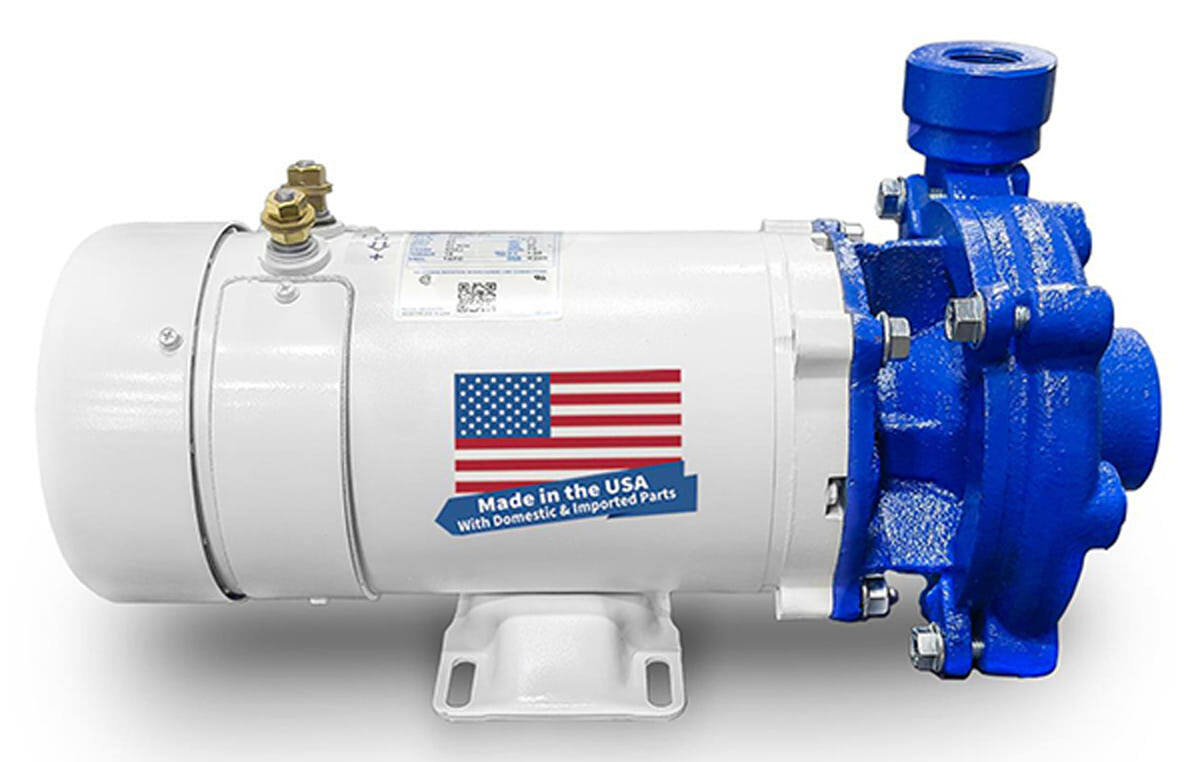

Moro USA DC Washdown Pumps
Moro USA DC Washdown Pumps have a maximum delivery rate of 20 gpm, 42 psi and are primarily utilized for filling sinks and cleaning portable restrooms. The centrifugal pumps are designed with corrosion-resistant materials for operating in wet conditions, and can be used in other applications such as industrial, marine and water circulation. They have an epoxy-coated 12-volt DC motor, stainless steel impeller, four front drain plugs, and a carbon/ceramic/Viton mechanical seal. They require the installation of an in-line circuit breaker and a 12-volt solenoid. Models include the DCC cast iron washdown pump with stainless impeller, DCSC cast iron washdown pump with stainless steel impeller kit, DCS stainless steel washdown pump, and the DCSS stainless steel washdown pump kit. 866-383-6304; www.morousa.com
