HOSE AND FITTINGS
KURIYAMA OF AMERICA KING BEE KBEE SERIES
King Bee KBEE Series polyethylene liquid suction hose from Kuriyama of America provides flexibility for maneuvering in tight areas such as portable restrooms. The hose remains flexible in subzero temperatures, is crush resistant and will not kink. The easy-slide helix protects the hose tube from cover wear and moves easily over rough surfaces. Overmolded cuffs help prevent leaking. It is available in 2- and 3-inch I.D. sizes in multiple lengths. The 3-inch I.D. hose is also available as a 3-foot hose guard. 847-755-0360; www.kuriyama.com
HOSE REEL

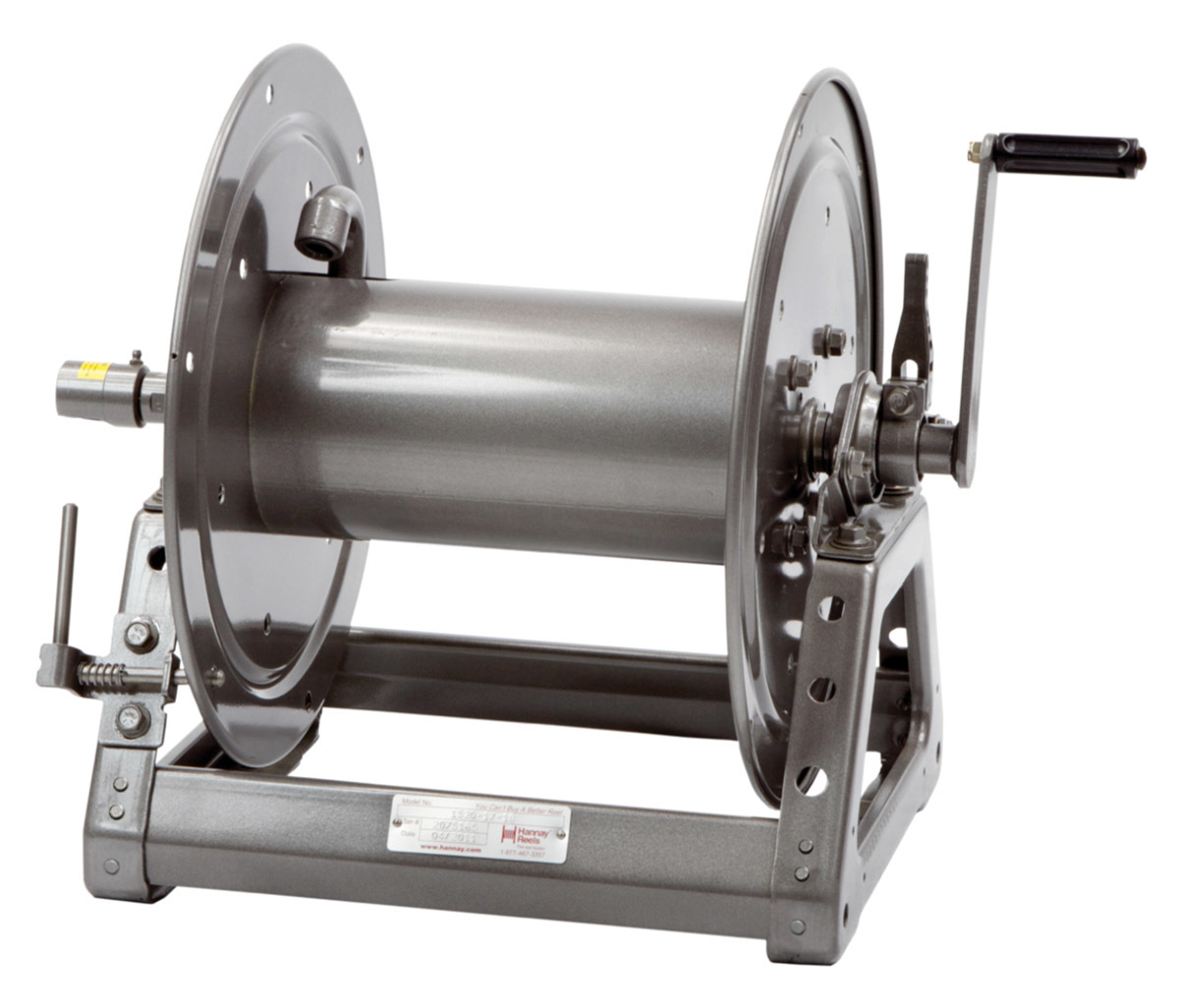

HANNAY REELS 1500 SERIES
Lightweight and compact, 1500 Series reels from Hannay Reels are designed to handle lengthy single 3/8- through 5/8-inch I.D. hose for pumper/cleaner applications. Standard pressures up to 3,000 psi and fluid temperatures from -40 to 400 degrees F are supported. The reel is available with a manual crank rewind or power rewind driven by an electric, hydraulic or air motor. Both options offer simple hose retraction to keep hose organized and out of the way. It can be purchased with heavy-duty upgrades, including 3/16-inch-thick discs, an 8-inch-diameter steel 14-gauge drum, and optional pressures of 5,000 or 10,000 psi. 877-467-3357; www.hannay.com
VACUUM PUMPS

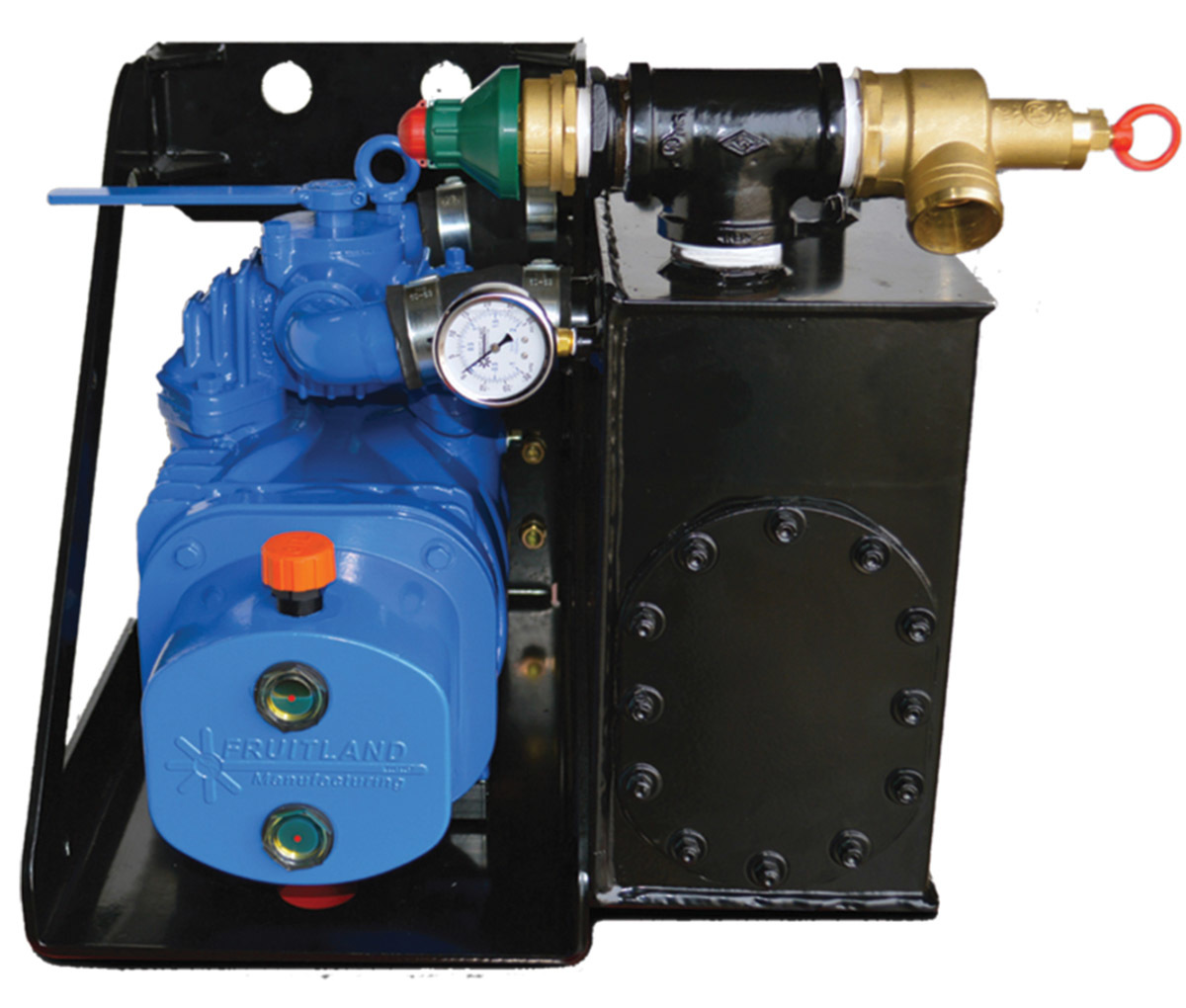

FRUITLAND ELIM A344 SERIES
The ELIM A344 Series from Fruitland is a compact, low-weight pump offering 218 cfm of airflow and low oil consumption. It has an automated oil delivery system through the rotor shaft, along with level sight gauges, vane gauging ports and an anti-shock design. The package includes an oil-catch muffler and secondary shut-off, which eliminates plumbing issues and eases installation. This package comes in both gearbox and hydraulic drive options with integrated mounts. 800-663-9003; www.fruitlandmanufacturing.com

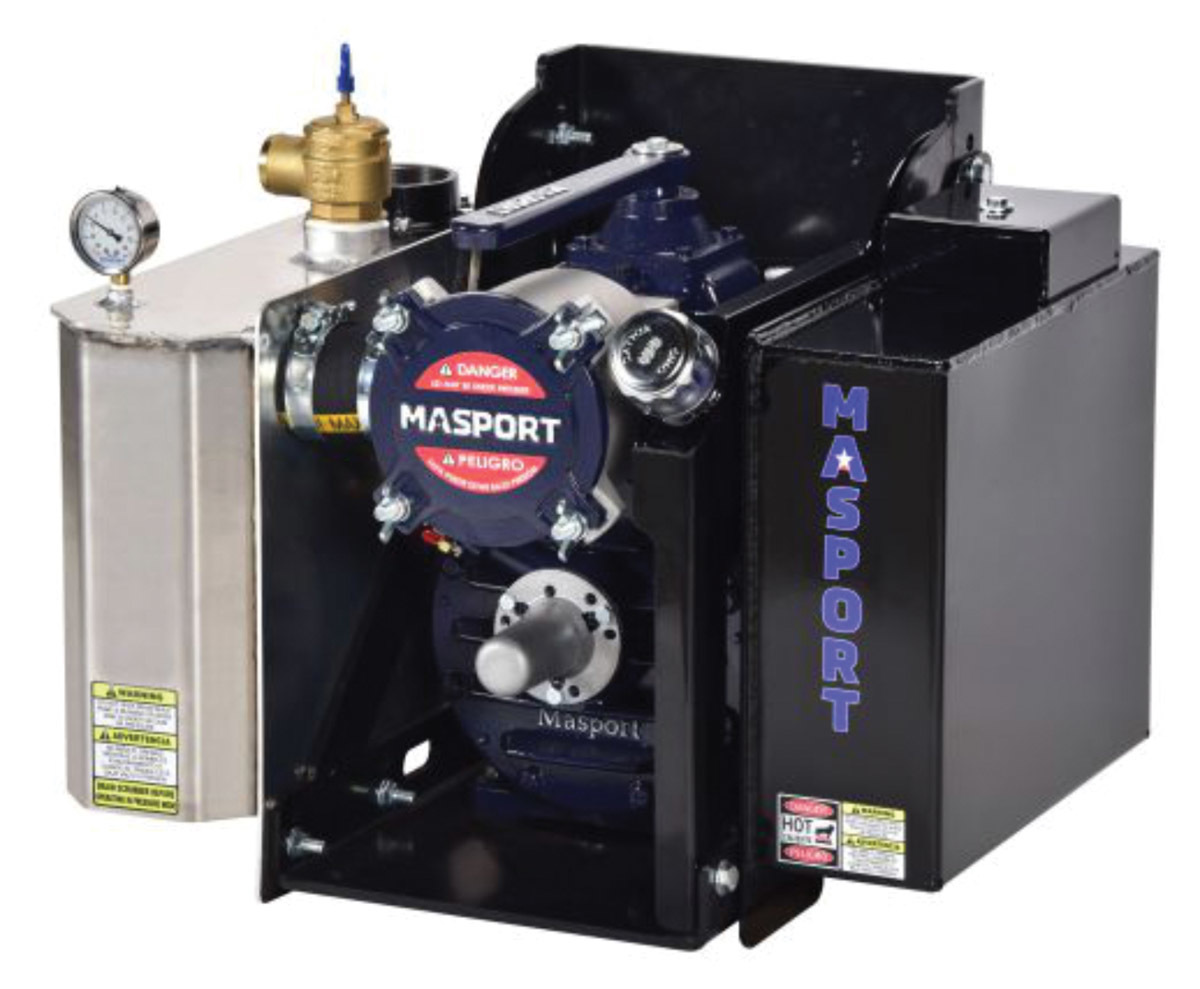

MASPORT HXL4V AND HXL5V
HXL4V and HXL5V vacuum systems from Masport have a compact, low-profile design that incorporates an integrated scrubber, oil separator and inlet filter. The systems are fully integrated so they can slot into place for easy installation. They are available with plastic, steel or combination oil/flushing reservoir; and self-aligning gearbox and hydraulic drive options are also available. An optional extended, self-aligning gearbox is available for direct alignment to the PTO on all truck models. 800-228-4510; www.masportpump.com

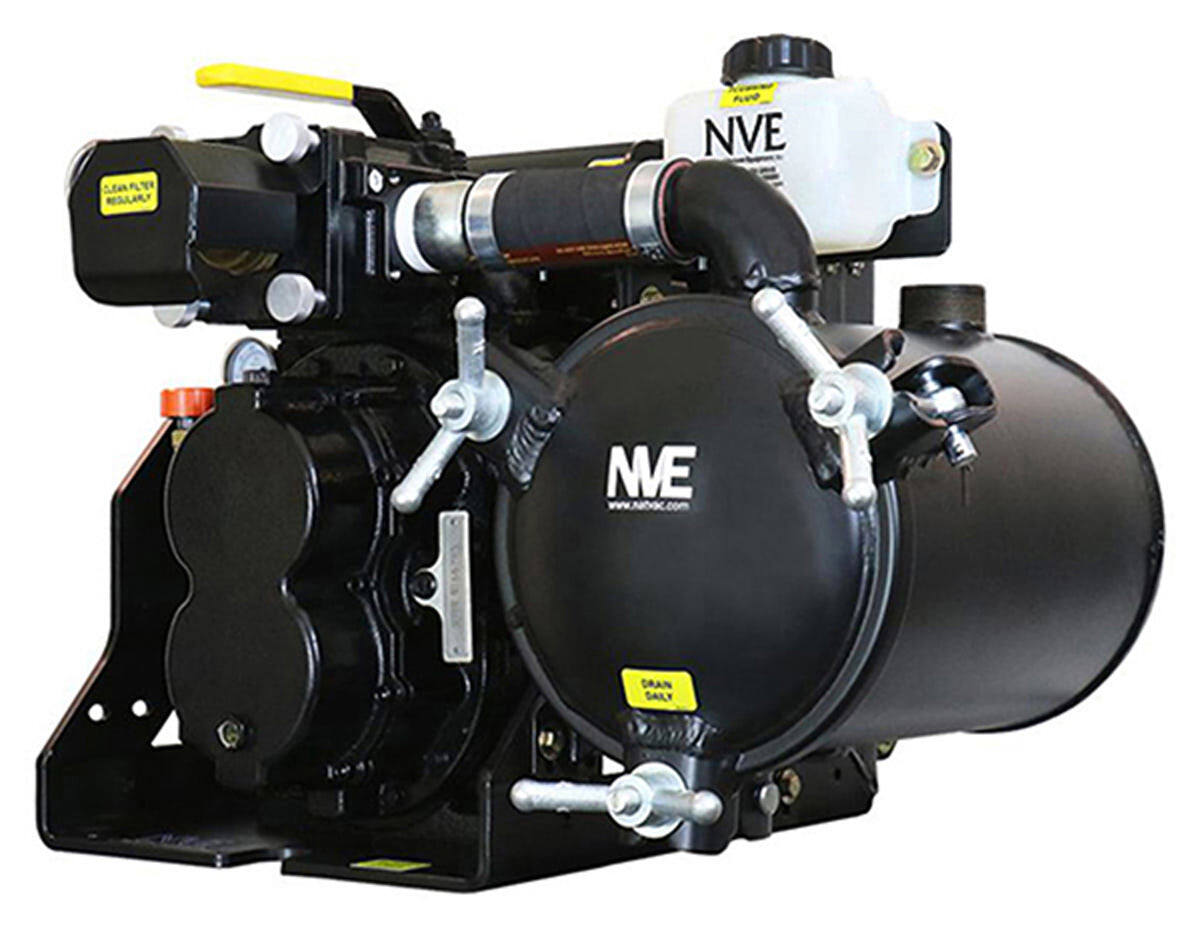

NATIONAL VACUUM EQUIPMENT B250 MAX PAK
The National Vacuum Equipment B250 Max Pak is designed for the portable restroom market, using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil-free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1-to-1.5 ratio gearbox makes it easy to provide optimum revolutions per minute to the blower, while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and Ram 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel-drive. 800-253-5500; www.natvac.com

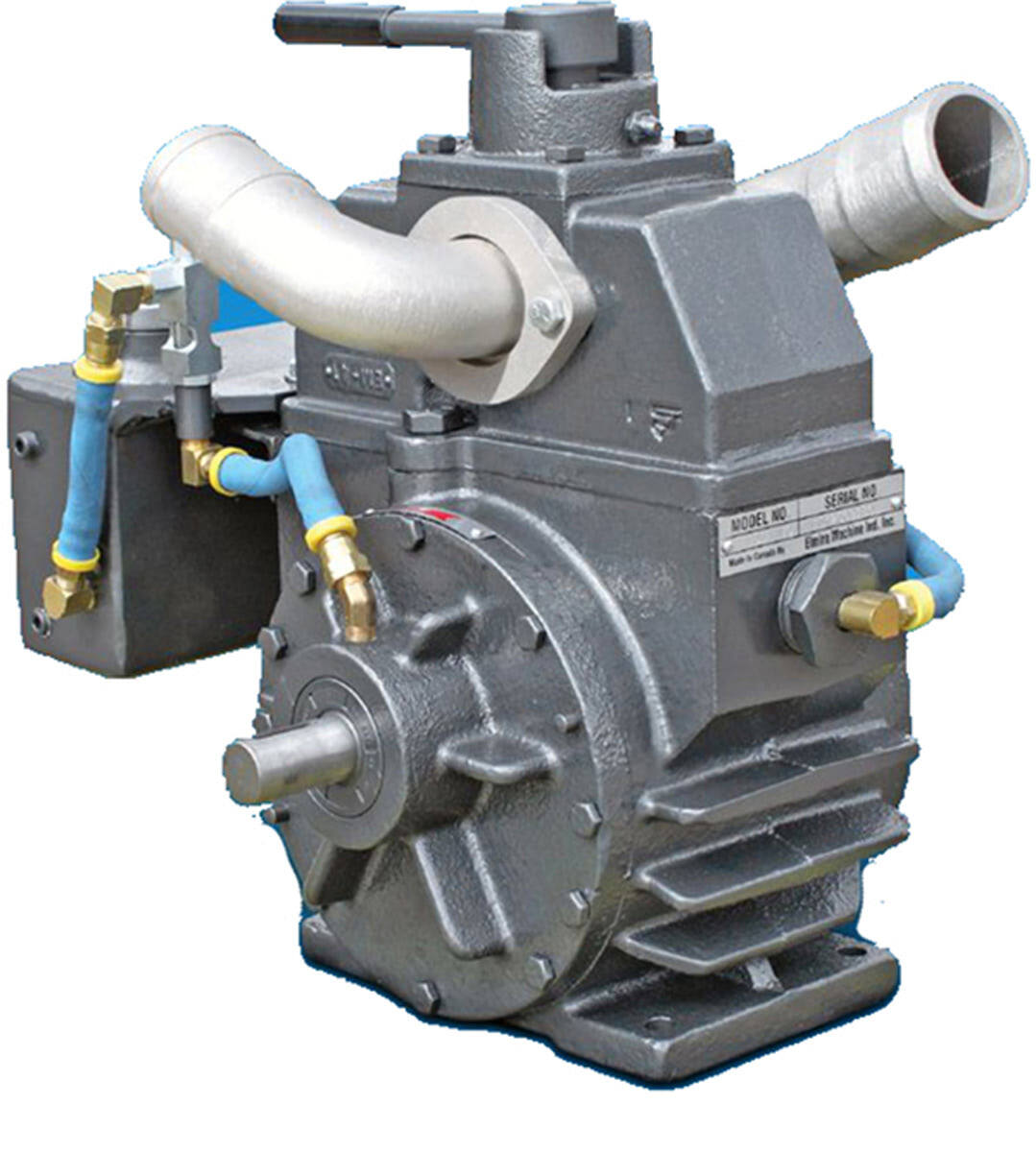

WALLENSTEIN VACUUM MODEL 151
The Model 151 from Wallenstein Vacuum can be used with portable sanitation tanks and slide-in units and at campgrounds and marinas that require a compact package. It offers 80 cfm at 15 inches Hg, with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counter-clockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven. 800-801-6663; www.wallenstein.com

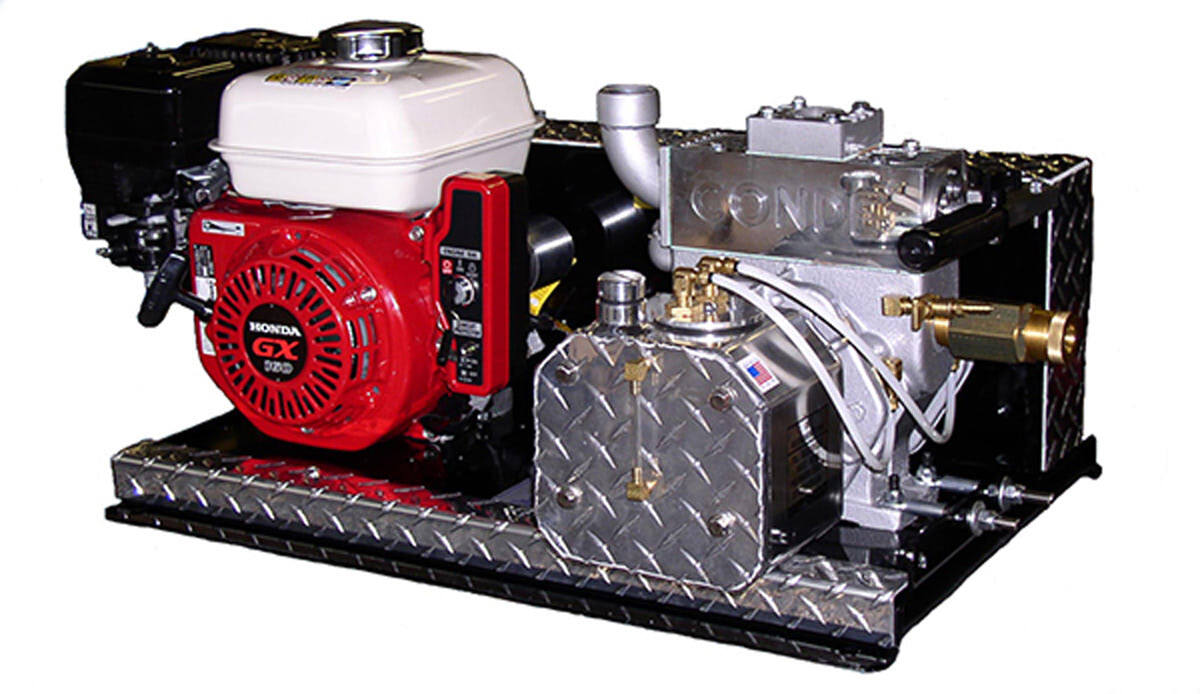

WESTMOOR CONDE POWERPAKS
Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations. Direct-drive units incorporate a centrifugal clutch that allows the user to throttle down the engine and disengage the vacuum pump. Throttle up and the pump is in action. Specify either vacuum and pressure, or vacuum-only pump choice. Diesel-powered units are also available for applications where nonsparking engines are required. 800-367-0972; www.westmoorltd.com
WASHDOWN PUMPS

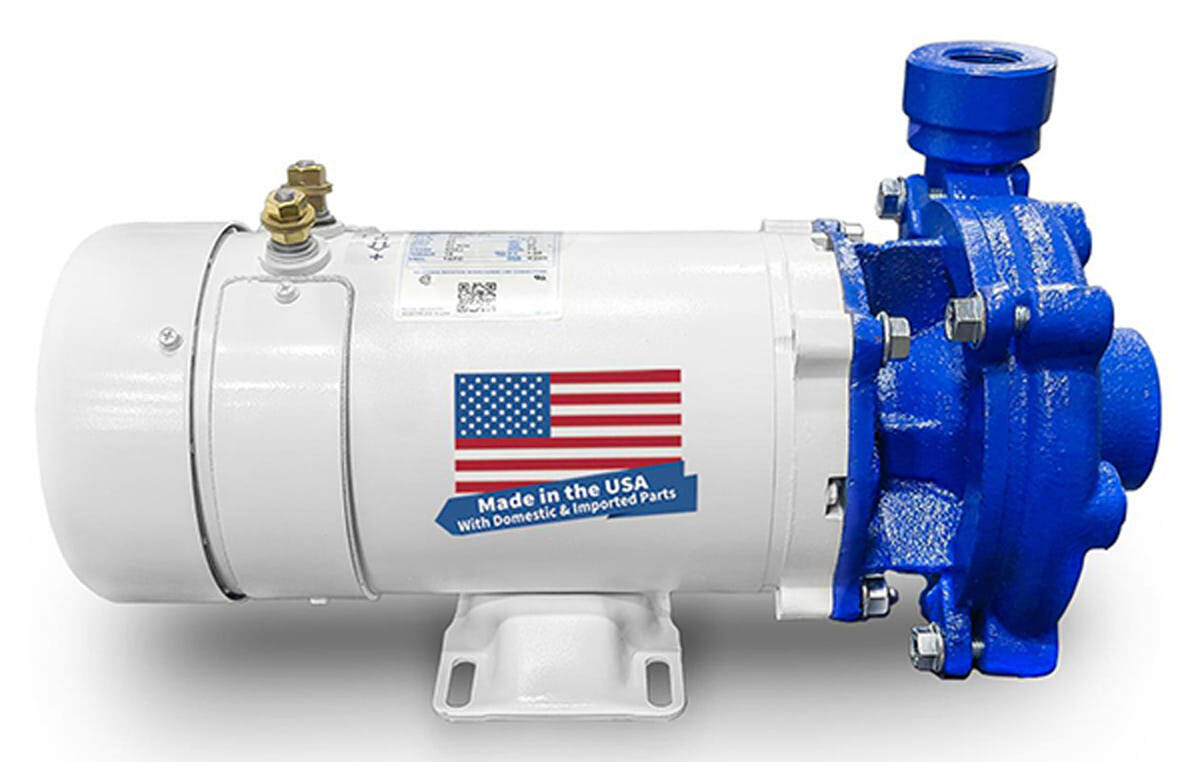

MORO USA DC WASHDOWN PUMPS
Moro USA DC Washdown Pumps achieve a maximum delivery rate of 20 gpm, 42 psi and are primarily utilized for filling sinks and cleaning portable restrooms. These centrifugal pumps are designed with corrosion-resistant materials for operating in wet conditions, and can be used in other applications such as industrial, marine, and water circulation. They have an epoxy-coated 12V DC motor, stainless steel impeller, four front drain plugs, and a carbon/ceramic/Viton mechanical seal. They require the installation of an in-line circuit breaker and a 12V solenoid. Models include the DCC cast iron washdown pump with stainless impeller, DCSC cast iron washdown pump with stainless steel impeller kit, DCS stainless steel washdown pump, and the DCSS stainless steel washdown pump kit. 866-383-6304; www.morousa.com

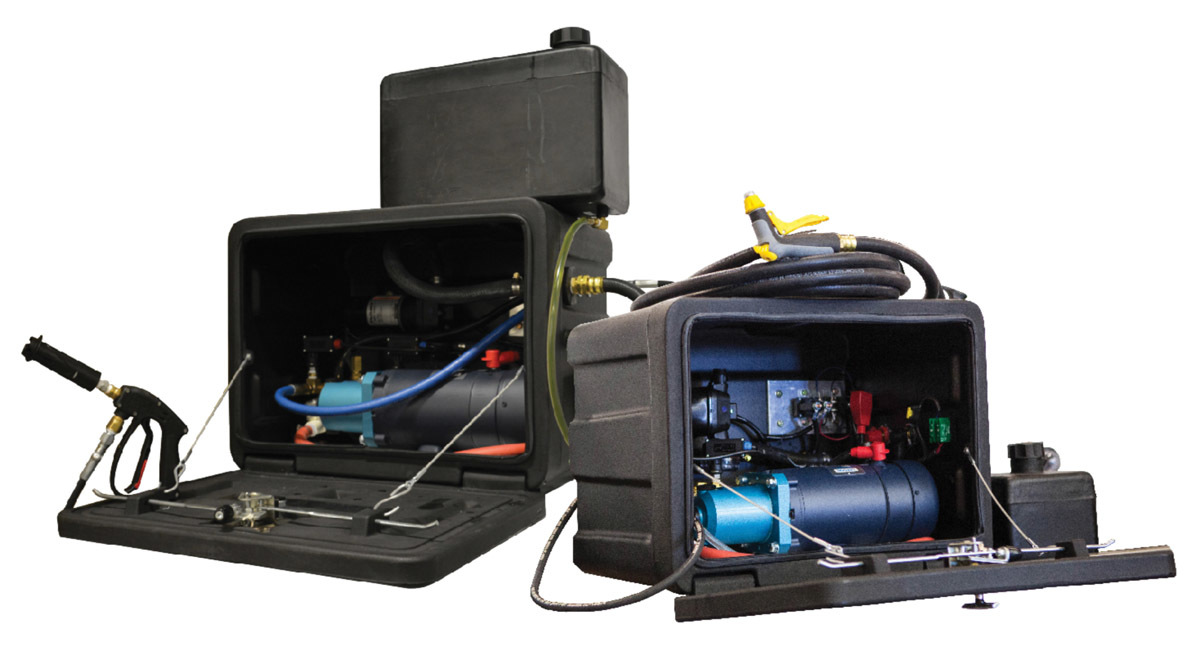

SATELLITE INDUSTRIES PATHFINDER
Pathfinder from Satellite Industries is a sanitizing system that mounts to any service vehicle. It has a low-pressure, chemical injection delivery system that proportions the chemical/water mix for maximum effectiveness. This allows portable restroom operators to spray a cleaning agent like Pathfinder Solution or a hospital-grade, U.S. Environmental Protection Agency-registered disinfectant like Enviro Bac 2 evenly throughout the restroom. It reduces mold and odor-causing bacteria by 86% over traditional cleaning methods. The benefit over the “scrub brush and soap” method is eliminating transfer of bacteria and germs from one unit to another, according to the maker. Users can switch from high to low pressure for the chemical application. It has a Flojet washdown pump for low pressure (50 psi at 4.5 gpm) and a CAT high pressure pump (1,000 psi at 2.5 gpm). 800-883-1123; www.satelliteindustries.com
