Hose Reels

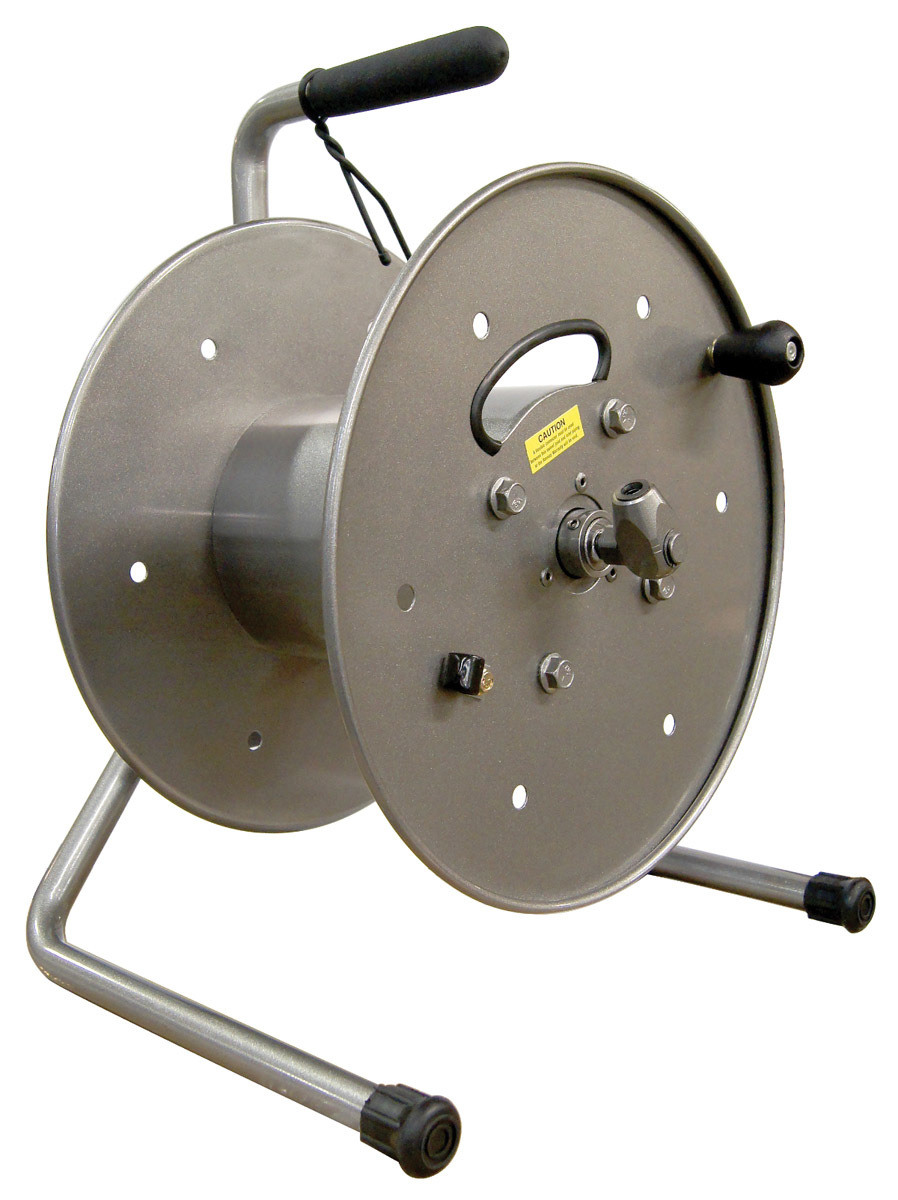

Hannay Reels H16-14-16 Portable Hose Reel
The H16-14-16 Portable Hose Reel from Hannay Reels is lightweight and suitable for residential and light commercial use in pipe cleaning, drain cleaning and high-pressure applications. Its easy-to-use carry handle and manual rewind make it suitable for use in hard-to-reach areas. Designed with a quality swivel joint, the reel can accommodate pressures up to 5,000 psi. It includes a tension brake, one twist tie to hold hose and all-steel construction. 877-467-3357; www.hannay.com
Vacuum Hose

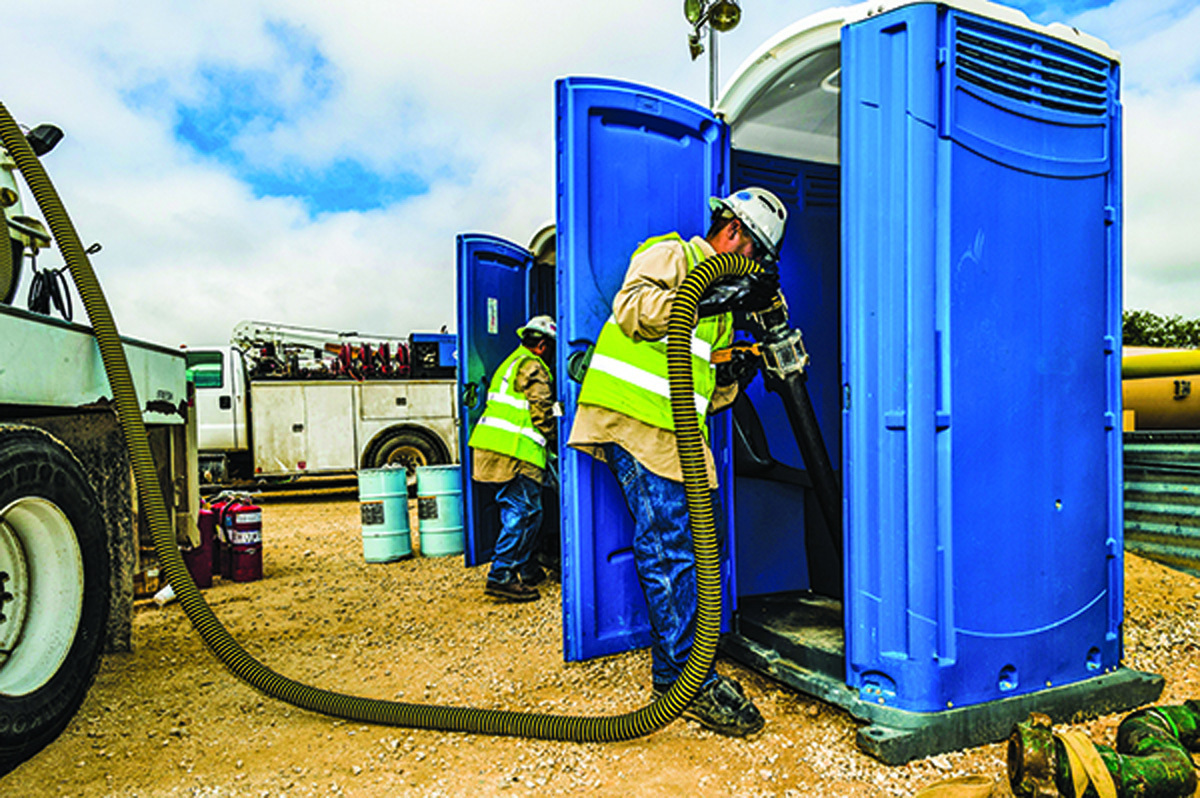

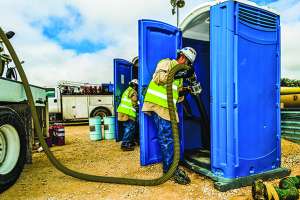

Kuriyama of America King Bee KBEE Series
King Bee KBEE Series polyethylene liquid suction hose from Kuriyama of America provides flexibility for maneuvering in tight areas such as portable restrooms. The hose remains flexible in subzero temperatures, is crush resistant and will not kink. The easy-slide helix protects the hose tube from cover wear and moves easily over rough surfaces. Overmolded cuffs help prevent leaking. It is available in 2- and 3-inch I.D. sizes in multiple lengths. The 3-inch I.D. hose is also available as a 3-foot hose guard. 847-755-0360; www.kuriyama.com
Vacuum Pumps

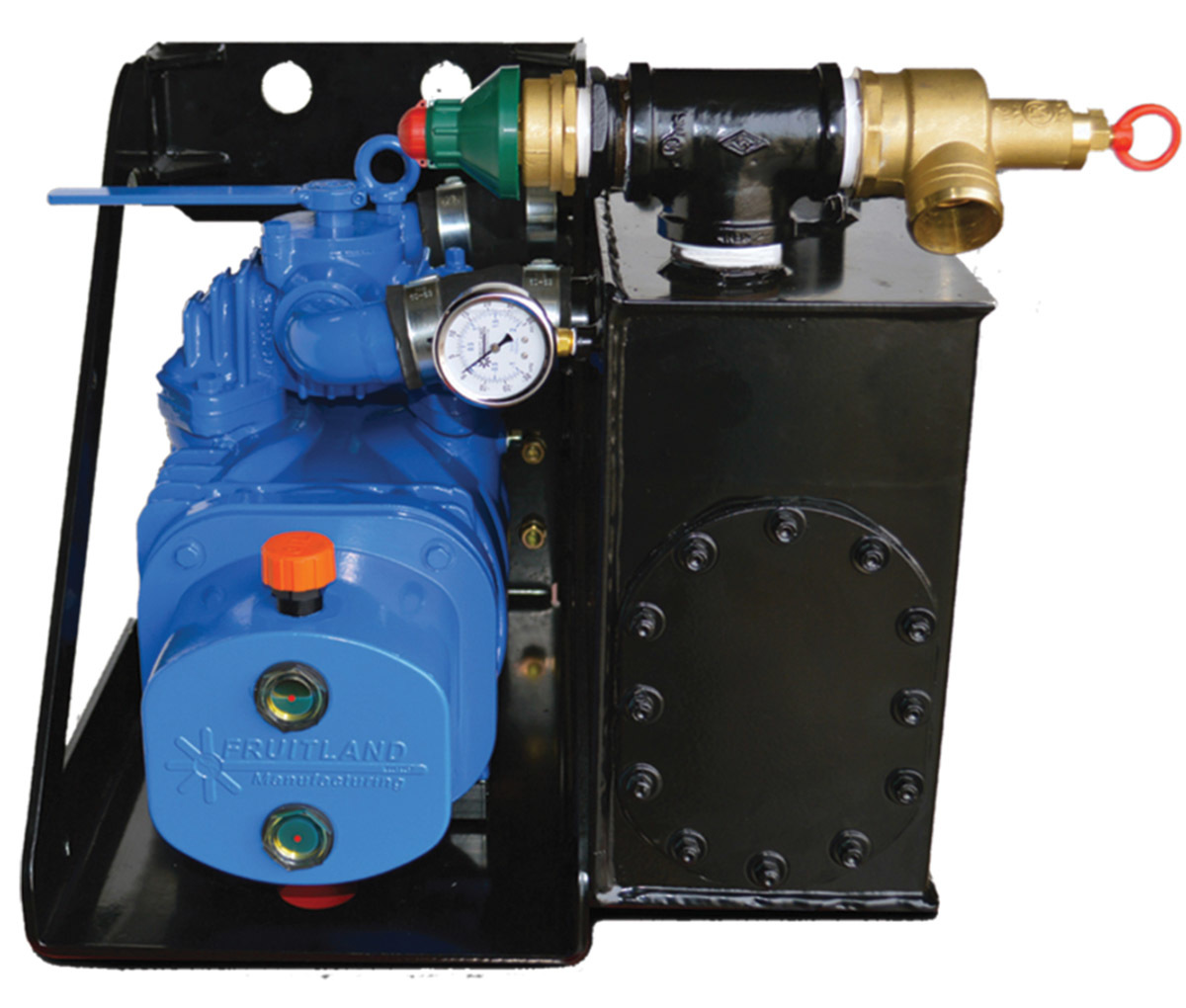

Fruitland ELIM A344 Series
The ELIM A344 Series from Fruitland is a compact, low-weight pump offering 218 cfm of airflow and low oil consumption. It has an automated oil delivery system through the rotor shaft, along with level sight gauges, vane gauging ports and an anti-shock design. The package includes an oil-catch muffler and secondary shut-off, which eliminates plumbing issues and eases installation. This package comes in both gearbox and hydraulic drive options with integrated mounts. 800-663-9003; www.fruitlandmanufacturing.com

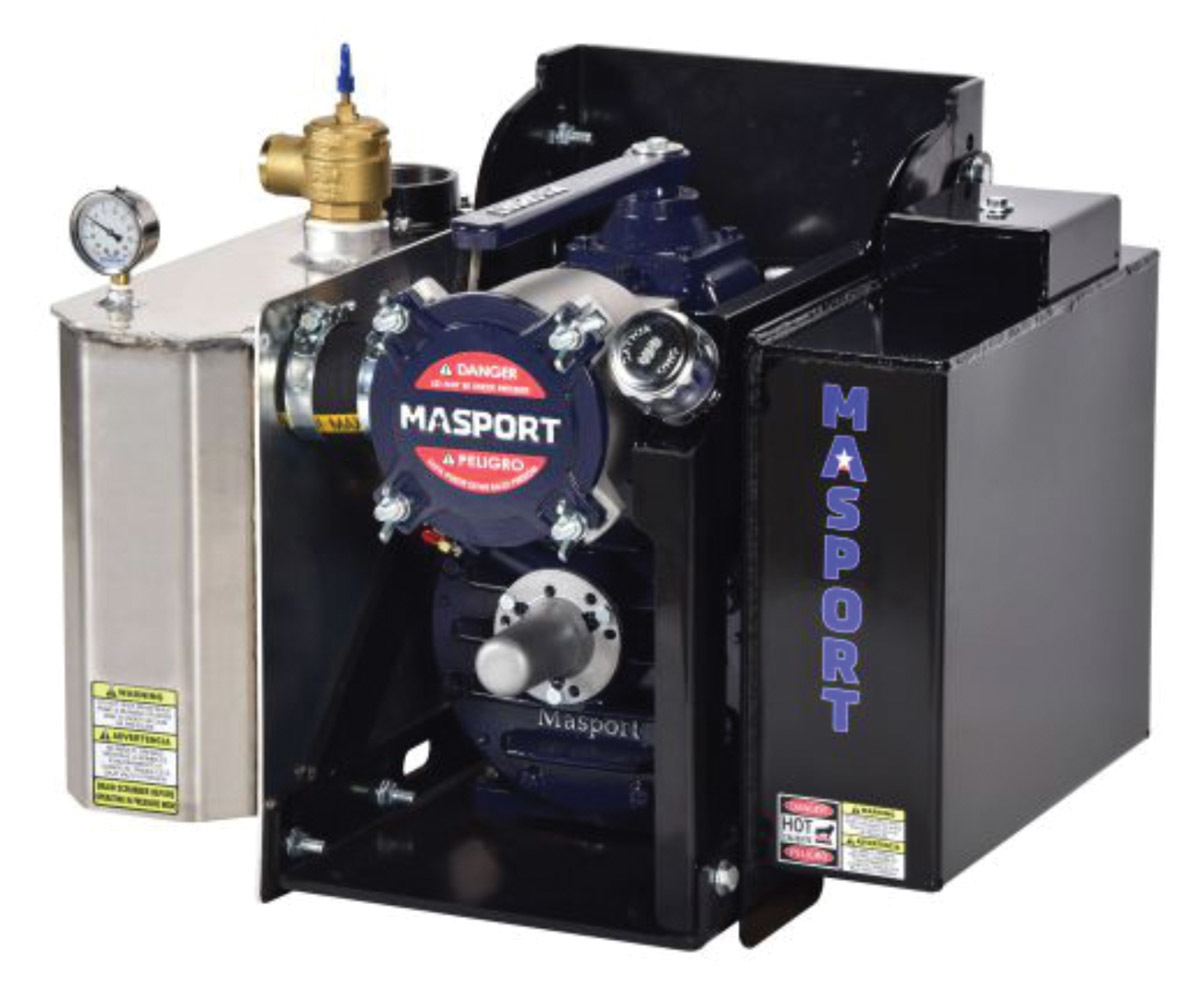

Masport HXL4V and HXL5V
HXL4V and HXL5V vacuum systems from Masport have a compact, low-profile design that incorporates an integrated scrubber, oil separator and inlet filter. The systems are fully integrated so they can slot into place for easy installation. They are available with plastic, steel or combination oil/flushing reservoir; and self-aligning gearbox and hydraulic drive options are also available. An optional extended, self-aligning gearbox is available for direct alignment to the PTO on all truck models. 800-228-4510; www.masportpump.com

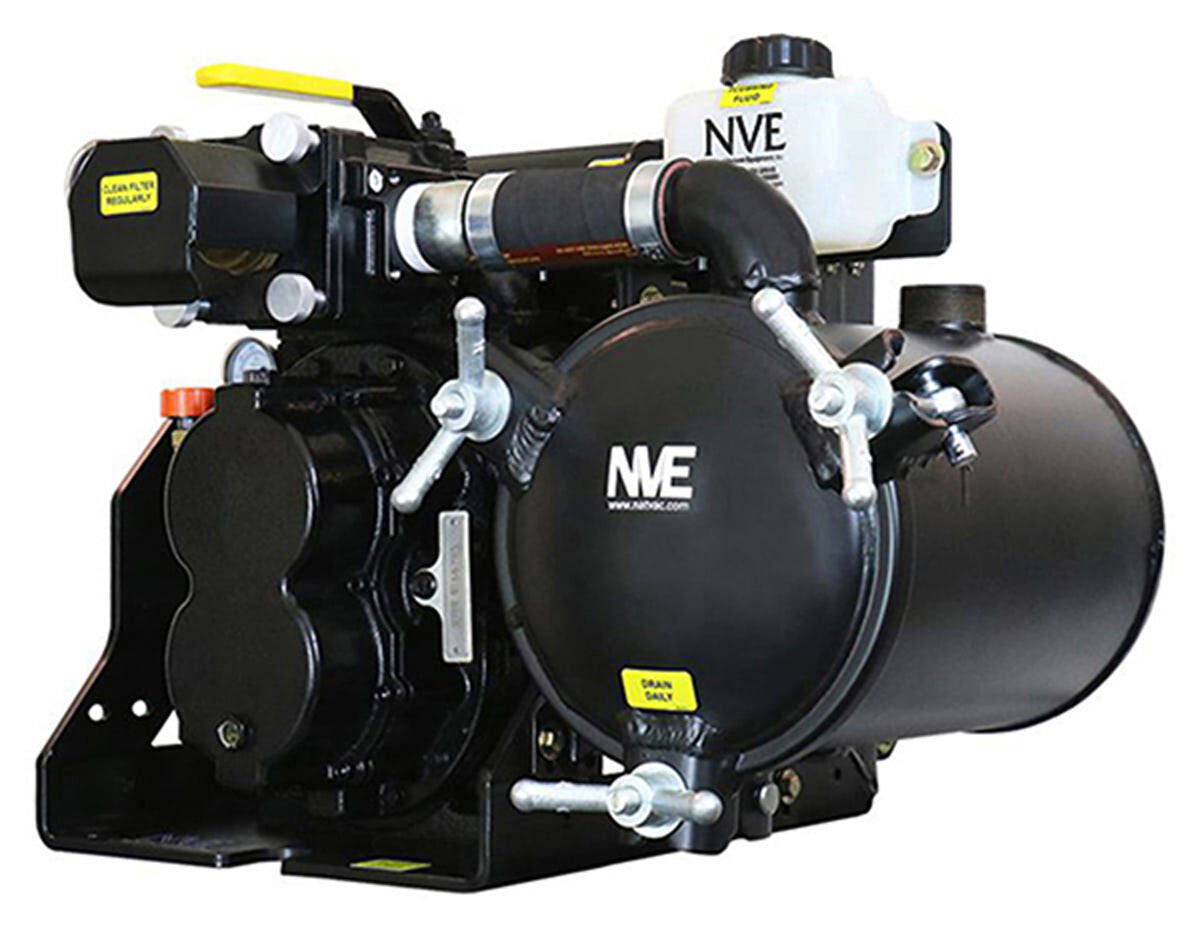

National Vacuum Equipment B250 Max Pak
The National Vacuum Equipment B250 Max Pak is designed for the portable restroom market, using a hybrid tri-lobe blower with an integral four-way motor for vacuum/pressure use and inlet filter to provide protection. It is oil-free, and its airflow is 270 cfm. It is capable of running continuously at 15 inches Hg. It comes ready to mount and includes an exhaust silencer. The 1-to-1.5 ratio gearbox makes it easy to provide the optimum revolutions per minute to the blower, while keeping truck revolutions per minute in check. While designed to fit on a Ford F-550 and Ram 5500, it can mount on any truck with ample ground clearance. It is also available in hydraulic drive to accommodate four-wheel-drive. 800-253-5500; www.natvac.com

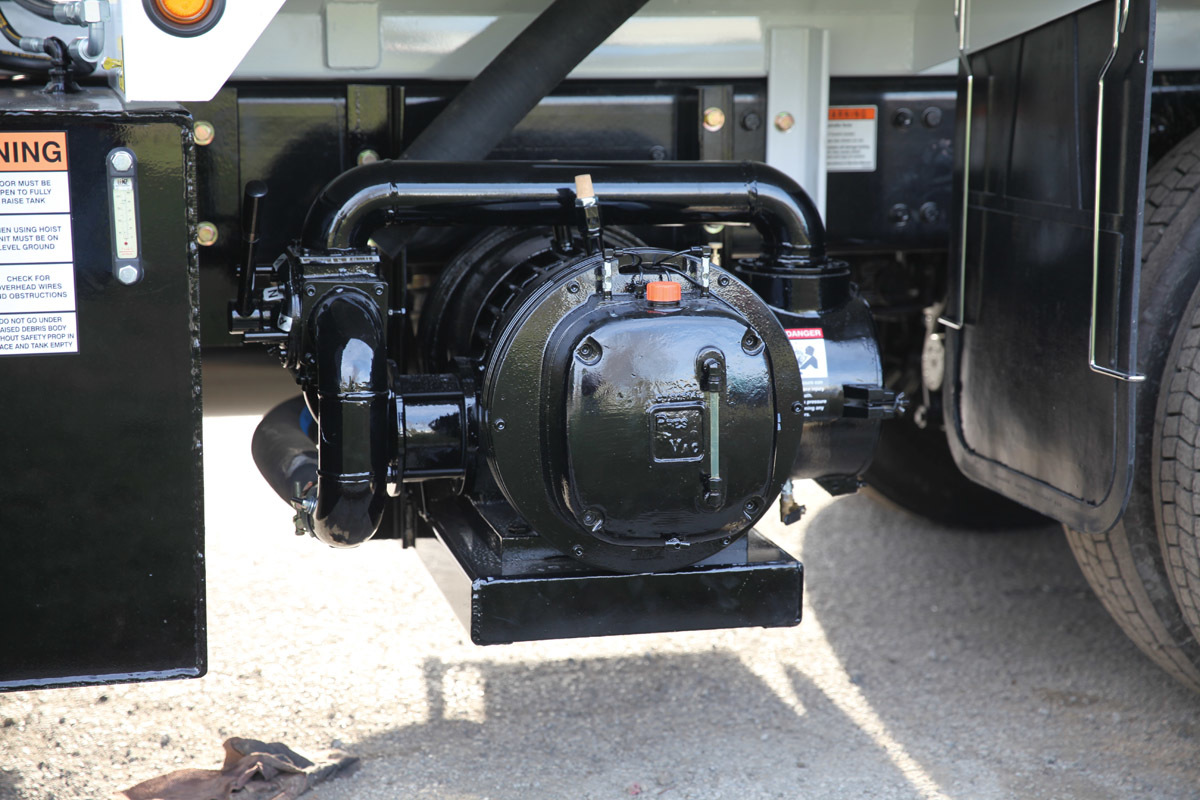

Presvac Systems PV750
The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin ballast ports efficiently cool the pump. The solid housing with deep cooling ribs allows for greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger to aid in heat reduction. Multiple manifold and drive options are available for truck, trailer or stationary applications. 800-387-7763; www.presvac.com

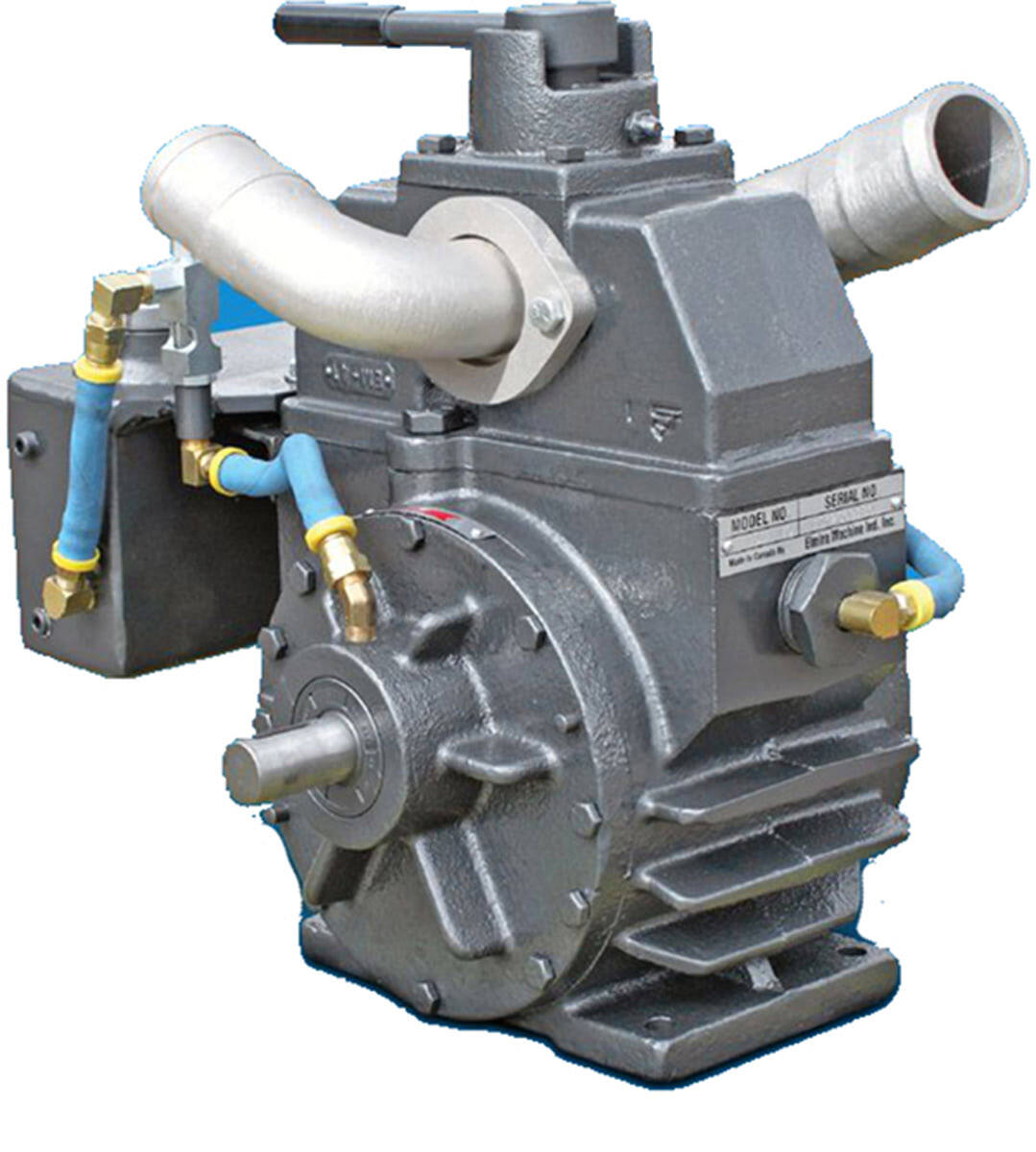

Wallenstein Vacuum Model 151
The Model 151 from Wallenstein Vacuum can be used with portable sanitation tanks and slide-in units and at campgrounds and marinas that require a compact package. It offers 80 cfm at 15 inches Hg, with a 2-inch vacuum/pressure valve, swivel elbows for easy hookup, air pressure or mechanical lubrication, and clockwise or counterclockwise operation. It can be direct-, hydraulic-, pulley- or clutch-driven. 800-801-6663; www.wallenstein.com

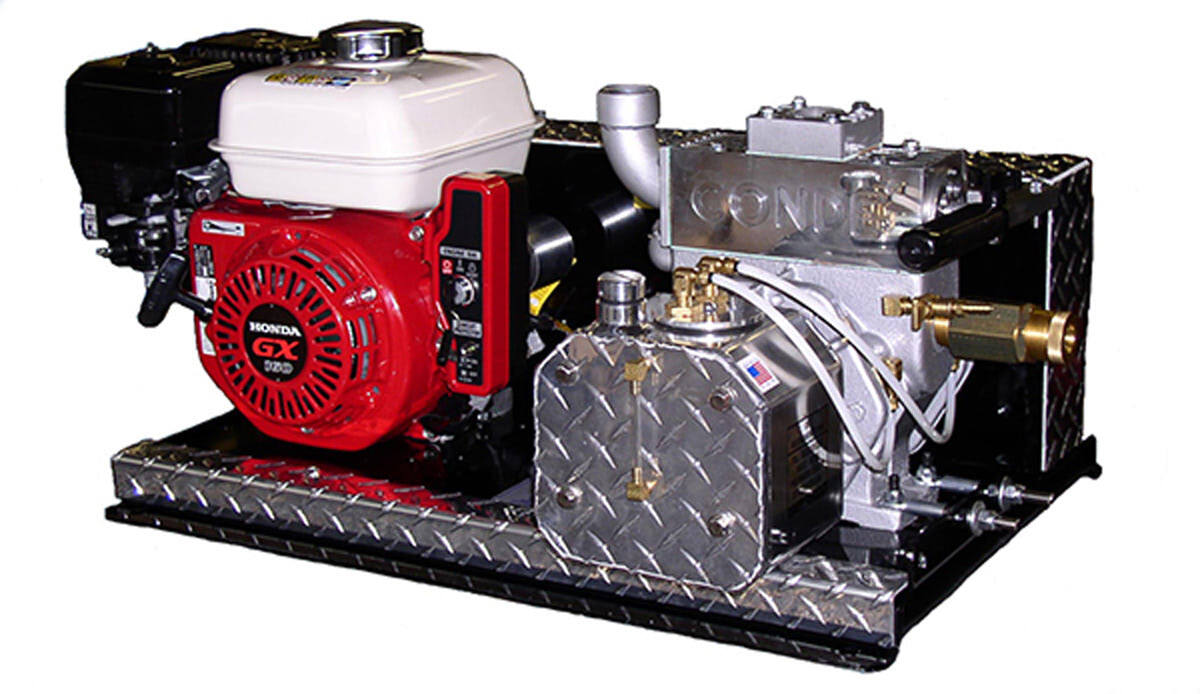

Westmoor Conde PowerPaks
Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations. Direct-drive units incorporate a centrifugal clutch that allows the user to throttle down the engine and disengage the vacuum pump. Throttle up and the pump is in action. Specify either vacuum and pressure, or vacuum-only pump choice. Diesel-powered units are also available for applications where nonsparking engines are required. 800-367-0972; www.westmoorltd.com
Vacuum Trucks

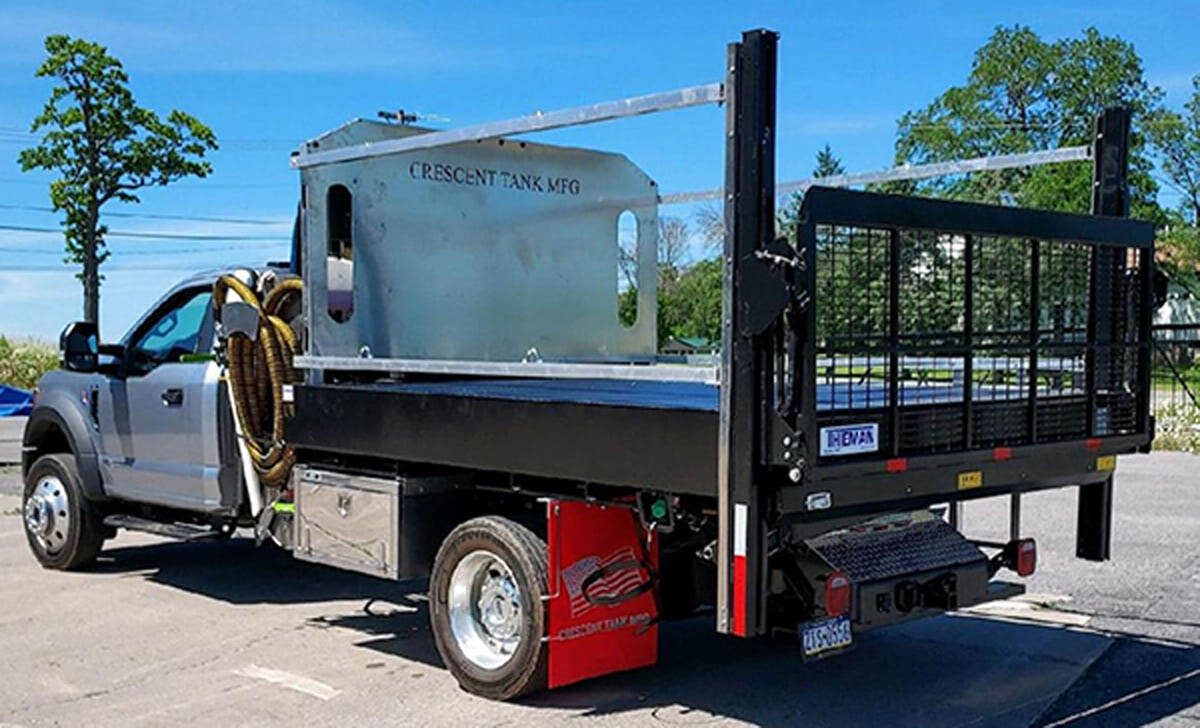

Crescent Tank vacuum tank
The Crescent Tank vacuum tank is flat inside and out. It can carry up to 10 portable restrooms, and the weight capacity is the same as a flatbed truck. It has no baffles, allowing it to be emptied completely to avoid internal corrosion. With the included pump at specified cubic feet per minute, unnecessary structural fatigue is eliminated. It is fabricated from 1/4-inch steel for structural strength. Its workstation is designed for the portable restroom industry. The liftgate rail width allows units to fit, and multiple liftgate decks and rail options are available. Freshwater is held inside the external 1/2-inch-thick poly tank. It can be installed on any chassis within the specifications required for each model based on axle ratings and maximum load capacity. 585-657-4104; www.crescenttank.com

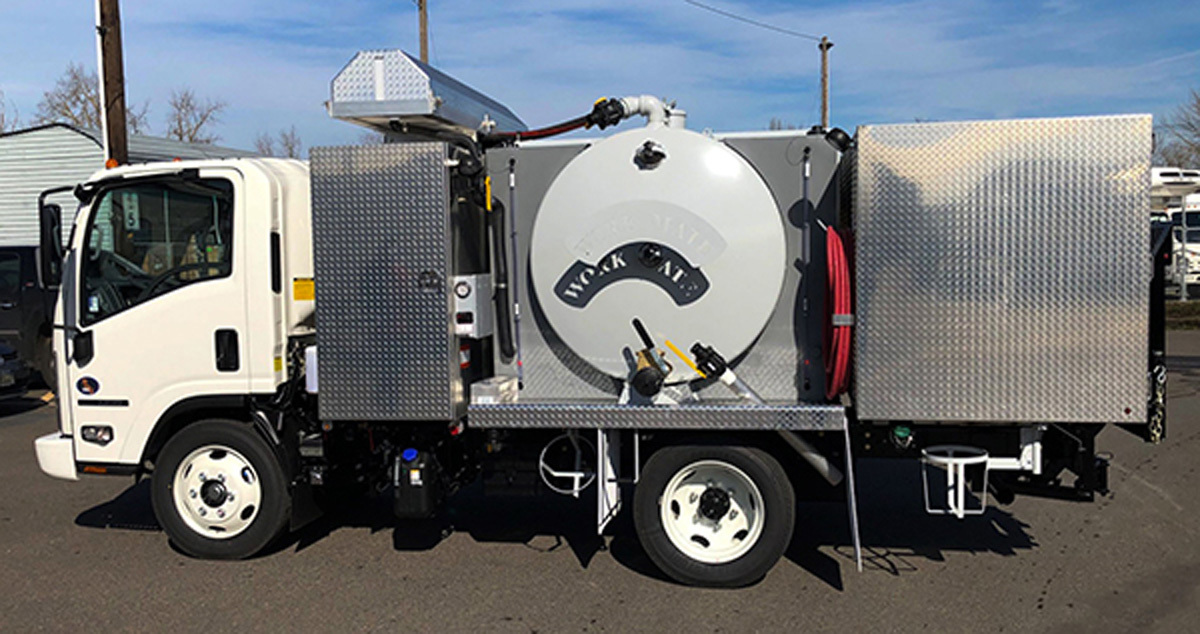

FMI Truck Sales & Service WorkMate
The WorkMate service truck from FMI Truck Sales & Service has equal weight distribution of the sidewinder tank designed to extend brake life and improve handling. The two food-grade poly water tanks are plumbed to carry brine, freshwater, premix or any combination of fluids. The ergonomically designed workstation with more than 60 cubic feet of storage space saves time and effort during the workday, minimizing restocking and driver movement. It carries up to four restrooms. An E-track load securement system eliminates the need for ropes. Its modular design allows components to be easily replaced or transferred if damaged. The entire vacuum system is plumbed using hot-tar hose and Masport components. Marine-style wiring is used, and all of the electrical systems are contained in a watertight panel with automatic reset circuit breakers. 800-927-8750; www.fmitrucks.com

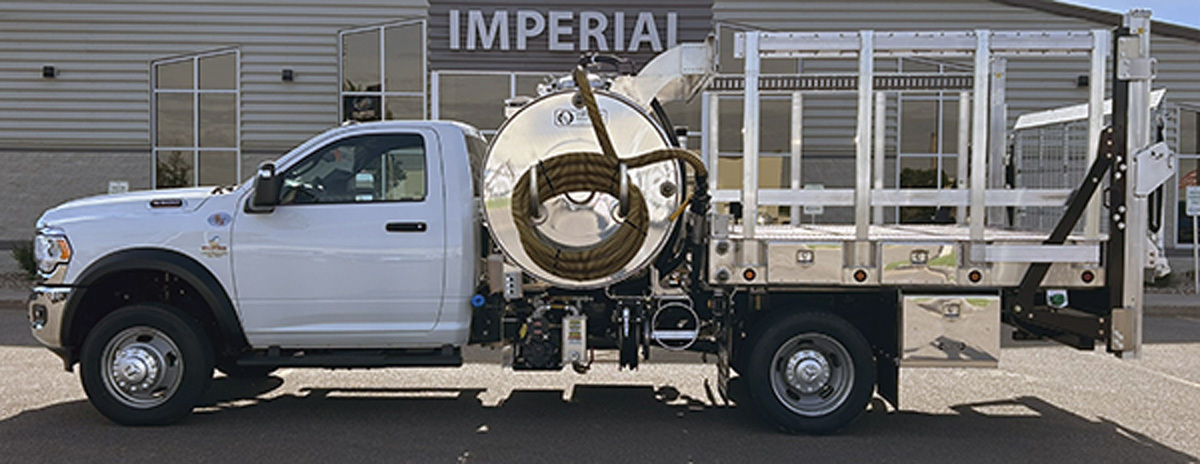

Imperial Industries Flatvac
The 1,000-gallon stainless steel Flatvac from Imperial Industries can carry up to six portable restroom units. The baffled, internally divided tank offers 700 gallons of waste capacity and 300 gallons of freshwater capacity. In addition, the unit offers dual-sided bucket fill, dual Hannay hose reels with 50 feet of hose, a Pumptec X-5 washdown pump, Masport HXL4 plug-and-play vacuum pump system, Thieman liftgate and a 3-inch stainless steel boom with 30 feet of 2-inch intake hose and a suction nozzle. 800-558-2945; www.imperialind.com

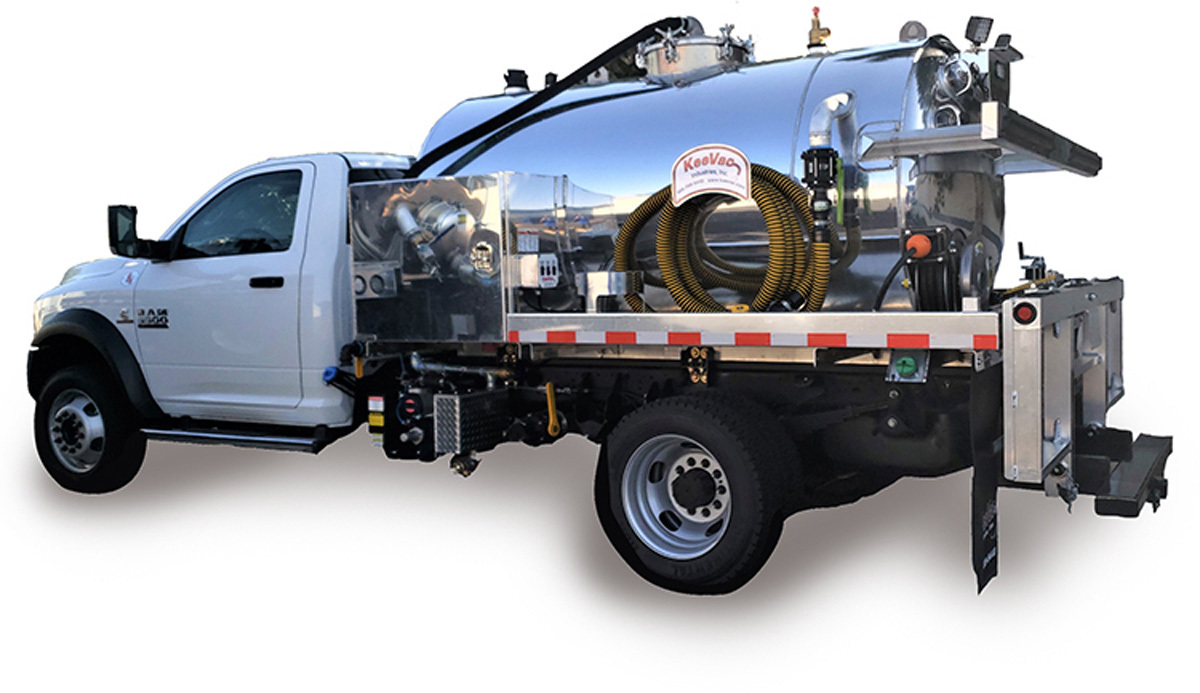

KeeVac Industries KV999
The KV999 from KeeVac Industries carries a 999-gallon portable restroom vacuum tank for operators who want to stay under the U.S. Department of Transportation tanker endorsement requirement. It is available in steel, stainless steel and aluminum, with single- or dual-side service, holds 699 gallons of waste and 300 gallons of freshwater, and includes a two-unit fold-down restroom carrier with trailer hitch. The tank can be mounted on a variety of chassis and with a variety of pumps. Each unit comes with an upgraded DC-10 washdown pump and hose reel from Hannay Reels. Exterior controls and dual cabinets are designed for operator safety and convenience. An arctic package and safety lighting are available. 866-789-9440; www.keevac.com

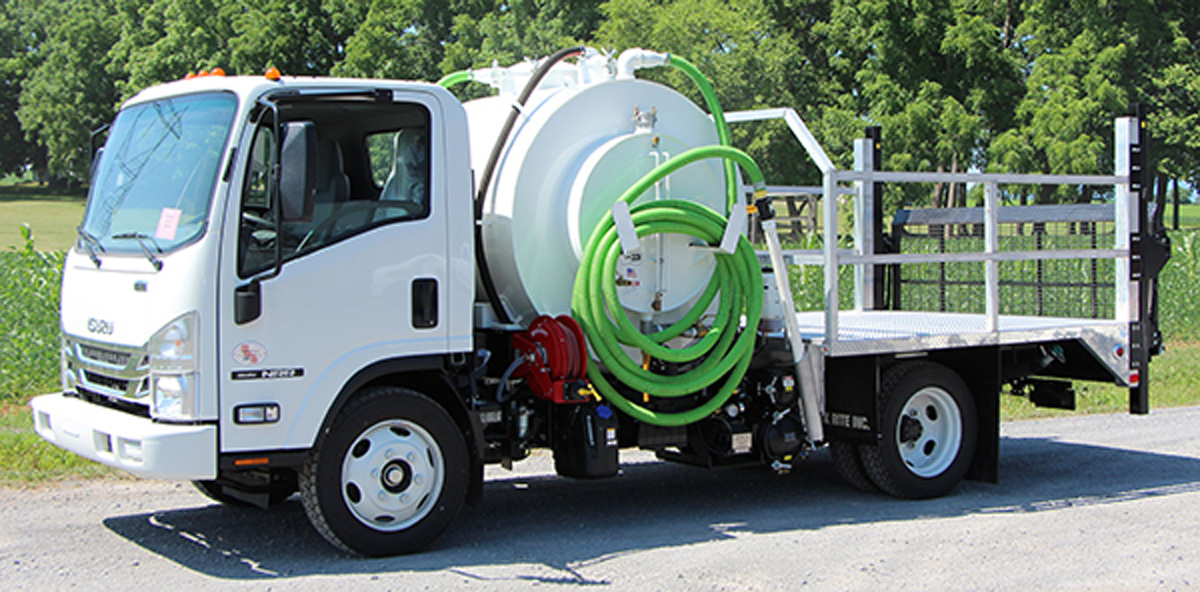

Pik Rite Flatbed Restroom Hauler
The Flatbed Restroom Hauler from Pik Rite has a 650-gallon tank, flatbed and liftgate. The tank has a 400-gallon waste compartment and internal 250-gallon freshwater compartment for even weight distribution. The truck includes a National Vacuum Equipment 304 vacuum pump, dual 2-inch fill hoses, 20-gpm washdown system, dual-spring return freshwater hose reels and dual 2-inch bucket fills. A 20-inch top manway, 5-inch sight eyes and clear-hose sight tube are included. The truck is equipped with a 98-by-102-inch aluminum flatbed and Thieman TVL liftgate. Two diamond plate toolboxes are mounted on the passenger side. The truck has an LED running light kit with a durable, fully molded wiring harness. 800-326-9763; www.pikrite.com

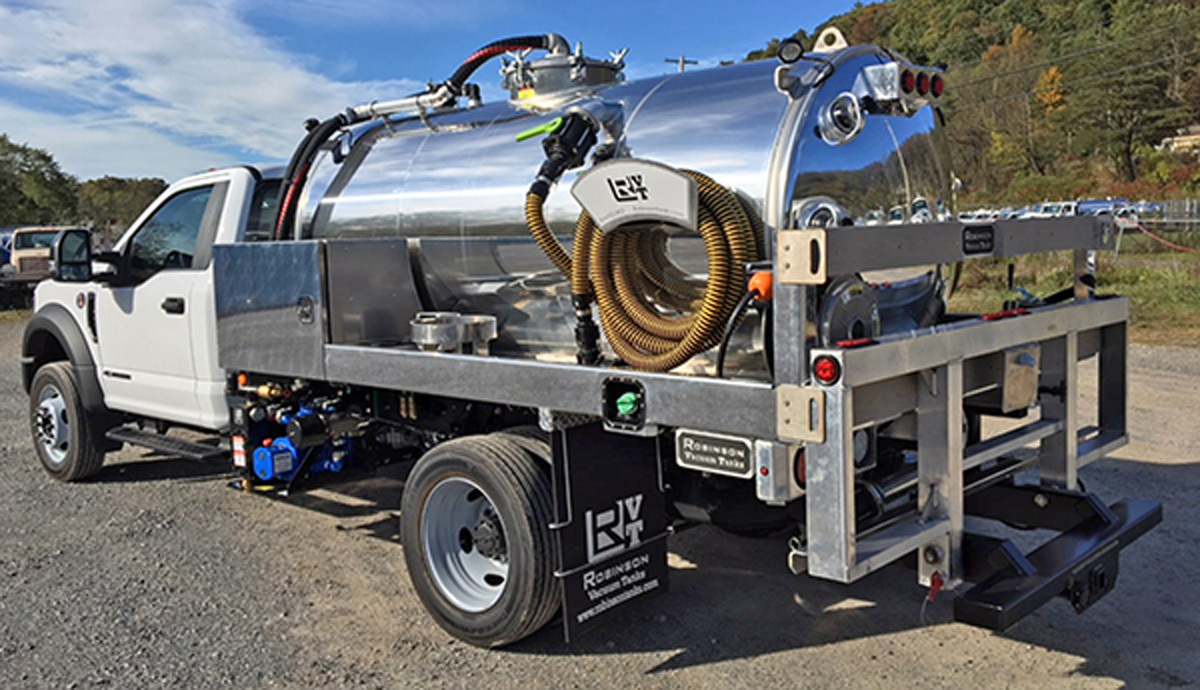

Robinson Vacuum Tanks PR1200A
The PR1200A truck from Robinson Vacuum Tanks carries a 900-gallon waste/300-gallon freshwater aluminum portable restroom service tank. This model is set up standard with dual-side service including toolbox, suction hose and bucket fill. The unit comes with a bumper capable of towing a trailer, and it has a folding platform to haul two portable restrooms. Chassis options include choice of manufacturer, two-wheel or four-wheel drive, and gas or diesel. There are also multiple options for vacuum and water pumps. 814-933-0927; www.robinsontanks.com

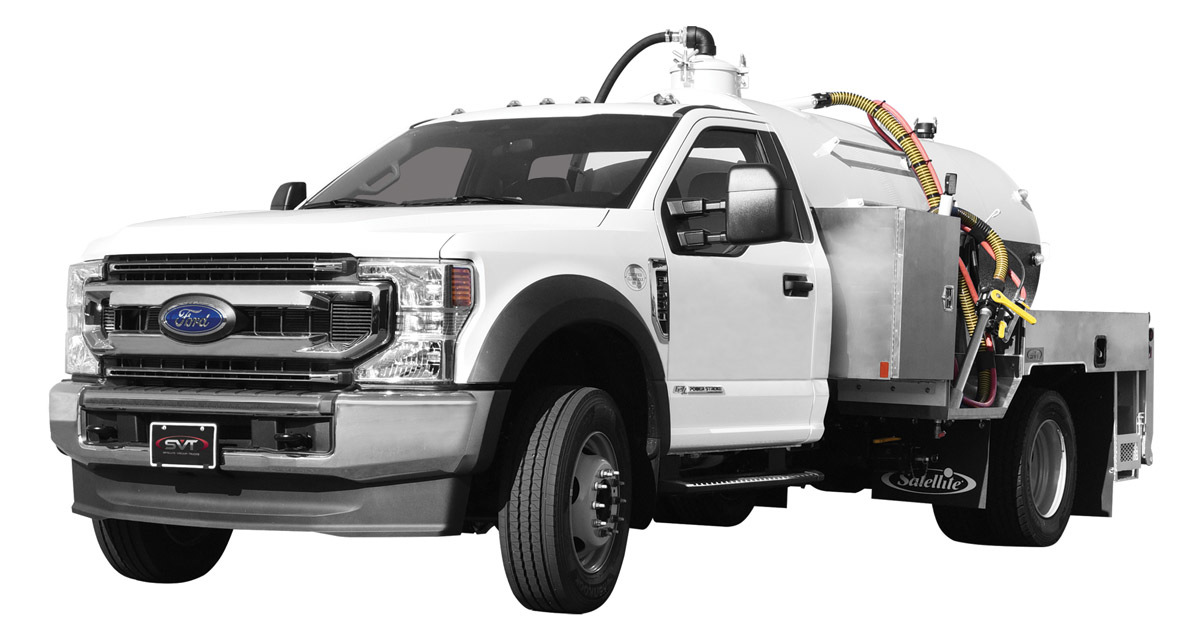

Satellite Industries MD1250
Satellite Industries’ MD1250 is a medium-sized vehicle able to maneuver in tight spaces and carries an 850-gallon waste, 400-gallon freshwater steel tank. It comes with a lowered workstation to make servicing easy, even for a smaller-stature driver. Popular features include a galvanized unit hauler, stainless steel catwalk, and a stainless steel cabinet on the passenger side. It is now available with a F-600 chassis, with a heavier GVWR allowing a larger tank while maintaining the same footprint as its counterpart F-550. 800-883-1123; www.satelliteindustries.com
Water Pumps

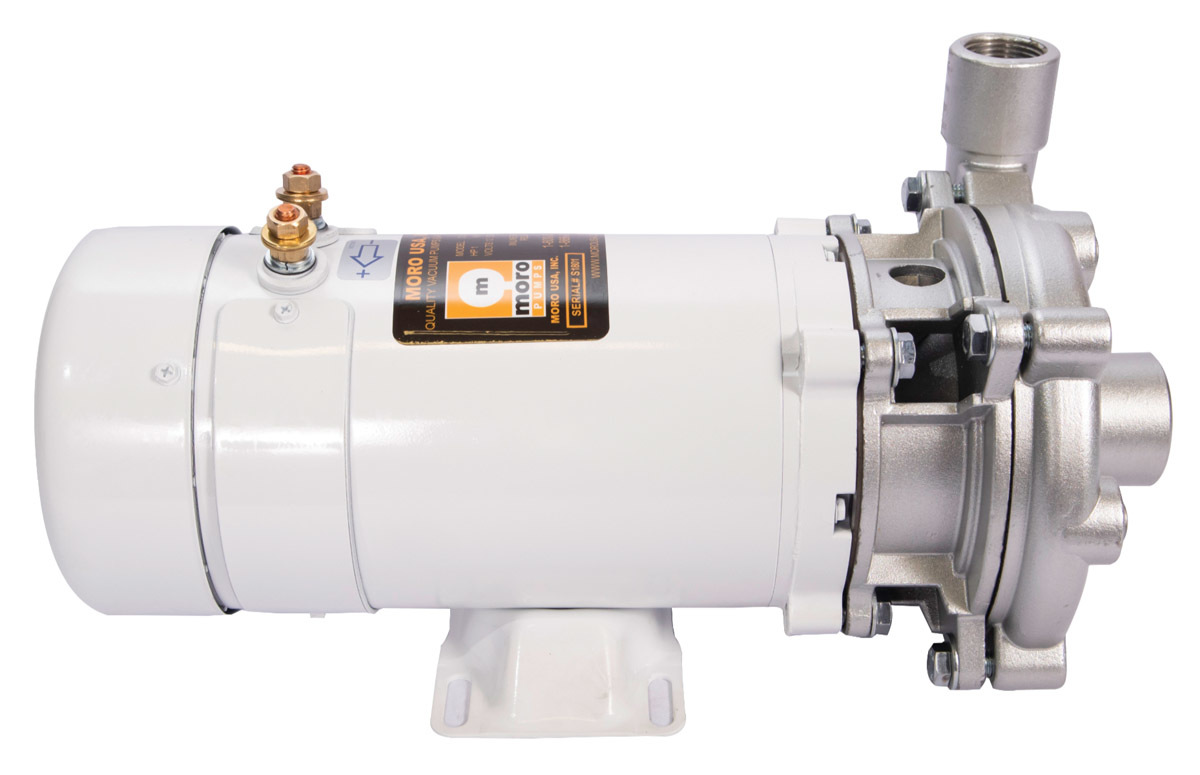

Moro USA DC
Heavy-duty Moro USA DC water pumps offer 20 gpm maximum flow for quick restroom fills, while 42 psi maximum pressure provides quick high-pressure cleaning. Available with cast iron or stainless steel pump body, both models offer a stainless steel impeller and Viton elastomers. Fan-cooled, 12-volt (83-amp maximum draw) motors are epoxy-coated for durability. These continuous-duty pumps come solenoid- and pressure-switch standard for easy installation. They have 1.25-inch suction and 1-inch discharge ports. The discharge can be mounted in four positions. 800-383-6304; www.morousa.com
